113030K20M030E
Product Overview

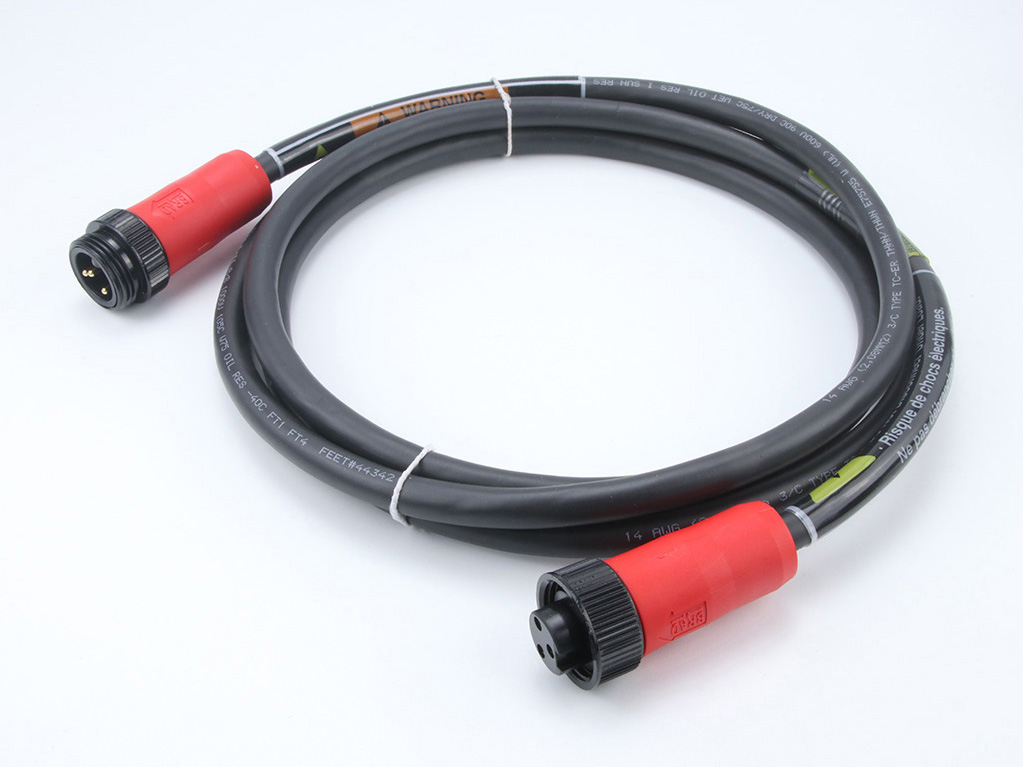

The BradPower A-Size (7/8”–M22) Double-Ended Cordset from MOLEX / WOODHEAD is a high-quality industrial cable designed for reliable power and signal transmission in demanding environments. This double-ended cordset features a 3-pole configuration with male and female connectors, ensuring secure and durable connections for industrial applications.
Key Features
Part Number: 113030K20M030E
Manufacturer: MOLEX / WOODHEAD
Country of Origin: US
Unit of Measure: EA
ECCN: EAR99
Package Type: BAG
Datasheet: View Datasheet
Product Specifications
Series Number
130062
Description
BradPower A-Size (7/8”–M22) Double-Ended Cordset, 3 Poles, Male (Straight) to Female (Straight), 14 AWG, Black TPE Cable, 3.0m (9.84') Length
IP Rating
IP67
Current (Max per Contact)
15.0A
Voltage (Max)
600V
Cable Diameter
8.63mm (.340")
Cable Length
3.0m (9.84')
Cable Jacket Material
TPE
Connector Body Material
TPE
Contact Material
Copper Alloy
Coupling Nut Material
Black Epoxy Coated Zinc
Plating Mating
Gold
Operating Temperature Range
-20°C to +90°C
Poles
3
Gender
Male (Straight) to Female (Straight)
Coupling Style
Threaded
Color - Cable Jacket
Black
Additional Details
Wire Size: 14 AWG
Wire Type: TC-ER
Net Weight: 444 g
Connector End A & B: BradPower A-Size (7/8”–M22)
Orientation: Straight to Straight
RoHS Compliance: EU RoHS compliant with exemption 6(c) per EU 2015/863
Certifications and Compliance: GADSL/IMDS, China RoHS, EU ELV (not reviewed), REACH SVHC (not reviewed), IEC-62474, IPC 1752A Class C & D
Visual Reference
Disclaimers
Datasheet was not processed; please search the internet for the part number 113030K20M030E for more details.
