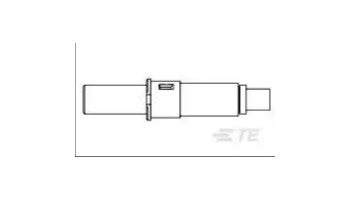

TE CONNECTIVITY/AMP AMP PRC: AMP Part Number 1445692-1 - Rack & Panel Connectors ASY PIN QUADRAX
Enhance your electronic assembly with the high-performance TE CONNECTIVITY/AMP Rack & Panel Connectors, part number 1445692-1 . Designed for reliable signal transmission in demanding environments, this Quadrax pin contact connector is ideal for aerospace, defense, and marine applications.
Product Features
Product Type: Connector | Rack & Panel Connectors
Connector Style: Quadrax, Pin Contact
Wire & Cable Compatibility: Straight, Gold (Au) Plated
Electrical Characteristics: Impedance 100 Ω, Current Rating 1 A
Operating Temperature Range: -65°C to 125°C [-85°F to 257°F]
Contact Material: Copper with Gold (Au) Plating
Contact Length: 31.37 mm [1.235 in]
Termination Method: Hex Crimp to Wire & Cable
Contact Removal Style: Rear Release/Rear Remove
RoHS Compliant: Yes
ECCN: EAR99
Package Type: Black (BLK)
UOM: Each (EA)
Country of Origin: US
Specifications
Wire Size
24 AWG
Contact Type
Pin
RF Contact Style
Quadrax
Contact Orientation
Straight
Compatible RF Cable Type
Tensolite NF24Q100
Operating Temperature Range
-65°C to 125°C [-85°F to 257°F]
Impedance
100 Ω
Additional Details
Part Number: 1445692-1
Manufacturer: TE CONNECTIVITY/AMP
Country of Origin: US
Package Type: Black (BLK)
Datasheet: Download Datasheet
For more detailed specifications and related products, please visit the product page on TE.com .
Note: The datasheet was not processed; please search the internet for the part number 1445692-1 for additional details.
