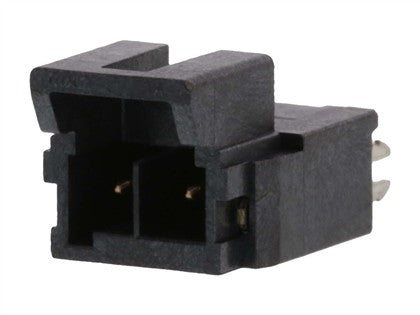

Introducing the MOLEX ULTRAFIT 3.5mm pitch vertical header, designed for reliable power and signal connections in PCB applications. This high-quality connector features a single row configuration with 2 circuits, making it ideal for power and wire-to-board applications.
Product Features:
Part Number: 172287-1202
Manufacturer: MOLEX
Country of Origin: MX
Unit of Measure: Each (EA)
ECCN: EAR99
Package Type: Black tray
RoHS Compliant: Yes
Glow-Wire Capable: Yes
Fully shrouded for secure mating
Polarized to ensure correct mating orientation
Through Hole termination interface
Maximum current per contact: 12.0A
Maximum voltage: 600V AC/DC
Durability: Up to 200 mating cycles
Material: Copper alloy with gold plating on contacts and tin plating on termination
Resin: Liquid Crystal Polymer (LCP)
Operating temperature range: -40°C to +120°C
PCB Thickness Recommended: 1.60mm
Pitch - Mating and Termination Interface: 3.50mm
Specifications:
Circuits (Loaded)
2
Color - Resin
Black
Flammability
94V-0
Guide to Mating Part
No
Lock to Mating Part
Yes
PCB Locator
Yes
PCB Retention
Yes
Material - Metal
Copper Alloy
Plating - Mating
0.381µm Gold
Plating - Termination
1.524µm Tin
Temperature Range - Operating
-40°C to +120°C
Additional Details:
Compatible with MOLEX Part Number: 1722563102
Designed for power and signal applications with high durability and reliable contact plating
Includes solder clips for secure connection
Package includes tray packaging for easy handling and assembly
For more detailed specifications and application information, please refer to the datasheet linked above. The datasheet was not processed; please search the internet for the part number 172287-1202 for additional details.
