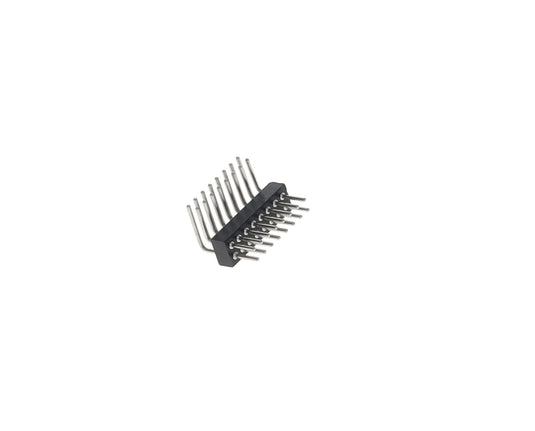

Introducing the MPE-GARRY GMBH Connector (Part Number: 192-2-016-0-T-LS0), a high-quality header and edge type connector designed for reliable electronic connections. Manufactured in Germany (COO: DE), this connector is suitable for various industrial and electronic applications requiring precise and durable connections.
Key Features
Rated current: 1.0 A
Rated voltage: 100 VRMS / VDC
Withstand voltage: 300 VRMS for one minute
Material contact: Copper alloy for optimal conductivity and durability
Material insulator: High-temperature thermoplast, UL94V-0 rated
Operating temperature range: -40°C to +105°C
Maximum processing temperature: 260°C for 10 seconds
Pitch: 1.27 mm
Contact diameter: ø 0.41 mm
Maximum in-count: 0/100/150 contacts
Package Type: EA (Each)
ECCN: EAR99
Product Specifications
Dimension / Parameter
Details
Dimension (mm)
All dimensions are in mm; refer to datasheet for detailed measurements
Contact Size
ø 0.41 mm
Variation
n x 1.27 + 0.41 mm, with options for different contact counts
Plating
Sn (Tin), Au (Gold) options available
Max. Incount
0/100/150 contacts depending on configuration
Operating Temperature
-40°C to +105°C
Max Processing Temperature
260°C for 10 seconds
Product Details
This connector series features turned contacts with a pitch of 1.27 mm, suitable for PCB mounting. The design supports various contact configurations, including n x 1.27 + 0.41 mm variations, ensuring flexibility for different electronic assembly needs. The high-temperature thermoplastic insulator and copper alloy contacts guarantee durability and reliable electrical performance.
Datasheet & Additional Information
For detailed technical specifications and dimensions, please refer to the datasheet.
Disclaimers
All specifications are subject to change. Please consult the datasheet for the most accurate and detailed information. Datasheet was not processed; please search the internet for the part number for more details.
