Best seller

Waveshare

1MP GMSL Camera Module with Automotive-Grade Sensor & IP67

SKU: WVSH0618

₹ 8,949.99

In stock | Ready to ship

⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
1MP GMSL Camera Module with Automotive-Grade Sensor & IP67₹ 8,949.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Details

1MP GMSL Camera Module, Automotive-grade Image Sensor, Built-in ISP, AA Lens, IP67 Protection Degree And More Durable
GMSL 1MP Camera

1MP | IP67 Water-resistant | GMSL communication protocol

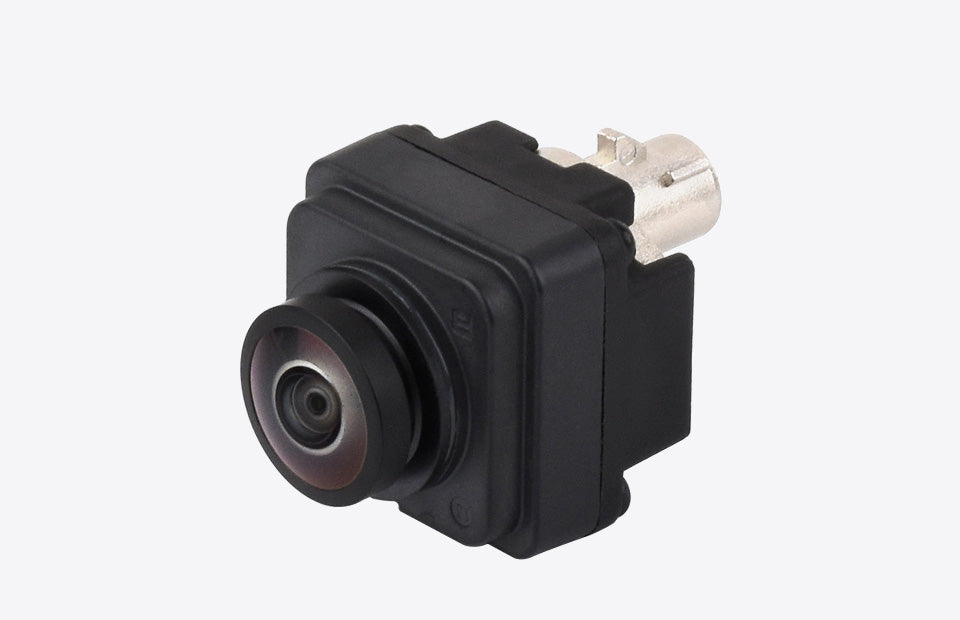

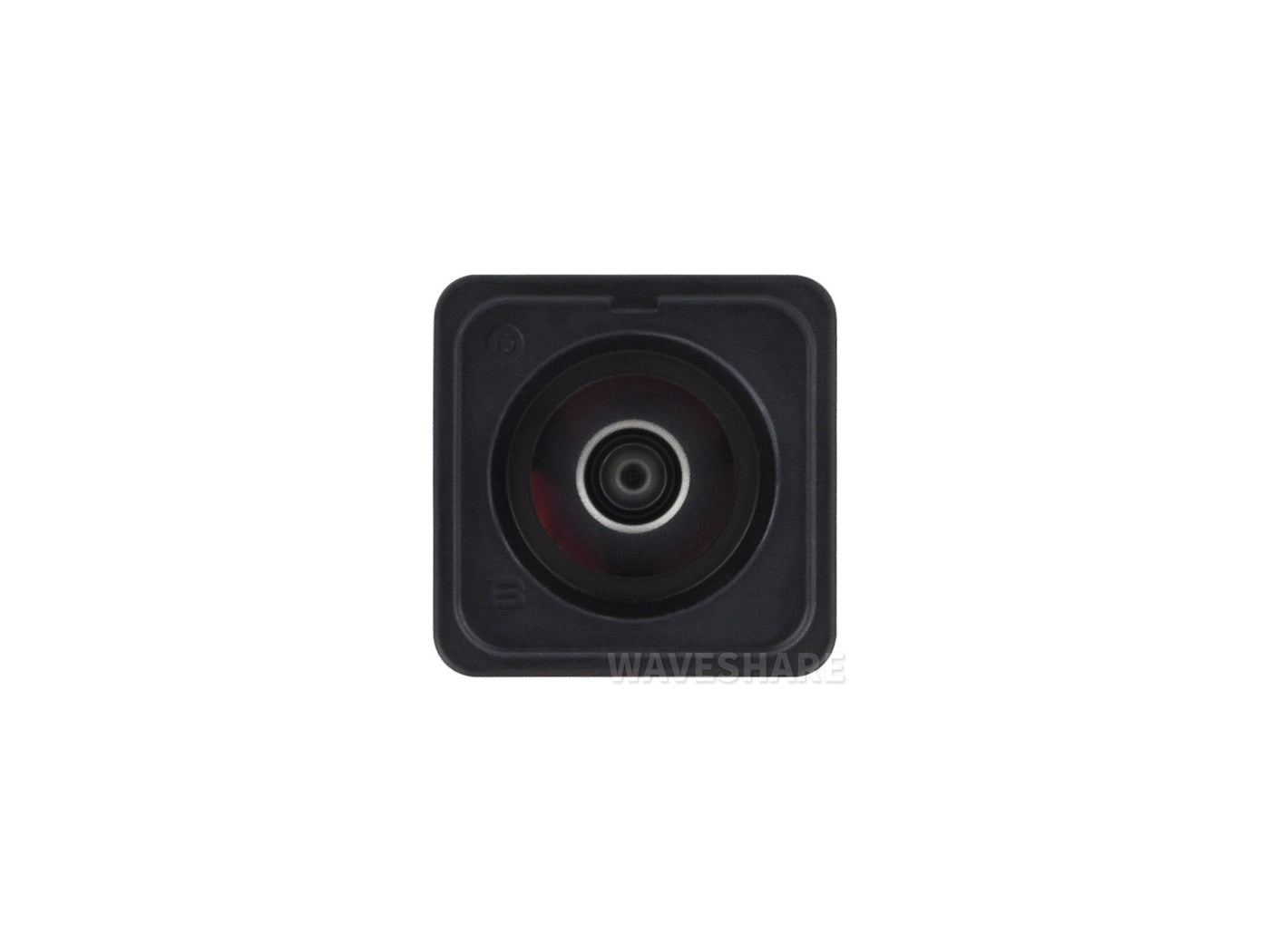

1MP GMSL Camera Module, front view 1MP GMSL Camera Module, icons

Product Introduction

The GMSL-1MP-Camera-A camera module adopts a 1MP automotive-grade CMOS image sensor and integrates the MAXIM MAX96701 GMSL serializer. It includes a professionally calibrated image signal processor (ISP), delivering clear and stable image quality. The entire unit features an IP67-rated case and comes with an AA lens, and each unit is precisely focused and glue-secured before shipment, making it well-suited for automotive and other demanding applications.

Specifications
Sensor Model 1.3MP RGGB
Resolution 1280 × 960
CMOS Size 1/3.55inch
Pixel Size 3.0 × 3.0 (um)
Camera FOV 196°(H) × 151°(V)
ISP Built-in
Frame Rate 1280 × 960 at 30fps
Output Format YUV422 at 8bit
Serializer Model MAXIM MAX96701
I2C Address 0x80 (8-bit address)
Camera Interface TE Fakra (C Code)
Operating Voltage 9 ~ 12V PoC
Operating current < 150mA at 12V
Operating Temperature -40°C ~ 85°C
Protection Grade IP67

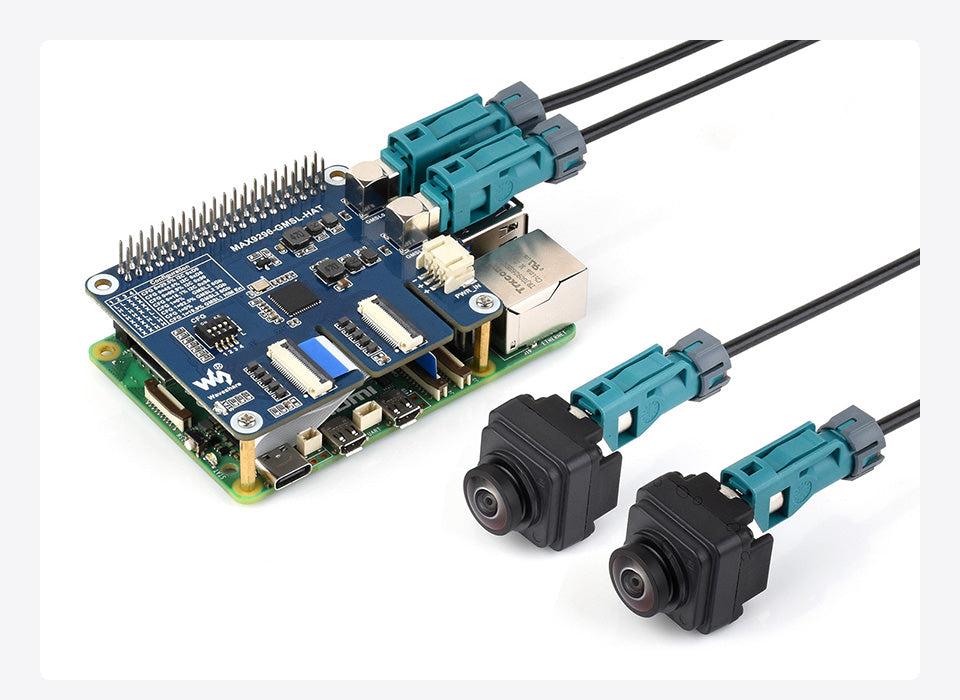

Application Example
1MP GMSL Camera Module, connecting with Raspberry Pi 5

* for reference only, the Raspberry Pi 5 and GMSL camera expansion board are NOT included, please check the Package Content for the detailed part list.

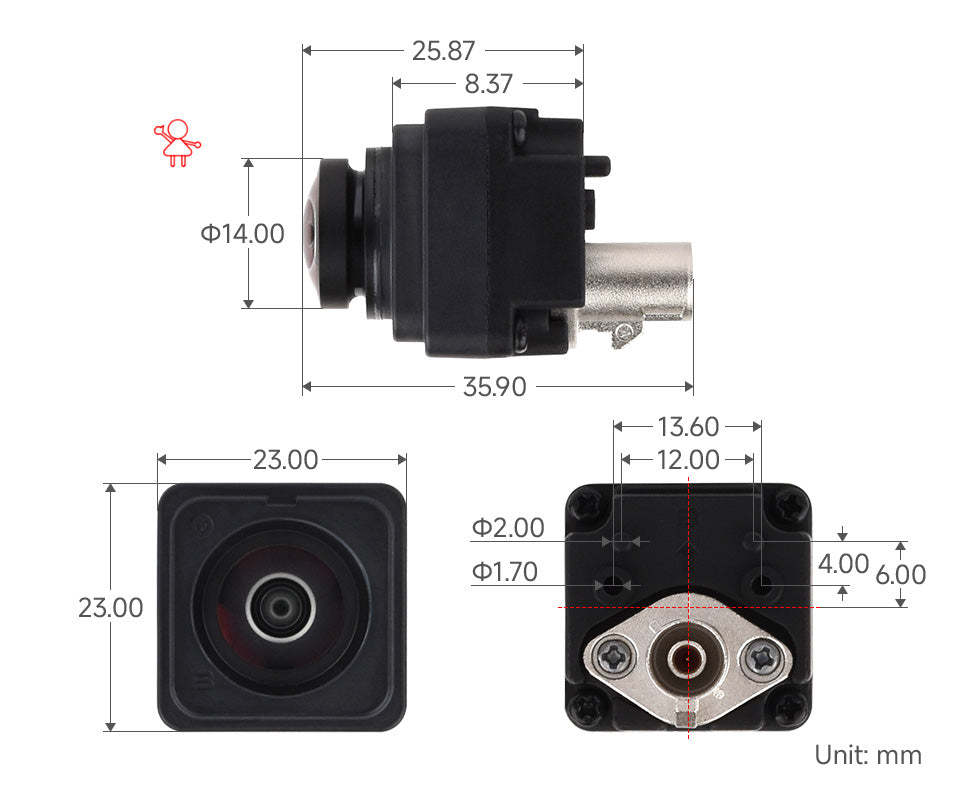

Outline dimensions
1MP GMSL Camera Module, outline dimensions
Resources & Services
Wiki: docs.waveshare.com/GMSL-1MP-Camera-A

GMSL Camera Selection Guide
Model sensor pixel Resolution Frame rate
(FPS)		 FOV
(H × V)		 Serializer ISP Water-resistance
GMSL-1MP-Camera-A - 1MP 1280×960 30 196°(H)×151°(V) MAX96701 built-in IP67
GMSL-2MP-Camera-A - 2MP 1920×1080 30 195°(H)×152°(V) MAX96717F built-in IP67
ISX031-GMSL-Camera-H60 * ISX031 3MP 1920×1536 30 64.9°(H)×50.6°(V) MAX96717 built-in IP67
ISX031-GMSL-Camera-H100 ISX031 3MP 1920×1536 30 100°(H)×78.5°(V) MAX96717 built-in IP67
ISX031-GMSL-Camera-H120 * ISX031 3MP 1920×1536 30 118.4°(H)×91.56°(V) MAX96717 built-in IP67
ISX031-GMSL-Camera-H190 ISX031 3MP 1920×1536 30 197°(H)×162.3°(V) MAX96717 built-in IP67

Weight: 0.061 kg

Quick Overview

  1. GMSL-1MP-Camera-A x1

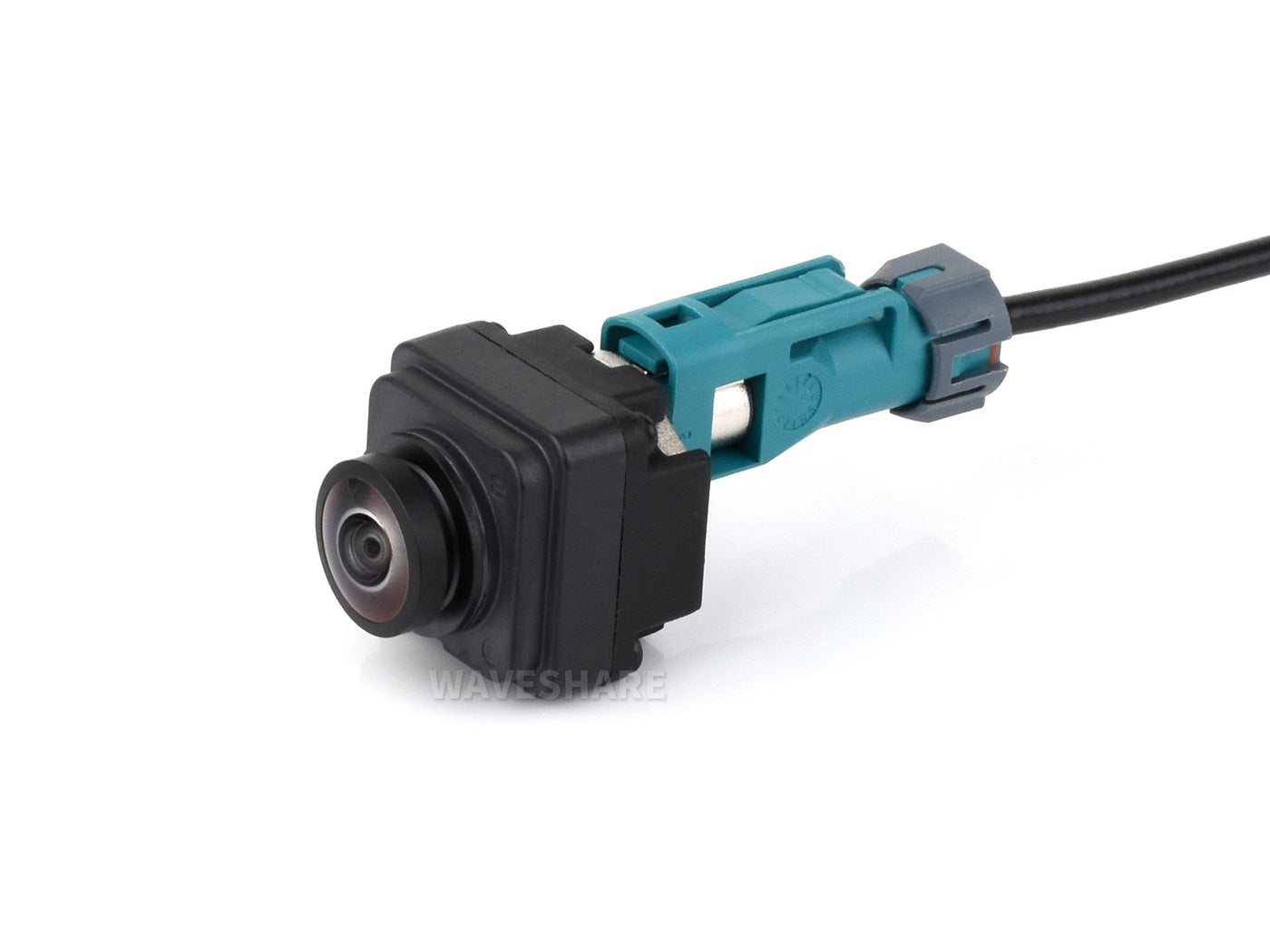

  2. GMSL camera cable ~2m (coaxial cable with dual female connectors) x1
1 GMSL-1MP-Camera-A
2
What is the sensor model and resolution of the module?
The module uses a 1.3MP RGGB CMOS sensor, 1280 x 960 resolution, and a 1/3.55 inch size with 3.0 x 3.0 um pixels.
What protection does the housing offer?
The enclosure is IP67 rated, providing water resistance and rugged durability for harsh environments.
What data transmission interface does it use?
The module uses the GMSL transmission protocol with a built in MAX96701 serializer for high speed data.
What is included regarding optics and assembly?
It ships with an AA lens, and each unit is precisely focused and glue secured before shipment.
Is this module suitable for automotive applications?
Yes, it is designed for automotive use with an automotive grade sensor, built in ISP, and IP67 protection for demanding applications.
