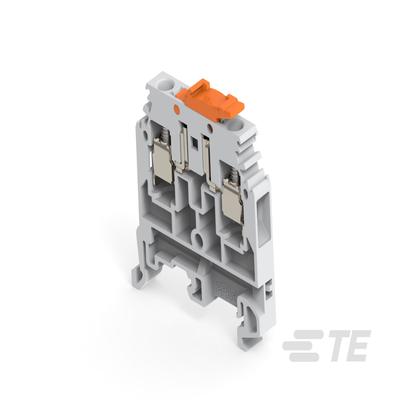

Optimize your electrical connections with the TE CONNECTIVITY / ENTRELEC Modular Terminal Block, designed for reliable performance in industrial applications. This terminal block features a screw clamp connection type, rated for 20A, and supports a maximum voltage of 400V, making it suitable for various low-voltage power distribution tasks.
Part Number: 1SNA115986R0000
Manufacturer: TE CONNECTIVITY / ENTRELEC
Country of Origin (COO): PL
Unit of Measure (UOM): EA
ECCN: EAR99
Package Type: PCS
Designed for ease of installation and maintenance, this terminal block features a compact profile with dimensions of 6 mm width, 44.5 mm height, and 44.5 mm depth. It is mounted on DIN rails G32, TH35-7.5, or TH35-15, ensuring versatile compatibility with standard industrial mounting systems.
Key Features
Rated for 15A and 4mm² conductor capacity
Single level design with screw clamp connection
Disconnect function with blade operated disconnect for quick operation
Supports flexible and rigid conductors (0.5 to 4 mm²)
Wire stripping length of 9.5 mm for secure connections
Polyamide insulation material for durability and safety
RoHS compliant, following EU Directive 2002/95/EC
Certified to UL/CSA standards with a maximum operating voltage of 300V for UL/CSA applications
Technical Specifications
Parameter
Value
Rated Current
20 A
Rated Voltage
400 V
Rated Short-time Withstand (1s)
300 A
Rated Impulse Withstand Voltage
4000 V
Pollution Degree
3
Degree of Protection
IP20 (Main Terminals)
Operating Temperature
-55°C to +110°C
Environmental & Certifications
RoHS compliant
Certificates: CSA, cUL, EAC, RMRS
Environmental info available in datasheet
Additional Information
For detailed technical data, instructions, and manuals, refer to the datasheet.
Note: The datasheet was not processed; please search the internet for the part number for more details.
