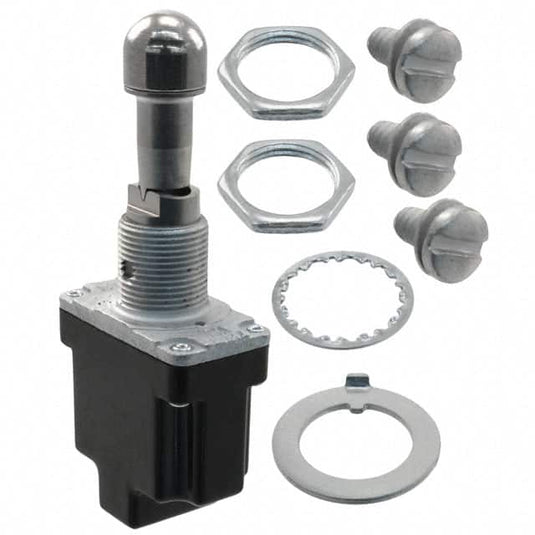

Enhance your electronic applications with the reliable and robust HONEYWELL MR Series toggle switch, designed for demanding military, aerospace, and industrial environments. This SPDT (Single Pole Double Throw) toggle switch features a screw terminal connection and is qualified to meet MIL-DTL-3950 standards, ensuring exceptional durability and performance under extreme conditions.
Product Features
Military-Qualified Design: Meets MIL-DTL-3950 specifications for sealed toggle switches, suitable for harsh environments involving shock, vibration, temperature extremes, dust, and water exposure.
Environmental Sealing: Bonded seals between toggle lever and bushing, and cover and case, provide resistance to demanding indoor and outdoor conditions.
Versatile Circuitry: Available in 1-, 2-, and 4-pole options with 2- and 3-position toggle actions, both maintained and momentary, accommodating various circuit requirements.
Global Certifications: UL recognized, CSA certified, and CE approved for worldwide use.
Multiple Termination Options: Screw terminals, solder lugs, and IWTS (Integrated Wire Termination System) for flexible wiring.
High Electrical Ratings: Capable of handling up to 20 A AC/DC loads with silver alloy or gold-plated contacts.
Robust Construction: Engineered with military-grade components, featuring an innovative case design to prevent shorting and ensure long operational life.
Temperature Range: Operates reliably from -65 °C to 71 °C [-85 °F to 160 °F].
Specifications
Characteristic
Parameter
Description
Military-grade toggle switch
Sealing
Qualified to MIL-DTL-3950
Operating Temperature
-65 °C to 71 °C [-85 °F to 160 °F]
Actuators
Standard, locking, special design, tab
Action
2- or 3-position; momentary and maintained
Mounting
Bushing 15/32 in (0.47 in) diameter
Circuitry
SPST, SPDT, DPST, DPDT, 4PST, 4PDT
Terminations
Screw, solder, IWTS, quick-connect, leadwire
Contacts
Silver alloy or gold-plated
Amp Rating
Up to 20 A
Dimensions
26.7 mm H x 33.5 mm W x 22.6 mm D [1.05 in H x 1.32 in W x 0.89 in D]
Electrical Ratings
Rating Code
Electrical Rating
L192
10 A, 125/250/277 Vac; ¼ Hp, 125 Vac; ½ Hp, 250/277 Vac; 3 A, 125 Vac
L191
15 A, 125/250/277 Vac; ½ Hp, 125 Vac; 1 Hp, 250/277 Vac; 5 A, 125 Vac
Applications
Military and commercial aircraft and helicopters
Aviation ground support equipment
Military land vehicles (tracked and wheeled)
Construction equipment such as road pavers and trenchers
