21.5 inch Capacitive Touch Monitor, 1080Ɨ1920 Full HD

SKU: WVSH0066

ā‚¹ 35,549.99

In stock | Ready to ship

āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
21.5 inch Capacitive Touch Monitor, 1080Ɨ1920 Full HDā‚¹ 35,549.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Size

21.5ā€³

Resolution

1080Ɨ1920

Display Interface

HDMI

Display Color

16.7M

Viewing Angle

170Ā°

Touch Type

Capacitive

Touch Port

Type-C

Touch Points

10-Point

Touch Panel

Toughened Glass

Touch Panel Tech

Optical Bonding

Temperature Range

-5 ~ 60ā„ƒ

OSD Menu

Brightness/Contrast

Sound

Hi-Fi Speaker

Enclosure

Aluminum Alloy

VESA Wall Mount

100 Ɨ 100mm


Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali, single point touch, driver free

Jetson Nano

Supports Ubuntu, single point touch, driver free

PC

Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

Ā

Connection Examples

Working with Raspberry Pi 5

Ā

Working with Raspberry Pi 4B

Working with Raspberry Pi Compute Module 4

Ā

Working With Jetson Nano

Ā

Working With Mini PC


Configurable Display Orientation

The display orientation is portrait by default, 1080Ɨ1920 resolution (HƗV).
Change the software config for landscape display

Ā

Wide Viewing Angle IPS Display Panel

Excellent Display & Color Performance
Wide Viewing Angle Up To 170Ā°, Color Gamut Up To 72% NTSC


FHD High Resolution

1080Ɨ1920 Pixels, Clearer Display

- up to 10-point touch, depending on the operating system

- up to 6H hardness toughened glass panel

- Optical Bonding, display well and dustproof

Ā

Audio Feature

Built-In Ferrite Hi-Fi Speaker, Dual-Track Support


Reserved airflow vents

Ā

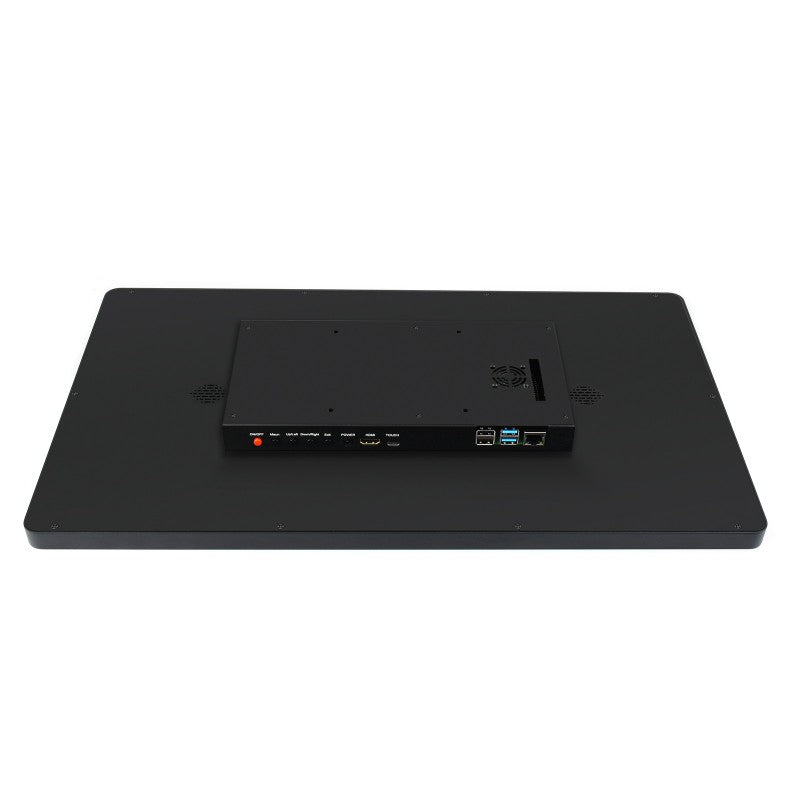

Interface


* For reference only, the monitor arm is not included.


Ā

Application Scenarios

Suitable For Industrial, Commercial, Medical and Other Applications


Ā

Dimensions

Ā

Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Over a decade

Waveshare grows with display

Ā

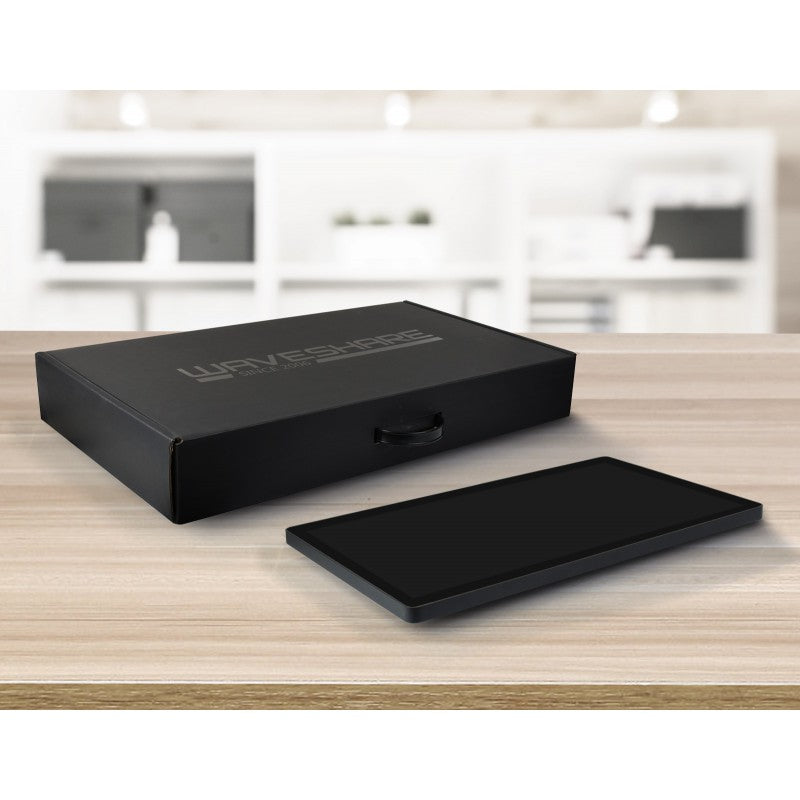

Package Contains:

21.5inch FHD Monitor Ɨ1

USB-A to USB-C cable ~1m Ɨ1

HDMI flat cable ~1m Ɨ1

12V 3A Power supply Ɨ1

Packaging box Ɨ1

Is this touch monitor compatible with Raspberry Pi and Windows PCs?
Yes. It supports Raspberry Pi OS with 10 point touch and Windows PCs with 10 point touch in driver free mode, and it also works with Ubuntu / Kali and Jetson Nano in driver free mode on supported configurations.
What cables are included with the monitor?
The package includes a USB A to USB C cable about 1 meter, an HDMI flat cable about 1 meter, and a 12V 3A power supply.
Can the display orientation be changed from portrait to landscape?
The default orientation is portrait and can be changed to landscape via software configuration.
What are the key display and touch specifications?
It uses a 21.5 inch 1080x1920 IPS panel with 170 degree viewing angle and 72 percent NTSC color. It supports 10 point capacitive touch with optical bonding and a toughened glass panel up to 6H.
What mounting options are available and what is the enclosure made of?
It supports VESA 100 x 100 mounting and has an aluminum alloy enclosure.
