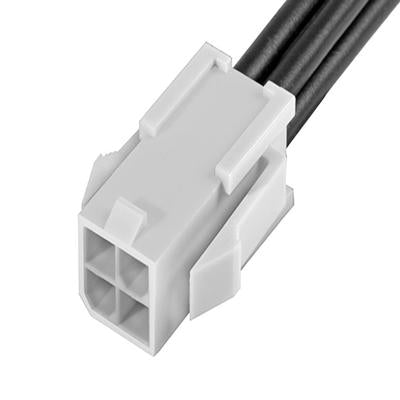

Introducing the MOLEX Part Number 215328-2043, a high-quality wire and cable assembly designed for power and signal applications. Manufactured in India, this Mini-Fit Jr. male-to-pigtail off-the-shelf (OTS) cable assembly offers reliable performance with precise specifications.
Product Features
Dual-row rectangular cable assembly with 4 circuits
600mm length for versatile installation
Gold (Au) plating for enhanced conductivity and corrosion resistance
Male pigtail configuration with locking mechanism for secure connections
Color: Black resin housing
Wire size: 16 AWG UL 1015
Maximum current per contact: 9.0A
Maximum voltage: 600V
Connector gender: Male with pigtail
Material: Brass with gold plating on mating surfaces and tin plating on terminations
Assembly configuration: Single-ended connector
Locking feature ensures secure mating
Specifications
Electrical & Physical
Details
Number of Circuits
4 (maximum)
Wire Type
UL 1015
Wire Size
16 AWG
Cable Length
600mm
Color
Black
Voltage Rating
600V
Current per Contact
9.0A
Number of Rows
2
Pitch - Mating Interface
4.20mm
Plating - Mating
0.762µm Gold
Plating - Termination
2.032µm Tin
Additional Details
Part Number: 215328-2043
Manufacturer: MOLEX
Country of Origin: India (IN)
Unit of Measure: Each (EA)
ECCN: EAR99
Package Type: Black (BLK)
Compliance: EU RoHS compliant, REACH SVHC not contained
For detailed compliance and safety information, please refer to the provided datasheet and visit the manufacturer's website. Datasheet was not processed; please search the internet for the part number for more details.
