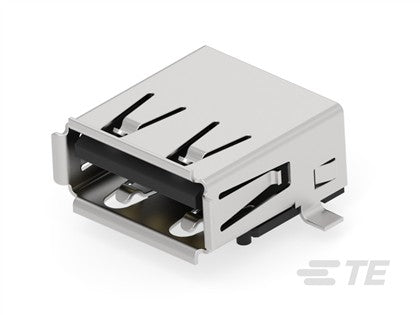

TE CONNECTIVITY/AMP BRAND Std USB Type A R/A SMT Offset Natural (Part Number: 292303-9)
Enhance your electronic connectivity solutions with the TE CONNECTIVITY/AMP BRAND Standard USB Type A Receptacle, designed for reliable surface-mount applications. This USB connector is compliant with industry standards and offers robust performance for power and signal transmission in various electronic devices.
Product Features
Product Type: USB Receptacle
USB Version: 2.0
Connector Profile: Standard
Number of Ports: 1
Number of Positions: 4
Surface Mount, Right Angle, Offset
Cable-to-Board Mounting
Surface Mount Mechanical Attachment with PCB Mount Retention
Body Finish: Bright Tin Plating
Housing Material: Thermoplastic, Natural Color
Operating Temperature Range: -55°C to 85°C
Soldering Temperature (Max): 240°C
Max Mating Cycles: 1500
UL Flammability Rating: UL 94V-0
RoHS Compliant: Yes
ECCN: EAR99
UOM: EA
Package Type: Reel
Specifications
Contact Features
Contact Mating Area Plating Material: Gold or Gold Flash over Palladium Nickel
Contact Thickness: 0.76 µm
Max Current Rating: 1 A
Termination Post & Tail Length: 2.47 mm
Termination Method: Surface Mount
Locking Feature: With PCB Mount
Locating Posts for PCB Mounting
Housing & Body
Color: Natural
Material: Thermoplastic
Orientation: Right Angle
Centerline (Pitch): 2 mm, 2.5 mm
PCB Thickness (Recommended): 1.2 mm
Soldering Temperature (Max): 240°C
Operating Temperature Range: -55°C to 85°C
Compliance & Certifications
EU RoHS Directive 2011/65/EU Compliant
EU ELV Directive 2000/53/EC Compliant
China RoHS 2 Directive
REACH Regulation (EC) No. 1907/2006: No SVHC above threshold
Solder Process Capability: Reflow solder capable to 260°C
Additional Information
For detailed technical drawings and CAD models, please refer to the product datasheet.
Product Package: Reel, Quantity: 300 units.
Part Number: 292303-9 | Manufacturer: TE CONNECTIVITY/AMP BRAND | COO: CN
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. This information is subject to change. The part numbers that TE has identified as EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Regarding the REACH Regulation, the information TE provides on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) guidance.
