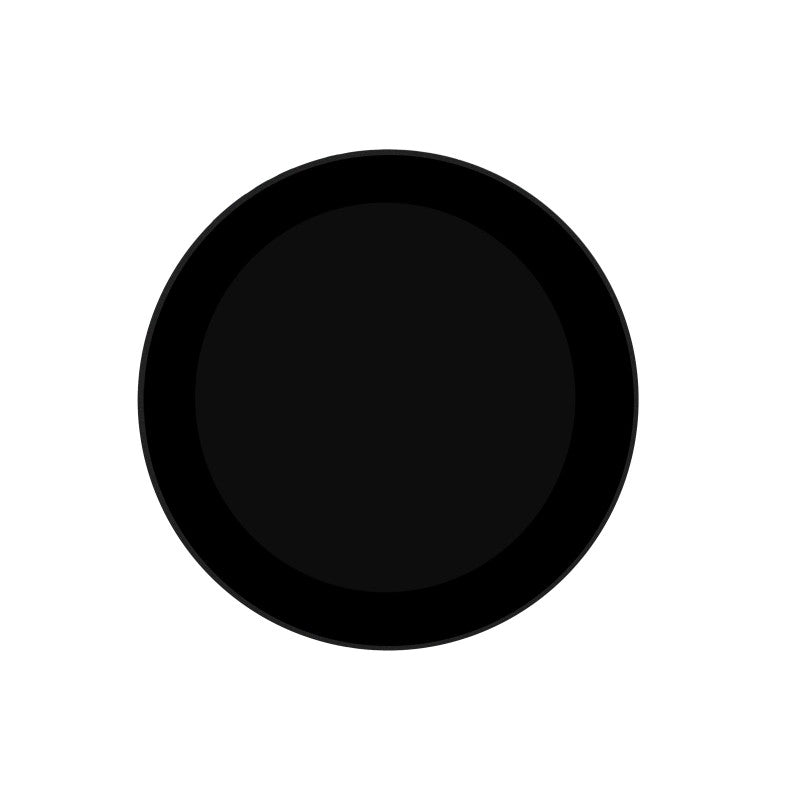

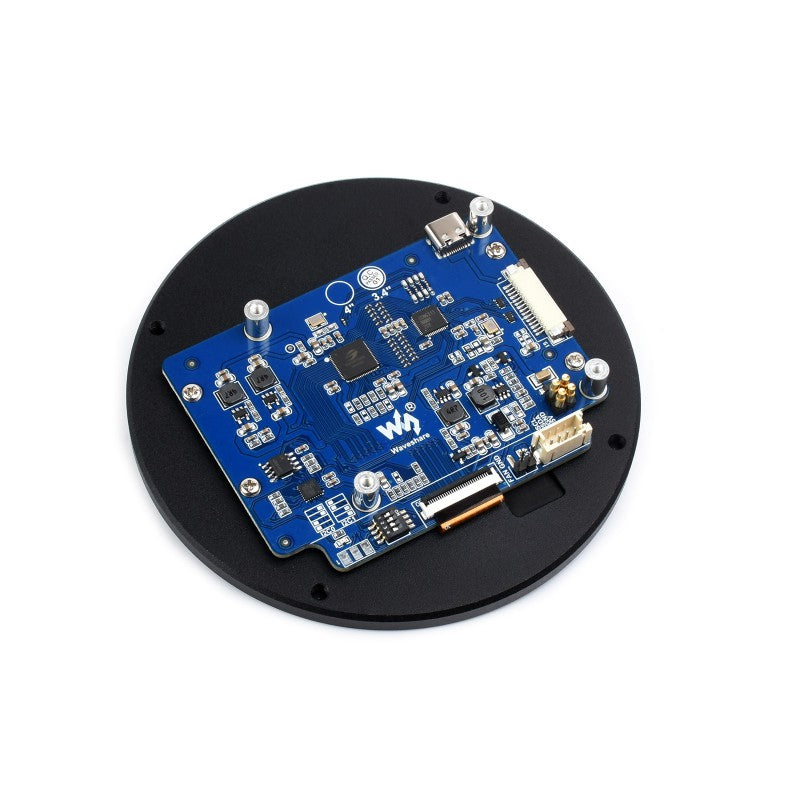

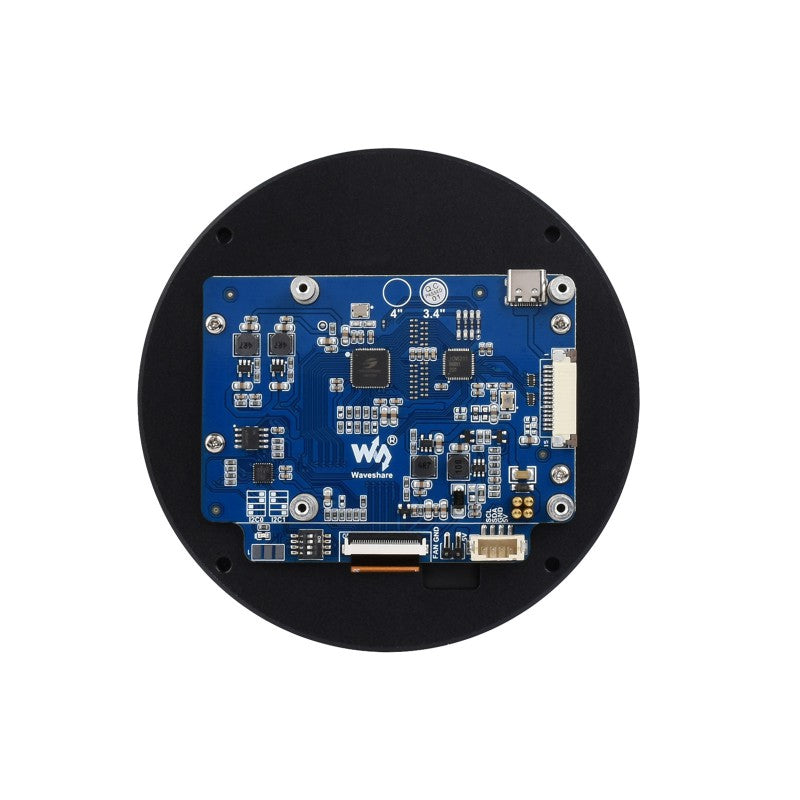

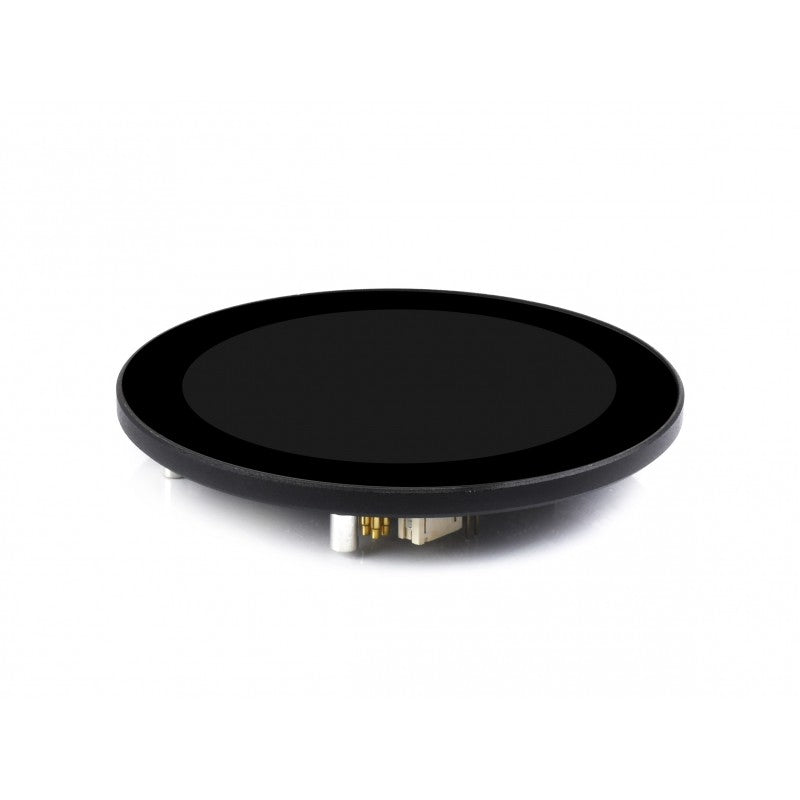

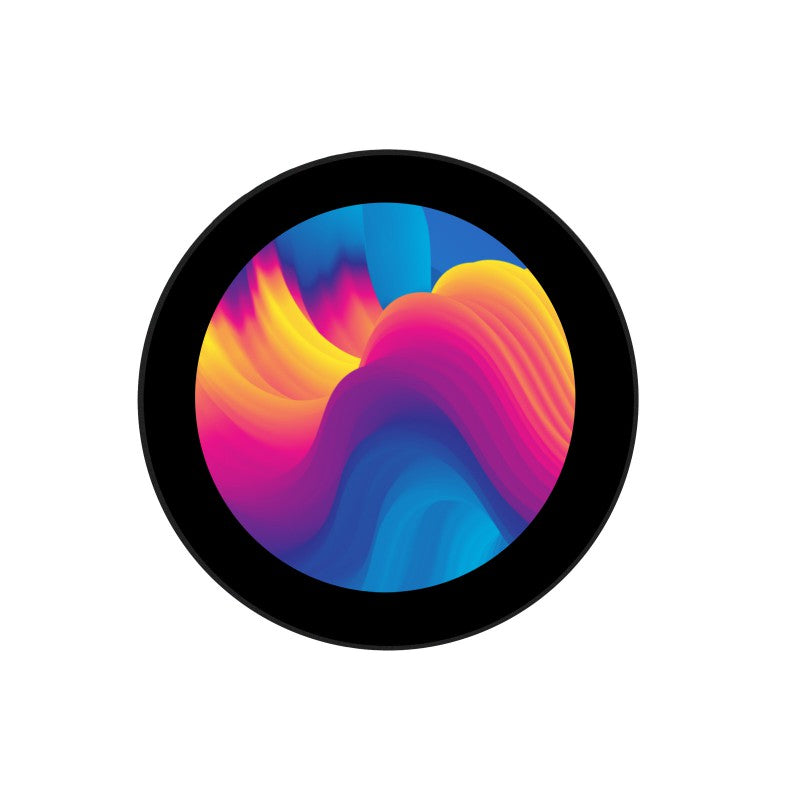

3.4inch DSI Round Touch Display, 800 Ɨ 800, IPS, 10-Point Touch

SKU: WVSH0071

ā‚¹ 10,199.99

In stock | Ready to ship

āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
3.4inch DSI Round Touch Display, 800 Ɨ 800, IPS, 10-Point Touchā‚¹ 10,199.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

3.4inch DSI Round Touch Display

800 Ɨ 800, IPS, 10-Point Touch


Size3.4" Resolution800Ɨ800 Display InterfaceDSI Display PanelIPS Viewing Angle170Ā°
Touch TypeCapacitive Touch Points10-Points Touch PortI2C Touch PanelToughened Glass Touch Panel TechOptical Bonding

Ā

Device & System Support

Ā
Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver required

Supports Pi 4B/3B+/3A+, CM3/3+/4*

* some CM3/3+/4 base boards require extraĀ adapter cable

Ā

Connection Examples

Working With Raspberry Pi 4B

Ā Ā

Ā

Working With Raspberry Pi 3B+

Ā
for reference only, the Raspberry Pi boards are NOT included.


IPS Display Panel

Excellent Display Performance With 170Ā° Wide Viewing Angle


Ā

10-Point Capacitive Touch

  1. up to 10-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel
  3. Optical Bonding, display well and dustproof


Ā

Adjustable Brightness Via Software


Ā

Interface Introduction


Ā

Application Examples

Ā

Smart Home

In-vehicle Devices

Consumer Electronics

Industrial Equipments



Dimensions





Wiki:Ā www.waveshare.com/wiki/3.4inch_DSI_LCD_(C)


Package Contents

  1. Weight:Ā 0.164 kg

  2. 3.4inch DSI LCD (C) x1

  3. FPC 15 PIN cable (~ 50mm) x2

  4. Screwspack

    1Ā 23

What are the key specifications of this display?
It uses a 3.4 inch round IPS panel with 800 by 800 resolution, a 170 degree viewing angle, a 10 point capacitive touch surface, a DSI display interface and an I2C touch panel.
Is this display compatible with Raspberry Pi hardware?
Yes, it supports Raspberry Pi OS and is compatible with Raspberry Pi 4B, 3B+ and 3A+. Some CM3, CM3 Plus and CM4 base boards may require an extra adapter cable.
How is touch input enabled and are drivers required?
The display provides 10 point touch via the I2C touch panel and a driver is required for touch input to function.
What about durability and brightness features?
The panel uses toughened glass with up to 6H hardness and optical bonding for dust resistance and brightness stability. Brightness can be adjusted via software.
What comes in the package and what are the mounting details?
Package contents include the 3.4 inch DSI LCD module, two FPC cables and mounting screws. The weight is approximately 0.164 kg.
