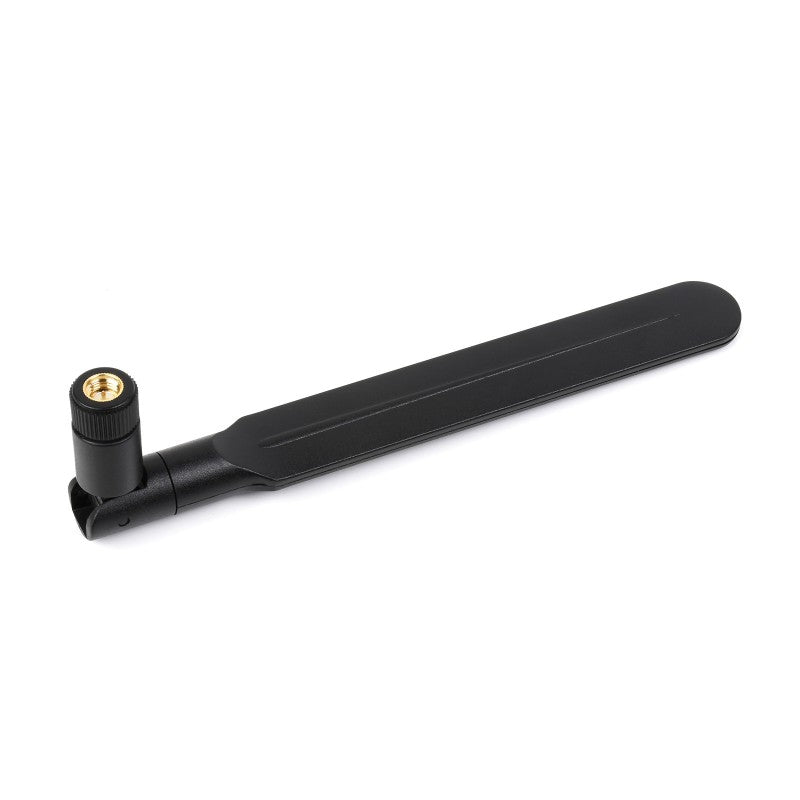

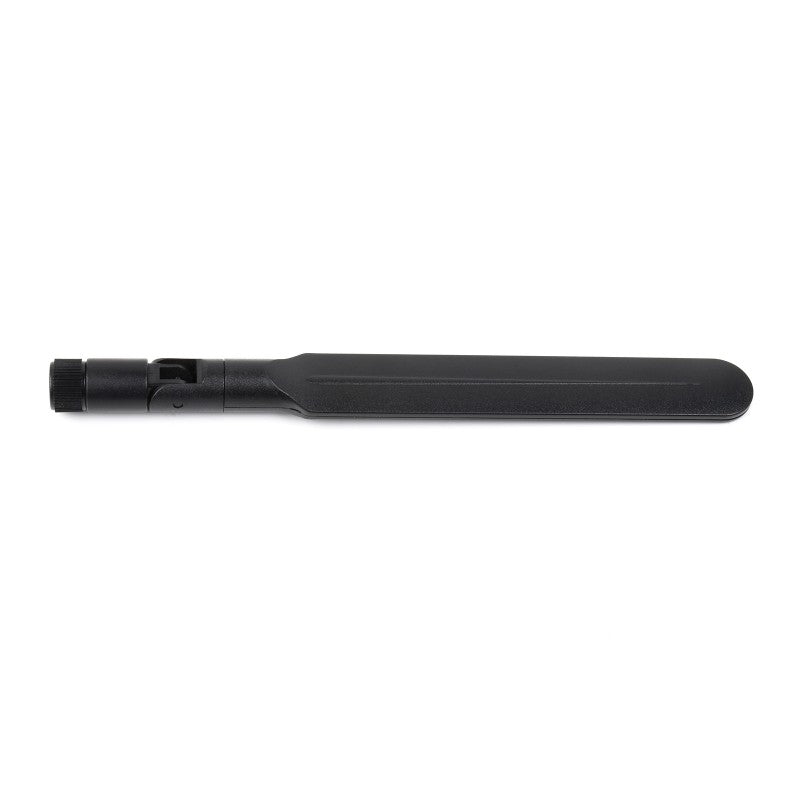

4G High Gain SMA Antenna
4G High Gain SMA Antenna, 4G/3G/2G/LPWA Support, 700~2700MHz Range, 90° Flexible Rotation
Specifications
NETWORK SUPPORT
4G/3G/2G/LPWA
GAIN
9DBI ± 0.7DBI
FREQUENCY RANGE
700~2700 MHz
CONNECTOR
SMA inner pin
OUTPUT IMPEDANCE
50Ω
ANTENNA HEIGHT
17 cm
VSWR
≤ 2.0
POLARISATION
Vertical
MATERIAL
ABS
Outline Dimensions
