Name: 5G/4G/3G Module Designed For Jetson Orin, Includes RM520N-GL Module
Brand: Waveshare
SKU: WVSH0577
Price: 31449.99 INR
Availability: InStock

{"id":10170387235133,"title":"5G\/4G\/3G Module Designed For Jetson Orin, Includes RM520N-GL Module","handle":"5g-4g-3g-module-designed-for-jetson-orin-includes-rm520n-gl-module-supports-5g-nsa-and-sa-networking-gnss-positioning","description":"\u003ch2 style=\"text-align: center;\"\u003e5G \/ 4G \/ 3G module for Jetson Orin\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(255, 42, 0);\"\u003e\u003cstrong\u003eSupports 5G \/ 4G \/ 3G networks and GNSS positioning\u003c\/strong\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003eBased on the Quectel RM520N-GL 5G global module, supports 3GPP 16\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/RM520N-GL-5G-for-Jetson-Orin-details-1.jpg?v=1764742664\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eFeatures at a Glance\u003cbr\u003e\n\u003c\/h2\u003e\n\u003ctable style=\"border-collapse: collapse; width: 100%;\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 8px; text-align: center;\"\u003eBased on Qualcomm X62 platform, supports 5G NSA and SA networking, with multi-mode multi-band support\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 8px; text-align: center;\"\u003eMulti-constellation dual-band positioning: GPS, GLONASS, Beidou, Galileo, and QZSS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 8px; text-align: center;\"\u003eUSB 3.1 port (USB 2.0 compatible) for connecting to Jetson Orin, PC, or Raspberry Pi to enable high speed 5G network\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 8px; text-align: center;\"\u003eOnboard standard M.2 B KEY slot and module selection switches, compatible with RM520N-GL \/ RM530N-GL \/ RM500U-CNV \/ EM060K-GL modules\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 8px; text-align: center;\"\u003e4 x SMA antenna connectors, easy to install the antennas\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 8px; text-align: center;\"\u003eReserved UART solder pads for convenient data transmission and other functions with certain modules\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 8px; text-align: center;\"\u003eOnboard 1-ch Nano SIM card slot and 1-ch eSIM slot in QFN-8 (5 × 6) package, supporting dual SIM single standby, switchable via AT command\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 8px; text-align: center;\"\u003eOnboard power switch, reset button, and LED indicator for convenient power control and status monitoring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 8px; text-align: center;\"\u003eOnboard high-efficiency power supply circuit, up to 3A output current\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eSpecifications\u003c\/h2\u003e\n\u003ctable style=\"border-collapse: collapse; width: 100%; height: 842.531px;\"\u003e\n\u003cthead\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003cth style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e\u003cstrong\u003e5G \/ 4G Module\u003c\/strong\u003e\u003c\/th\u003e\n\u003cth style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e\u003cstrong\u003eSIM8260G-M2\u003c\/strong\u003e\u003c\/th\u003e\n\u003cth style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e\u003cstrong\u003eSIM8262E-M2\u003c\/strong\u003e\u003c\/th\u003e\n\u003cth style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e\u003cstrong\u003eRM520N-GL\u003c\/strong\u003e\u003c\/th\u003e\n\u003cth style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; height: 39.1875px;\"\u003e\u003cstrong\u003eSIM7600G-H-M.2\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 19.5938px;\"\u003eImages\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 19.5938px;\"\u003e\u003cimg alt=\"\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/SIM8260G-M2-5G-for-Jetson-Orin-details-3-1.jpg?v=1764745127\"\u003e\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 19.5938px;\"\u003e\u003cimg alt=\"\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/SIM8260G-M2-5G-for-Jetson-Orin-details-3-2.jpg?v=1764745127\"\u003e\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 19.5938px;\"\u003e\u003cimg alt=\"\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/SIM8260G-M2-5G-for-Jetson-Orin-details-3-3.jpg?v=1764745127\"\u003e\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; height: 19.5938px;\"\u003e\u003cimg alt=\"\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/SIM8260G-M2-5G-for-Jetson-Orin-details-3-4.jpg?v=1764745127\"\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e5G Standard\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e3GPP R16\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e3GPP R16\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e3GPP R16\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e-\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eChip Solution\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eQualcomm Snapdragon X62\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eQualcomm Snapdragon X62\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eQualcomm Snapdragon X62\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eQualcomm MDM9607\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eApplicable Regions\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eGlobal\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eExcept Americas\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eGlobal\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eGlobal\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eDimensions (mm)\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e30.0 × 52.0 × 2.3\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e30.0 × 42.0 × 2.3\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e30.0 × 52.0 × 2.3\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e42.0 × 31.4 × 3.8\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c!-- Frequency Band Section --\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; font-weight: bold; text-align: center; height: 19.5938px;\" colspan=\"5\"\u003e\u003cstrong\u003eFrequency Band\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 137.156px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 137.156px;\"\u003e5G SA\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 137.156px;\"\u003en1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 137.156px;\"\u003en1, n3, n5, n7, n8, n18, n20, n26, n28, n38, n40, n41, n48, n66, n77, n78, n79\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 137.156px;\"\u003en1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 137.156px;\"\u003e-\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 137.156px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 137.156px;\"\u003e5G NSA\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 137.156px;\"\u003en1, n2, n3, n5, n7, n8, n12, n14, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n75, n77, n78, n79\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 137.156px;\"\u003en1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n48, n66, n77, n78, n79\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 137.156px;\"\u003en1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 137.156px;\"\u003e-\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 78.375px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 78.375px;\"\u003eLTE-FDD\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 78.375px;\"\u003eB1–B5, B7, B8, B12–B14, B17–B20, B25–B30, B32, B66, B71\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 78.375px;\"\u003eB1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 78.375px;\"\u003eB1–B5, B7, B8, B12–B14, B17–B20, B25, B26, B28–B30, B32, B66, B71\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 78.375px;\"\u003eB1–B5, B7, B8, B12, B13, B18–B20, B25, B26, B28, B66\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eLTE-TDD\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eB34, B38, B39, B40, B41, B42, B43, B46, B48 \u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eB38, B39, B40, B41, B42, B43 \u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eB34, B38, B39, B40, B41, B42, B43, B48 \u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eB34, B38, B39, B40, B41\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eWCDMA\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eB1, B2, B4, B5, B8, B19 \u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eB1, B5, B8\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eB1, B2, B4, B5, B8, B19\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eB1, B2, B4, B5, B6, B8, B19\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 19.5938px;\"\u003eGNSS\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 19.5938px;\" colspan=\"4\"\u003eGPS, GLONASS, Beidou, Galileo, and QZSS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eData Rate (SA)\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e2.5Gbps \/ 0.9Gbps\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e2.4Gbps \/ 1Gbps\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e2.4Gbps \/ 900Mbps\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e-\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eData Rate (NSA)\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e3.47Gbps \/ 460Mbps\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e3.4Gbps \/ 600Mbps\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e3.4Gbps \/ 550Mbps\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e-\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eLTE\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e1.6Gbps \/ 200Mbps\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e1.6Gbps \/ 200Mbps\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e1.6Gbps \/ 200Mbps\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e150Mbps \/ 50Mbps\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eHSPA+\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e42Mbps \/ 5.76Mbps\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e42Mbps \/ 5.76Mbps\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e42Mbps \/ 5.76Mbps\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e42Mbps \/ 5.76Mbps\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eMulti Mode Multi Band\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003ebased on the Qualcomm platform, supports 5G NSA and SA networking and multi-mode multi-band capabilities, suitable for a wide range of application scenarios.\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/RM520N-GL-5G-for-Jetson-Orin-details-5.jpg?v=1764744465\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(255, 42, 0);\"\u003e* the frequency band diagram above is for reference only,\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"color: rgb(255, 42, 0);\"\u003eplease confirm the supported bands according to your local service provider.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(0, 0, 0);\"\u003eMulti System Support\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(0, 0, 0);\"\u003eSupports Windows 7 \/ 8 \/ 10 \/ 11, Ubuntu, Raspberry Pi OS, and OpenWRT systems. Just plug it into USB port, go through some driver installation and simple configuration, the high speed 5G network connection would be ready to use\u003c\/span\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/RM520N-GL-5G-for-Jetson-Orin-details-7.jpg?v=1764744464\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eMulti Host Support\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003eEnabling 5G high speed connection for Jetson Orin \/ PC \/ Raspberry Pi\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cstrong\u003eConnecting Jetson Orin to Internet\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/RM520N-GL-5G-for-Jetson-Orin-details-9.jpg?v=1764744465\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cstrong\u003eConnecting Windows to Internet\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/RM520N-GL-5G-for-Jetson-Orin-details-11.jpg?v=1764744443\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(255, 42, 0);\"\u003e* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, host performance, base station condition, etc.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(255, 42, 0);\"\u003e\u003cspan style=\"color: rgb(0, 0, 0);\"\u003eCloud Communication\u003c\/span\u003e\u003cbr\u003e\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/RM520N-GL-5G-for-Jetson-Orin-details-13.jpg?v=1764744411\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(255, 42, 0);\"\u003e\u003cspan style=\"color: rgb(0, 0, 0);\"\u003eApplication Example\u003cbr\u003e\u003c\/span\u003e\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/RM520N-GL-5G-for-Jetson-Orin-details-17.jpg?v=1764744440\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(255, 42, 0);\"\u003e\u003cspan style=\"color: rgb(0, 0, 0);\"\u003eWhat's On Board\u003cbr\u003e\u003c\/span\u003e\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/RM520N-GL-5G-for-Jetson-Orin-details-intro.jpg?v=1764744442\" alt=\"\"\u003e\u003c\/p\u003e\n\u003ctable style=\"border-collapse: collapse; width: 100%;\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px; width: 50%;\"\u003e\n\u003cstrong\u003e1. USB3.1 port\u003c\/strong\u003e\u003cbr\u003eUSB 2.0 compatible, for connecting with different hosts\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\n\u003cstrong\u003e8. Power supply switch\u003c\/strong\u003e\u003cbr\u003eSwitch the power supply mode:\u003cbr\u003eWhen set to USB, the module is powered via the \"1. USB3.1 port\"\u003cbr\u003eWhen set to EXT PWR, the module is powered by the external power supply via the \"3. USB Type-C port\"\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\n\u003cstrong\u003e2. M.2 slot\u003c\/strong\u003e\u003cbr\u003ecompatible with most SIMCom and QUECTEL 4G \/ 5G modules in M.2 form factor\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\n\u003cstrong\u003e9. Indicator\u003c\/strong\u003e\u003cbr\u003eEasy to monitor the operating status of module\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\n\u003cstrong\u003e3. USB Type-C port\u003c\/strong\u003e\u003cbr\u003e5V 3A power input, stable and flexible power supply\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\n\u003cstrong\u003e10. Audio jack\u003c\/strong\u003e\u003cbr\u003eSIM82XX \/ SIM7600X series supports audio function,\u003cbr\u003ebut RM5XX series temporarily does not support this function\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\u003cstrong\u003e4. Reset button\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\n\u003cstrong\u003e11. eSIM card slot\u003c\/strong\u003e\u003cbr\u003eQFN-8 (5 × 6) package, configurable via AT commands\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\n\u003cstrong\u003e5. Module fixing holes\u003c\/strong\u003e\u003cbr\u003esupports 3042 \/ 3052 package modules\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\n\u003cstrong\u003e12. Nano SIM card slot\u003c\/strong\u003e\u003cbr\u003eonboard dual SIM card slots, dual card single standby\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\n\u003cstrong\u003e6. Antenna connectors\u003c\/strong\u003e\u003cbr\u003eSupports quad antennas\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\u003cstrong\u003e13. Level conversion circuit\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\n\u003cstrong\u003e7. Module settings switch\u003c\/strong\u003e\u003cbr\u003eSwitch A to ON for SIM7600X \/ A7906X \/ SIM7906X \/ SIM7912X series 4G M.2 modules\u003cbr\u003eSwitch B to ON for SIM8202X \/ SIM8200EA \/ SIM8262X \/ SIM8260X series 5G M.2 modules\u003cbr\u003eSwitch C to ON for RM520N-GL \/ RM530X \/ EM06X series 5G \/ LTE-A M.2 modules\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\u003cstrong\u003e14. Reserved UART and audio interface pads\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\n\u003cstrong\u003e15. Mounting holes\u003c\/strong\u003e\u003cbr\u003efor installing this module onto the Jetson Orin board via screws\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\u003cstrong\u003e16. Audio drive circuit\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\u003cstrong\u003e17. Power supply circuit\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\n\u003cstrong\u003e18. Fan header\u003c\/strong\u003e\u003cbr\u003efor 5V cooling fan\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(255, 42, 0);\"\u003e\u003cspan style=\"color: rgb(0, 0, 0);\"\u003eInstallation Introduction\u003cbr\u003e\u003c\/span\u003e\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/RM520N-GL-5G-for-Jetson-Orin-details-19.jpg?v=1764744465\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(255, 42, 0);\"\u003e* for reference only, please refer to the package content for detailed part list\u003c\/span\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eOutline Dimensions\u003cbr\u003e\n\u003c\/h2\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/RM520N-GL-5G-for-Jetson-Orin-details-size.jpg?v=1764744437\" alt=\"\" style=\"display: block; margin-left: auto; margin-right: auto;\"\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eResources \u0026amp; Services\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cstrong\u003eWiki: \u003ca href=\"http:\/\/www.waveshare.com\/wiki\/RM520N-GL_5G_for_Jetson_Orin\" id=\"tab-wiki\" target=\"_blank\"\u003ewww.waveshare.com\/wiki\/RM520N-GL_5G_for_Jetson_Orin\u003c\/a\u003e\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003ePackage Content\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cstrong\u003eWeight: \u003c\/strong\u003e0.242 kg\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e1. Jetson Orin M.2 4G \/ 5G expansion board x1\u003cbr\u003e2. 5G antenna x4\u003cbr\u003e3. SMA protective cap (5PCS) x1\u003cbr\u003e4. RM520N-GL x1\u003cbr\u003e5. IPEX1 to IPEX4 adapter cable ~13cm x2\u003cbr\u003e6. IPEX1 to IPEX4 adapter cable ~5cm x2\u003cbr\u003e7. Screws pack x1\u003cbr\u003e8. GPS External Antenna (C) x1\u003cbr\u003e9. Dual plug USB3.0 Type-A cable x1\u003cbr\u003e10. Heatsink x1\u003cbr\u003e11. USB 3.0 Adapter (C) x1\u003cbr\u003e12. Screwdriver x1\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/RM520N-GL-5G-for-Jetson-Orin-pack.jpg?v=1764743126\" alt=\"\"\u003e\u003c\/p\u003e","published_at":"2025-12-04T13:11:40+05:30","created_at":"2025-12-03T11:56:31+05:30","vendor":"Waveshare","type":"Ethernet \u0026 Communication Modules","tags":["3G Module","4G module","5G module","5G NSA And SA Networking","5G\/4G\/3G Module","Beidou Galileo","Embedded Communication","GNSS Positioning","GPS GLONASS","High Speed Network","Jetson Orin","Jetson Orin Nano","Multi-GNSS Positioning Systems","OpenWRT Support","PC Connectivity","Qualcomm X62","QZSS","RM520N GL","RM520N-GL Module","SMA Antenna","USB High Speed","WaveSH","Waveshare","WVSH"],"price":3144999,"price_min":3144999,"price_max":3144999,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":51096955945277,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"WVSH0577","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"5G\/4G\/3G Module Designed For Jetson Orin, Includes RM520N-GL Module","public_title":null,"options":["Default Title"],"price":3144999,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":"WVSH0577","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/thinkrobotics.com\/cdn\/shop\/files\/rm520n-gl-5g-for-jetson-orin-1.jpg?v=1764744316","\/\/thinkrobotics.com\/cdn\/shop\/files\/rm520n-gl-5g-for-jetson-orin-2.jpg?v=1764744316","\/\/thinkrobotics.com\/cdn\/shop\/files\/rm520n-gl-5g-for-jetson-orin-3.jpg?v=1764744316","\/\/thinkrobotics.com\/cdn\/shop\/files\/rm520n-gl-5g-for-jetson-orin-4.jpg?v=1764744316","\/\/thinkrobotics.com\/cdn\/shop\/files\/rm520n-gl-5g-for-jetson-orin-5.jpg?v=1764744316"],"featured_image":"\/\/thinkrobotics.com\/cdn\/shop\/files\/rm520n-gl-5g-for-jetson-orin-1.jpg?v=1764744316","options":["Title"],"media":[{"alt":null,"id":47987480133949,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/rm520n-gl-5g-for-jetson-orin-1.jpg?v=1764744316"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/rm520n-gl-5g-for-jetson-orin-1.jpg?v=1764744316","width":800},{"alt":null,"id":47987480101181,"position":2,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/rm520n-gl-5g-for-jetson-orin-2.jpg?v=1764744316"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/rm520n-gl-5g-for-jetson-orin-2.jpg?v=1764744316","width":800},{"alt":null,"id":47987480068413,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/rm520n-gl-5g-for-jetson-orin-3.jpg?v=1764744316"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/rm520n-gl-5g-for-jetson-orin-3.jpg?v=1764744316","width":800},{"alt":null,"id":47987480035645,"position":4,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/rm520n-gl-5g-for-jetson-orin-4.jpg?v=1764744316"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/rm520n-gl-5g-for-jetson-orin-4.jpg?v=1764744316","width":800},{"alt":null,"id":47987480002877,"position":5,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/rm520n-gl-5g-for-jetson-orin-5.jpg?v=1764744316"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/rm520n-gl-5g-for-jetson-orin-5.jpg?v=1764744316","width":800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch2 style=\"text-align: center;\"\u003e5G \/ 4G \/ 3G module for Jetson Orin\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(255, 42, 0);\"\u003e\u003cstrong\u003eSupports 5G \/ 4G \/ 3G networks and GNSS positioning\u003c\/strong\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003eBased on the Quectel RM520N-GL 5G global module, supports 3GPP 16\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/RM520N-GL-5G-for-Jetson-Orin-details-1.jpg?v=1764742664\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eFeatures at a Glance\u003cbr\u003e\n\u003c\/h2\u003e\n\u003ctable style=\"border-collapse: collapse; width: 100%;\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 8px; text-align: center;\"\u003eBased on Qualcomm X62 platform, supports 5G NSA and SA networking, with multi-mode multi-band support\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 8px; text-align: center;\"\u003eMulti-constellation dual-band positioning: GPS, GLONASS, Beidou, Galileo, and QZSS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 8px; text-align: center;\"\u003eUSB 3.1 port (USB 2.0 compatible) for connecting to Jetson Orin, PC, or Raspberry Pi to enable high speed 5G network\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 8px; text-align: center;\"\u003eOnboard standard M.2 B KEY slot and module selection switches, compatible with RM520N-GL \/ RM530N-GL \/ RM500U-CNV \/ EM060K-GL modules\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 8px; text-align: center;\"\u003e4 x SMA antenna connectors, easy to install the antennas\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 8px; text-align: center;\"\u003eReserved UART solder pads for convenient data transmission and other functions with certain modules\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 8px; text-align: center;\"\u003eOnboard 1-ch Nano SIM card slot and 1-ch eSIM slot in QFN-8 (5 × 6) package, supporting dual SIM single standby, switchable via AT command\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 8px; text-align: center;\"\u003eOnboard power switch, reset button, and LED indicator for convenient power control and status monitoring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 8px; text-align: center;\"\u003eOnboard high-efficiency power supply circuit, up to 3A output current\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eSpecifications\u003c\/h2\u003e\n\u003ctable style=\"border-collapse: collapse; width: 100%; height: 842.531px;\"\u003e\n\u003cthead\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003cth style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e\u003cstrong\u003e5G \/ 4G Module\u003c\/strong\u003e\u003c\/th\u003e\n\u003cth style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e\u003cstrong\u003eSIM8260G-M2\u003c\/strong\u003e\u003c\/th\u003e\n\u003cth style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e\u003cstrong\u003eSIM8262E-M2\u003c\/strong\u003e\u003c\/th\u003e\n\u003cth style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e\u003cstrong\u003eRM520N-GL\u003c\/strong\u003e\u003c\/th\u003e\n\u003cth style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; height: 39.1875px;\"\u003e\u003cstrong\u003eSIM7600G-H-M.2\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 19.5938px;\"\u003eImages\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 19.5938px;\"\u003e\u003cimg alt=\"\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/SIM8260G-M2-5G-for-Jetson-Orin-details-3-1.jpg?v=1764745127\"\u003e\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 19.5938px;\"\u003e\u003cimg alt=\"\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/SIM8260G-M2-5G-for-Jetson-Orin-details-3-2.jpg?v=1764745127\"\u003e\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 19.5938px;\"\u003e\u003cimg alt=\"\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/SIM8260G-M2-5G-for-Jetson-Orin-details-3-3.jpg?v=1764745127\"\u003e\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; height: 19.5938px;\"\u003e\u003cimg alt=\"\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/SIM8260G-M2-5G-for-Jetson-Orin-details-3-4.jpg?v=1764745127\"\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e5G Standard\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e3GPP R16\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e3GPP R16\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e3GPP R16\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e-\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eChip Solution\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eQualcomm Snapdragon X62\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eQualcomm Snapdragon X62\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eQualcomm Snapdragon X62\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eQualcomm MDM9607\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eApplicable Regions\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eGlobal\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eExcept Americas\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eGlobal\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eGlobal\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eDimensions (mm)\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e30.0 × 52.0 × 2.3\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e30.0 × 42.0 × 2.3\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e30.0 × 52.0 × 2.3\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e42.0 × 31.4 × 3.8\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c!-- Frequency Band Section --\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; font-weight: bold; text-align: center; height: 19.5938px;\" colspan=\"5\"\u003e\u003cstrong\u003eFrequency Band\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 137.156px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 137.156px;\"\u003e5G SA\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 137.156px;\"\u003en1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 137.156px;\"\u003en1, n3, n5, n7, n8, n18, n20, n26, n28, n38, n40, n41, n48, n66, n77, n78, n79\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 137.156px;\"\u003en1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 137.156px;\"\u003e-\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 137.156px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 137.156px;\"\u003e5G NSA\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 137.156px;\"\u003en1, n2, n3, n5, n7, n8, n12, n14, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n75, n77, n78, n79\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 137.156px;\"\u003en1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n48, n66, n77, n78, n79\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 137.156px;\"\u003en1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 137.156px;\"\u003e-\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 78.375px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 78.375px;\"\u003eLTE-FDD\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 78.375px;\"\u003eB1–B5, B7, B8, B12–B14, B17–B20, B25–B30, B32, B66, B71\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 78.375px;\"\u003eB1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 78.375px;\"\u003eB1–B5, B7, B8, B12–B14, B17–B20, B25, B26, B28–B30, B32, B66, B71\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 78.375px;\"\u003eB1–B5, B7, B8, B12, B13, B18–B20, B25, B26, B28, B66\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eLTE-TDD\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eB34, B38, B39, B40, B41, B42, B43, B46, B48 \u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eB38, B39, B40, B41, B42, B43 \u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eB34, B38, B39, B40, B41, B42, B43, B48 \u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eB34, B38, B39, B40, B41\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eWCDMA\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eB1, B2, B4, B5, B8, B19 \u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eB1, B5, B8\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eB1, B2, B4, B5, B8, B19\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eB1, B2, B4, B5, B6, B8, B19\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 19.5938px;\"\u003eGNSS\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 19.5938px;\" colspan=\"4\"\u003eGPS, GLONASS, Beidou, Galileo, and QZSS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eData Rate (SA)\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e2.5Gbps \/ 0.9Gbps\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e2.4Gbps \/ 1Gbps\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e2.4Gbps \/ 900Mbps\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e-\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eData Rate (NSA)\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e3.47Gbps \/ 460Mbps\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e3.4Gbps \/ 600Mbps\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e3.4Gbps \/ 550Mbps\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e-\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eLTE\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e1.6Gbps \/ 200Mbps\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e1.6Gbps \/ 200Mbps\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e1.6Gbps \/ 200Mbps\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e150Mbps \/ 50Mbps\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003eHSPA+\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e42Mbps \/ 5.76Mbps\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e42Mbps \/ 5.76Mbps\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e42Mbps \/ 5.76Mbps\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid rgb(0, 0, 0); padding: 6px; text-align: center; height: 39.1875px;\"\u003e42Mbps \/ 5.76Mbps\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eMulti Mode Multi Band\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003ebased on the Qualcomm platform, supports 5G NSA and SA networking and multi-mode multi-band capabilities, suitable for a wide range of application scenarios.\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/RM520N-GL-5G-for-Jetson-Orin-details-5.jpg?v=1764744465\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(255, 42, 0);\"\u003e* the frequency band diagram above is for reference only,\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"color: rgb(255, 42, 0);\"\u003eplease confirm the supported bands according to your local service provider.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(0, 0, 0);\"\u003eMulti System Support\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(0, 0, 0);\"\u003eSupports Windows 7 \/ 8 \/ 10 \/ 11, Ubuntu, Raspberry Pi OS, and OpenWRT systems. Just plug it into USB port, go through some driver installation and simple configuration, the high speed 5G network connection would be ready to use\u003c\/span\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/RM520N-GL-5G-for-Jetson-Orin-details-7.jpg?v=1764744464\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eMulti Host Support\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003eEnabling 5G high speed connection for Jetson Orin \/ PC \/ Raspberry Pi\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cstrong\u003eConnecting Jetson Orin to Internet\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/RM520N-GL-5G-for-Jetson-Orin-details-9.jpg?v=1764744465\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cstrong\u003eConnecting Windows to Internet\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/RM520N-GL-5G-for-Jetson-Orin-details-11.jpg?v=1764744443\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(255, 42, 0);\"\u003e* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, host performance, base station condition, etc.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(255, 42, 0);\"\u003e\u003cspan style=\"color: rgb(0, 0, 0);\"\u003eCloud Communication\u003c\/span\u003e\u003cbr\u003e\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/RM520N-GL-5G-for-Jetson-Orin-details-13.jpg?v=1764744411\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(255, 42, 0);\"\u003e\u003cspan style=\"color: rgb(0, 0, 0);\"\u003eApplication Example\u003cbr\u003e\u003c\/span\u003e\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/RM520N-GL-5G-for-Jetson-Orin-details-17.jpg?v=1764744440\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(255, 42, 0);\"\u003e\u003cspan style=\"color: rgb(0, 0, 0);\"\u003eWhat's On Board\u003cbr\u003e\u003c\/span\u003e\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/RM520N-GL-5G-for-Jetson-Orin-details-intro.jpg?v=1764744442\" alt=\"\"\u003e\u003c\/p\u003e\n\u003ctable style=\"border-collapse: collapse; width: 100%;\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px; width: 50%;\"\u003e\n\u003cstrong\u003e1. USB3.1 port\u003c\/strong\u003e\u003cbr\u003eUSB 2.0 compatible, for connecting with different hosts\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\n\u003cstrong\u003e8. Power supply switch\u003c\/strong\u003e\u003cbr\u003eSwitch the power supply mode:\u003cbr\u003eWhen set to USB, the module is powered via the \"1. USB3.1 port\"\u003cbr\u003eWhen set to EXT PWR, the module is powered by the external power supply via the \"3. USB Type-C port\"\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\n\u003cstrong\u003e2. M.2 slot\u003c\/strong\u003e\u003cbr\u003ecompatible with most SIMCom and QUECTEL 4G \/ 5G modules in M.2 form factor\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\n\u003cstrong\u003e9. Indicator\u003c\/strong\u003e\u003cbr\u003eEasy to monitor the operating status of module\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\n\u003cstrong\u003e3. USB Type-C port\u003c\/strong\u003e\u003cbr\u003e5V 3A power input, stable and flexible power supply\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\n\u003cstrong\u003e10. Audio jack\u003c\/strong\u003e\u003cbr\u003eSIM82XX \/ SIM7600X series supports audio function,\u003cbr\u003ebut RM5XX series temporarily does not support this function\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\u003cstrong\u003e4. Reset button\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\n\u003cstrong\u003e11. eSIM card slot\u003c\/strong\u003e\u003cbr\u003eQFN-8 (5 × 6) package, configurable via AT commands\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\n\u003cstrong\u003e5. Module fixing holes\u003c\/strong\u003e\u003cbr\u003esupports 3042 \/ 3052 package modules\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\n\u003cstrong\u003e12. Nano SIM card slot\u003c\/strong\u003e\u003cbr\u003eonboard dual SIM card slots, dual card single standby\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\n\u003cstrong\u003e6. Antenna connectors\u003c\/strong\u003e\u003cbr\u003eSupports quad antennas\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\u003cstrong\u003e13. Level conversion circuit\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\n\u003cstrong\u003e7. Module settings switch\u003c\/strong\u003e\u003cbr\u003eSwitch A to ON for SIM7600X \/ A7906X \/ SIM7906X \/ SIM7912X series 4G M.2 modules\u003cbr\u003eSwitch B to ON for SIM8202X \/ SIM8200EA \/ SIM8262X \/ SIM8260X series 5G M.2 modules\u003cbr\u003eSwitch C to ON for RM520N-GL \/ RM530X \/ EM06X series 5G \/ LTE-A M.2 modules\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\u003cstrong\u003e14. Reserved UART and audio interface pads\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\n\u003cstrong\u003e15. Mounting holes\u003c\/strong\u003e\u003cbr\u003efor installing this module onto the Jetson Orin board via screws\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\u003cstrong\u003e16. Audio drive circuit\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\u003cstrong\u003e17. Power supply circuit\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid #000; padding: 6px;\"\u003e\n\u003cstrong\u003e18. Fan header\u003c\/strong\u003e\u003cbr\u003efor 5V cooling fan\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(255, 42, 0);\"\u003e\u003cspan style=\"color: rgb(0, 0, 0);\"\u003eInstallation Introduction\u003cbr\u003e\u003c\/span\u003e\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/RM520N-GL-5G-for-Jetson-Orin-details-19.jpg?v=1764744465\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(255, 42, 0);\"\u003e* for reference only, please refer to the package content for detailed part list\u003c\/span\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eOutline Dimensions\u003cbr\u003e\n\u003c\/h2\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/RM520N-GL-5G-for-Jetson-Orin-details-size.jpg?v=1764744437\" alt=\"\" style=\"display: block; margin-left: auto; margin-right: auto;\"\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eResources \u0026amp; Services\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cstrong\u003eWiki: \u003ca href=\"http:\/\/www.waveshare.com\/wiki\/RM520N-GL_5G_for_Jetson_Orin\" id=\"tab-wiki\" target=\"_blank\"\u003ewww.waveshare.com\/wiki\/RM520N-GL_5G_for_Jetson_Orin\u003c\/a\u003e\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003ePackage Content\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cstrong\u003eWeight: \u003c\/strong\u003e0.242 kg\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e1. Jetson Orin M.2 4G \/ 5G expansion board x1\u003cbr\u003e2. 5G antenna x4\u003cbr\u003e3. SMA protective cap (5PCS) x1\u003cbr\u003e4. RM520N-GL x1\u003cbr\u003e5. IPEX1 to IPEX4 adapter cable ~13cm x2\u003cbr\u003e6. IPEX1 to IPEX4 adapter cable ~5cm x2\u003cbr\u003e7. Screws pack x1\u003cbr\u003e8. GPS External Antenna (C) x1\u003cbr\u003e9. Dual plug USB3.0 Type-A cable x1\u003cbr\u003e10. Heatsink x1\u003cbr\u003e11. USB 3.0 Adapter (C) x1\u003cbr\u003e12. Screwdriver x1\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/RM520N-GL-5G-for-Jetson-Orin-pack.jpg?v=1764743126\" alt=\"\"\u003e\u003c\/p\u003e"}

Cannot place order, conditions not met:

OK

1. USB3.1 port USB 2.0 compatible, for connecting with different hosts	8. Power supply switch Switch the power supply mode: When set to USB, the module is powered via the "1. USB3.1 port" When set to EXT PWR, the module is powered by the external power supply via the "3. USB Type-C port"
2. M.2 slot compatible with most SIMCom and QUECTEL 4G / 5G modules in M.2 form factor	9. Indicator Easy to monitor the operating status of module
3. USB Type-C port 5V 3A power input, stable and flexible power supply	10. Audio jack SIM82XX / SIM7600X series supports audio function, but RM5XX series temporarily does not support this function
4. Reset button	11. eSIM card slot QFN-8 (5 × 6) package, configurable via AT commands
5. Module fixing holes supports 3042 / 3052 package modules	12. Nano SIM card slot onboard dual SIM card slots, dual card single standby
6. Antenna connectors Supports quad antennas	13. Level conversion circuit
7. Module settings switch Switch A to ON for SIM7600X / A7906X / SIM7906X / SIM7912X series 4G M.2 modules Switch B to ON for SIM8202X / SIM8200EA / SIM8262X / SIM8260X series 5G M.2 modules Switch C to ON for RM520N-GL / RM530X / EM06X series 5G / LTE-A M.2 modules	14. Reserved UART and audio interface pads
15. Mounting holes for installing this module onto the Jetson Orin board via screws	16. Audio drive circuit
17. Power supply circuit	18. Fan header for 5V cooling fan

5G/4G/3G Module Designed For Jetson Orin, Includes RM520N-GL Module

5G / 4G / 3G module for Jetson Orin

Features at a Glance

Specifications

Multi Mode Multi Band

Multi System Support

Multi Host Support

Cloud Communication

Application Example

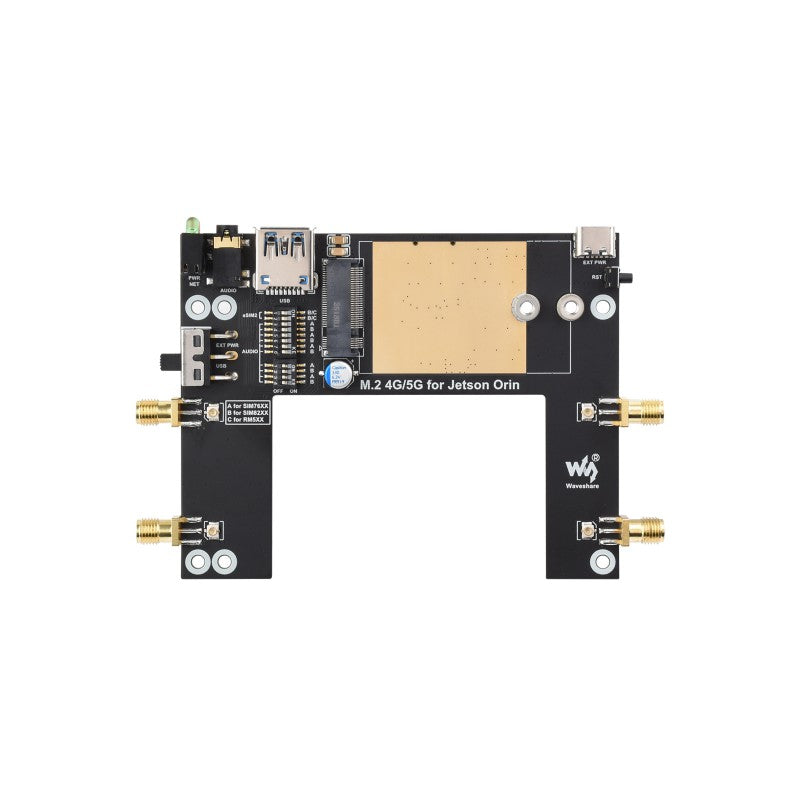

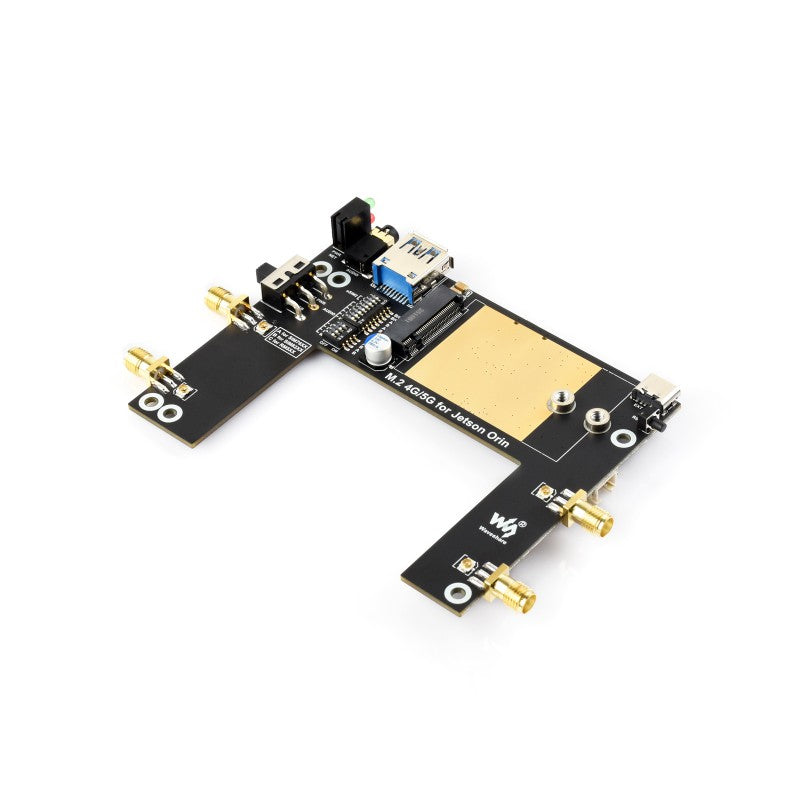

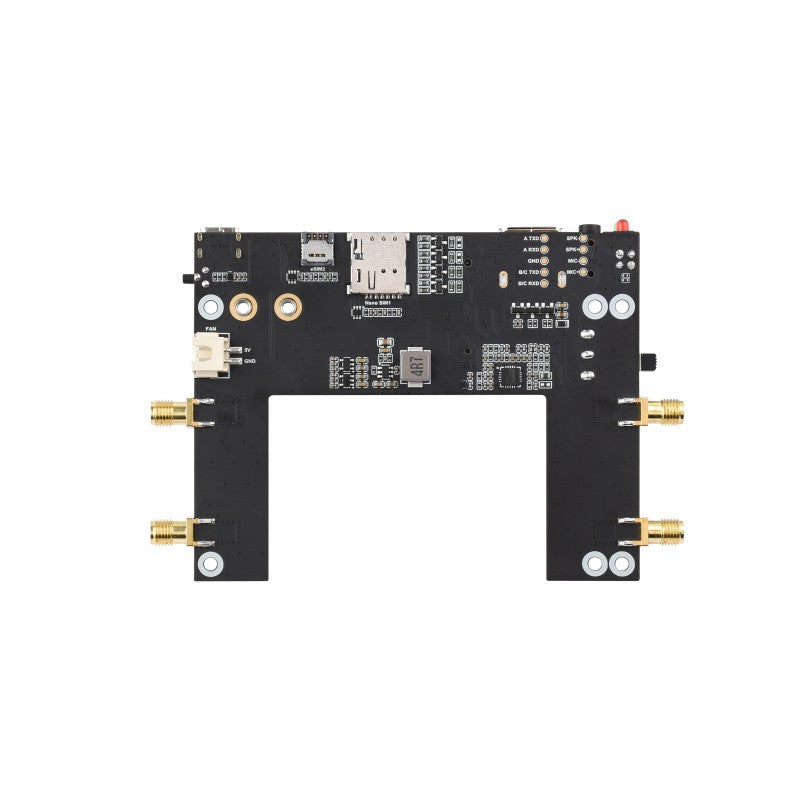

What's On Board

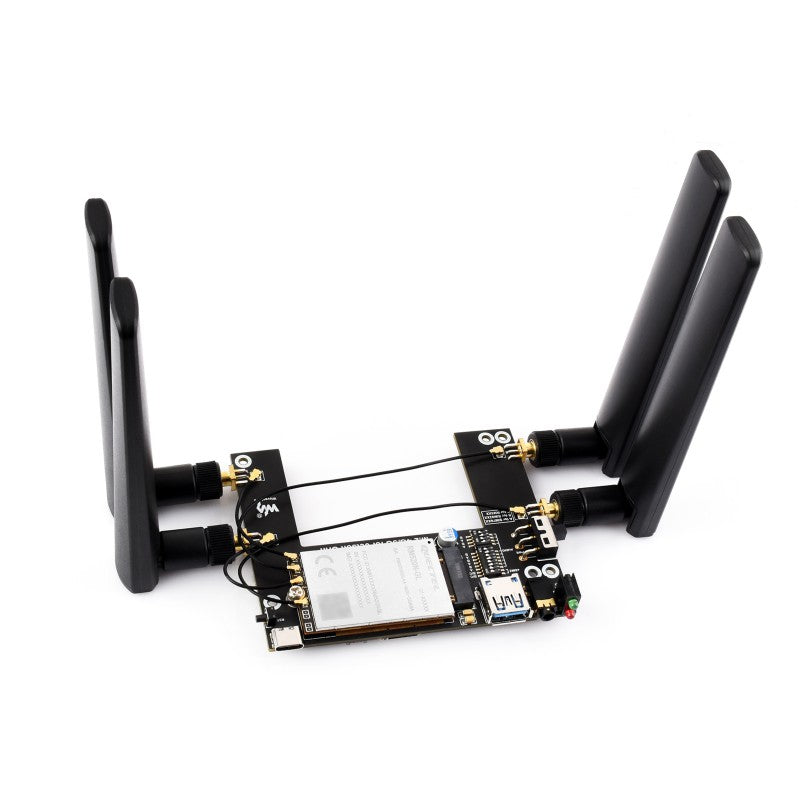

Installation Introduction

Outline Dimensions

Resources & Services

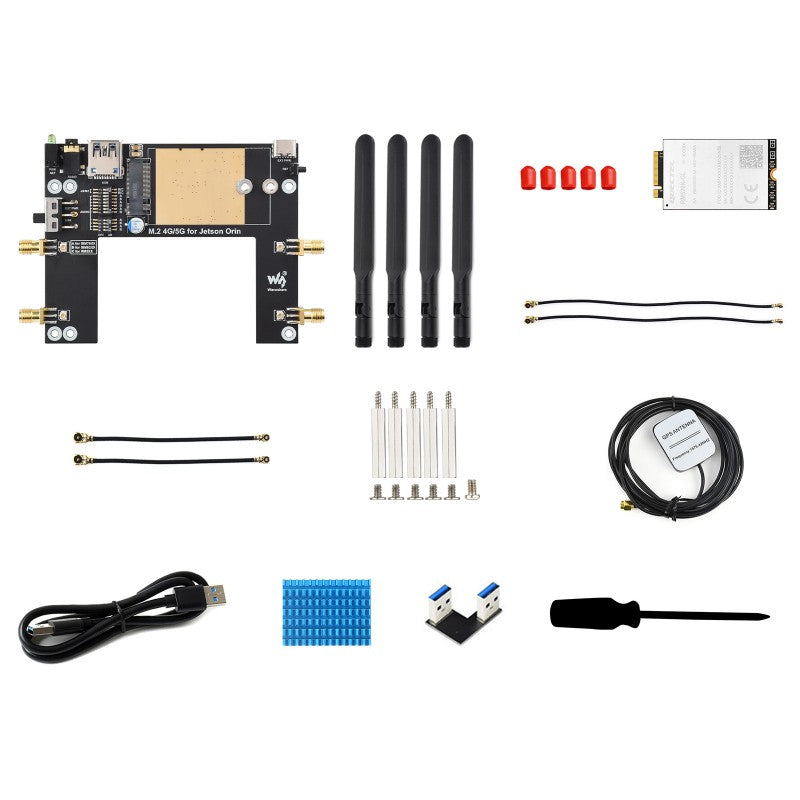

Package Content

Want to buy in bulk?

Customer Reviews

Custom Requirements?

Discussion Forum

Popular Links

Shopping Cart

Let customers speak for us

5G / 4G Module	SIM8260G-M2	SIM8262E-M2	RM520N-GL	SIM7600G-H-M.2
Images
5G Standard	3GPP R16	3GPP R16	3GPP R16	-
Chip Solution	Qualcomm Snapdragon X62	Qualcomm Snapdragon X62	Qualcomm Snapdragon X62	Qualcomm MDM9607
Applicable Regions	Global	Except Americas	Global	Global
Dimensions (mm)	30.0 × 52.0 × 2.3	30.0 × 42.0 × 2.3	30.0 × 52.0 × 2.3	42.0 × 31.4 × 3.8
Frequency Band
5G SA	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79	n1, n3, n5, n7, n8, n18, n20, n26, n28, n38, n40, n41, n48, n66, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79	-
5G NSA	n1, n2, n3, n5, n7, n8, n12, n14, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n75, n77, n78, n79	n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n48, n66, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79	-
LTE-FDD	B1–B5, B7, B8, B12–B14, B17–B20, B25–B30, B32, B66, B71	B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32	B1–B5, B7, B8, B12–B14, B17–B20, B25, B26, B28–B30, B32, B66, B71	B1–B5, B7, B8, B12, B13, B18–B20, B25, B26, B28, B66
LTE-TDD	B34, B38, B39, B40, B41, B42, B43, B46, B48	B38, B39, B40, B41, B42, B43	B34, B38, B39, B40, B41, B42, B43, B48	B34, B38, B39, B40, B41
WCDMA	B1, B2, B4, B5, B8, B19	B1, B5, B8	B1, B2, B4, B5, B8, B19	B1, B2, B4, B5, B6, B8, B19
GNSS	GPS, GLONASS, Beidou, Galileo, and QZSS
Data Rate (SA)	2.5Gbps / 0.9Gbps	2.4Gbps / 1Gbps	2.4Gbps / 900Mbps	-
Data Rate (NSA)	3.47Gbps / 460Mbps	3.4Gbps / 600Mbps	3.4Gbps / 550Mbps	-
LTE	1.6Gbps / 200Mbps	1.6Gbps / 200Mbps	1.6Gbps / 200Mbps	150Mbps / 50Mbps
HSPA+	42Mbps / 5.76Mbps	42Mbps / 5.76Mbps	42Mbps / 5.76Mbps	42Mbps / 5.76Mbps
