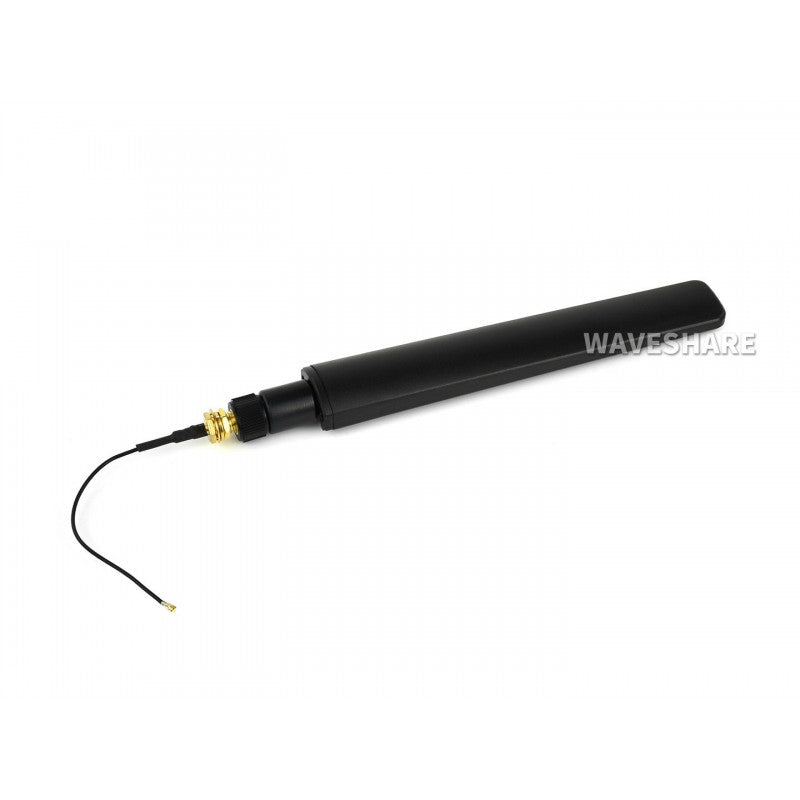

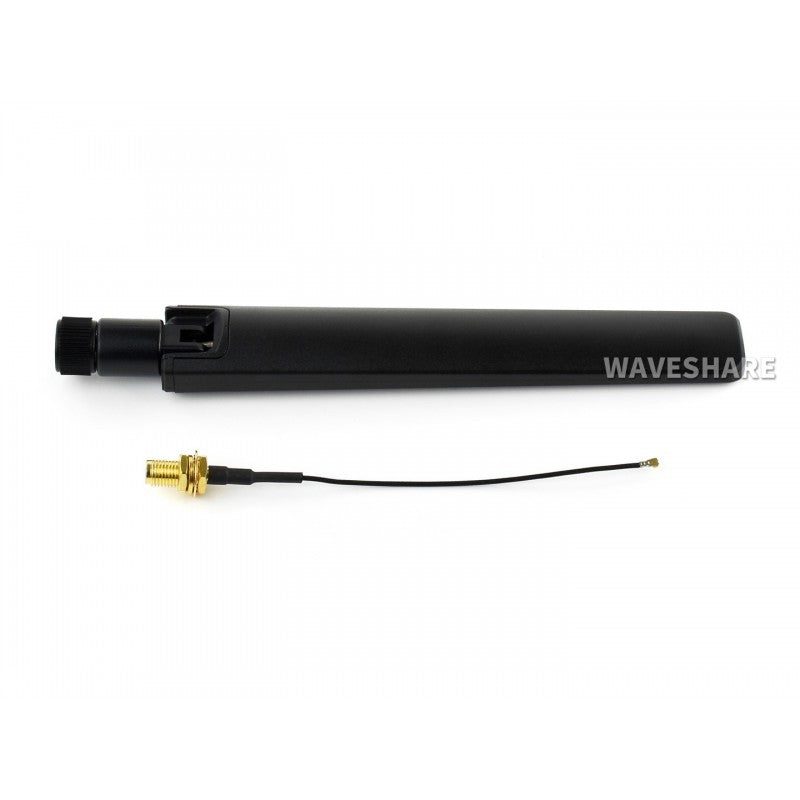

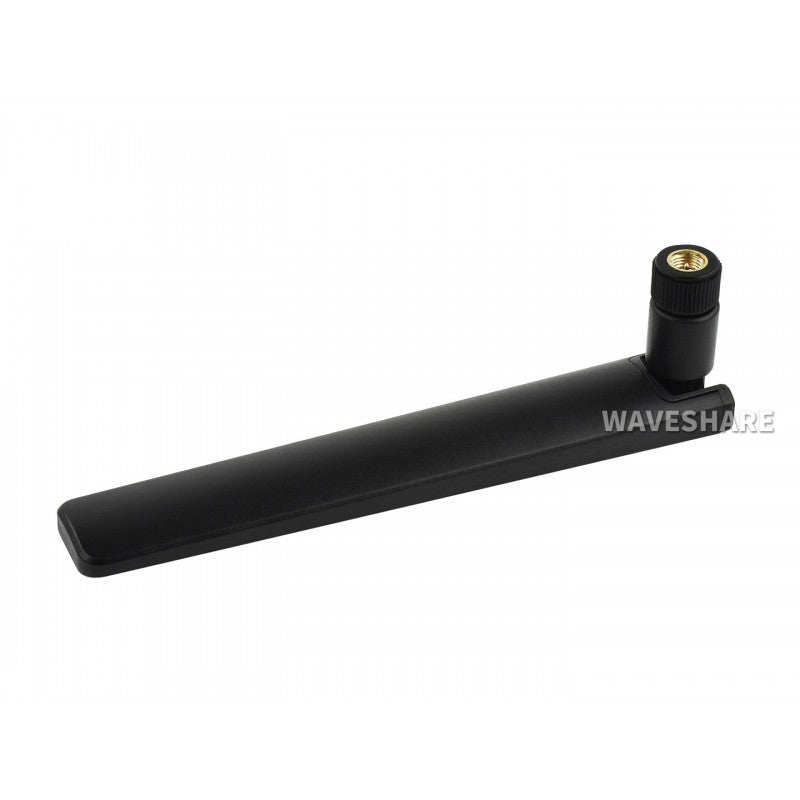

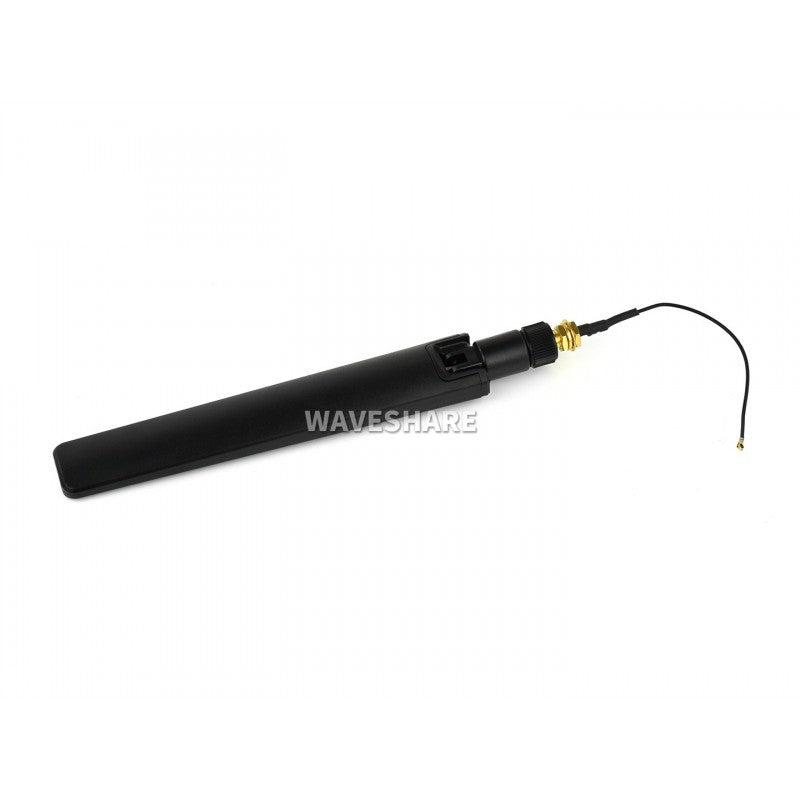

5G HIGH GAIN OMNI ANTENNA

5G/4G/3G/2G Compatible, SMA To IPEX-4 Connector

Specifications

NETWORK SUPPORT	5G/4G/3G/2G	OUTPUT RESISTANCE (Ω)	50
FREQUENCY BAND (MHZ)	600~6000MHz	INPUT POWER (W)	25
PEAK GAIN (DBI)	-2.0〜5.5dBi	CONNECTOR	SMA needle inside
AVG GAIN (DB)	-6.0〜-0.7dB	CONNECTION WIRE	SMA to IPEX-4
SWR	< 3.5	DIMENSIONS (MM)	152.4 × 21.79 × 14.49
RETURN LOSS	< -5.0	MATERIAL	ABS
EFFICIENCY (％)	25〜85％	OPERATING TEMPERATURE (˚C)	-40˚C〜+ 85˚C
POLARIZATION	Linear	STORAGE TEMPERATURE (˚C)	-40˚C〜+ 85˚C
EMITTING DIRECTION	Omni-directional

Connection Example

Connecting With 5G Module SIM8200EA-M2

Connecting With Raspberry Pi 5G HAT SIM8200EA-M2 5G HAT

Outline Dimensions

Is this antenna compatible with 5G networks and what connector does it use?

It supports 5G 4G 3G and 2G networks and uses an SMA to IPEX-4 connector.

What are the key electrical specifications of the antenna?

The impedance is 50 ohm, the frequency band is 600 to 6000 MHz, peak gain ranges from -2.0 to 5.5 dBi and average gain from -6.0 to -0.7 dB. SWR is less than 3.5 and return loss is less than -5.0 dB.

What are the physical dimensions and the material used?

The housing is made of ABS and the dimensions are 152.4 by 21.79 by 14.49 mm. It operates from -40 to 85 degrees C.

How should I connect and install the antenna?

The setup uses a SMA to IPEX-4 interface; ensure your device supports 50 ohm impedance and the 600-6000 MHz range. Typical connections shown include SIM8200EA-M2 and Raspberry Pi 5G HAT.
