DC12-80V 600W High Power Adjustable Voltage Constant Current Module

SKU: ELC5063

ā‚¹ 899.99

Out of stock

šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
DC12-80V 600W High Power Adjustable Voltage Constant Current Moduleā‚¹ 899.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

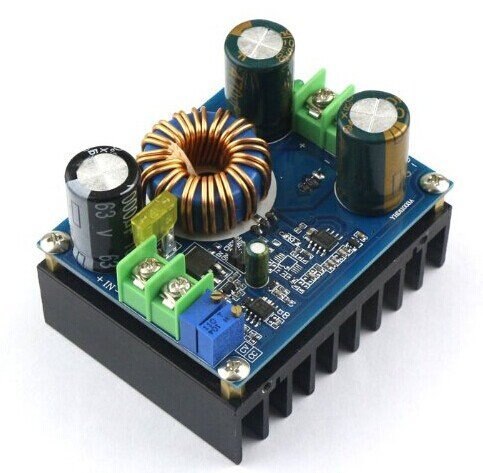

Adjustable output current. 600W boost module, 12V - 60V wide input voltage, 12 - 80V wide adjustable output voltage, Ultra-low dropout voltage.

Module Parameters:

  • Module Name: 600W boostĀ constant currentĀ module, non-isolated
  • Input voltageĀ 1: 12-60VDCĀ (default range, for wide input voltage range applications)
  • Input voltageĀ 2:Ā  9-16VDCĀ (for 3 lithium battery and 12V battery) , please do not overrange
  • Input Current:Ā 16A MAX.Ā (over 10A,please enhance heat dissipation,such as 5cm cooling fan)
  • Quiescent Current: 15mA (when 12V step up to 20V), if the output voltage is higher, the quiescent current will increase.)
  • Output Voltage :Ā 12-80VDCĀ (continuously adjustable),default output: 19VDC
  • Output Current:Ā 12A Max.Ā (over 10A,please enhance heat dissipation.), the greater the input and output voltage difference , the smaller the output current
  • Constant current range :0.1-12A
  • Output power: = Input voltage * 10A, such as: input 60V * 10A = 600W,if need more output power,Ā  such as need the output to 15A,two modules can be used in paralle, the current of each module can be adjusted to 8A.
  • Conversion efficiency: Up to 95%
  • Operating Frequency: 150KHz
  • Operating temperature: -40 to +85 Ā°c (if the ambient temperature is too high, please enhance heat dissipation)
  • Overcurrent protection: Yes (if the input exceeds 17A, automatically reduces the output voltage)
  • Short-circuit protection: Yes (20A input fuse,double short-circuit protection.)
  • Output feeding back protection:Yes (for charging,the separate output diode is not required.)
  • Input Reverse Polarity Protection:None (If need please install diode at the input port )
  • Installation: two 3mm screws
  • Connection: terminals, solderless

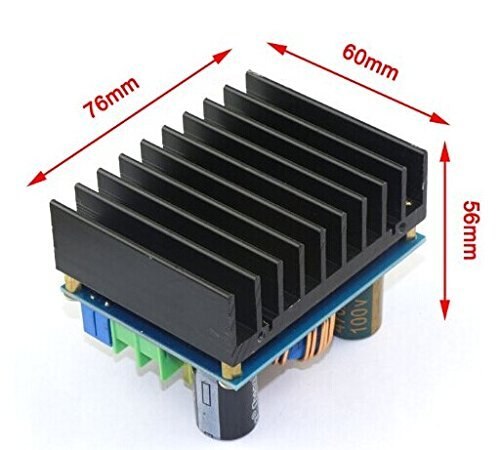

  • Dimensions: 76mm x 60mm x 56mm
  • Module Weight: 205 g


Application:

  • DIY a regulator power supply, input 12V, output can be 12-80V adjustable.
  • The power supply for electronic equipment.
  • Used as a car power supply, Power supply forĀ laptop,PDA, or other digital products
  • DIY a laptop mobile power supply: 12V coupled with high-capacity lithium batteries,
  • Solar panel regulator
  • Batteries charger
  • DrivingĀ high-power LEDĀ lights.


Note:

  • For battery charging, the need to battery is fully discharged,then connected to the output, and then adjusted to the desired current. Because the more the battery remaining, the smaller the charge current.
  • When the Input voltage rang ofĀ  9-12VDC (short circuit method), under this state, the module circuit can not be adjusted.

What input voltage ranges does this module support?
It supports a default non-isolated input range of 12-60VDC, and an alternate range of 9-16VDC for use with three Li batteries or a 12V battery. Do not exceed these ranges.
What is the adjustable output range and current limit?
Output voltage is continuously adjustable from 12 to 80VDC with a default of 19V, and the output current is adjustable from 0.1 to 12A (max 12A). If you need more power, two modules can be used in parallel with each module set to half the current.
How should I handle cooling and safety protections?
High current requires heat dissipation; if you run above about 10A add active cooling such as a 5 cm fan. Overcurrent protection will reduce output voltage if the input exceeds 17A and a 20A fuse provides short circuit protection; there is no input reverse polarity protection by default.
Can I use this module for charging batteries?
For charging, ensure the battery is fully discharged before connecting to the output and then set the desired current. The module provides output feeding back protection so a separate diode is not required for charging, and the charge current will decrease as the battery state of charge increases.
What are the installation and physical details?
It uses two 3 mm mounting screws and screw terminal connections, and its dimensions are 76 x 60 x 56 mm with a weight of about 205 g. The input is non-isolated and there is no reverse polarity protection; consider a diode at the input and ensure adequate heat sinking.
