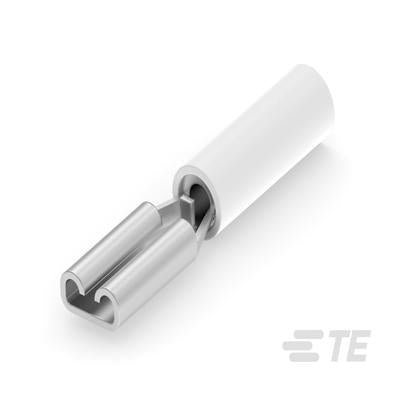

TE CONNECTIVITY/AMP BRAND PRC: AMP Part Number: 60893-2 - Insulated FASTON ReceptPIDG 22-18 110
Enhance your electrical connections with the TE CONNECTIVITY/AMP BRAND 60893-2 insulated FASTON receptacle, designed for reliable, high-performance applications. Manufactured in the US, this terminal is part of the Terminals & Splices category, offering durability and safety in various wiring environments.
Product Features
One-piece fully insulated design from the Premier Line, preventing shock and short hazards
Designed for correct lead-in of tabs and full mating compatibility with various tab styles, including those with shoulders
Funnel wire entry and wire stop for secure wiring
Visual inspection capability of crimp and wire brush for quality assurance
Color-coded assemblies by wire size with wire and tab size designations
Markings of tab thickness on terminal and visible through housing (.110, .187, and .205 series)
UL rated at +105°C, suitable for terminating 22-14 AWG solid, fused, and stranded wire
Meets UL-310 and CSA C22.2 No. 153 standards for quick connect terminals
600-volt application capability, with up to 1,000 volts for signs and fixtures
Constructed from tin-plated copper alloy terminals housed in translucent nylon for visual inspection
Application tooling available for production needs
Performance Capabilities
Complete enclosure of the tin-plated copper FASTON tab within the housing ensures positive engagement, even in blind mating locations
Housing designed to encapsulate the terminal and wire, reducing shock hazards and electrical shorts
Receptacle housing molded from Type 6/6 nylon with UL +130°C temperature rating
Stress-relieved FASTON receptacle for increased durability and abuse resistance
Designed for positive mating with tabs of various styles, including shoulder types
Visual inspection window for quality control
Color-coded for wire size: Violet (26-22 AWG), Red (22-18 AWG), Blue (16-14 AWG), Yellow (12-10 AWG)
