TE Connectivity AMP Brand PRC: AMP Part Number: 640581-1

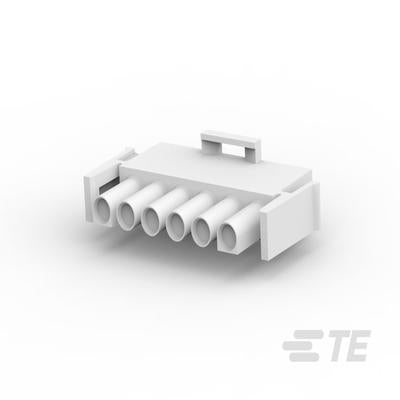

Introducing the TE Connectivity/AMP Brand Pin & Socket Connectors 6 P In-Line Plug, a high-performance connector designed for reliable power and signal transmission in electronic applications. Manufactured in China (COO: CN), this connector adheres to RoHS compliance and is suitable for various industrial and appliance uses.
Product Features
Compact design with a mated height of 19.4 mm for space-efficient installations
Power circuit connector with a 5.0 mm contact centerline for robust power delivery
Wire-to-board configuration featuring plug housings for wires and PCB header assemblies
Clear clicking sound during contact insertion for easier assembly
Double lock plate ensures complete contact loading and secure connection
Locking levers surrounded by walls to prevent tangling and protect levers
Designed to release bubbles created during potting (PC board coating)
Housing lances help prevent contact tangling
Technical Specifications
Voltage Rating: 300 VAC
Current Rating: Max 10A (dependent on contact and wire used)
Operating Temperature Range: -30°C to +105°C
Applicable Wire: 24-16 AWG
Applicable PC Board Thickness: 1.6 mm
Recognized under UL Component Program, File No. E28476
Certified by CSA, File No. LR7189
Product Details
Product Type
Connector
Category
Pin & Socket Connectors
Package Type
PKG
Business Unit
Appliances
Part Number and Packaging
Part Number: 640581-1
Unit of Measure: Each (EA)
Additional Information
For detailed specifications and assembly instructions, please refer to the datasheet.
Note: All part numbers are RoHS compliant. The datasheet was not processed; please search the internet for the part number for more details.
