Waveshare

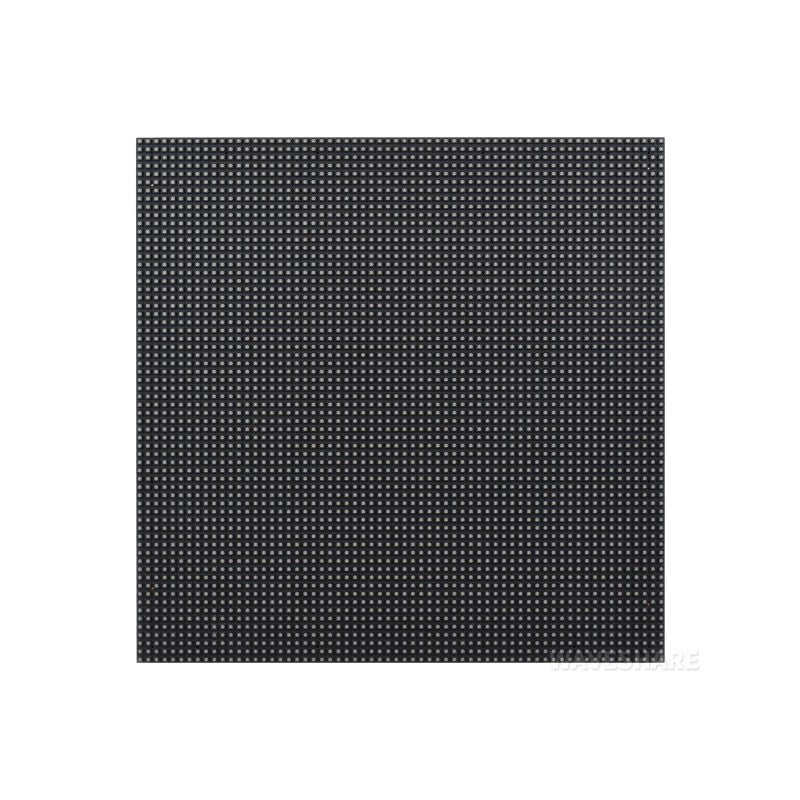

64X64 RGB Full-Color LED Matrix Panel

SKU: WVSH0046

₹ 3,099.99 ~~₹ 4,499.99~~

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

64X64 RGB Full-Color LED Matrix Panel₹ 3,099.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

RGB Full-Color LED Matrix Panel, 64×64 Pixels, Adjustable Brightness

2048 Individual RGB LEDs, 3mm Pitch - Supports Raspberry Pi Pico, ESP32, Arduino...

By nightfall, the dazzling neon lights of the streets and alleys illuminate the whole city making it more dynamic. Obviously, the Full-Color LED Matrix Panel is playing an important role. Maybe be on the doors of shops, maybe be on the bus or the taxi, you can always see animations or advertisement videos. Does it look cool? Why not have a try?

Features

4096 individual RGB LEDs, full-color display, adjustable brightness

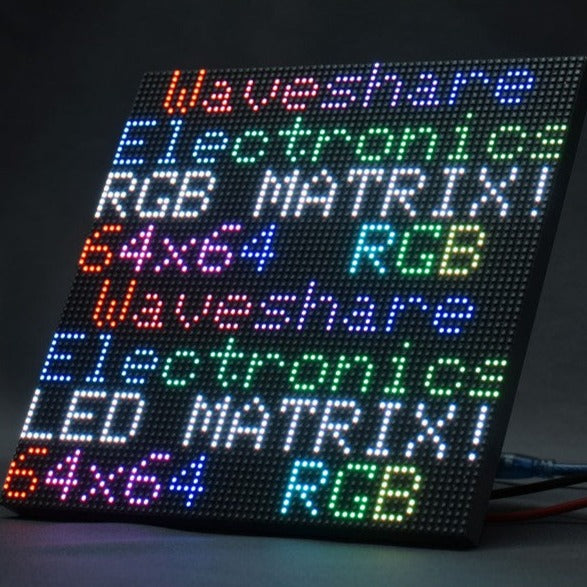

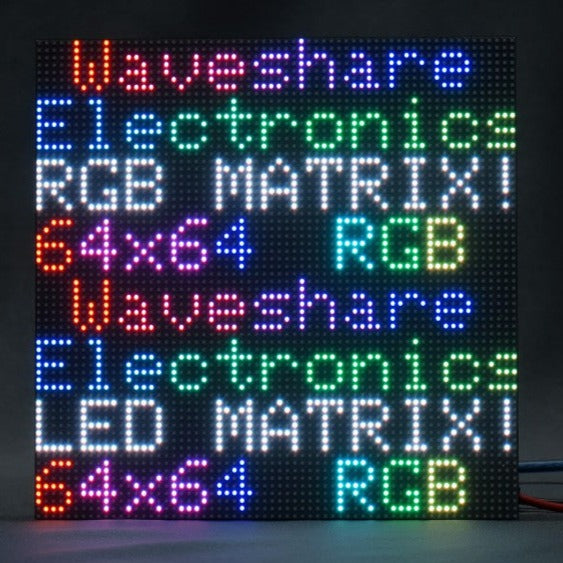

64×64 pixels, 3mm pitch, allows displaying text, colorful image, or animation
192×192mm dimensions, moderate size, suitable for DIY desktop display or wall mount display

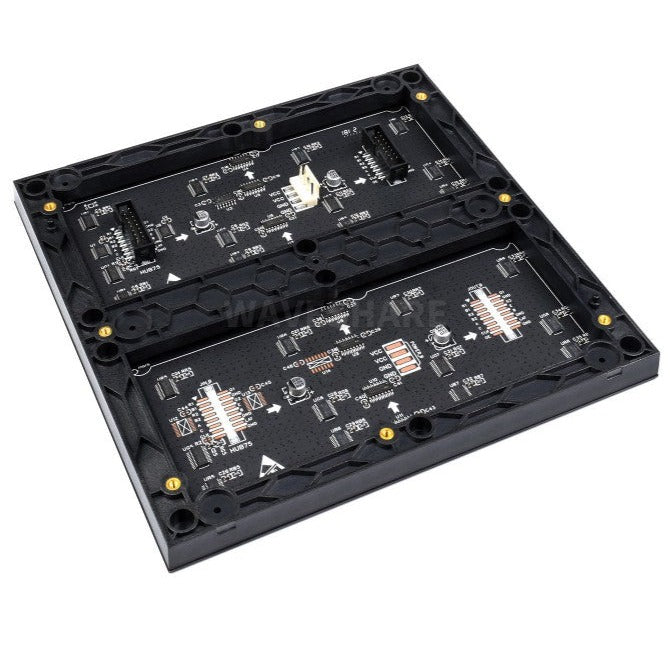

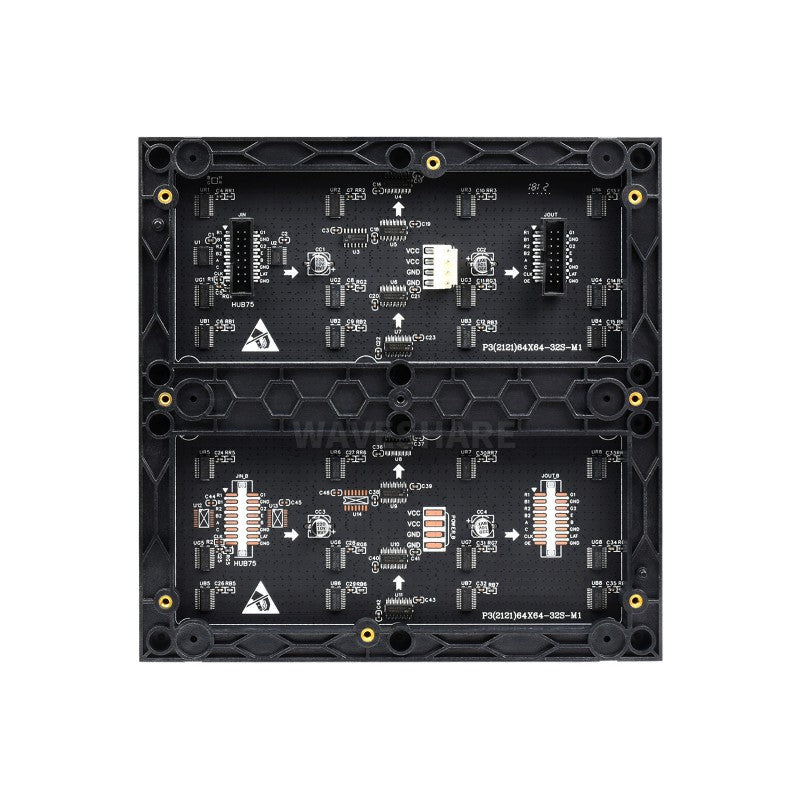

Onboard two HUB75 header, one for controller data input, one for output, chain support
Provides open source development resources and tutorials, for use with Raspberry Pi, Arduino, and so on

Specifications

DIMENSIONS	192mm × 192mm
PIXELS	64×64=4096 DOTS
PITCH	3mm
PIXEL FORM	1R1G1B
VIEWING ANGLE	≥160°
CONTROL TYPE	synchronization
DRIVING	1/32 scan
HEADER	HUB75
POWER SUPPLY	5V / 4A (VH4 header input)
POWER	≤20W

Header Definition

PIN	DESCRIPTION	PIN	DESCRIPTION
+5V	5V power input	GND	Ground
R1	R higher bit data	R2	R lower bit data
G1	G higher bit data	G2	G lower bit data
B1	B higher bit data	B2	B lower bit data
A	A line selection	B	B line selection
C	C line selection	D	D line selection
E	E line selection	CLK	clock input
LAT/STB	latch pin	OE	output enable

Chainable Design

Multi LED Matrix Panel Can Be Chained Together To Build A Larger Panel
Via HUB75 Input/Output Header

Each RGB LED matrix panel requires a standalone 5V/4A or above power supply, when they're chained to display.

Usage Scenarios

DIY Maker Desktop Or Wall Mount Display, Signboard, Environment Monitor...

Dimensions

Resources

WIKI: RGB-Matrix-P3-64x64

What interfaces does the panel use and how can I connect it to a microcontroller or SBC?

It includes HUB75 input and output headers for data input and chaining and can be used with Raspberry Pi Pico, ESP32, and Arduino. Connect using the HUB75 pins and chain panels if needed.

What can I display on the panel and is it full color?

The panel supports full color 64 by 64 displays for text, colorful images, or animations. It has 4096 RGB LEDs with adjustable brightness.

What power and mounting requirements should I know?

The panel measures 192 mm by 192 mm with a 3 mm pitch. Each panel requires a standalone 5V 4A power supply or higher, and can be desktop or wall mounted.

Is there open source support and what platforms are supported?

Open source development resources and tutorials are available for use with Raspberry Pi, Arduino, and other platforms.

How many LEDs are on the panel and what is the viewing angle?

The panel contains 4096 RGB LEDs and offers a viewing angle of at least 160 degrees.
