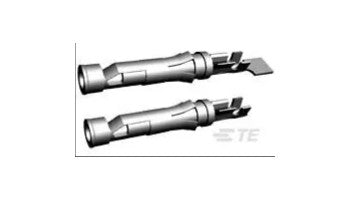

The PRC: AMP series features the Part Number: 66101-1 manufactured by TE CONNECTIVITY/AMP BRAND. This high-quality connector is designed for reliable electrical connections in industrial applications. It is compliant with RoHS standards and is suitable for use in power and signal circuits.
Key Features:
Product Type: Connector
Product Category: Standard Circular Contacts
Contact Type: Socket Contact
Contact Size: 16
Wire Range: 18 – 16 AWG, 0.8 – 1.4 mm²
Contact Material: Gold (Au) Plating
Contact Retention: Locking Spring
Termination Method: Crimp
Compatible with AMP Type III+ Circular Plastic Connectors Series 1
Operating Temperature Range: -55°C to 150°C
Packaging Quantity: 1000 pieces per carton
RoHS Compliant: Yes
UOM: EA
ECCN: EAR99
Package Type: BLK
For detailed specifications and application guidelines, please refer to the Datasheet.
Product Specifications
Feature
Details
Contact Type
Socket Contact
Mating Area Plating Material
Gold (Au)
Wire Contact Termination Area Plating Material
Gold
Contact Retention Within Housing
With Contact Retention
Contact Retention Type
Locking Spring
Base Material
Brass
Max Current Rating
13 A
Operating Temperature Range
-55°C to 150°C
Wire Insulation Support
With Contact Retention
Insulation Diameter Range
2.03 – 2.54 mm (.08 – .1 in)
Wire Size
0.8 – 1.4 mm²
Additional Information
This product is compliant with EU RoHS Directive 2011/65/EU, EU ELV Directive 2000/53/EC, and REACH Regulation (EC) No. 1907/2006. It is suitable for power and signal circuit applications requiring secure crimped connections with gold-plated contacts for enhanced conductivity and corrosion resistance.
For more details, including application specifications and related tools, please visit the product page on TE.com.
Note: The datasheet was not processed. Please search the internet for the part number 66101-1 for more details.
