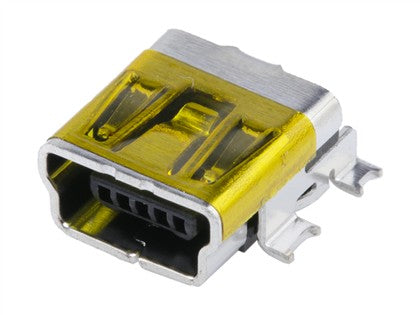

Product Description: Mini USB B-Receptacle Surface Mount Right-Angle S
The MOLEX Mini USB B-Receptacle Surface Mount Right-Angle S is a high-quality, lead-free USB 2.0 connector designed for reliable wire-to-board connections in electronic applications. Manufactured in China, this connector features a compact design suitable for space-constrained environments and offers robust electrical and mechanical performance.
Part Number: 67503-1020
Manufacturer: MOLEX
Country of Origin: CN
Unit of Measure: EA (Each)
ECCN: EAR99
Package Type: REEL
Key Features
Surface mount design with right-angle orientation for easy PCB integration
Mini USB B-Receptacle compatible with USB 2.0 standards
Full shielded female connector with gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
Supports up to 1.0A current per contact and a maximum voltage of 30V AC/DC
Five circuits for versatile connectivity
Includes back cover and PCB locator plastic pegs for secure mounting
Reinforced with solder tabs for durable soldering connections
Operating temperature range from 0°C to +50°C
Specifications
Electrical & Physical
Product Category
I/O Connectors
Series
67503
Description
Mini USB, B-Receptacle, Surface Mount, Right-Angle, Solder Tabs with Back Cover and PCB Locator Plastic Pegs, Lead-Free
Application
Wire-to-Board
Component Type
Receptacle
Standard
USB 2.0
Type
Mini-B
Gender
Female
Shield Type
Full Shield
Shielded
Yes
Current - Max per Contact
1.0A
Voltage - Max
30V AC/DC
Circuits (Loaded)
5
Color - Resin
Black
Mounting Style
Top-Mount
PCB Locator
Yes
PCB Retention
Yes
Pitch - Mating Interface
0.80mm
Plating - Mating
Gold (min 0.762µm)
Plating - Termination
Tin (min 1.016µm)
Temperature Range - Operating
0° to +50°C
Additional Details
Includes back cover and PCB locator plastic pegs for secure assembly
Reel packaging for efficient manufacturing and assembly processes
Compliance with EU RoHS and REACH SVHC standards
For detailed technical drawings, specifications, and 3D models, please refer to the Datasheet.
Note: Datasheet was not processed; please search the internet for the part number 67503-1020 for more details.
