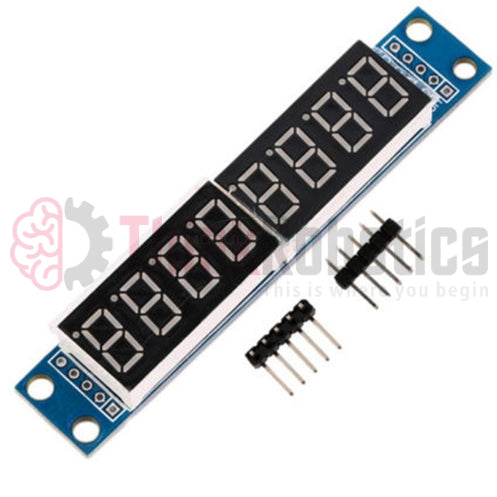

This 8 digit seven segment display module is based upon the Maxim MAX7219 LED display driver. The module uses two standard 4 digit seven segment displays to display a total of 8 digits in RED with decimal point. A convenient input and output header allows additional modules to be daisy-chained.
The entire device includes a 150μA low-power shutdown mode, analog and digital brightness control, a scan-limit register allows the user to display 1-8 bit data.
