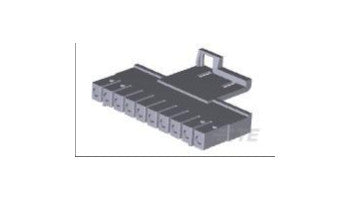

Product Description for TE CONNECTIVITY/AMP PART NUMBER 925313-1
The TE CONNECTIVITY/AMP PART NUMBER 925313-1 is a high-quality, UL 94V-0 rated housing receptacle designed for cable-to-cable and cable-to-panel applications. Manufactured in Poland (COO: PL), this connector is part of the Rack & Panel Connectors category and is suitable for industrial use.
Key Features
Housing, receptacle, crimp, for cable-to-cable and cable-to-panel connections
UL 94V-0 flammability rating for safety and reliability
10 signal and power positions with a single row configuration
Sealable design with contact retention within housing
Crimp termination method for secure wire connections
Panel mount feature without connector mounting type, cable mount (free-hanging)
Housing material: PA 66 GF
Primary color: Black
Operating voltage: 250 VAC
Wire size range: 30 – 14 AWG
Connector dimensions: Width 6.9 mm, Height 61.3 mm, Length 45 mm
Centerline (pitch): 6.15 mm
Specifications
Contact Features
Details
Contact Type
Socket
Contact Retention Within Housing
With
Contact Current Rating (Max)
13 A
Electrical & Compliance
Operating Voltage: 250 VAC
UL Flammability Rating: UL 94V-0
RoHS Compliant: Yes
EU ELV Directive 2000/53/EC Compliant
EU RoHS Directive 2011/65/EU Compliant
REACH Regulation: Does not contain REACH SVHC as of JAN 2025
For support, please contact +1 800 522 6752. The datasheet was not processed; please search the internet for the part number for more details. By downloading CAD files, you accept the Terms and Conditions of Use.
