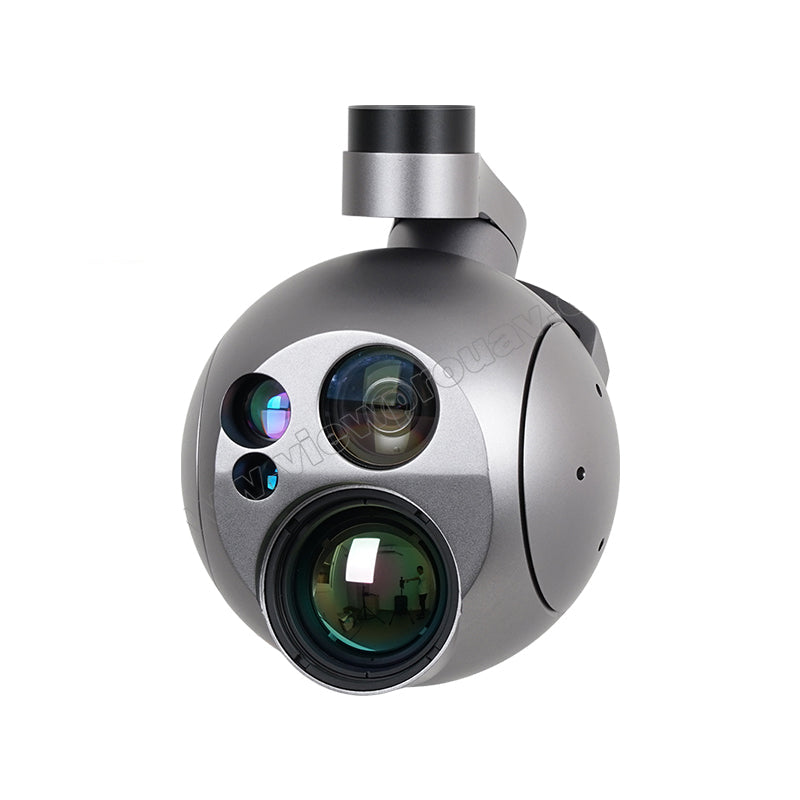

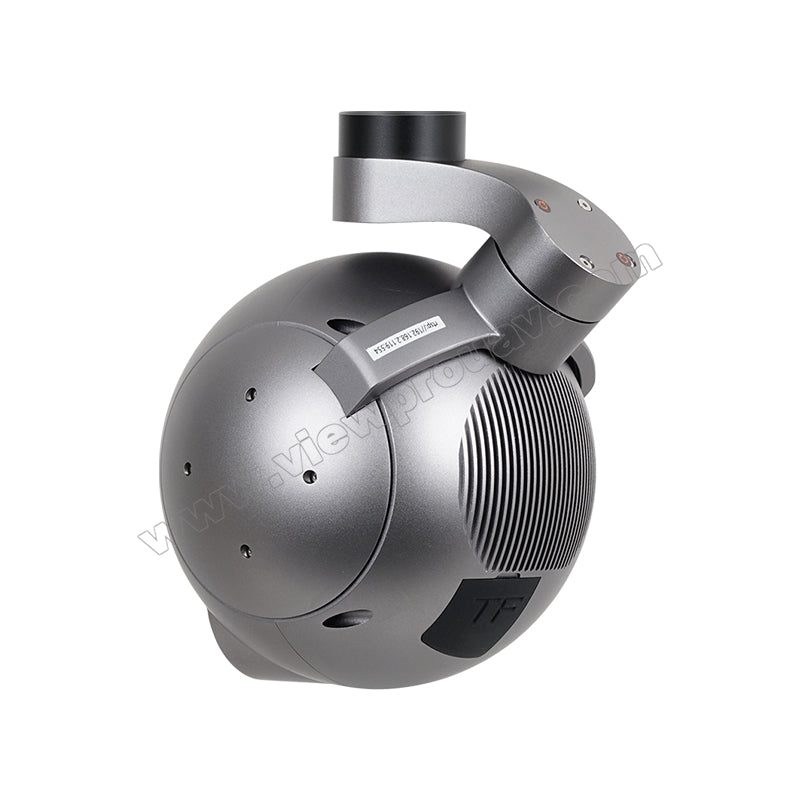

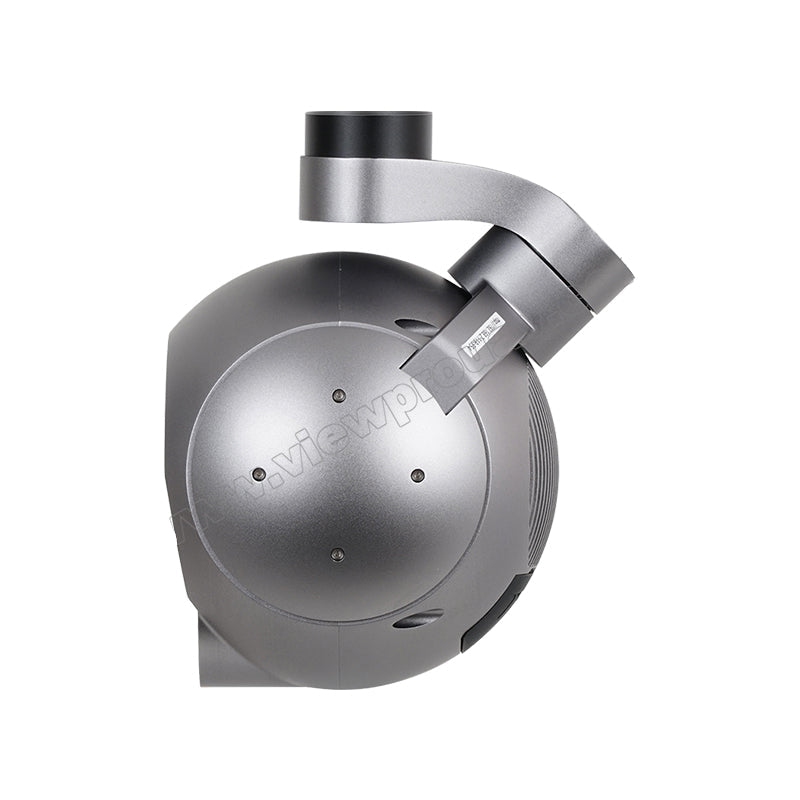

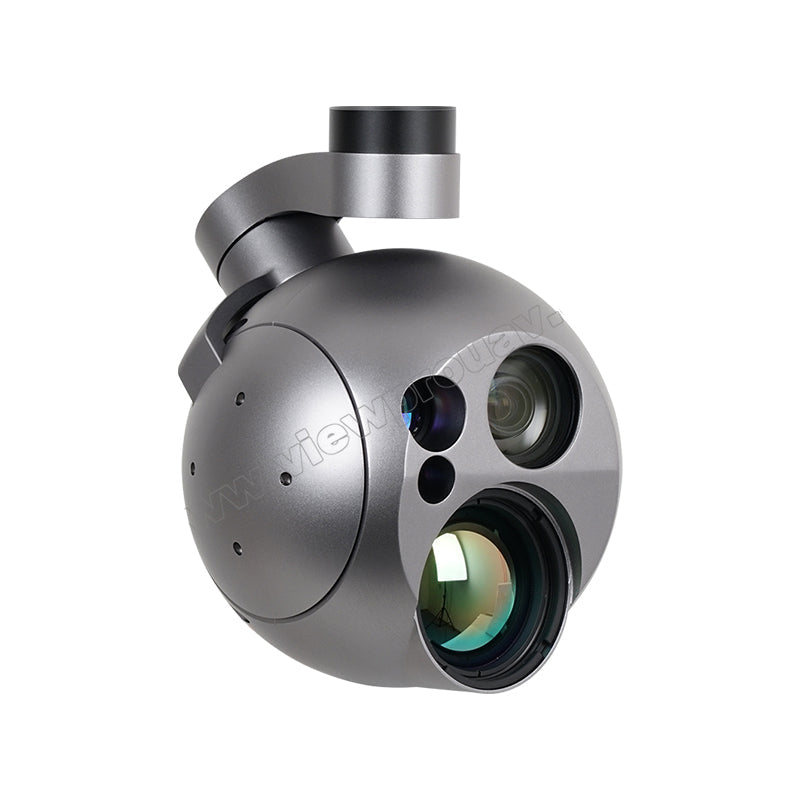

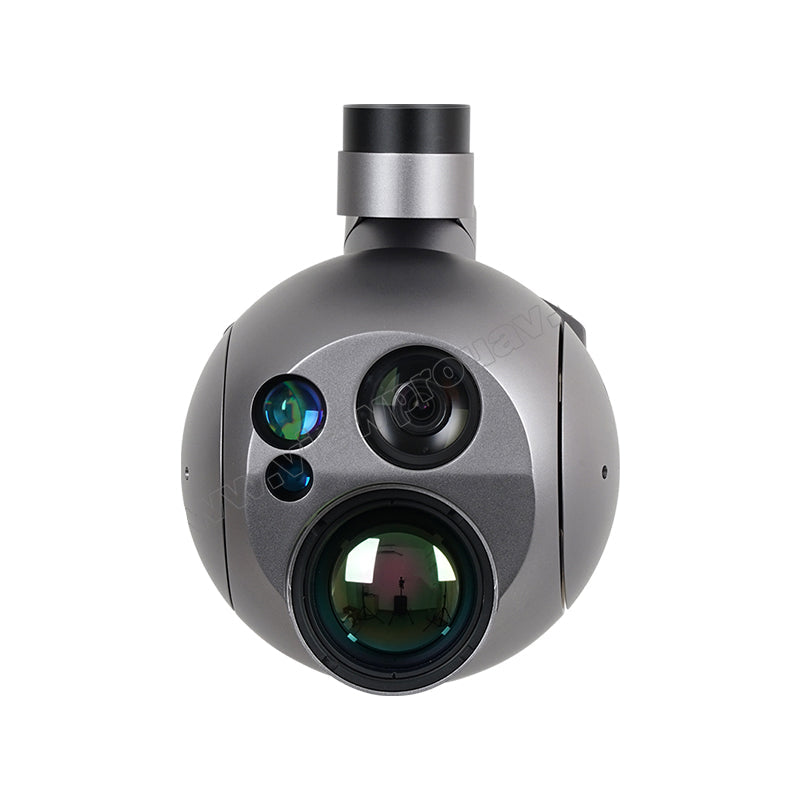

A30TR-50 5km Laser Rangefinder EO/IR Camera

SKU: DRO8010

₹ 2,158,999.99 ~~₹ 2,349,999.99~~

Out of stock

Chat with us on WhatsApp We reply quickly! Contact Us

A30TR-50 5km Laser Rangefinder EO/IR Camera₹ 2,158,999.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

A30TR-50 is a 3-axis high-precision gimbal that integrates an AI-based sensor with a 30x optical zoom EO SONY camera, a 50mm 640*512 12μm IR thermal sensor, and a 5km laser rangefinder. Supports car and human auto detection and stable tracking. A30TIR-50 can be installed on all kinds of drones for public safety, first response, inspections, patrol, disaster prevention, emergency monitoring inspections, search and rescue, etc.

Specification

Hardware Parameter

Working voltage	12V
Input voltage	3S ~ 6S
Output voltage	5V (connect with PWM)
Dynamic current	1100~2000mA @ 12V
Idle current	1100mA @ 12V
Working environment temp.	-20℃ ~ +60℃
Output	micro HDMI(1080P 30/60fps) / IP (1080p/720p 30fps)
Local-storage	TF card (Up to 128G, class 10, FAT32 or ex FAT format)
Photo storage format	JPG(1920*1080)
Video storage format	MP4 (1080P 30fps)
Control method	PWM / TTL / S.BUS / TCP(IP output)

Gimbal Spec

Mechanical Range	Pitch/Tilt: -55°～125°, Roll: ±45°, Yaw/Pan: ±300° / ±360°*N (IP output version)
Controllable Range	Pitch/Tilt: -45°～90°, Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle	Pitch/Roll: ±0.02°, Yaw：±0.02°
One-key to center	√

Camera spec

Imager Sensor	SONY 1/2.8" "Exmor R" CMOS
Picture quality	Full HD 1080 (1920*1080)
Effective pixel	2.13MP
Lens optical zoom	30x, F=4.3~129mm
Digital zoom	12x (360x with optical zoom)
Min object distance	10mm(wide end) to 1200mm(tele end). Default 300mm
Horizontal viewing angle	1080p mode: 63.7°(wide end) ~ 2.3°(tele end)
Sync system	Internal
S/N ratio	more than 50dB
Min illumination	Color 0.01lux@F1.6
Exposure control	Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
Gain	Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)
White balance	Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto)
Shutter speed	1/1s to 1/10,000s, 22 steps
Backlight compensation	Yes
Aperture control	16 steps
Defog	Yes
OSD	Yes

IR Thermal Imager Spec

Focus Length	50mm
Coating Film	DLC
Horizontal FOV	8.8°
Vertical FOV	7.0°
Diagonal FOV	11.2°
Detective Distance (Man: 1.8x0.5m)	2083 meters
Recognize Distance (Man: 1.8x0.5m)	521 meters
Verified Distance (Man: 1.8x0.5m)	260 meters
Detective Distance (Car: 4.2x1.8m)	6389 meters
Recognize Distance (Car: 4.2x1.8m)	1597 meters
Verified Distance (Car: 4.2x1.8m)	799 meters
Working mode	Uncooled VOx long wave (8μm~14μm) thermal imager
Detector pixel	640*512
Pixel pitch	12μm
Focusing method	Athermal prime lens
NETD	≤50mK@F.0 @25℃
Color palette	White hot, black hot, pseudo color
Digital zoom	1x ~ 8x
Sync correct time	Yes

EO / IR Camera Object Tracking

Update rate of deviation pixel	30Hz
Output delay of deviation pixel	<30ms
Minimum object contrast	5%
SNR	4
Minimum object size	16*16 pixel
Maximum object size	256*256 pixel
Tracking speed	>48 pixel/frame
Object memory time	100 frames

IR Laser Rangefinder

Measure ability	≥5km for big target (eg. building) ≥3km for car（2.3m×2.3m ） ≥1.5km for people（1.75m×0.75m ）(Based on typical value: LOS visibiligy: ≥8km Diffuse reflection rate: ≥0.3 Humility: ≤80%)
Accuracy (Typical value)	≤ ±1m (RMS)
Wave length	1535nm pulse laser
Divergent Angle	≤ 0.5mrad
Measurement frequency	1~10HZ
Min measuring range	≤ ±20m
Resolution	≤ 50m (multiple targets)
Ranefinder	Target distance measuring

EO Camera AI Performance

Targets type	Car and human
Simultaneous detection quantity	≥ 10 targets
Min contrast ratio	5%
Min target size	5×5 pixel
Car detection rate	≥85%
False alarm rate	≤10%

Packing Information

N.W.	1500g (Viewport version)
Product meas.	145.8138222.1mm (Standard version) / 145.8138227.8mm (Viewport version)
Accessories	1pc gimbal camera device, screws, copper cylinders, damping balls,1pc USB to TTL cable / Hight quality plastic box with foam cushion
Package meas.	350300250mm

What components are integrated in the A30TR-50 EO/IR camera system?

The system combines a 30x optical zoom Sony EO camera, a 50 mm 640x512 12 micron IR thermal imager, a 5 km laser rangefinder, and a 3 axis gimbal for stable tracking.

What power and control options are supported?

It operates from 12 V and accepts 3S to 6S input, with a 5 V output for PWM. Control options include PWM, TTL, S.BUS, and TCP IP (IP output version).

How does the AI detection and tracking feature work?

The unit supports car and human auto detection with stable tracking. It can track at speeds up to 30 Hz update rate with memory for 100 frames and can detect multiple targets simultaneously.

Where can this system be installed and what are its typical use cases?

It is designed for installation on drones for public safety, first response, inspections, patrols, disaster prevention, emergency monitoring, and search and rescue activities.

What storage and output formats are supported?

Local storage uses a TF card up to 128 GB with JPG photos at 1920x1080 and MP4 video at 1080p 30fps. Output options include micro HDMI 1080p 30/60fps and IP 1080p/720p 30fps, with control via PWM TTL S.BUS or TCP IP.
