Real-Time FPV Video Transmission for RC Aircraft, Drones & Robotics
The 5.8GHz FPV Video Transmission Kit combines a high-performance FPV Video Transmitter (available in 200mW and 600mW variants), a 1000TVL FPV Camera, and an EWRF OTG Receiver into a complete wireless video solution for FPV applications. Designed for drones, RC vehicles, robotics, and wireless monitoring systems, the kit delivers real-time analog video transmission with support for Android smartphones, tablets, and external displays.
Featuring 48 channels, automatic frequency scanning, low-latency video reception, and plug-and-play OTG connectivity, this FPV kit provides an affordable and reliable solution for immersive first-person-view experiences.
| Feature | 200mW Version | 600mW Version |
|---|---|---|
| Video Transmitter Power | 200mW | 600mW |
| Camera Resolution | 1000TVL | 1000TVL |
| Frequency | 5.8GHz 48CH | 5.8GHz 48CH |
| Recommended Use | Indoor FPV, RC Cars, Small Drones | Outdoor FPV, RC Aircraft, Long-Range FPV |
| Feature | Description |
|---|---|
| Complete FPV Kit | Includes FPV video transmitter, 1000TVL FPV camera, OTG receiver, antennas, and cables. |
| 5.8GHz 48CH System | Supports standard 48-channel FPV transmission for reliable operation. |
| OTG Smartphone Viewing | Connect directly to supported Android smartphones and tablets. |
| Low Latency Video | Approximately 100ms delay via USB OTG connection. |
| Auto Channel Scan | Automatically detects available FPV channels. |
| Audio Support | Supports audio return functionality. |
| External Display Support | Can be connected to compatible external display devices. |
| Parameter | Specification |
|---|---|
| Frequency | 5.8GHz |
| Channels | 48CH |
| Resolution | 720 × 480 @ 30FPS |
| Weight | 22.8g (Including Antenna) |
| Dimensions | 56 × 36 × 10mm |
| Input Voltage | 5V |
| Operating Current | 270mA |
| Scanning Method | Fully Automatic |
| Connection Type | Wired OTG Connection |
| Interfaces | Micro USB, 1.27mm 4-Pin |
| Video Delay | ~100ms via USB OTG |
| Supported Devices |
|---|
| Qualcomm Snapdragon-based Android Devices |
| Huawei Kirin 950 and Higher |
| MediaTek X20 and Higher |
| Android Devices Supporting USB OTG |
| Not Compatible with Apple iPhone Devices |
| FPV Racing Drones | RC Airplanes |
| RC Cars | Robotics Projects |
| Wireless Monitoring | DIY FPV Systems |

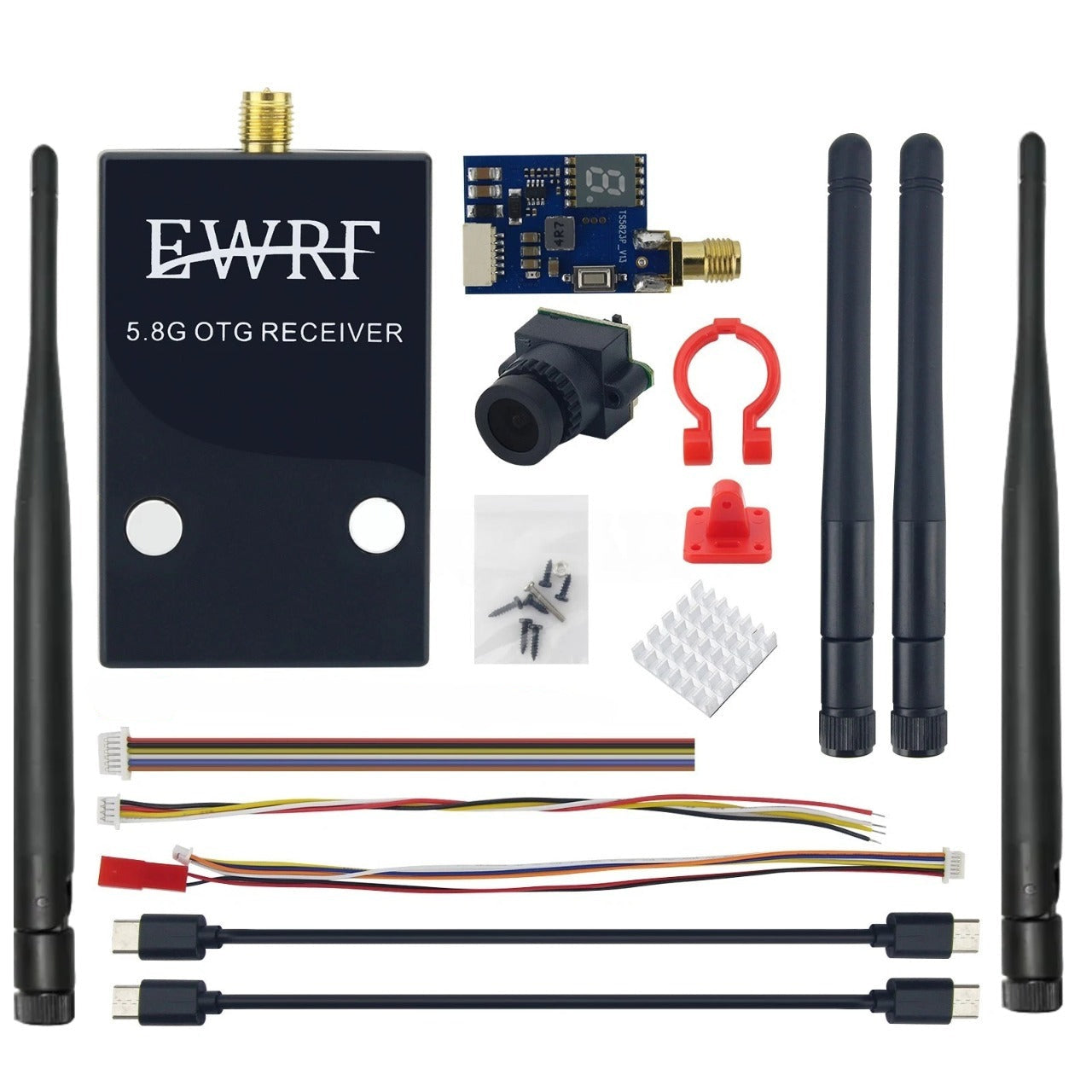

| Item | Quantity |
|---|---|
| EWRF OTG Receiver | x1 |
| Antenna | x4 |
| Micro USB to Micro USB Cable | x1 |
| Micro USB to Type-C Cable | x1 |
| FPV Video Transmitter (200mW / 600mW Variant) with 1000TVL Camera | x1 |
| Wire Set | x1 |
No reviews yet. Be the first to share your experience!
