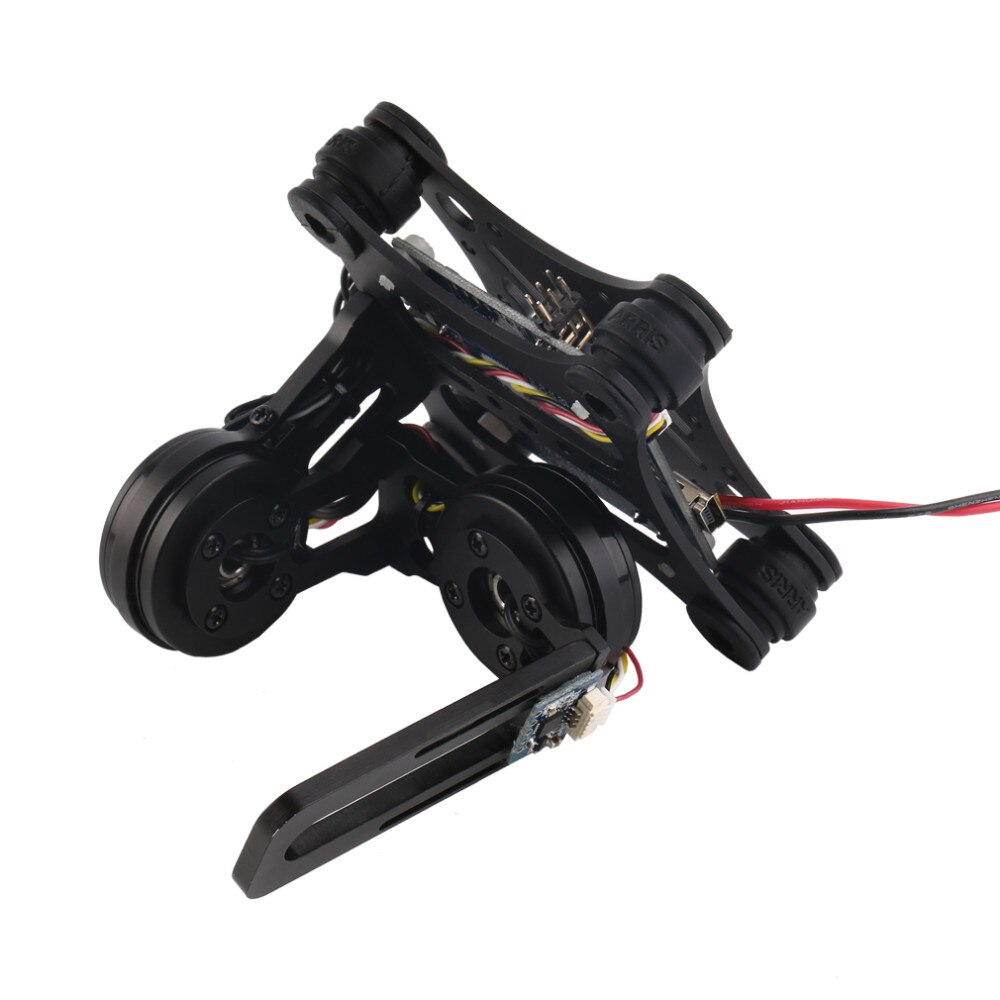

RTF 2 Axis Drone Camera Brushless Gimbal

Upgrade to high-quality brushless PTZ control panel, chips are original chip, increase the supply anti-reverse polarity protection, counter-power to prevent customers from unintentional indirect cause significant damage.

Original sensor chip, better accuracy, and change the sensor interface, the connection is more solid, easy to lose, iic error does not occur; Upgrade the roof, increasing the head hook hole, easy to use PTZ hook.

You can use the remote real-time control of pitch and roll angle
Extended function: to set flip, installed on fixed wing; Handheld PTZ can be changed; (user to modify, we does not provide technical support). Can be upgraded to three PTZ (user to modify, we do not provide technical support)

Notes:
1. Recommended power supply for the gimbal is 12V. (3cell lipo battery)

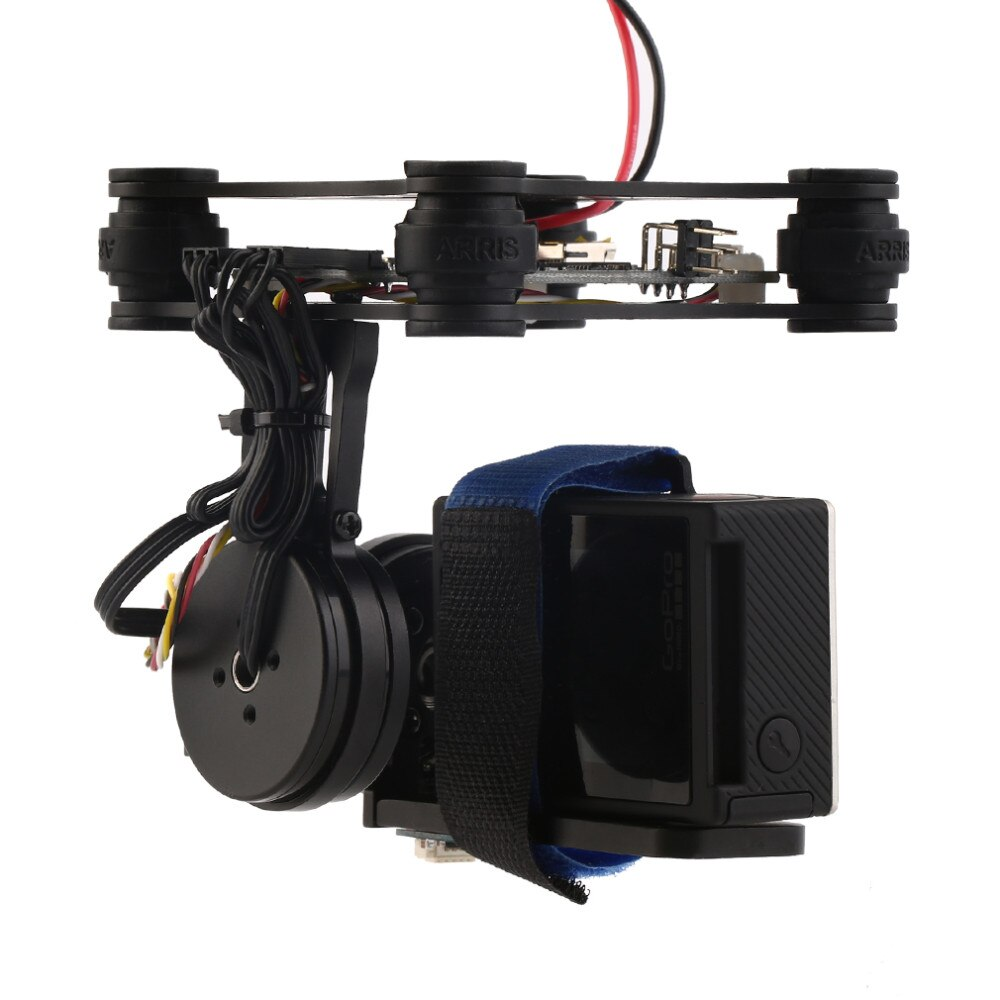

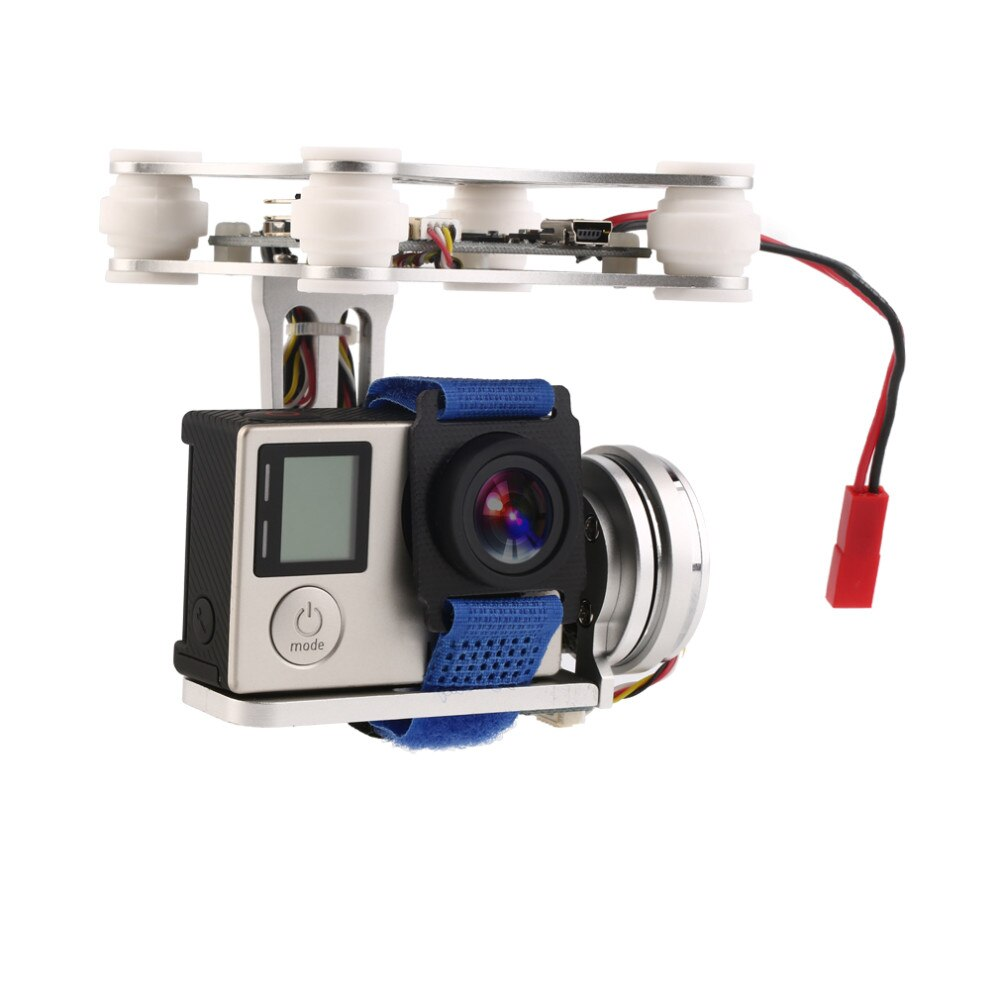

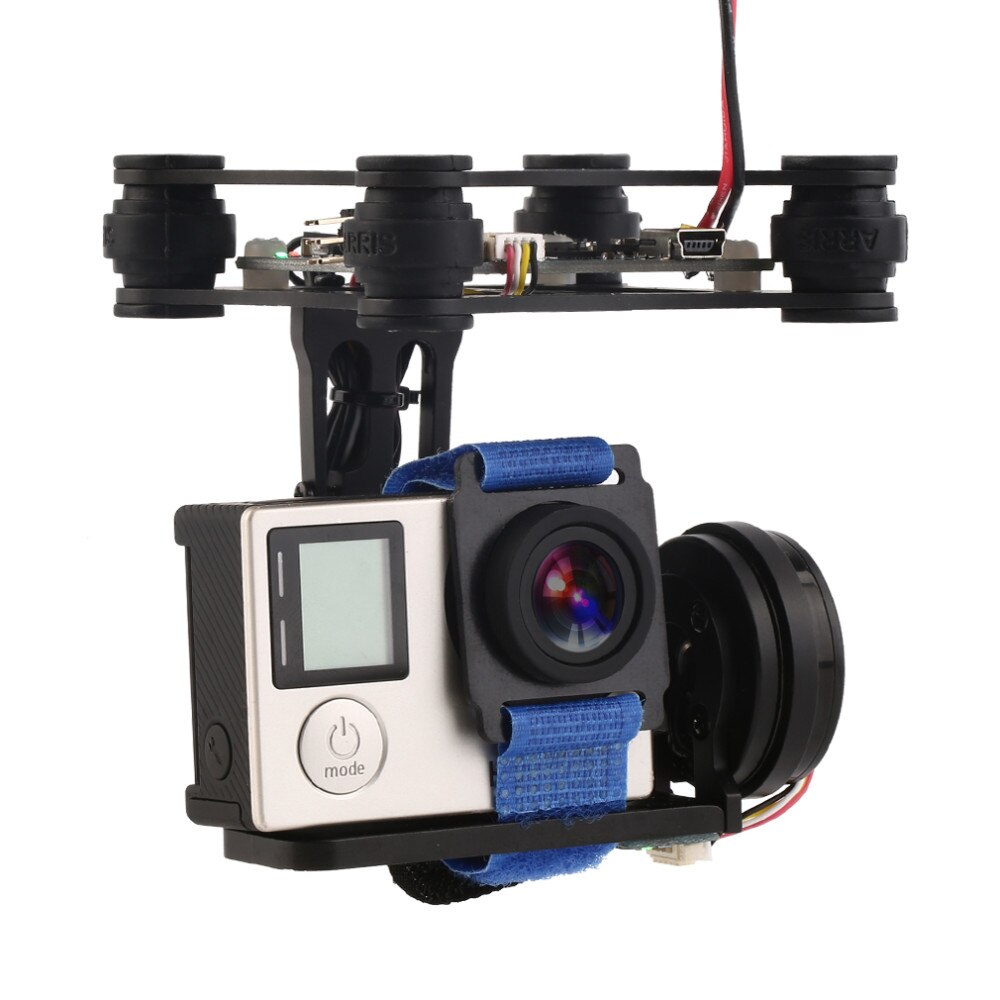

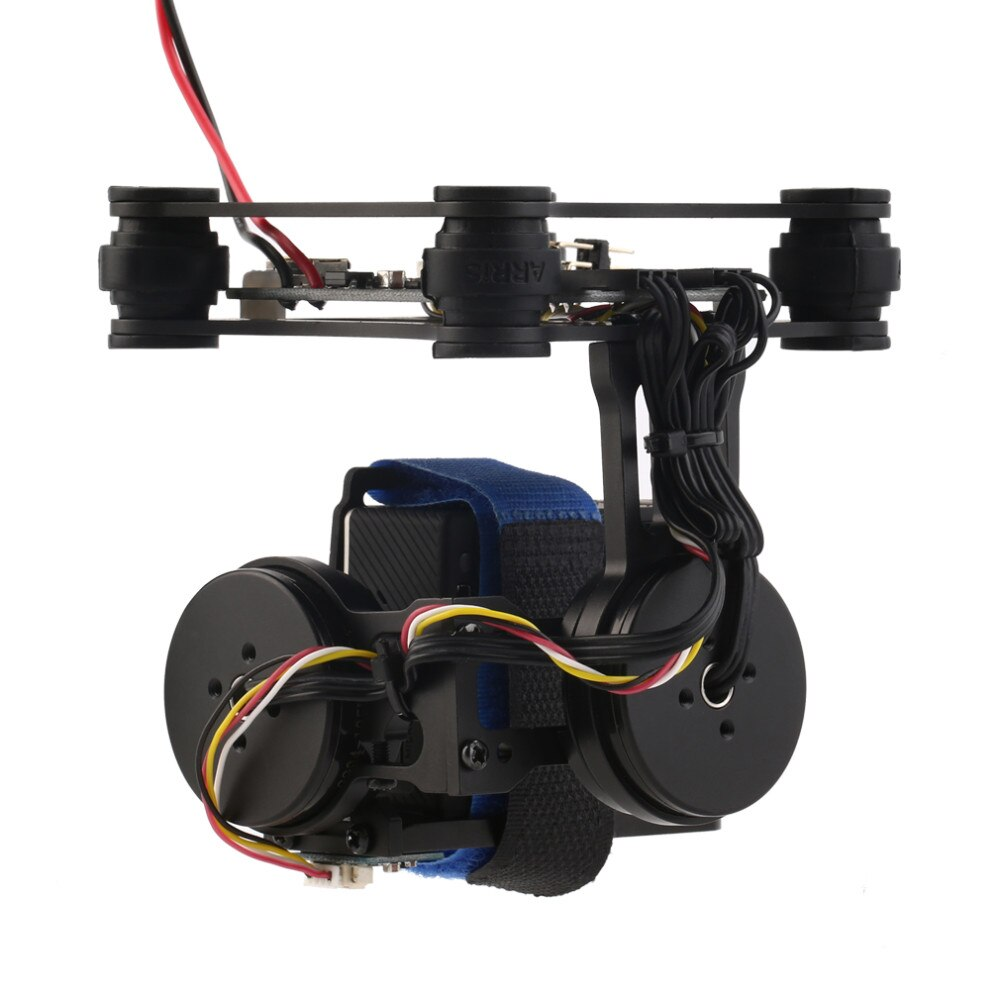

2. The gopro camera must fasten on the gimbal. (Not any loose, this is very important)
3. Adjust the gopro camera left or right, let the camera almost at level.
4. Please do not power on the gimbal until the Gopro camera is fixed on the gimbal.

Specifications

• Name: CNC metal brushless gimbal
• Material: CNC Aluminium alloy
• Motor: Model 2208 kv80 Brushless motor

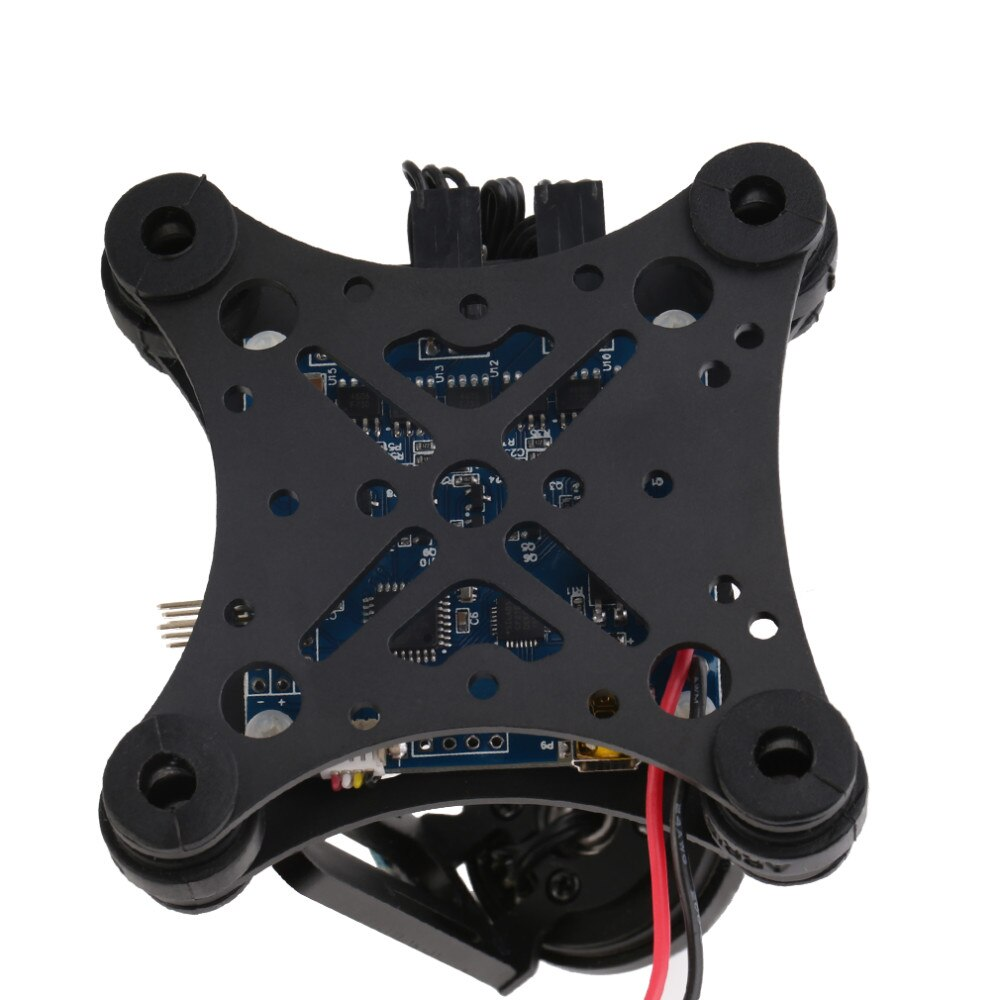

• Control Panel: BGC3.0 Brushless control panel
• Software: BGC2.2
• Strap: for Gopro camera strap
• Compatible camera: for GOPRO 3 3+ 4
• Battery plug type: JST plug / XH-2.54 plug
• Voltage: 12V/3cell Lipo battery
• Compatible model: for DJI phantom I, II and other DIY drones
• Color: black Silver
• Size: 80 x 80 x 80mm

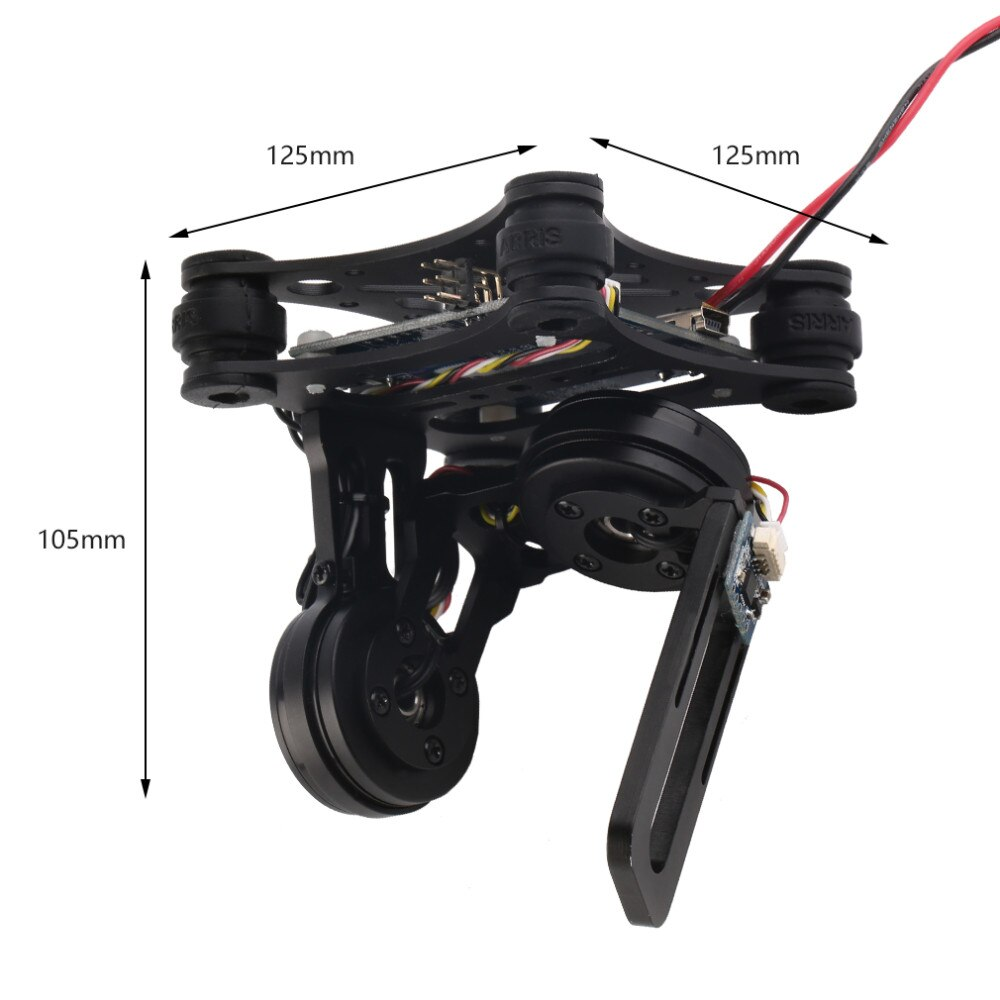

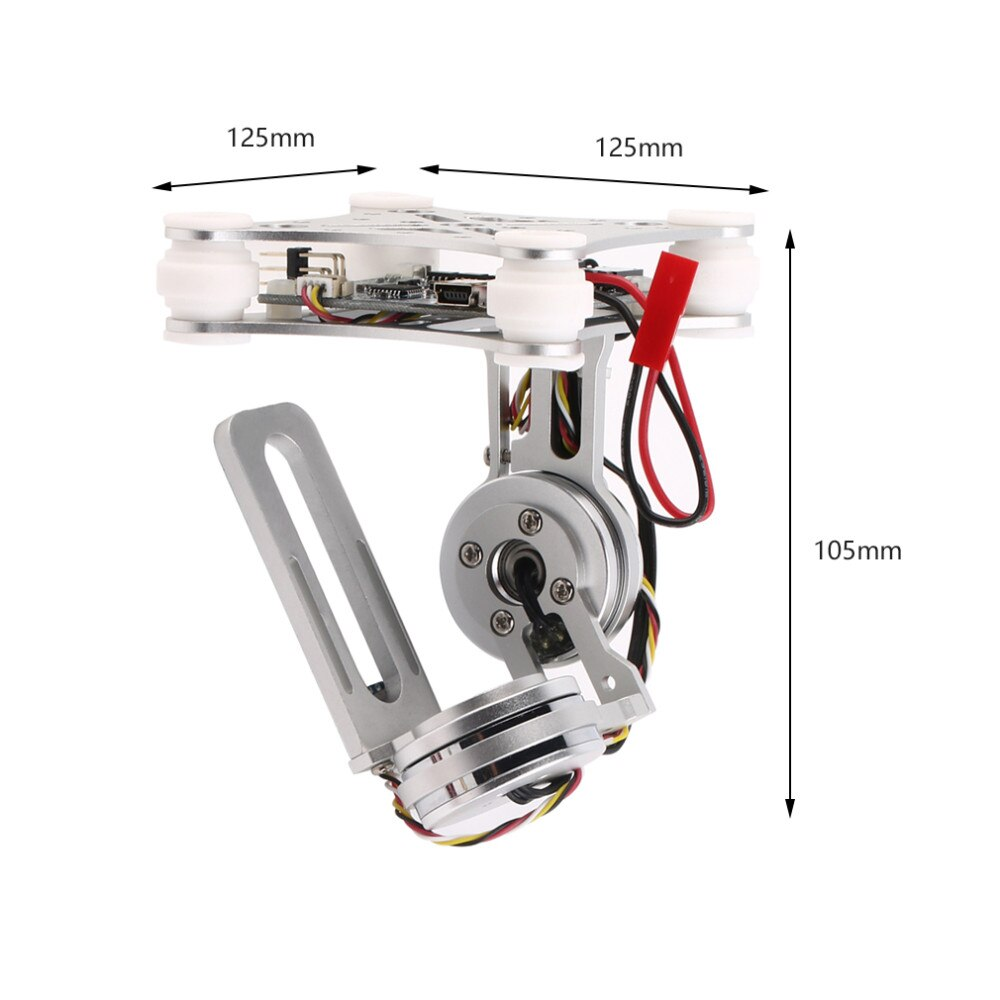

• Package size: 125 x 125 x 105mm
