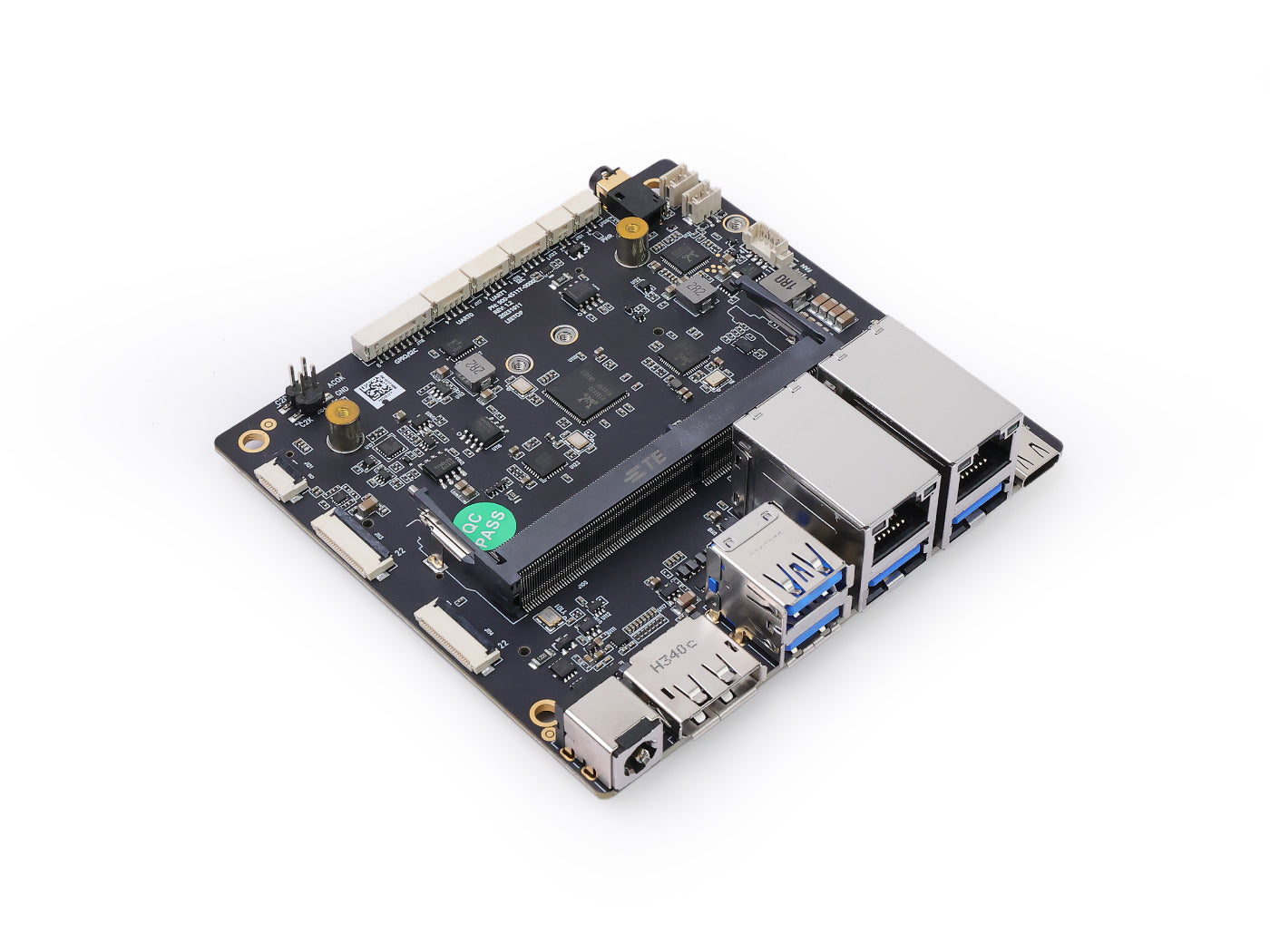

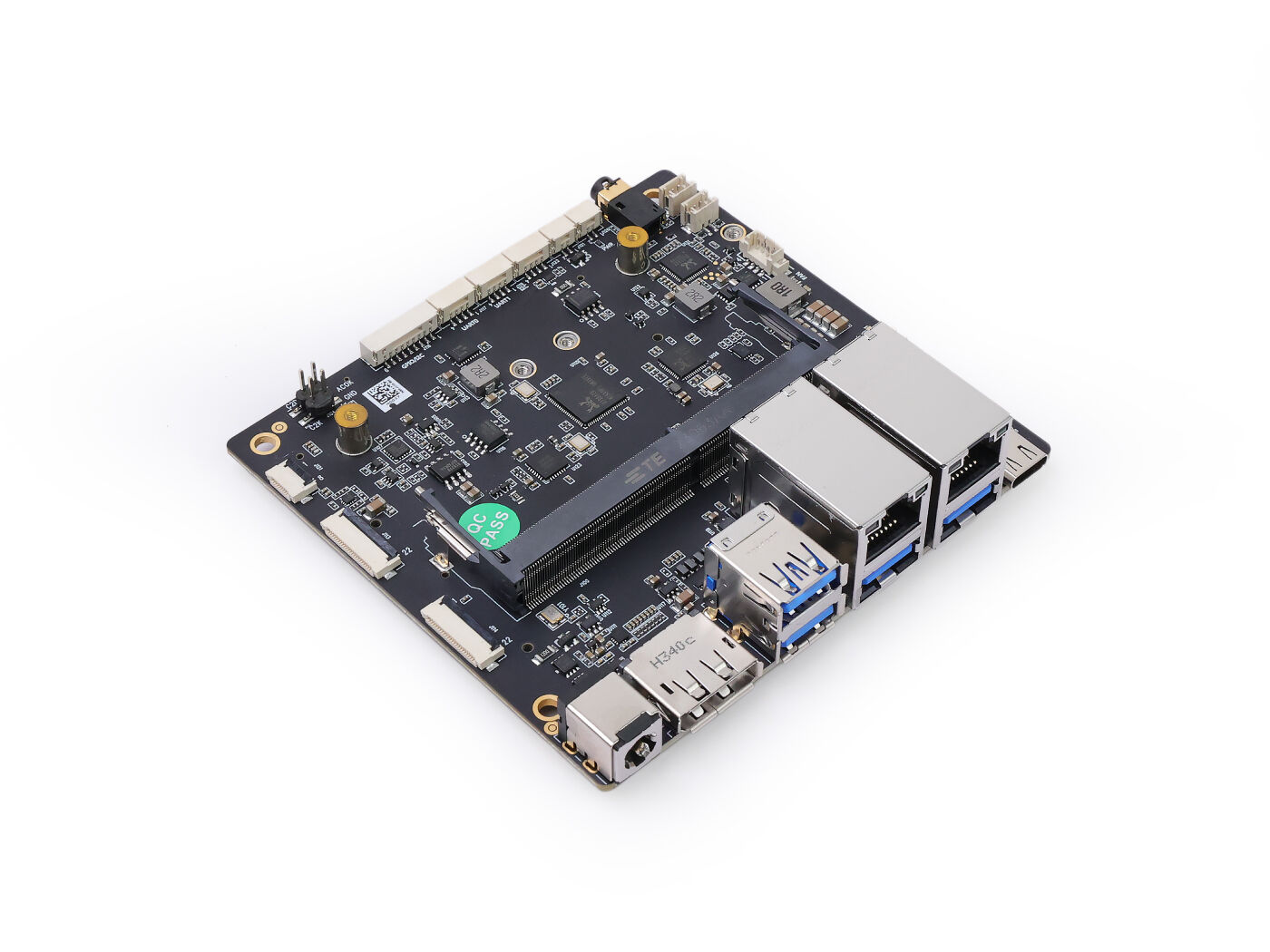

A608 Carrier Board for Jetson Orin™ NX/Orin™ Nano Series - Rich Function CON Interfaces Compatible with JST-GH ports for Drone and Robotics Integration

Feature

• Design for High-performance Embedded AI System: Support NVIDIA Jetson Orin™ NX/Orin™ Nano modules
• High-speed and Hybrid Network: Equip with 2 GbE ports for fast speed network, and provide M.2 KEY E interface for WiFi, M.2 KEY B interface for 4G/5G communication

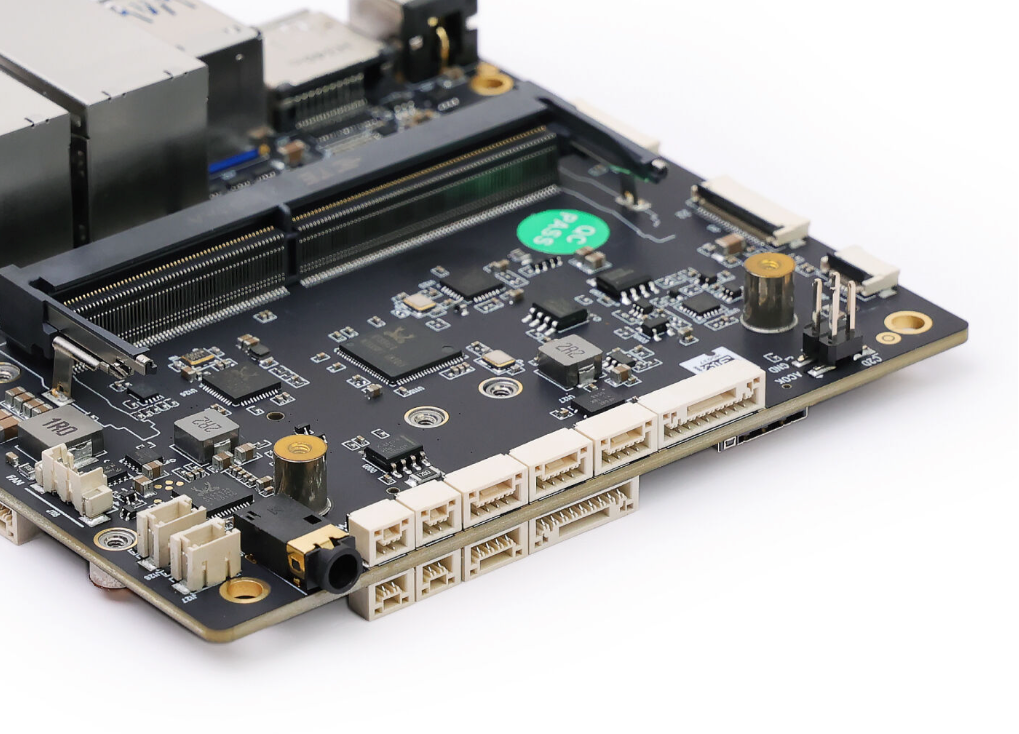

• Versatile Interfaces: Offer 4x USB 3.2 Type A which also integrated with USB 2.0, 1x USB 2.0 + 3.2 Type C, 2x 4-CSI camera, rich set of function connectors such as 1x CAN, 2x IIC, 2x UART, 7x IO FOR 3.3V, 1x SPI, 2x UART, 1x RECOVERY, and 1x RESET
• Advanced Peripherals Supported: 1x DP, 1x fan, 1x RTC, 1x M.2 Key M for storage expanded and multiple expansion
• Wide Range of Input Voltages: From 9V to 20V DC Input with up to 60W, providing flexibility in power supply options

The A608 Jetson Carrier Board supports NVIDIA Jetson Orin™ NX/Orin™ Nano modules. It features a high-speed networking connection with two GbE network ports, delivering real-time processing and scalable capability in video analytics solutions at the edge, efficiently transferring data from multiple streams with low latency. Combined with the flexible wireless connection through M.2 KEY E/M.2 KEY B, it becomes the perfect choice for drone integration and development with WiFi/4G/5G communication.

You can expand storage with the onboard M.2 KEY M interface. There also includes a fan connector (5V PWM) for cooling purposes and one RTC socket for reliable timekeeping. The board provides a wide input range of 9-20V DC with up to 60W, making it flexible to integrate into a variety of computing tasks. It maintains operation in the temperature range from -25°C to 65°C.

If the off- the -shelf carrier board doesn't fit your integration requirements, please check out our ODM services to submit your new inquiry for evaluation! Seeed Agile ODM service facilitates hardware customizations for device makers and integrators, responding fast to their specific hardware requirements, including form factors, image flashing, and logo change. Our comprehensive services reduce time-to-market for customers by handling all aspects of the process, from licensing and integration to manufacturing, fulfillment, and distribution.

Application

• UAVs
• Home robots
• Unmanned boats
• Industrial automation and control systems
• Digital signage and media players
• IoT (Internet of Things) and embedded systems

Specifications

Hardware Overview
