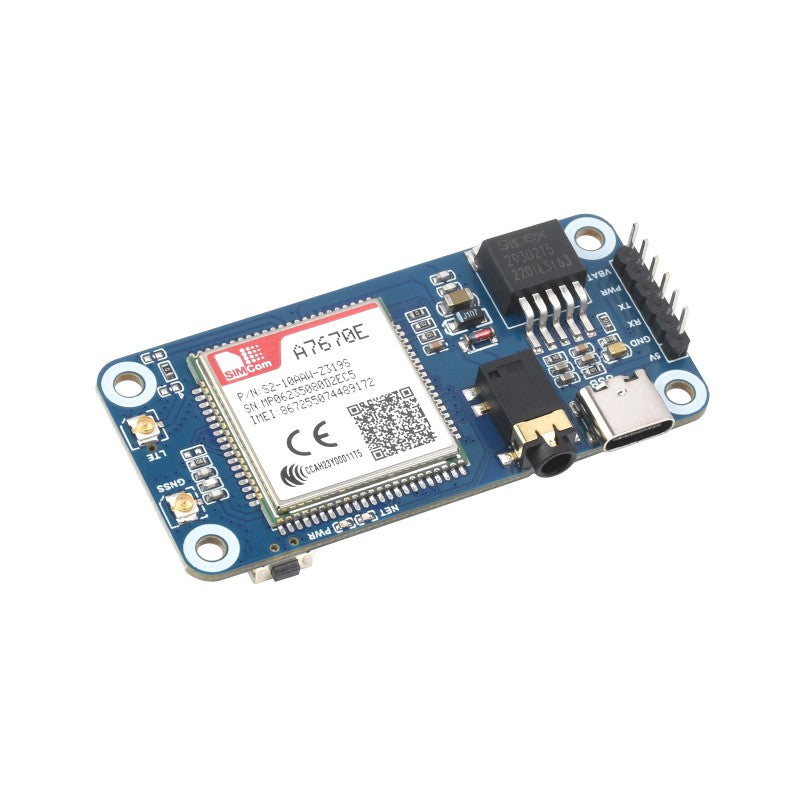

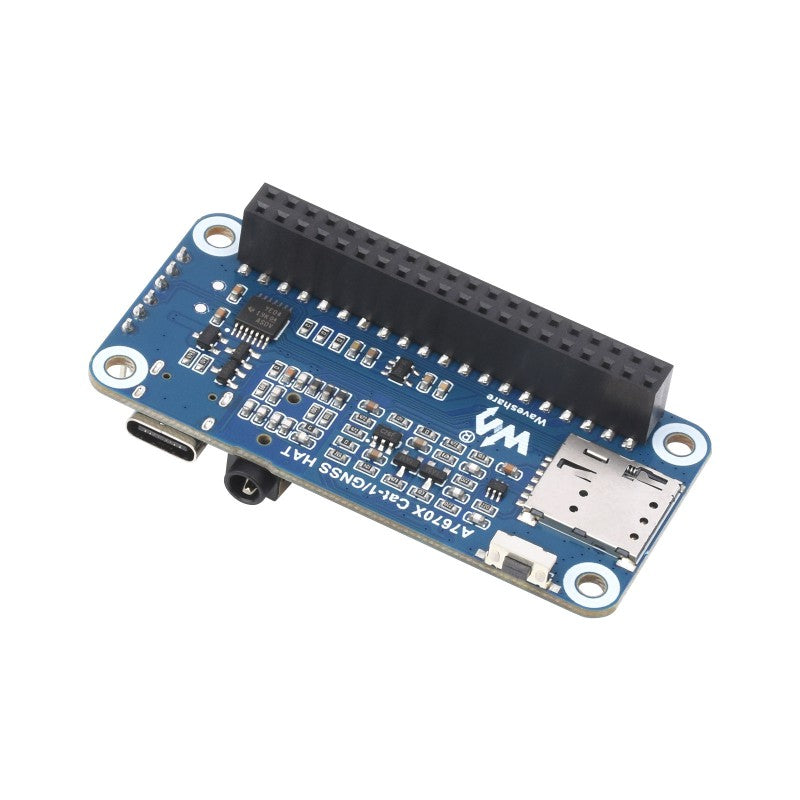

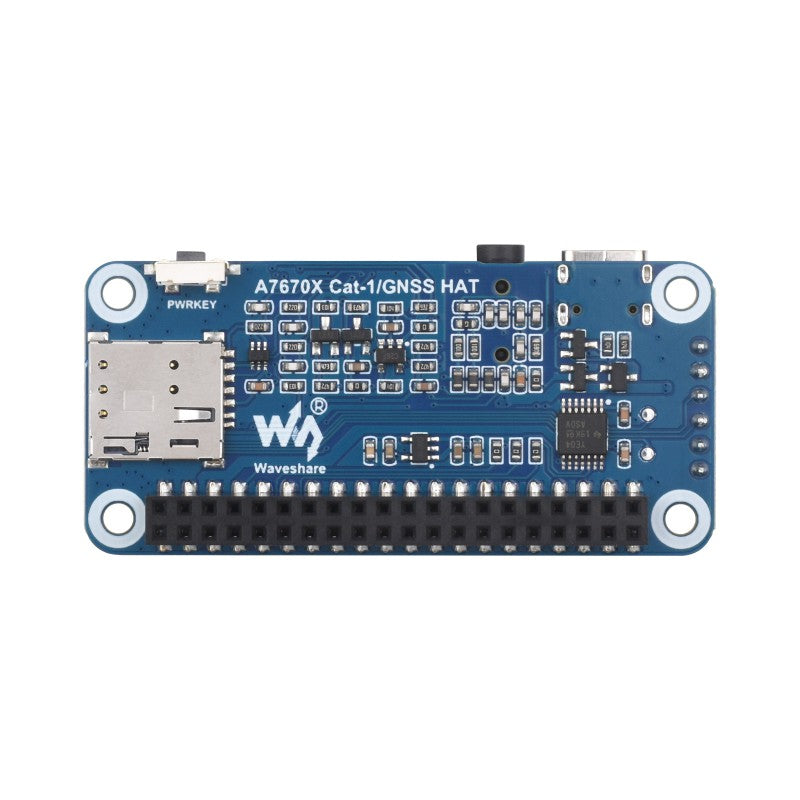

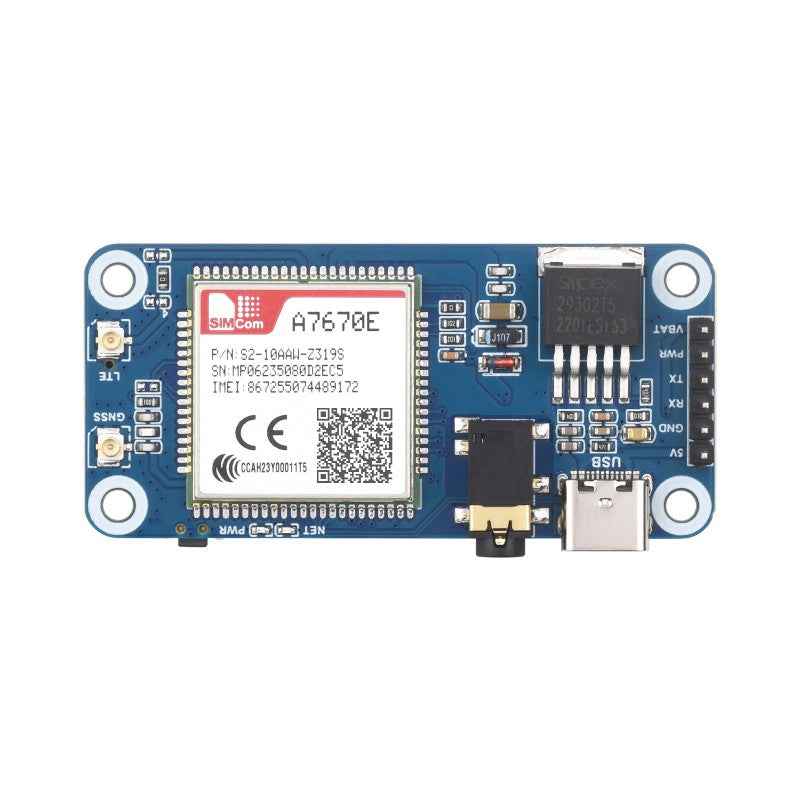

Cat-1/GSM/GPRS/GNSS HATĀ For Raspberry Pi

Based On A7670E, Enabling LTE Cat-1 / 2G Communication, Telephone Call, SMS, LBS Positioning And GNSS Positioning

Ā

Ā

Features

TheĀ A7670E Cat-1/GNSS HATĀ is an LTE Cat-1 module, which supports wireless communication modes including LTE-TDD, LTE-FDD, GSM, GPRS and EDGE, with up to 10Mbps downlink rate and 5Mbps uplink rate. It supports Windows/Linux operating systems and multiple network protocols. The module size is the same as SIM7000/SIM7070 series, and the AT commands are mostly compatible with SIM7600 series. It is suitable for IoT applications like remote information processing, monitoring devices, POS, industrial routers, remote diagnosis, satellite positioning, and so on.Ā

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • Supports protocols including TCP/IP, HTTP(s), MQTT(s), FTP(s), and SSL
  • Supports dial-up, telephone call, SMS
  • Supports LBS base station positioning, it is able to get the approximate position info via mobile networkĀ
  • Supports GPS, BeiDou, GLONASS positioning
  • TTS (Text To Speech) feature, texts in Chinese/English can be converted into spoken words
  • Onboard USB interface, for testing AT Commands, network communication, and so on
  • Onboard audio jack for sound recording, making telephone calls, listening the TTS resulting speech, etc.
  • Breakout common used control pins of the A7670E module, make it easy to connect with hosts boards like Arduino/STM32
  • SIM card slot, supports 1.8V/3V SIM card
  • 2x LED indicators, easy to monitor the operating status
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Ā

Specifications

FREQUENCY BAND
LTE Cat-1 LTE-FDD: B1, B3, B5, B7, B8, B20
2G GSM/GPRS/EDGE: 900/1800 MHz
GNSS GPS, BeiDou, GLONASS
SMS AND AUDIO
SMS Supported types: MT, MO, CB, Text, PDU
Storage: USIM card (CB couldn't be stored on SIM card)
Audio feature Standard 3.5mm audio jack for audio input/output
OTHER
Power supply 5V (via USB port or 5V pinheader), 3.7 ~ 4.2V (via VBAT pinheader, supports 3.7V Li-ion battery power input)
Operating voltage 3.3V
Dimensions 65 Ɨ 30.5mm

Ā

Multi Band Support Of LTE Cat-1/2G

Multi Band And Multi Regions Support, Mainly Applicable In Europe, Southeast Asia, West Asia, Africa, China, South Korea

* Please confirm the supported bands according to your local service provider


Dial-Up On Windows/Linux

LTE Cat-1:Ā Up To 5Mbps (Uplink) / Up To 10Mbps (Downlink)
EDGE:Ā Up To 236.8Kbps (Uplink / Downlink)
GPRS:Ā Up To 85.6Kbps (Uplink / Downlink)

Ā

GNSS Positioning

Supports GPS, BeiDou, GLONASS Positioning

Ā

Cloud Communication

Supports Communication Protocols Including TCP/IP, HTTP(S), MQTT(S), FTP(S), And SSL

Ā

Telephone Call & SMS Support

Making Telephone Call Or Sending SMS By AT Commands, With Onboard Audio Jack

Ā

Pinout Definition


Ā

Outline Dimensions

Resources

WIKI:Ā www.waveshare.com/wiki/A7670E_Cat-1/GNSS_HAT

Ā

Package Contents:

Weight:Ā 0.116 kg

  1. A7670E Cat-1/GNSS HAT x1
  2. USB-A to USB-C cable x1

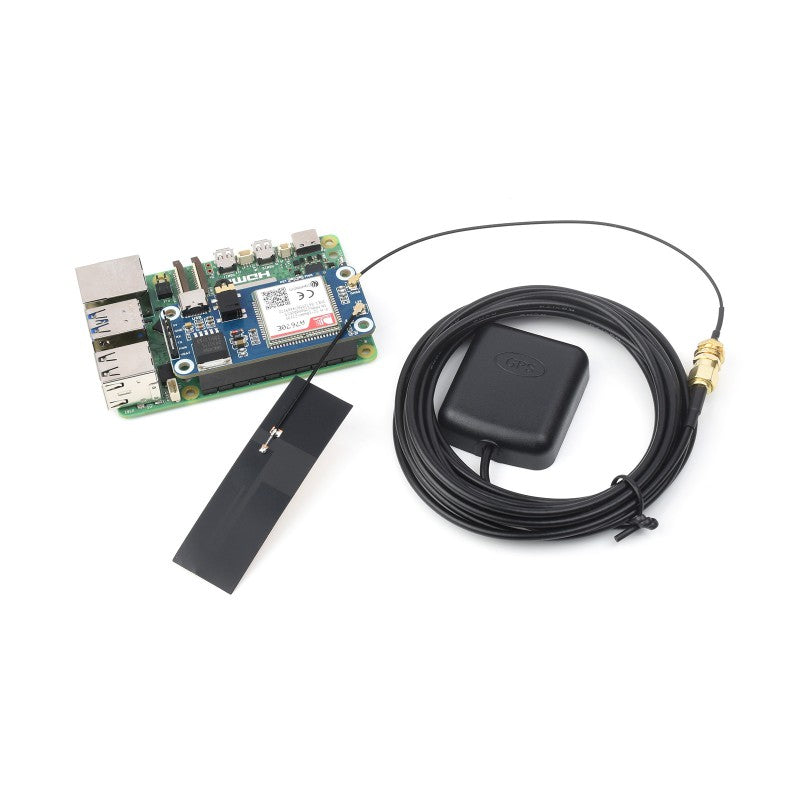

  3. FPC Antenna x1
  4. GPS Antenna x1
  5. Screws pack x1

Ā

Selection Guide

PRODUCT A7670E SIM7600E
Band
LTE Cat-1 LTE-FDD:Ā B1, B3, B5, B7, B8, B20 LTE-FDD:Ā B1, B3, B5, B7, B8, B20
LTE-TDD:Ā B38, B40, B41
3G N/A UMTS/HSPA+:Ā B1, B5, B8
2G GSM/GPRS/EDGE:Ā 900/1800 MHz
GNSS GPS/Beidou/GLONASS GPS/Beidou/GLONASS/GALILEO/QZSS
Data Rate
LTE Cat-1 10Mbps(DL)/5Mbps(UL)
3G (HSPA+) N/A 42Mbps(DL)/5.76Mbps(UL)
2G (GPRS/EDGE) 236.8Kbps(DL/UL)
Software Features
Network protocol TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS
Dial-up protocol PPP/RNDIS PPP/NDIS/RNDIS
USB driver Windows XP/7/8/10, Linux (driver free for Raspberry Pi OS)
Hardware Interfaces
SIM card slot Compatible with 1.8V and 3V SIM card
UART Supports AT commands through UART, compatible with 3.3V/5V operating voltage
USB port Supports AT commands testing, GNSS positioning, firmware upgrading, etc.
USB to UART N/A Supports serial debugging, or login to Raspberry Pi
Audio jack Supports audio actions like making telephoto call
Antenna connector LTE main antenna LTE main antenna + LTE diversity antenna + GNSS antenna
Dimensions 65 Ɨ 30.5mm 65 Ɨ 56.0mm
Applications
Examples Healthcare, smart payment, Internet talk, environmental monitoring, energy monitoring, fleet management, smart industry, intelligent agriculture, etc.
Applicable regions Europe, Southeast Asia, West Asia, Africa, China, South Korea
What network technologies and positioning features does the module support?
The device supports LTE Cat-1 and 2G networks including LTE FDD/TDD and GSM GPRS/EDGE, with up to 10 Mbps downlink and 5 Mbps uplink. It also provides GNSS positioning with GPS, Beidou and GLONASS, plus LBS positioning and SMS or voice calls.
Is this HAT compatible with Raspberry Pi and other host boards?
Yes, it uses a standard Raspberry Pi 40 pin GPIO header and can also break out control pins to connect with hosts such as Arduino or STM32.
What power supply options are supported?
The board can be powered by 5V via USB or a 5V pin header, or by 3.7 to 4.2V via the VBAT pin header for battery power.
What interfaces and data protocols are available?
It supports AT commands over UART, testing and firmware upgrades over USB, and data protocols including TCP IP, HTTP, HTTPS, MQTT, FTP, and SSL. It also supports dial up, telephone calls, SMS, GNSS and LBS positioning.
Where can I find setup resources and documentation?
Development resources and a manual are provided, and additional information is available on the Waveshare wiki for A7670E Cat 1 GNSS HAT.
A
Admin
Welcome to the discussion thread for A7670E Cat-1 GNSS HAT
Feel free to ask questions, share tips or report issues.
Add Post

For more discussion Click Here

Discover More In:

GPS, GSM, RFID ā†’ Raspberry Pi ā†’ Raspberry Pi Boards, Kits & HATs ā†’

Category: View all Motion Sensors

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Cat-1/GSM/GPRS/GNSS HATĀ For Raspberry Pi

Based On A7670E, Enabling LTE Cat-1 / 2G Communication, Telephone Call, SMS, LBS Positioning And GNSS Positioning

Ā

Ā

Features

TheĀ A7670E Cat-1/GNSS HATĀ is an LTE Cat-1 module, which supports wireless communication modes including LTE-TDD, LTE-FDD, GSM, GPRS and EDGE, with up to 10Mbps downlink rate and 5Mbps uplink rate. It supports Windows/Linux operating systems and multiple network protocols. The module size is the same as SIM7000/SIM7070 series, and the AT commands are mostly compatible with SIM7600 series. It is suitable for IoT applications like remote information processing, monitoring devices, POS, industrial routers, remote diagnosis, satellite positioning, and so on.Ā

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • Supports protocols including TCP/IP, HTTP(s), MQTT(s), FTP(s), and SSL
  • Supports dial-up, telephone call, SMS
  • Supports LBS base station positioning, it is able to get the approximate position info via mobile networkĀ
  • Supports GPS, BeiDou, GLONASS positioning
  • TTS (Text To Speech) feature, texts in Chinese/English can be converted into spoken words
  • Onboard USB interface, for testing AT Commands, network communication, and so on
  • Onboard audio jack for sound recording, making telephone calls, listening the TTS resulting speech, etc.
  • Breakout common used control pins of the A7670E module, make it easy to connect with hosts boards like Arduino/STM32
  • SIM card slot, supports 1.8V/3V SIM card
  • 2x LED indicators, easy to monitor the operating status
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Ā

Specifications

FREQUENCY BAND
LTE Cat-1 LTE-FDD: B1, B3, B5, B7, B8, B20
2G GSM/GPRS/EDGE: 900/1800 MHz
GNSS GPS, BeiDou, GLONASS
SMS AND AUDIO
SMS Supported types: MT, MO, CB, Text, PDU
Storage: USIM card (CB couldn't be stored on SIM card)
Audio feature Standard 3.5mm audio jack for audio input/output
OTHER
Power supply 5V (via USB port or 5V pinheader), 3.7 ~ 4.2V (via VBAT pinheader, supports 3.7V Li-ion battery power input)
Operating voltage 3.3V
Dimensions 65 Ɨ 30.5mm

Ā

Multi Band Support Of LTE Cat-1/2G

Multi Band And Multi Regions Support, Mainly Applicable In Europe, Southeast Asia, West Asia, Africa, China, South Korea

* Please confirm the supported bands according to your local service provider


Dial-Up On Windows/Linux

LTE Cat-1:Ā Up To 5Mbps (Uplink) / Up To 10Mbps (Downlink)
EDGE:Ā Up To 236.8Kbps (Uplink / Downlink)
GPRS:Ā Up To 85.6Kbps (Uplink / Downlink)

Ā

GNSS Positioning

Supports GPS, BeiDou, GLONASS Positioning

Ā

Cloud Communication

Supports Communication Protocols Including TCP/IP, HTTP(S), MQTT(S), FTP(S), And SSL

Ā

Telephone Call & SMS Support

Making Telephone Call Or Sending SMS By AT Commands, With Onboard Audio Jack

Ā

Pinout Definition


Ā

Outline Dimensions

Resources

WIKI:Ā www.waveshare.com/wiki/A7670E_Cat-1/GNSS_HAT

Ā

Package Contents:

Weight:Ā 0.116 kg

  1. A7670E Cat-1/GNSS HAT x1
  2. USB-A to USB-C cable x1
  3. FPC Antenna x1
  4. GPS Antenna x1
  5. Screws pack x1

Ā

Selection Guide

PRODUCT A7670E SIM7600E
Band
LTE Cat-1 LTE-FDD:Ā B1, B3, B5, B7, B8, B20 LTE-FDD:Ā B1, B3, B5, B7, B8, B20
LTE-TDD:Ā B38, B40, B41
3G N/A UMTS/HSPA+:Ā B1, B5, B8
2G GSM/GPRS/EDGE:Ā 900/1800 MHz
GNSS GPS/Beidou/GLONASS GPS/Beidou/GLONASS/GALILEO/QZSS
Data Rate
LTE Cat-1 10Mbps(DL)/5Mbps(UL)
3G (HSPA+) N/A 42Mbps(DL)/5.76Mbps(UL)
2G (GPRS/EDGE) 236.8Kbps(DL/UL)
Software Features
Network protocol TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS
Dial-up protocol PPP/RNDIS PPP/NDIS/RNDIS
USB driver Windows XP/7/8/10, Linux (driver free for Raspberry Pi OS)
Hardware Interfaces
SIM card slot Compatible with 1.8V and 3V SIM card
UART Supports AT commands through UART, compatible with 3.3V/5V operating voltage
USB port Supports AT commands testing, GNSS positioning, firmware upgrading, etc.
USB to UART N/A Supports serial debugging, or login to Raspberry Pi
Audio jack Supports audio actions like making telephoto call
Antenna connector LTE main antenna LTE main antenna + LTE diversity antenna + GNSS antenna
Dimensions 65 Ɨ 30.5mm 65 Ɨ 56.0mm
Applications
Examples Healthcare, smart payment, Internet talk, environmental monitoring, energy monitoring, fleet management, smart industry, intelligent agriculture, etc.
Applicable regions Europe, Southeast Asia, West Asia, Africa, China, South Korea
FAQ
What network technologies and positioning features does the module support?
The device supports LTE Cat-1 and 2G networks including LTE FDD/TDD and GSM GPRS/EDGE, with up to 10 Mbps downlink and 5 Mbps uplink. It also provides GNSS positioning with GPS, Beidou and GLONASS, plus LBS positioning and SMS or voice calls.
Is this HAT compatible with Raspberry Pi and other host boards?
Yes, it uses a standard Raspberry Pi 40 pin GPIO header and can also break out control pins to connect with hosts such as Arduino or STM32.
What power supply options are supported?
The board can be powered by 5V via USB or a 5V pin header, or by 3.7 to 4.2V via the VBAT pin header for battery power.
What interfaces and data protocols are available?
It supports AT commands over UART, testing and firmware upgrades over USB, and data protocols including TCP IP, HTTP, HTTPS, MQTT, FTP, and SSL. It also supports dial up, telephone calls, SMS, GNSS and LBS positioning.
Where can I find setup resources and documentation?
Development resources and a manual are provided, and additional information is available on the Waveshare wiki for A7670E Cat 1 GNSS HAT.
