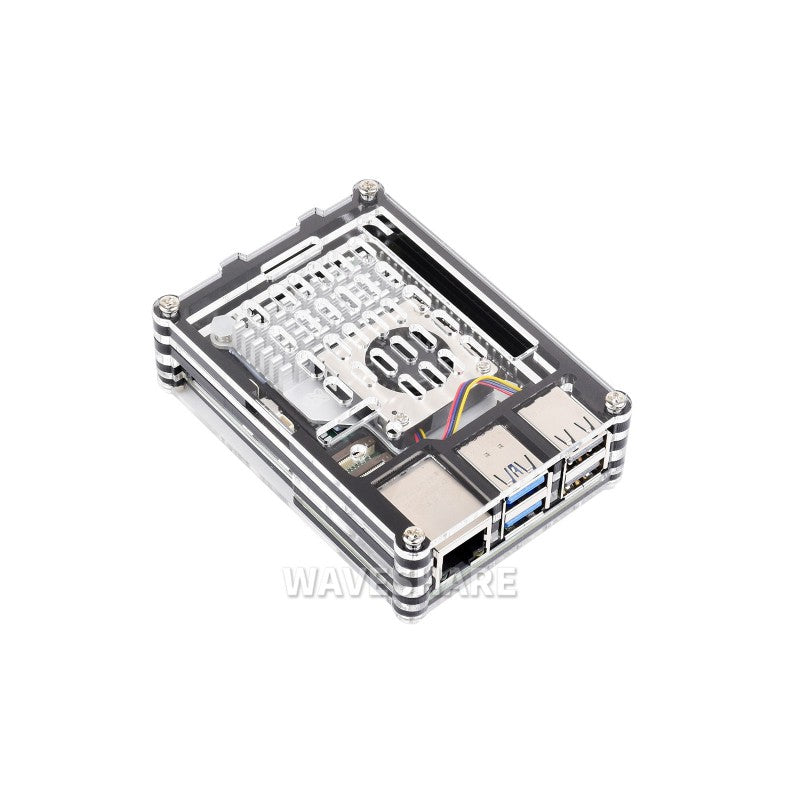

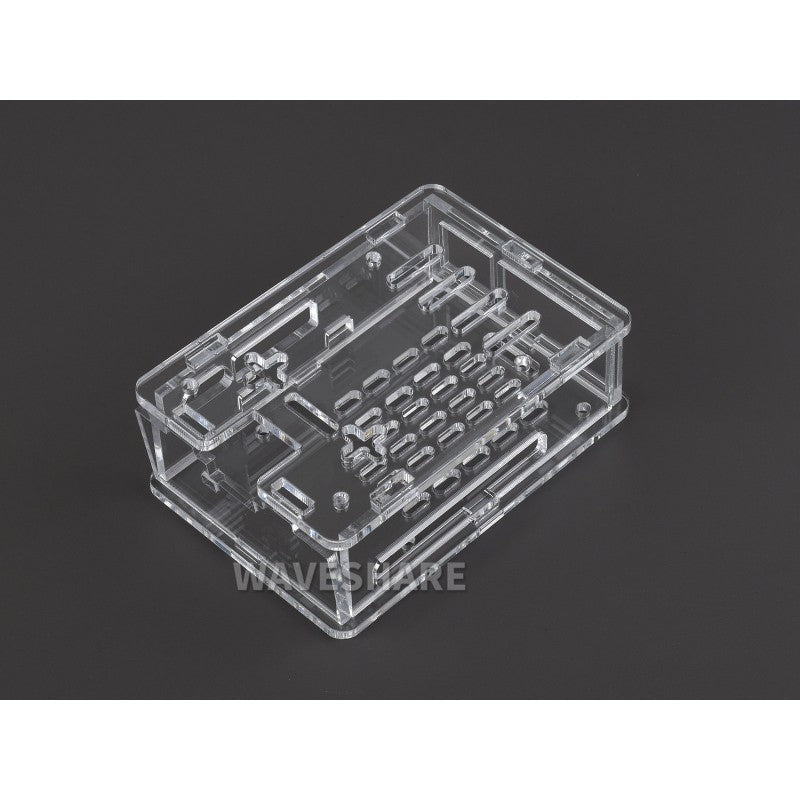

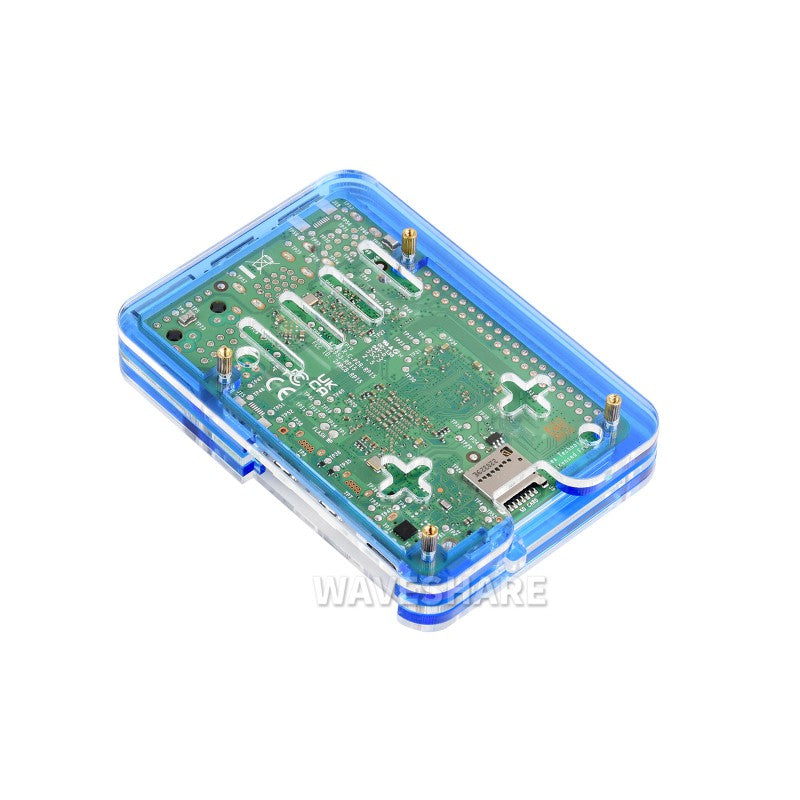

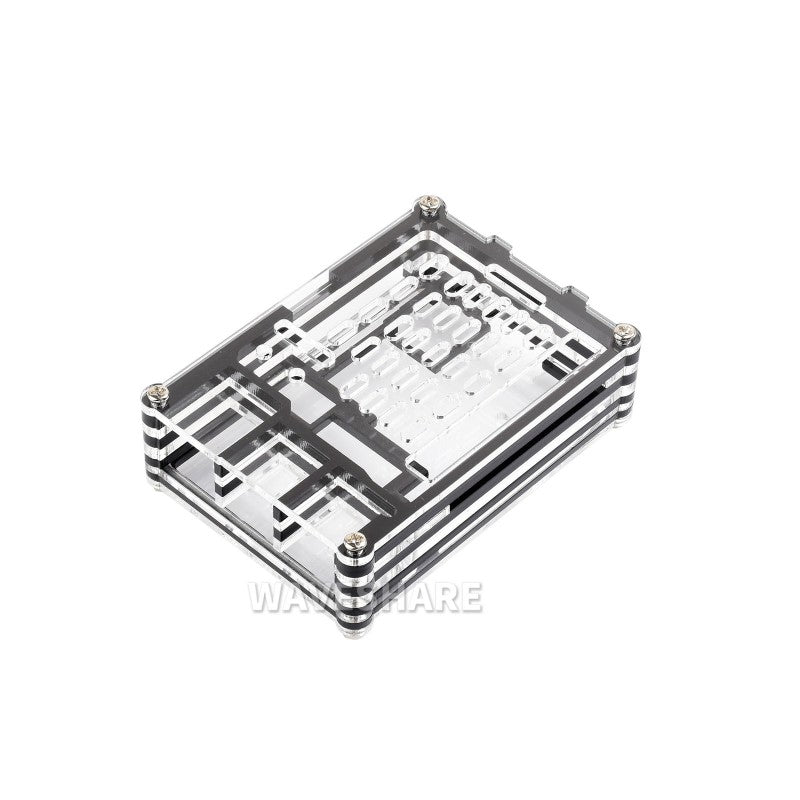

Transparent Acrylic Case For Raspberry Pi 5
![](https://www.waveshare.com/img/devkit/accessories/PI5-CASE-B/PI5-CASE-B-details-1.jpg)
* for reference only, the Raspberry Pi 5 is NOT included
Based On Raspberry Pi 5
Precise Openings For Sorts Of Connectors, Supports Installing Official Active Cooler (Not Included)
![](https://www.waveshare.com/img/devkit/accessories/PI5-CASE-B/PI5-CASE-B-details-3.jpg)
More Details

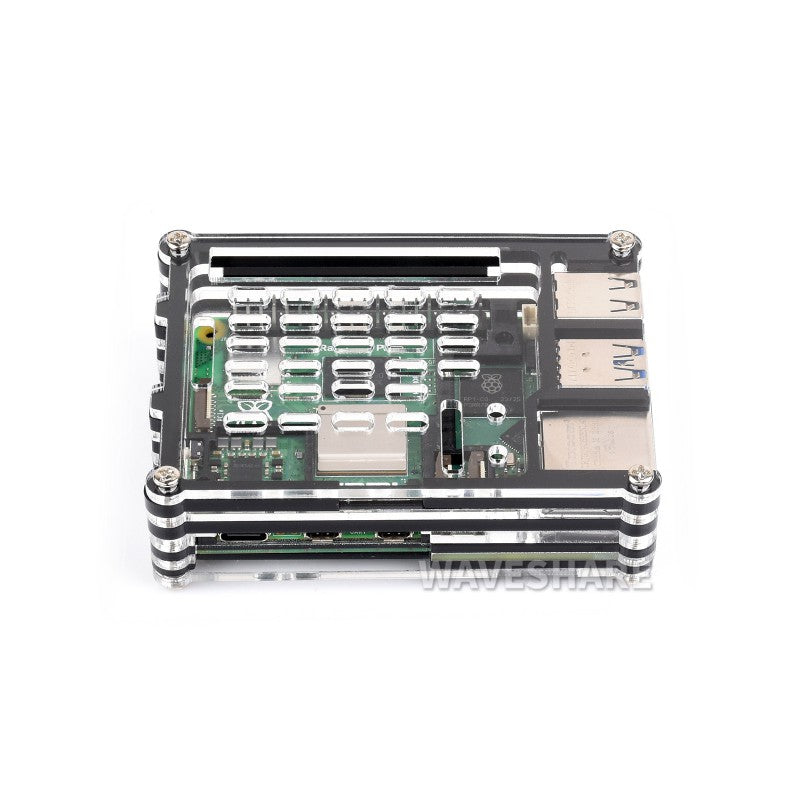

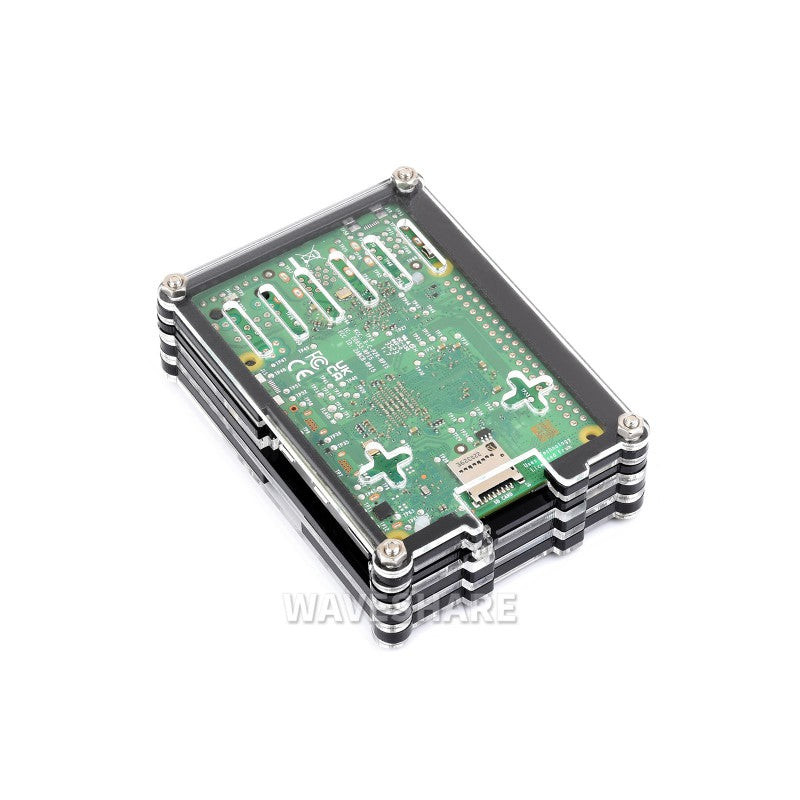

Openings For 40PIN GPIO, PCIe, DSI/CSI Interfaces And Airflow Vents On The Top And For RTC Battery Connector/UART Header On The Side, With Power On/Off Button. Easy To Pull & Plug TF Card On The Bottom
![](https://www.waveshare.com/img/devkit/accessories/PI5-CASE-B/PI5-CASE-B-details-5.jpg)
![](https://www.waveshare.com/img/devkit/accessories/PI5-CASE-B/PI5-CASE-B-details-7.jpg)
Product Show
![](https://www.waveshare.com/img/devkit/accessories/PI5-CASE-B/PI5-CASE-B-details-9.jpg)
![](https://www.waveshare.com/img/devkit/accessories/PI5-CASE-B/PI5-CASE-B-details-11.jpg)
* for reference only, please refer to the Package Content for detailed part list
How To Install
The Case Consists Of 9 Layers Of Acrylic Panels, Please Install According To The Following Steps
![](https://www.waveshare.com/img/devkit/accessories/PI5-CASE-B/PI5-CASE-B-details-13-1.jpg)
![]() 1. Place the 1st, 2nd, and 3rd acrylic panels in order as shown, then place the Raspberry Pi 5 board. |
![]() 2. Place the 4th acrylic panels on the Raspberry Pi 5, then install the power button. |
![]() 3. Install the active cooler on the Raspberry Pi 5. |
![]() 4. Place the 5th to 9th acrylic panels in order and fix them via screws, then install the nonskid rubber pads to the bottom. |
* for reference only, the Raspberry Pi 5 and active cooler are NOT included.
if you need to install peripherals such as a camera and DSI display, please connect the peripheral cables first before installing the 9th acrylic panel.
Package Contents:
Weight: 0.063 kg
- PI5 CASE x1 (Color Option - Clear, Black or Blue)
- Nonskid rubber pad (4PCS) x1
- Screwdriver x1
