Features

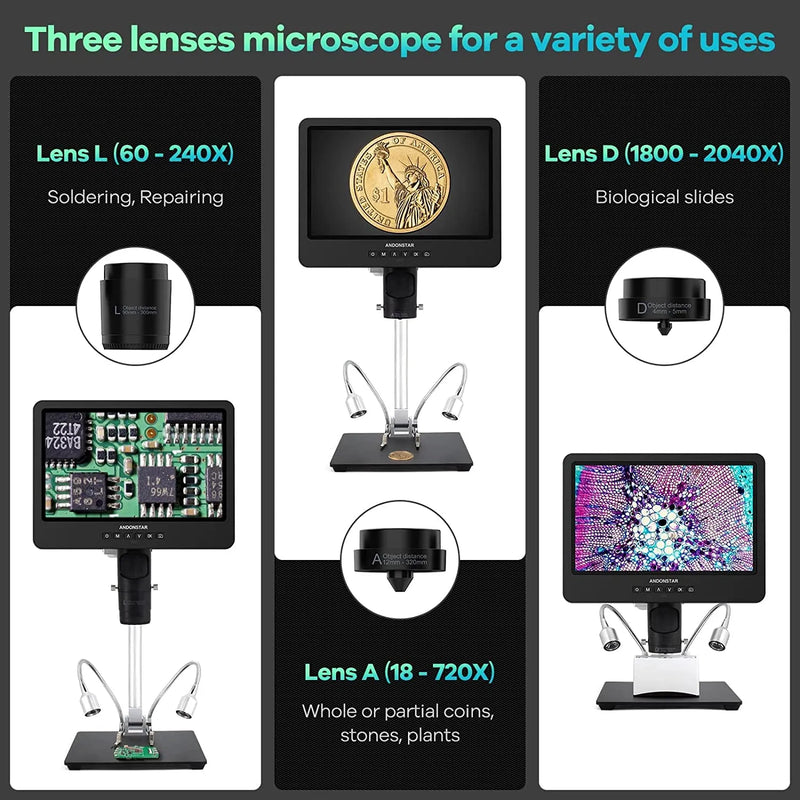

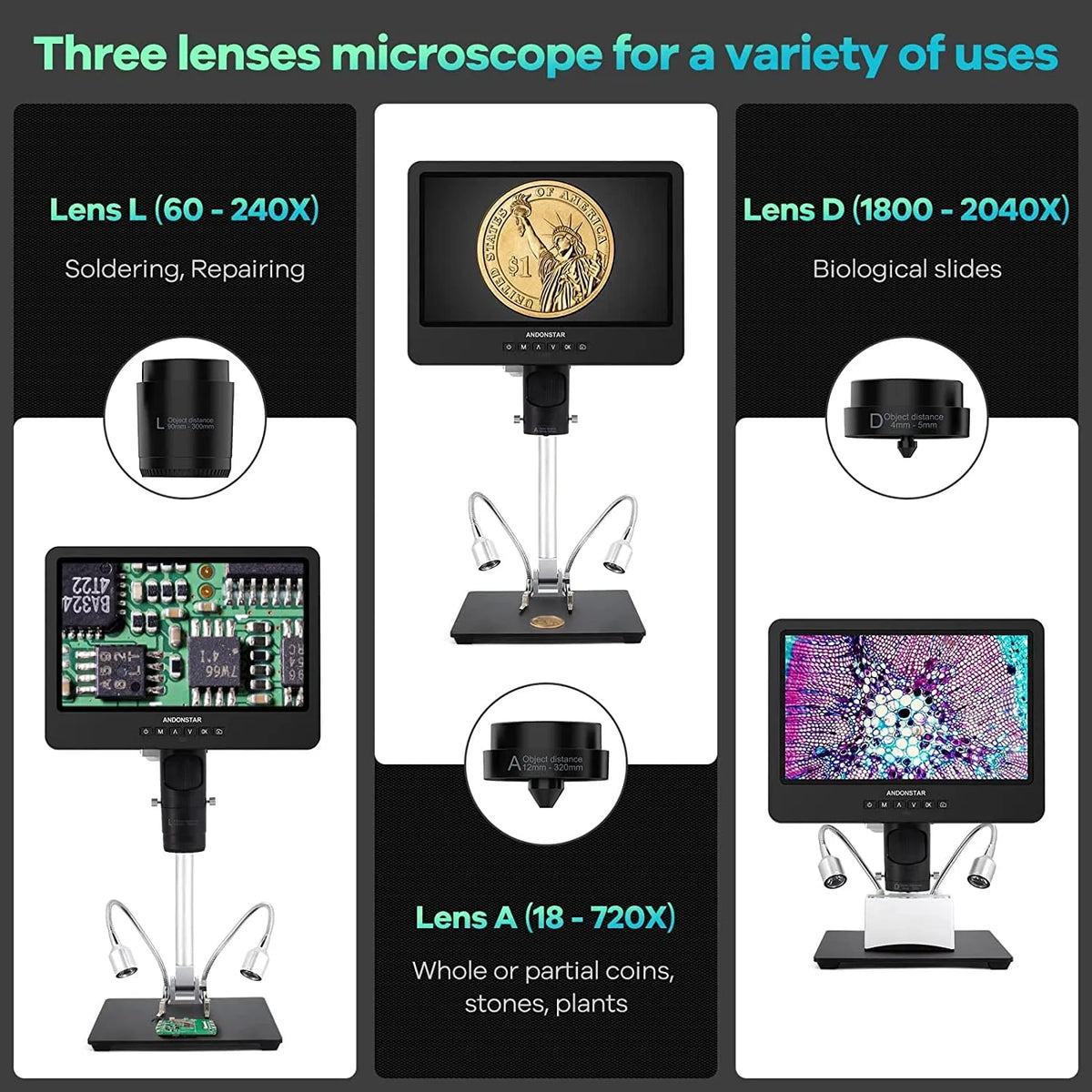

Tri-lens with a wide magnification range(60-240x,18-720x, 1560-2040x) make the microscope multifunctional:
With this digital microscope, you can study lots of specimens such as rocks, plants, insects, precious stones, and coins, or do electronic work like repairing or making circuit boards.
Great Image Performance:

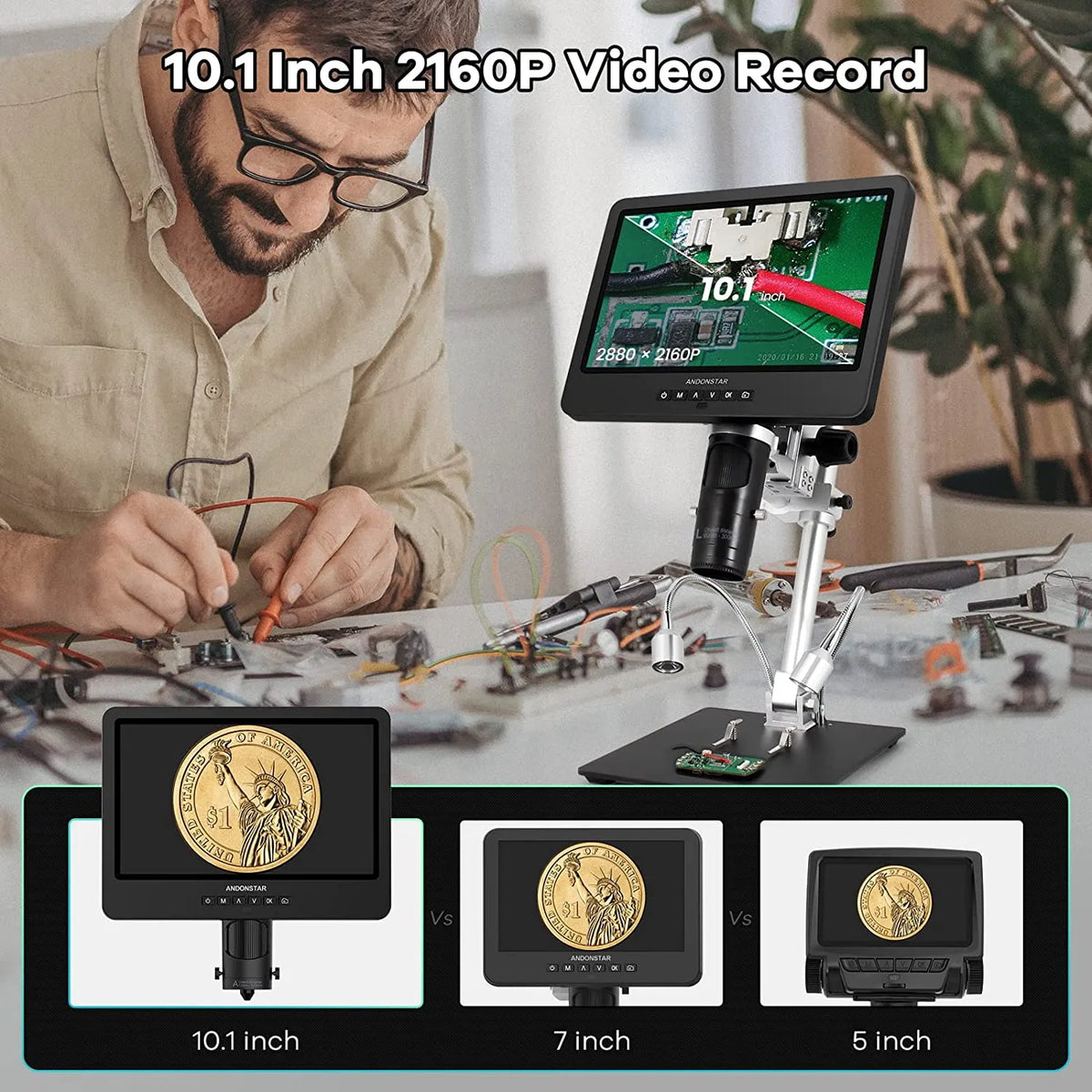

With many years devoted to this industry, we have worked the sensor, chip, screen, and lens not only with high quality but also coordinated with each other very well. All of them together provide excellent image quality. The built-in rotatable monitor design ensures an easy and comfortable observation for all users including eyeglass wearers from all angles. 2880*2160 video resolution and picture resolution reaches 24M 5600*4200(with interpolation).
Big Working Space:
The main bracket is 30cm high, providing a big working space. The boom arm is allowed to adjust vertically and horizontally. In this case, even though the circuit board is big, the microscope is still able to catch images of every part of the board. A secondary bracket allows users to adjust the height and magnifications more precisely which is very useful especially when components are tiny.
Multifunctional Accessories:

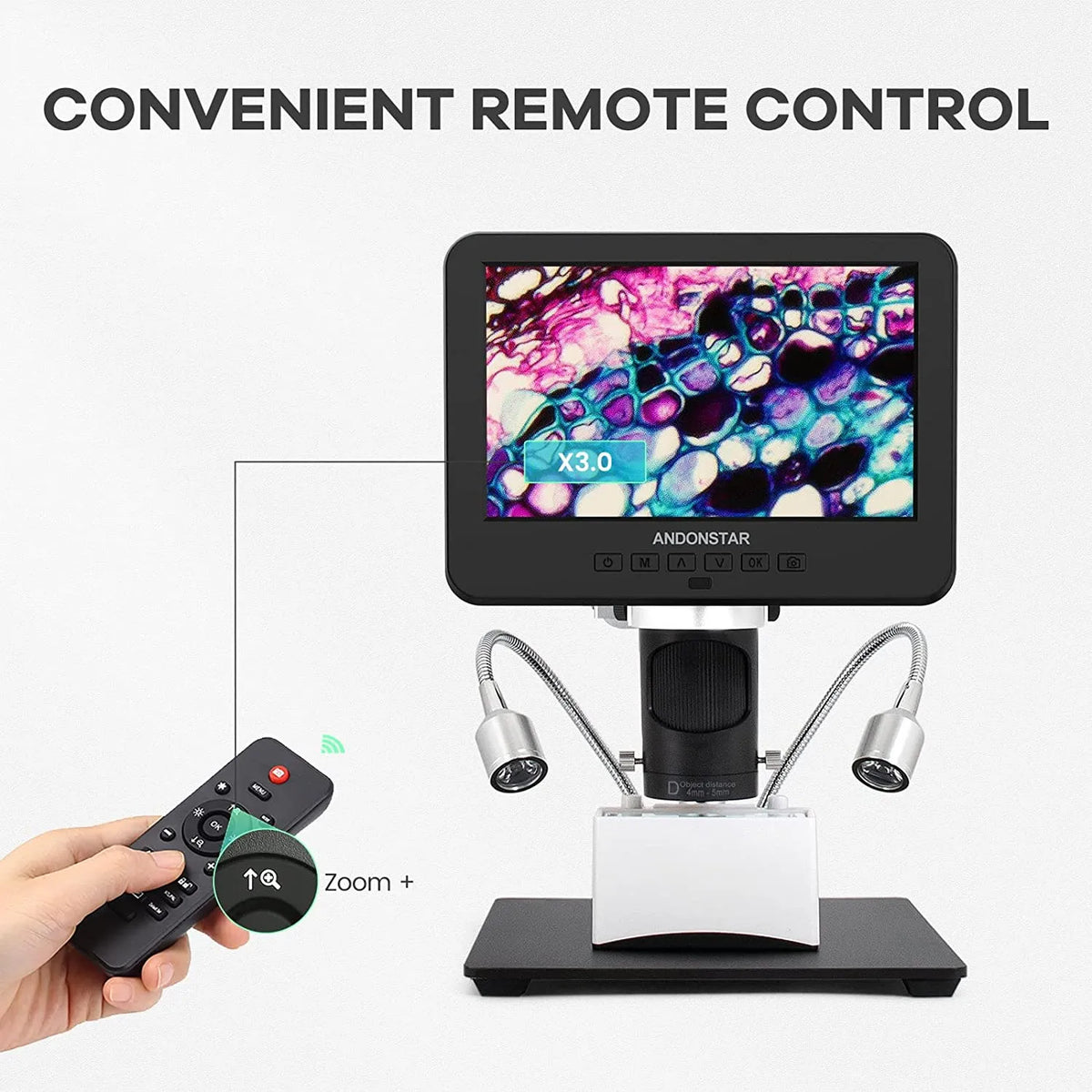

Remote–easier to control the microscope without touching the monitor(which would cause shaking to the image) and realize more functions. dimmer cable–to adjust illumination; slide holder with clips–movable, comes with bottom lights; tweezers & bug box–to place and save different specimen
Multiple outputs(Optional):

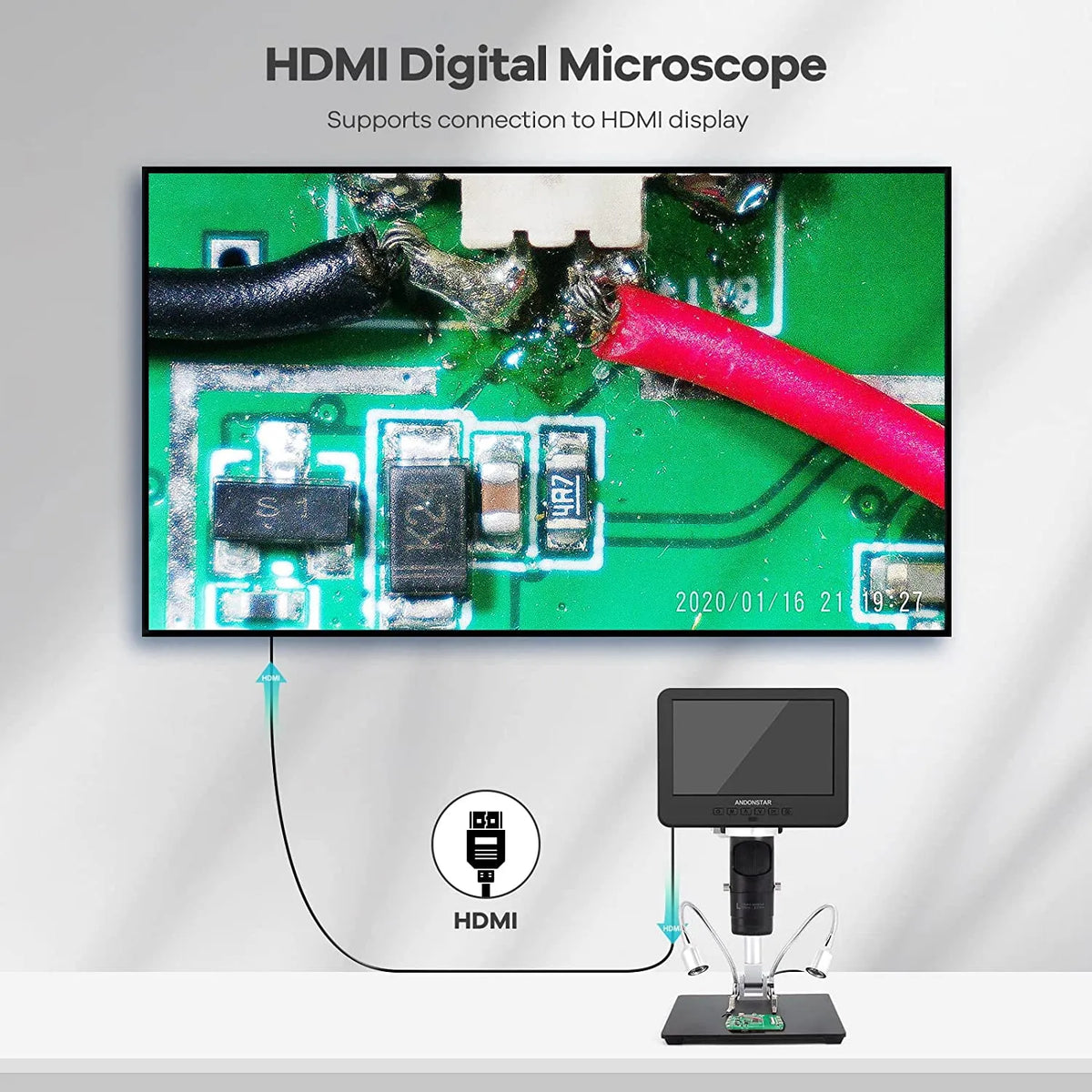

HDMI to a monitor,(When exported to an HDMI monitor, AD246S-M supports display on both the HDMI monitor and the built-in microscope monitor. But AD249S-M only presents images on an HDMI monitor. Please choose carefully if this function matters to you.) USB to a computer or simply use a memory card to save all images you capture. The Windows software offers image development and measurement tools, as well as advanced compositing features such as “sharpness” and “edge detect”.
Technical Specifications
| 246S-M | 249S-M | ||
| Magnifications | Lens A | 18-720 | 18-720 |
| Focus Range | 12-320mm | 12-320mm | |
| Lens D | 1800-2040 | 1800-2040 | |
| Focus Range | 4-5mm | 4-5mm | |
| Lens L | 60-240 | 60-240 | |
| Focus Range | 90-300mm | 90-300mm | |
| Video Res. Max | 2880×2160 UHD 24fps | 2880×2160 UHD 24fps | |
| Video Format | MP4 | MP4 | |
| Frame Rate Max | 120 fps | 120 fps | |
| Photo Res. | 5600×2400 (with interpolation) | 5600×2400 (with interpolation) | |
| Photo Format | JPG | JPG | |
| Screen Size | 7 inch | 10 inch | |
| HDMI Output | √ (support dual-screen display) | √ (only HDMI monitor displays) | |
| PC Output | √ | √ | |
| Bracket Size | 20×18×30cm | 20×18×30cm | |
Package Include

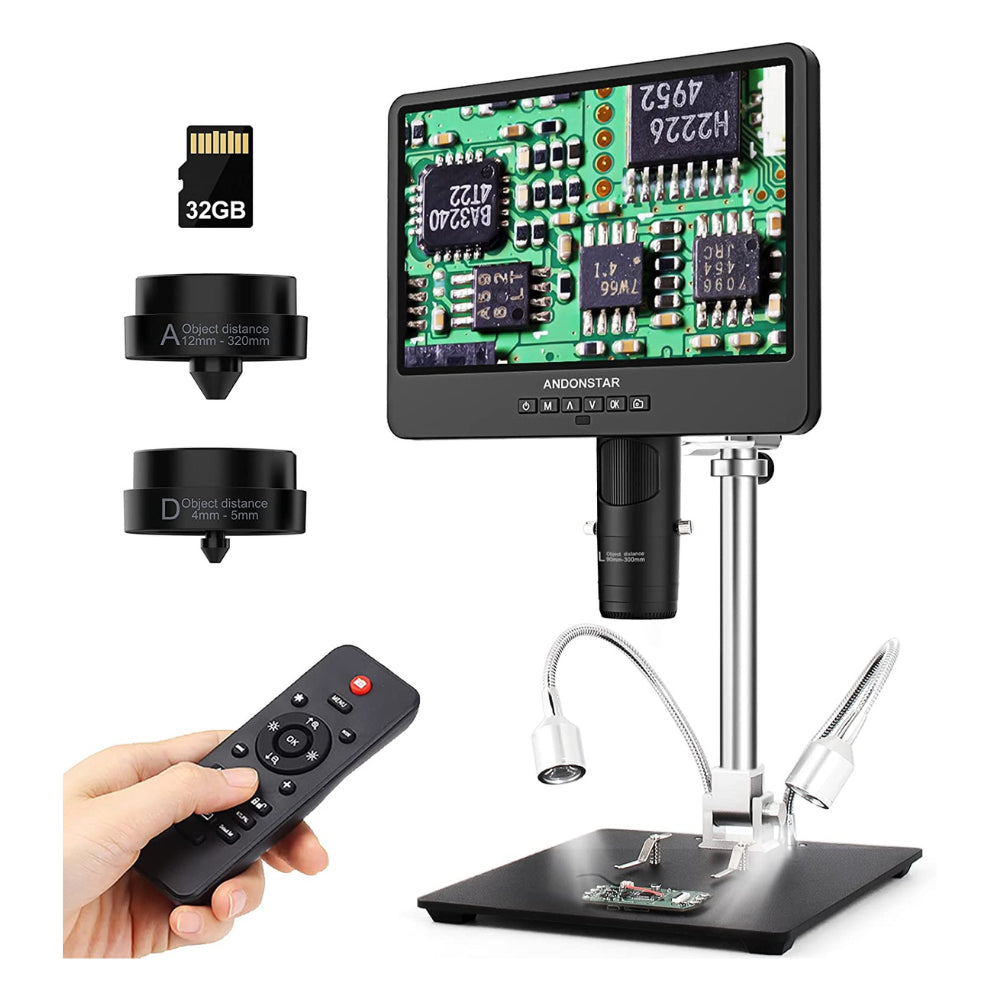

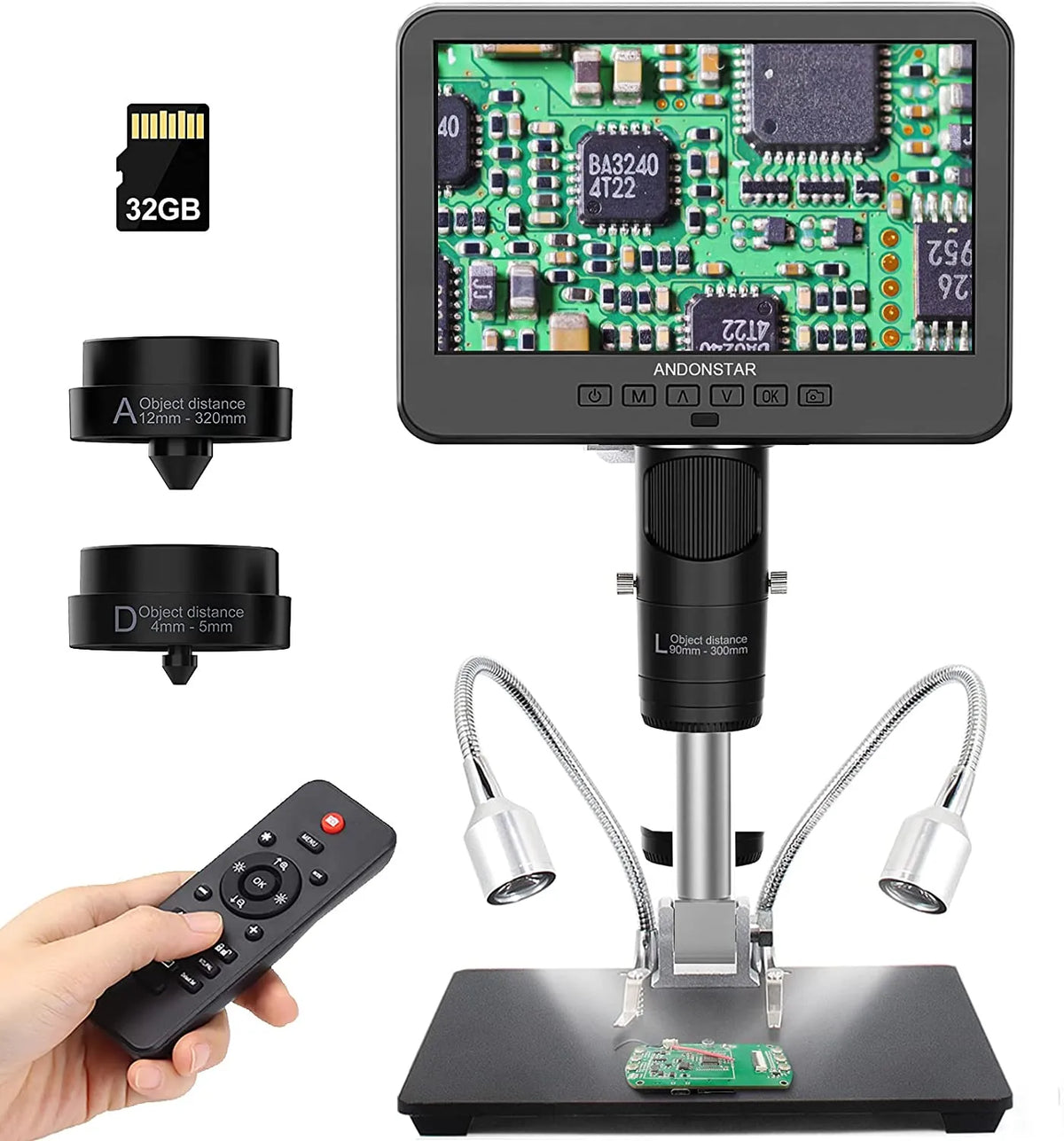

Microscope, Metal stand, 3 Lenses(A,D&L), Slide holder, Remote, Dimmer cable, HDMI cable, USB cable, Slides kit, Tweezers, Bug box
