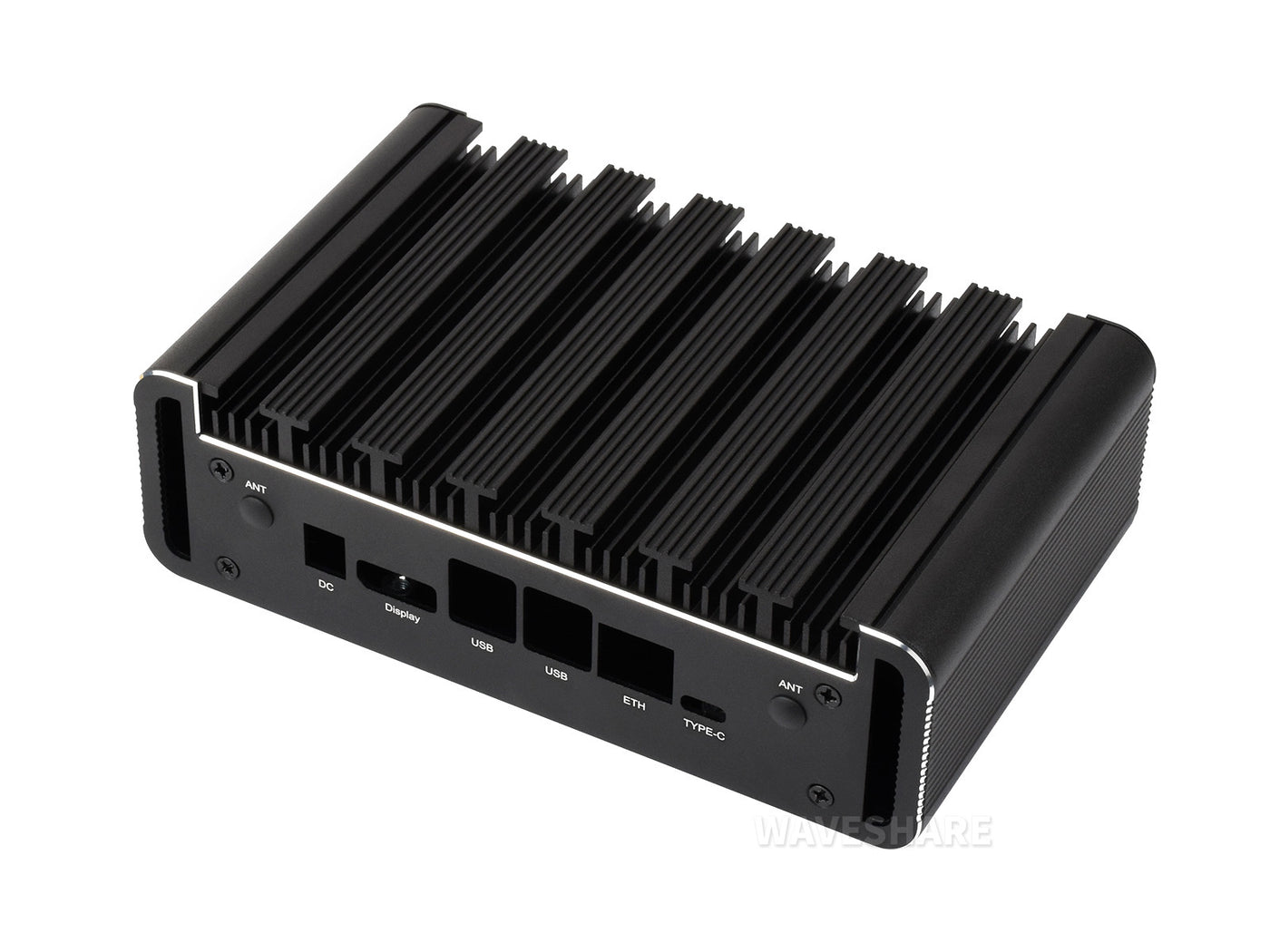

Product image 1

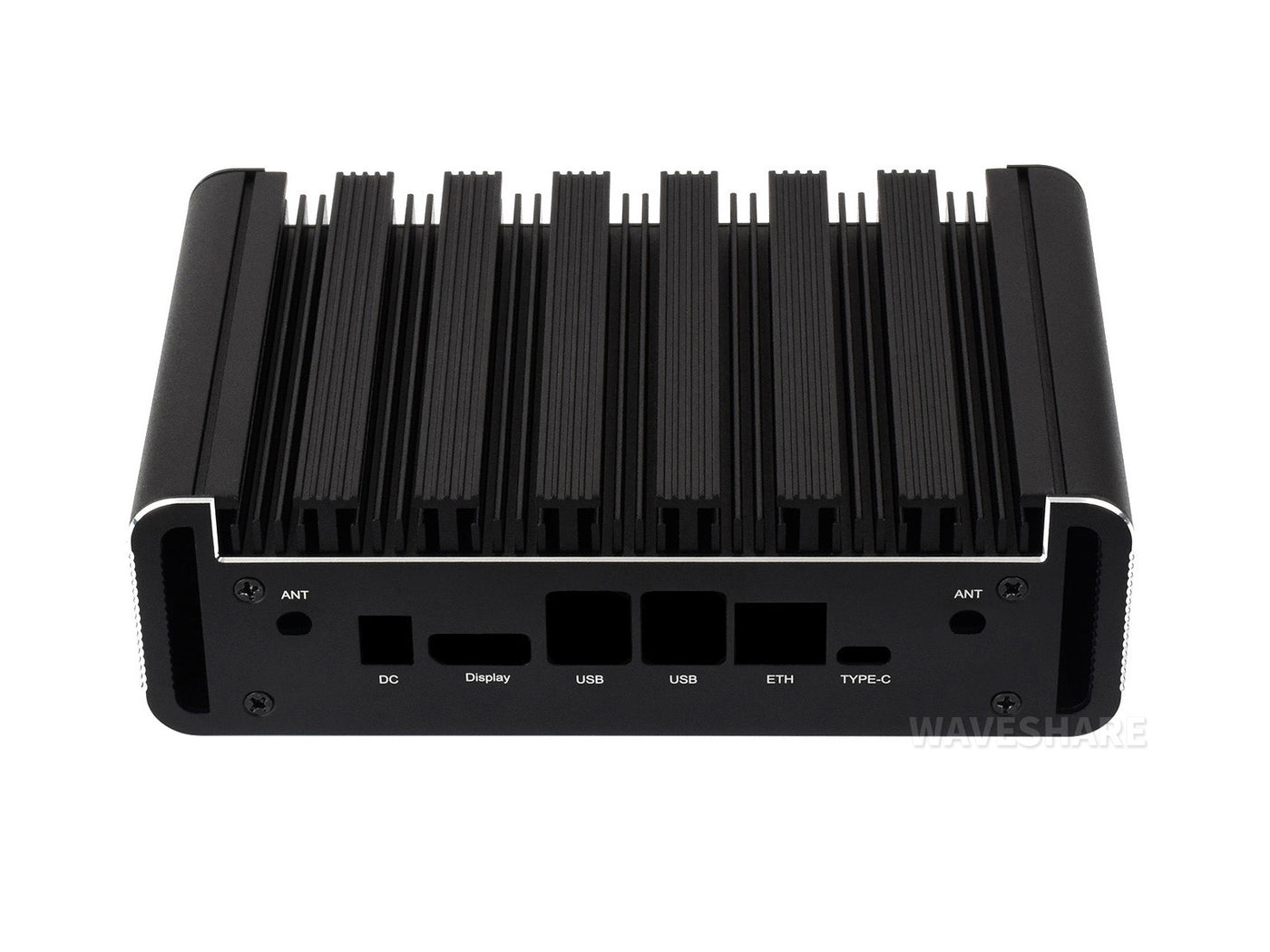

Product image 2
Product image 3

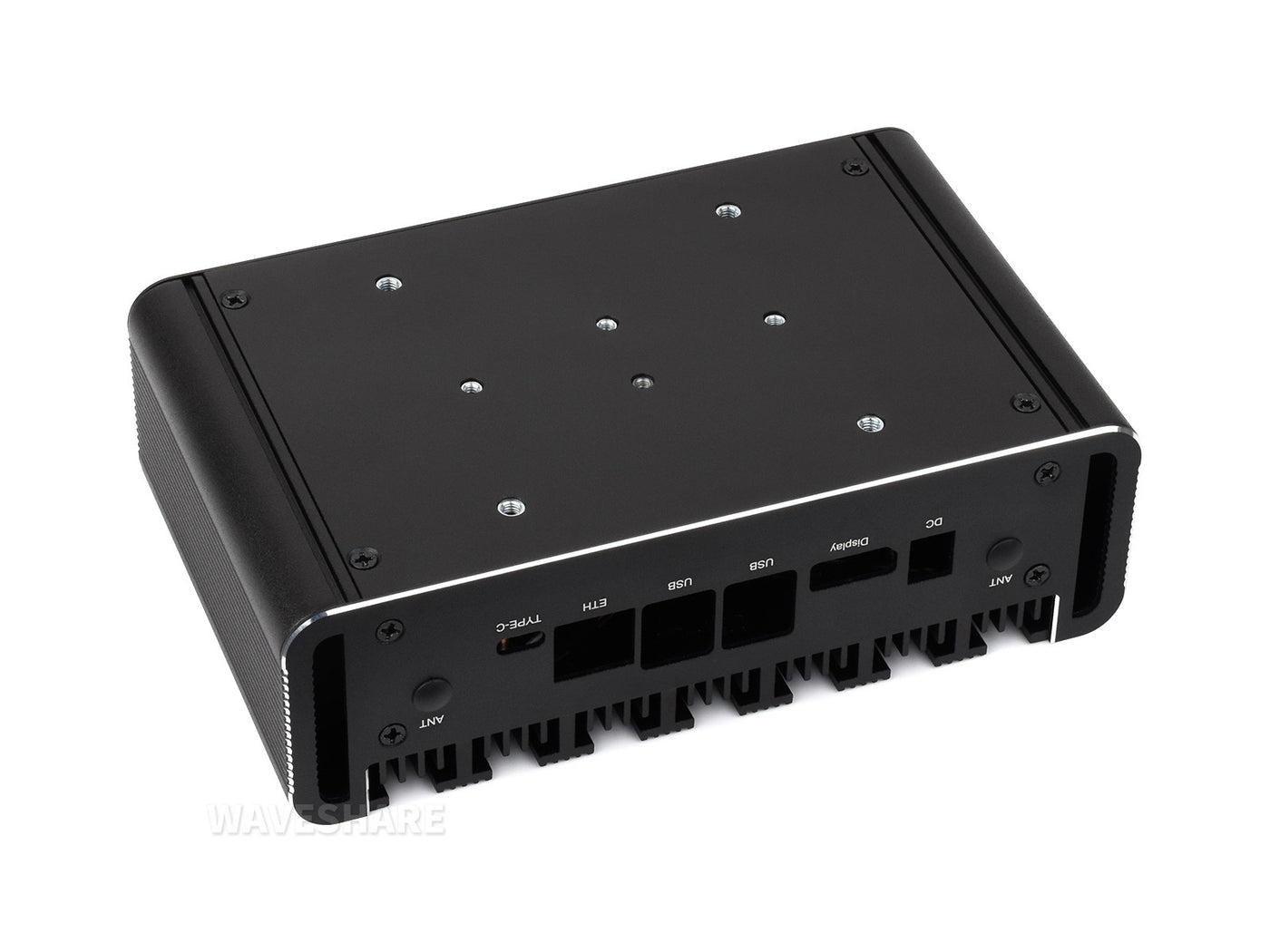

Product image 4
Product image 5
Need Support? Click Here
Free Delivery Above ₹999

Best seller

Waveshare

Aluminum Alloy Passive Cooling Case for Jetson Orin

SKU: WVSH0648

₹ 5,349.99

Out of stock · Available in 2 weeks

📦 Min order 1

Enter your email or your WhatsApp number.
Chat with us on WhatsApp We reply quickly! Contact Us
Aluminum Alloy Passive Cooling Case for Jetson Orin₹ 5,349.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Aluminum Alloy passive cooling case for Jetson Orin

Suitable For Jetson Orin Nano And Jetson Orin NX Kits

JETSON-ORIN-CASE-C,front view

for reference only, please refer to the package content for detailed part list.


Passive Cooling

Designed for Jetson Orin NX / Nano with passive cooling

JETSON-ORIN-CASE-C, Passive Cooling

Precise Opening Design

Exquisite manufacturing process, Fitting & Nice Looking

JETSON-ORIN-CASE-C, Precise Opening Design

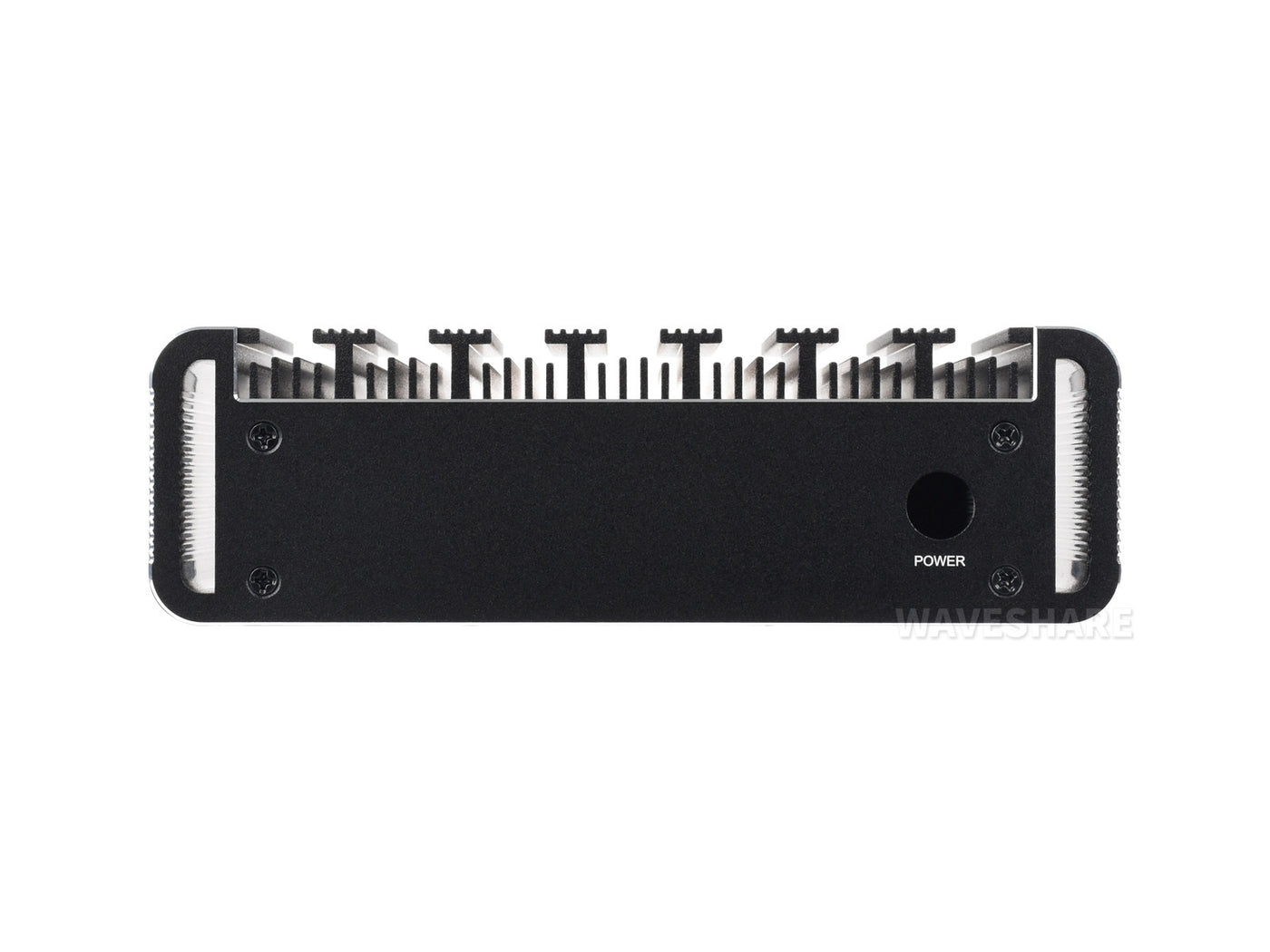

Onboard Power Button With Indicator

JETSON-ORIN-CASE-C, Onboard Power Indicator

Reserved Rail-mount buckle mounting holes

Easy to install to specific scenarios

JETSON-ORIN-CASE-C, Reserved rail mounting holes

* for reference only, the DIN Rail is NOT included


How to install

HomeRack 8U Basic Kit, Step 1

Step 1: Install the M2.5×9+4 standoffs at the positions shown below.

HomeRack 8U Basic Kit, Step 2

Step 2: Apply the included thermal grease evenly to the surface of the Jetson Orin module.

HomeRack 8U Basic Kit, Step 3

Step 3: Mount the Jetson Orin module onto the heatsink and secure it with the PM2.5×5 screws.

HomeRack 8U Basic Kit, Step 4

Step 4: Connect the 4PIN cable with the power button to the corresponding connector on the base board. Install the rear panel and secure it with screws.

HomeRack 8U Basic Kit, Step 5

Step 5: Use the IPEX4 to SMA cable, connect the IPEX4 end to the wireless module, then secure the SMA connector to the front panel.

HomeRack 8U Basic Kit, Step 6

Step 6: Install the bottom cover and secure it with screws.

HomeRack 8U Basic Kit, Step 6

Step 7: Install the front cover and secure it with screws.

HomeRack 8U Basic Kit, Step 6

Step 8: Install the antennas on the SMA connectors to complete the assembly.



Outline Dimensions

JETSON-ORIN-CASE-C, outline dimensions

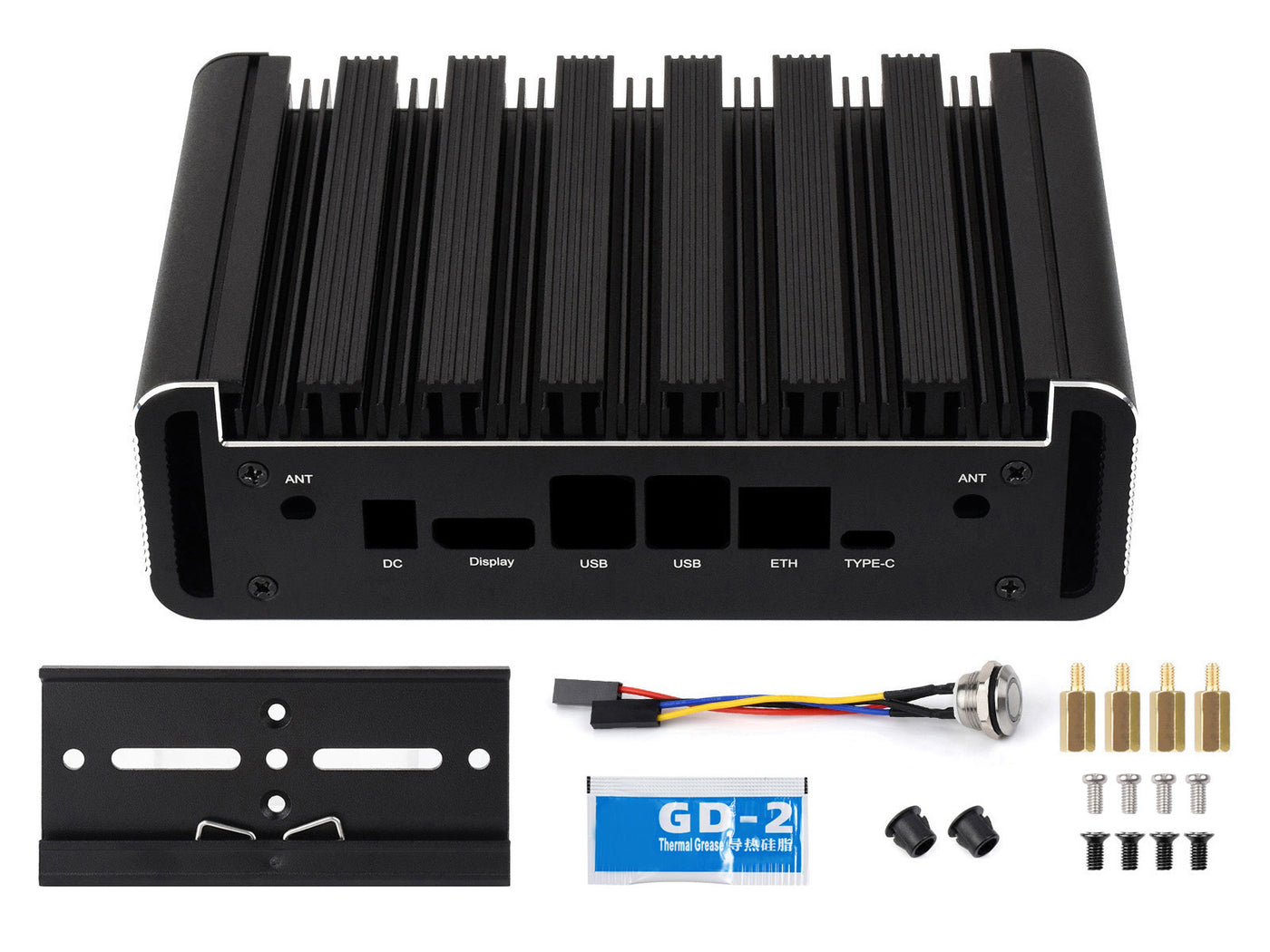

Package Content

  1. JETSON-ORIN-CASE-C Aluminum alloy case x1
  2. Button with wires x1
  3. Rail-mount buckle x1
  4. Antenna rubber plug x2
  5. Screws pack x1
  6. Thermal grease x1

    Weight: 1.02 kg
1 JETSON-ORIN-CASE-C
2 Button with 4PIN wires
3 Rail-mount buckle
4 Rubber plug
5 JETSON-ORIN-CASE-C
6 JETSON-ORIN-CASE-C
What is the Aluminum Alloy Passive Cooling Case for Jetson Orin used for?
It is a passive cooling enclosure for Jetson Orin modules, made from aluminum alloy, and it includes an onboard power button with an indicator.
Which Jetson Orin kits are supported by this cooling case?
It is suitable for Jetson Orin Nano and Jetson Orin NX kits.
Does this case include any active cooling components?
No. It is a passive cooling case that relies on aluminum alloy for heat dissipation.
Does the case have an onboard power button with indicator?
Yes, the case includes an onboard power button with an indicator.
What is included in the package?
The exact parts included are listed in the package contents; please check the package for the detailed part list.
