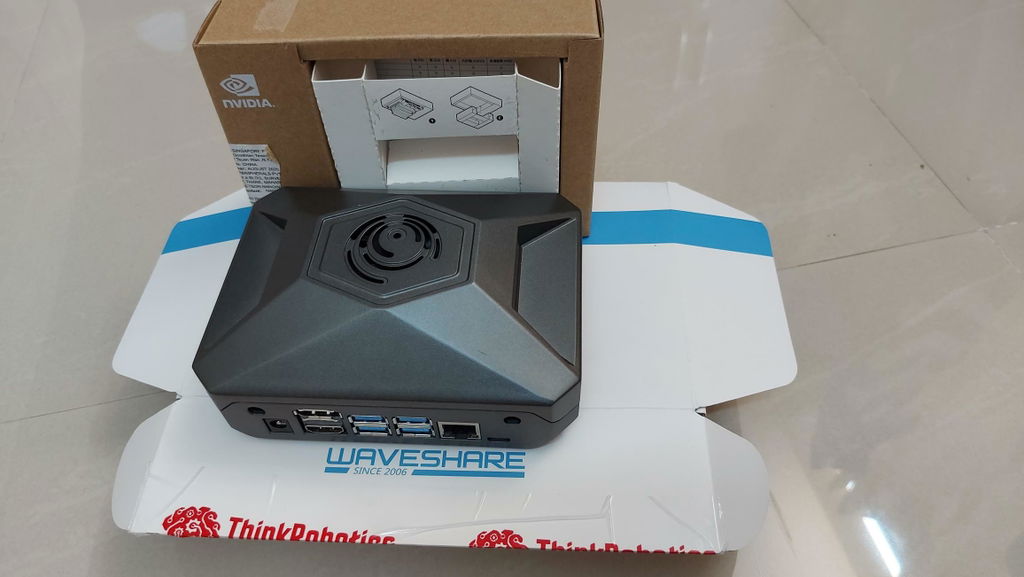

Aluminum Case for the Jetson Nano Development Kit

Is this case compatible with the Jetson Nano development kit?

Yes. It is designed for the ThinkRobotics JETSON-NANO-DEV-KIT and antennas are not included.

What is included in the package?

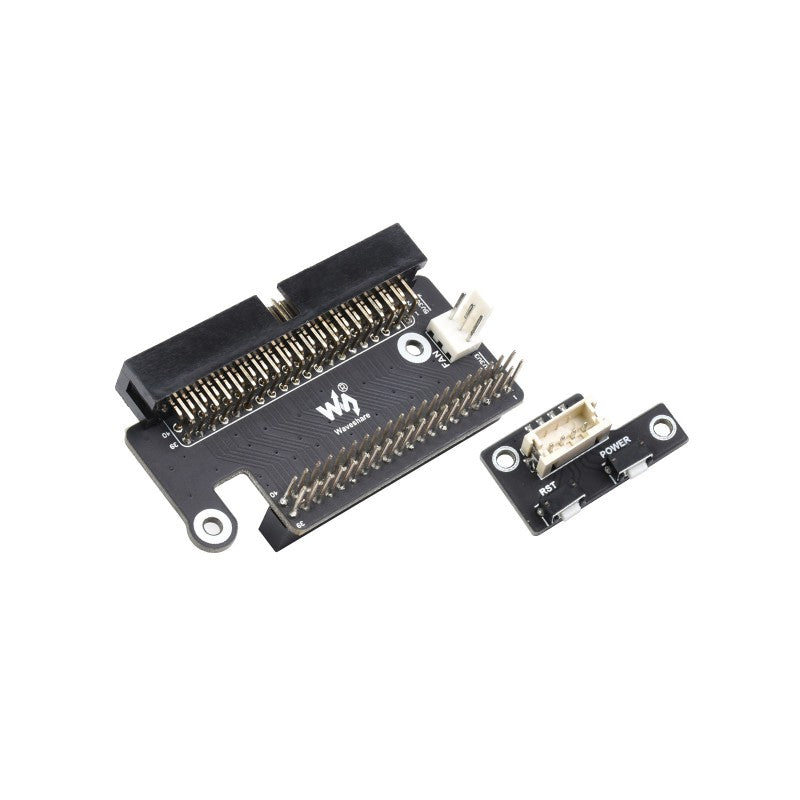

The package contains the aluminum body case with top and bottom, a GPIO adapter, a button cable, four nonskid feet, two buttons, a button board, an Allen spanner, and an Allen screws pack.

How do I assemble the enclosure?

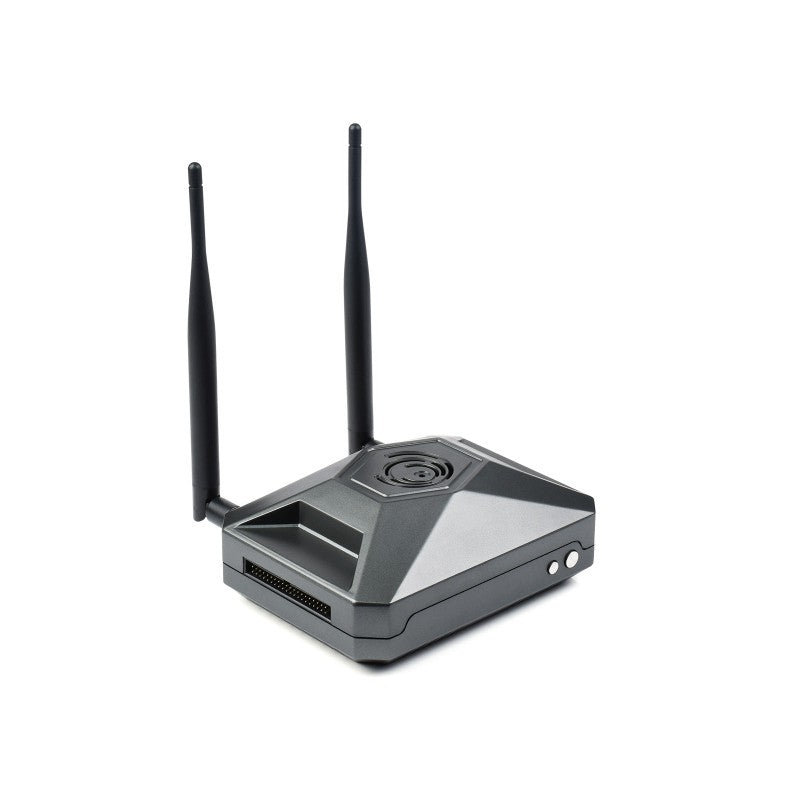

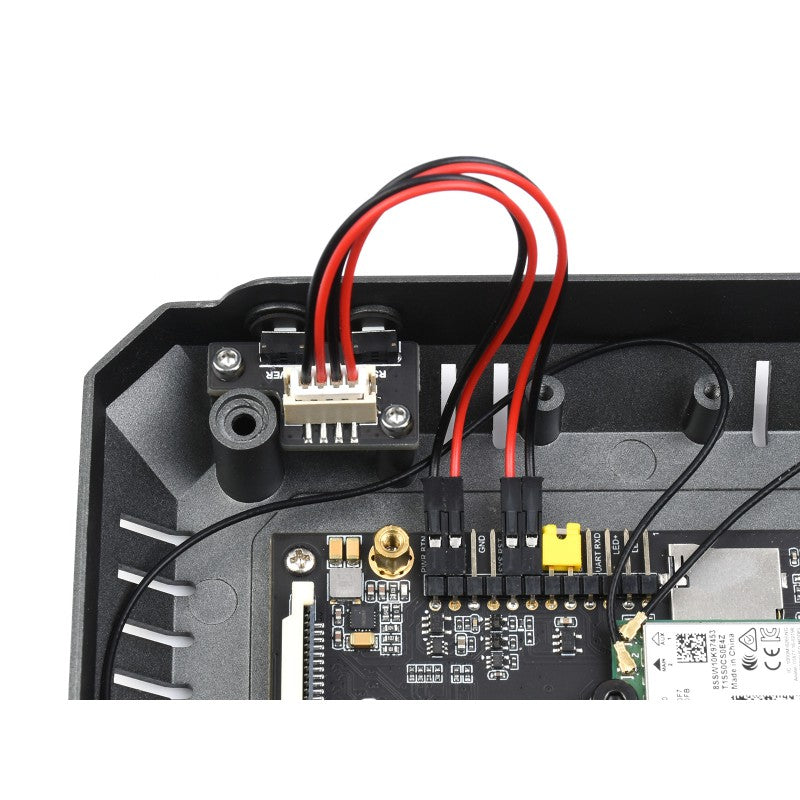

Install the buttons and the button board first. Connect the button cable to the Jetson Nano and place the assembly into the bottom case with the antenna cable, then tighten the screws. Install the GPIO adapter and fan, then fit the top case and the antenna, and attach the nonskid feet.

How does the cooling system work?

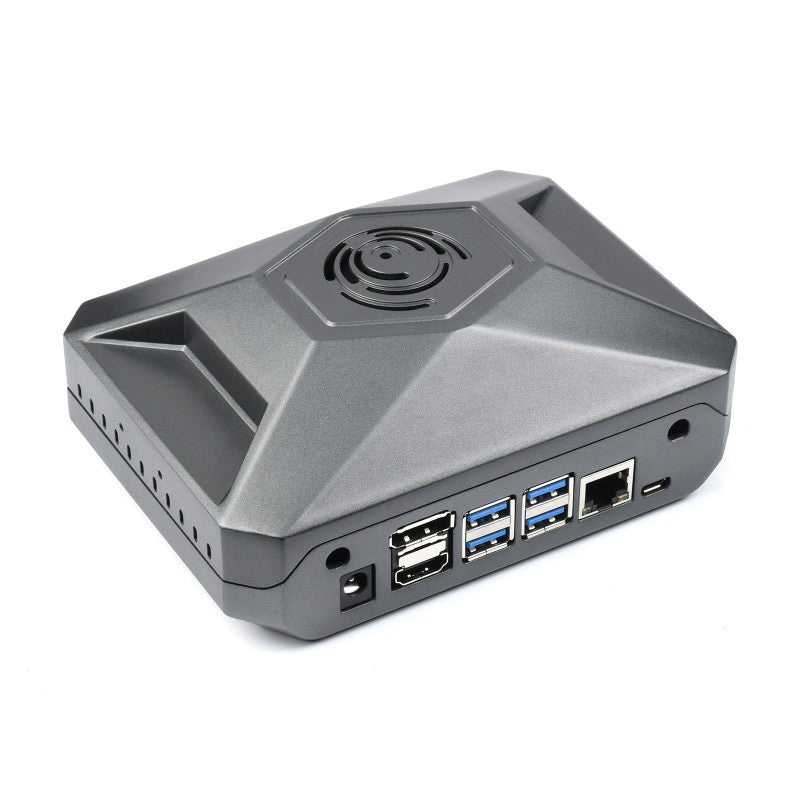

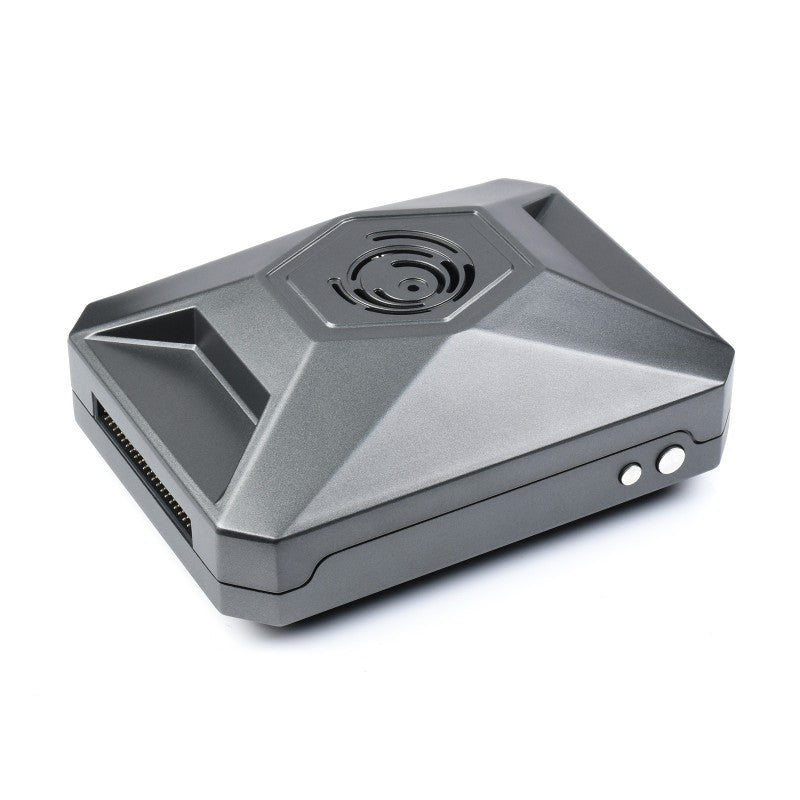

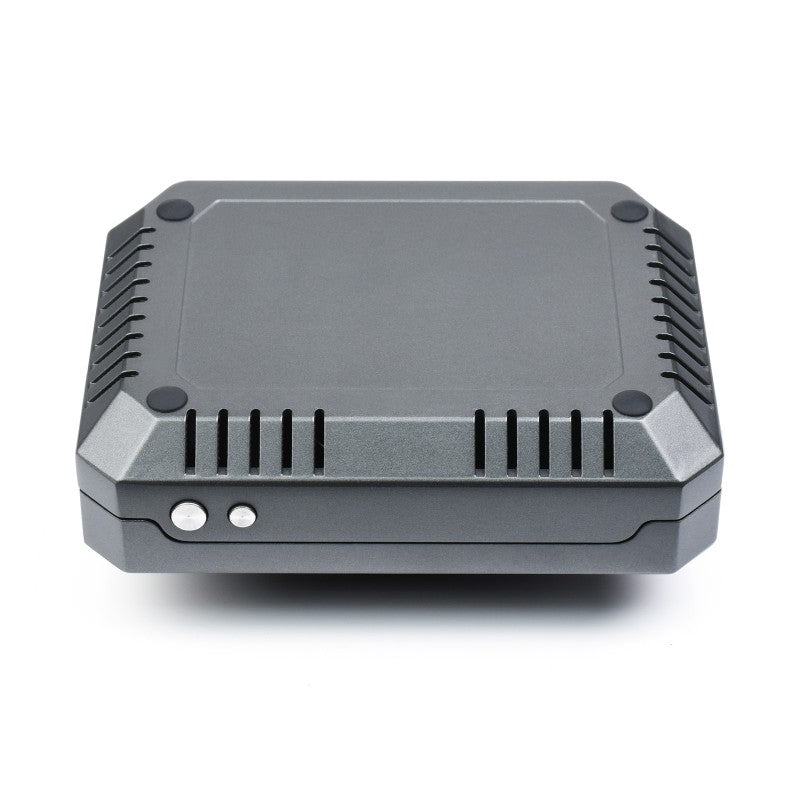

The enclosure supports active and passive cooling with three side airflow vents and top holes for a built in fan, which helps achieve better heat dissipation.

What features help with stability and heat dissipation?

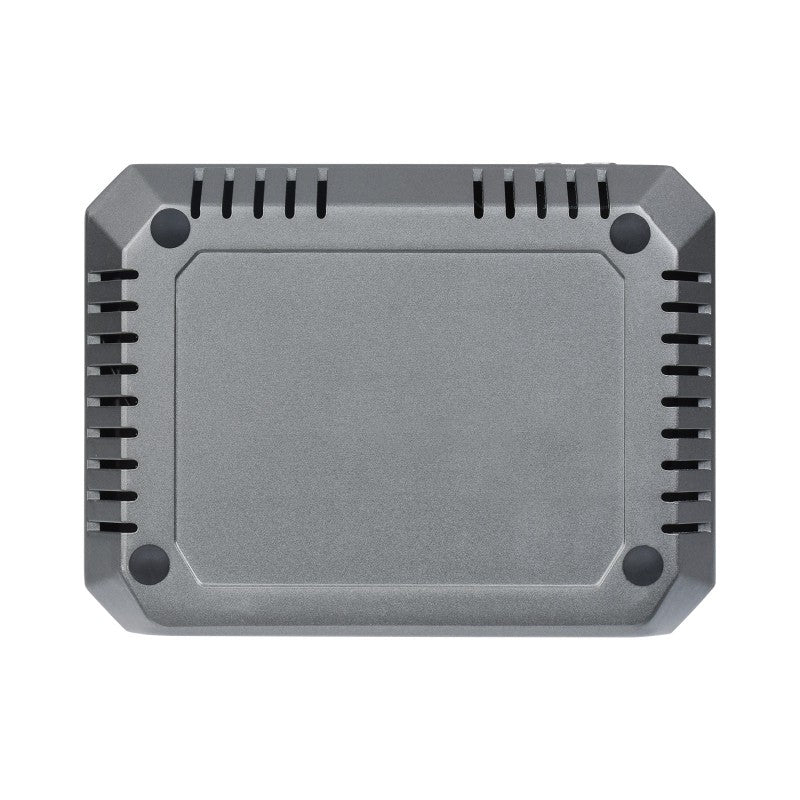

Silicone nonskid feet are included for stable placement, and the bottom contact area is reduced to maximize heat dissipation.
