Andonstar 3 Lenses HDMI 10.1 Inch LCD Coin Digital Microscope AD249S-P

SKU: TOL2048

₹ 19,499.99 ₹ 25,999.99

Out of stock

šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Andonstar 3 Lenses HDMI 10.1 Inch LCD Coin Digital Microscope AD249S-P₹ 19,499.99
Ask AI about this product

Features

  • 3 lenses 18-720x, 1560-2040x, 2760-4080x continuous zoom in for hobby, Industrial and biologic purposes. Reversed quadruple nosepiece slots, Two empty lens slots (RMS 20.2mm) so users could use their own lens for certain use.
  • 10.1 inch built-in monitor ensures an easy and comfortable observation for all users including eyeglass wearers. The device can take videos up to 2880*2160 resolution, picture resolution reaches 24M 5600*4200 (with interpolation).

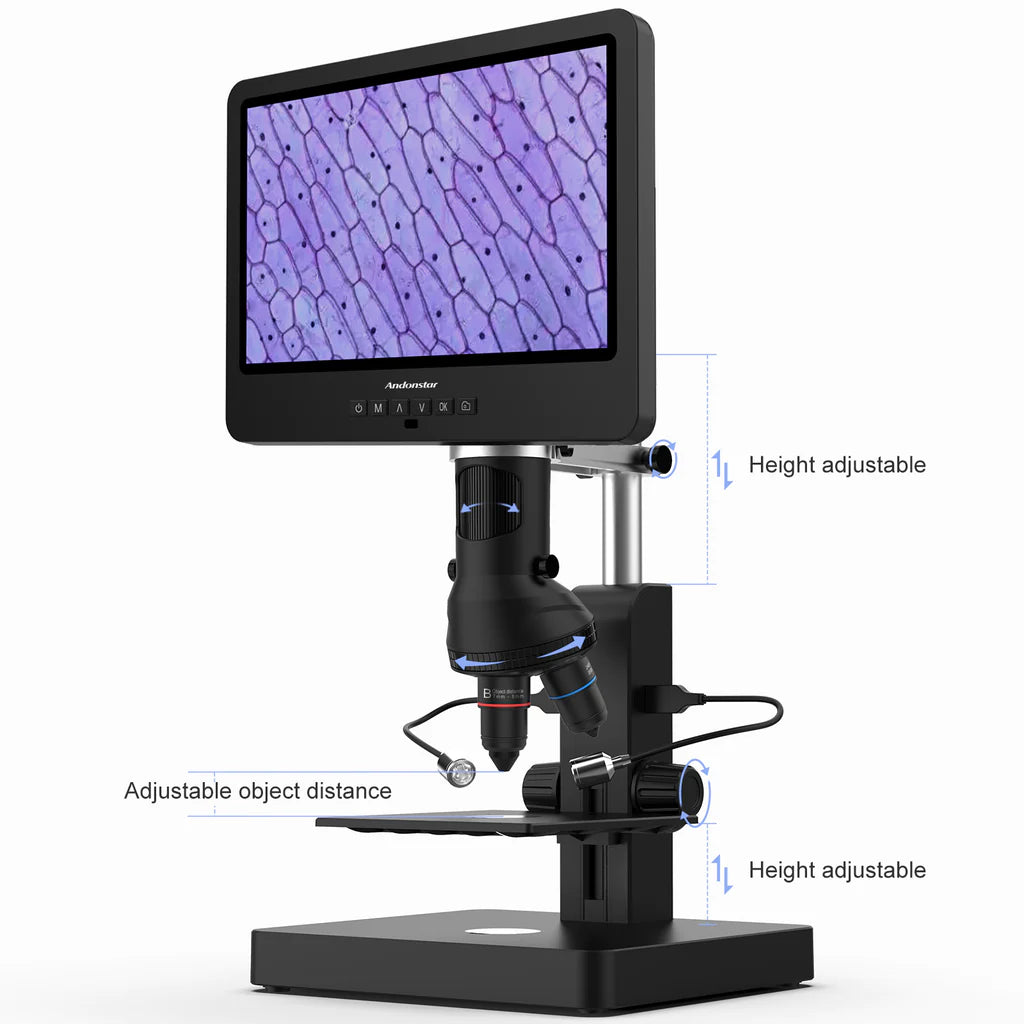

  • The lifting bracket is made of metal and plastic: the metal part helps to firmly fix the monitor still, plastic part effectively reduces static electricity. The lower part has a bigger diameter, which naturally gives a lower limit stop to prevent the monitor from accidental dropping to slides
  • Mechanical stage, size of 122*138mm with a movement range of 0-58mm vertically, on where you place slides and what to move to find the best image and magnifications. It comes with a hole in the middle, where the bottom light goes through and to set the three backdrop boards to observe different slides

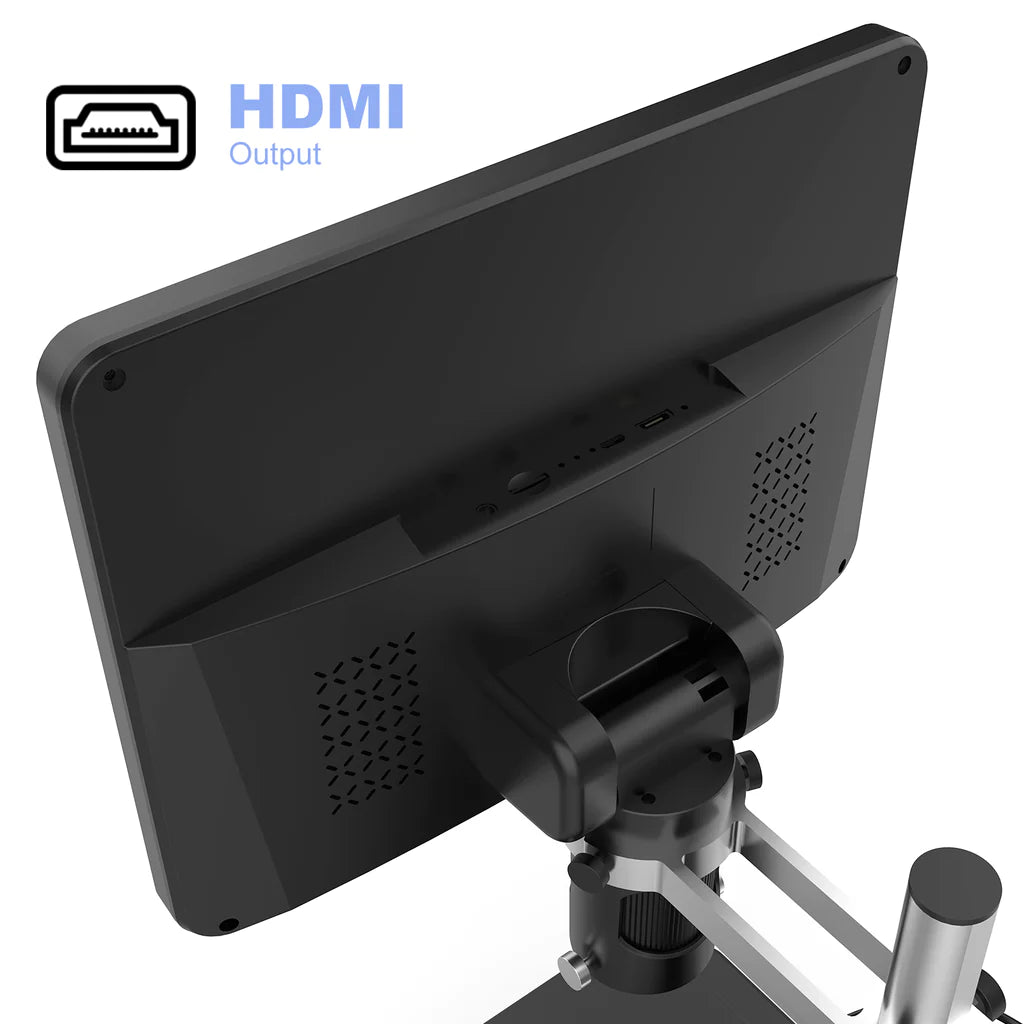

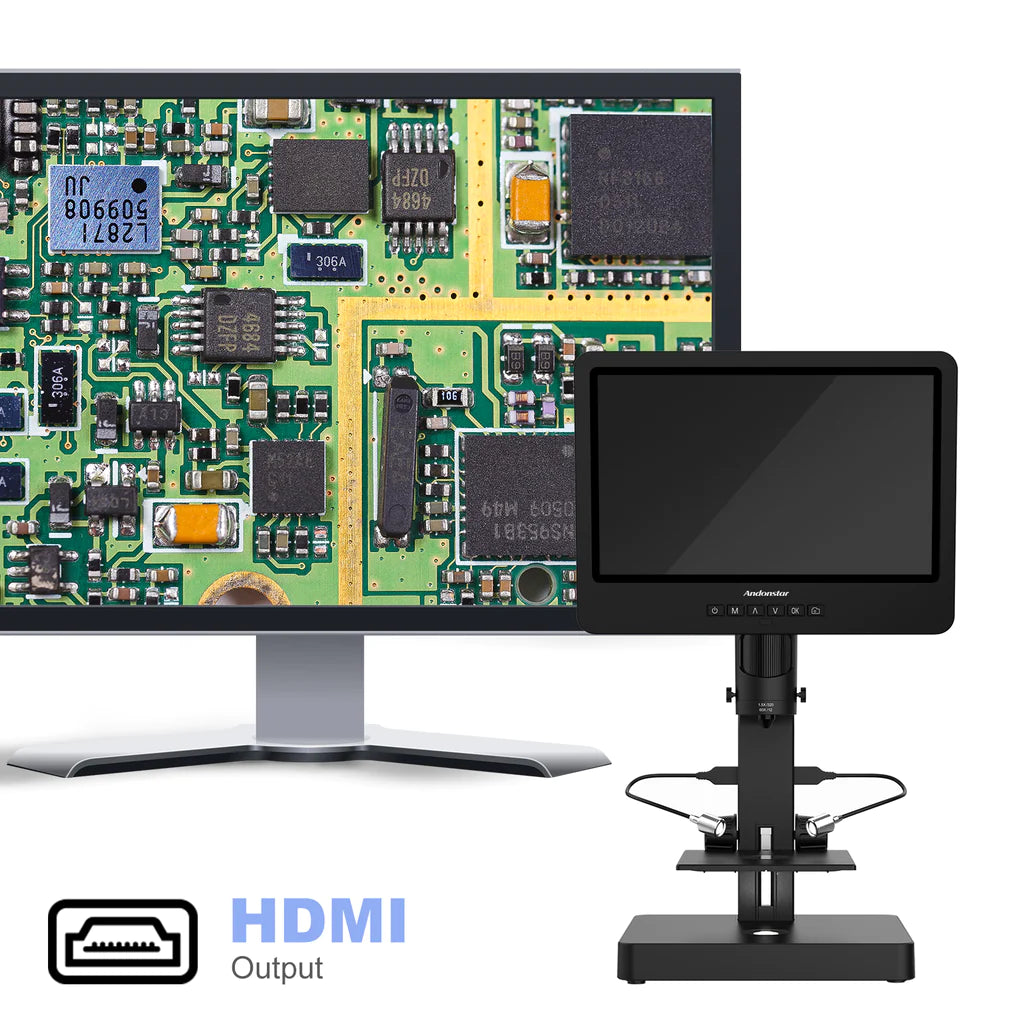

  • Multiple outputs: HDMI to a monitor, USB to a computer or simply use a memory card to save all images you capture. The gift-giving Windows software offers image-development and measurement tools, as well as advanced compositing features such as "sharpness" and "edge detect".

Ā

A_lens_of_ad246p






C_lens_of_ad246p

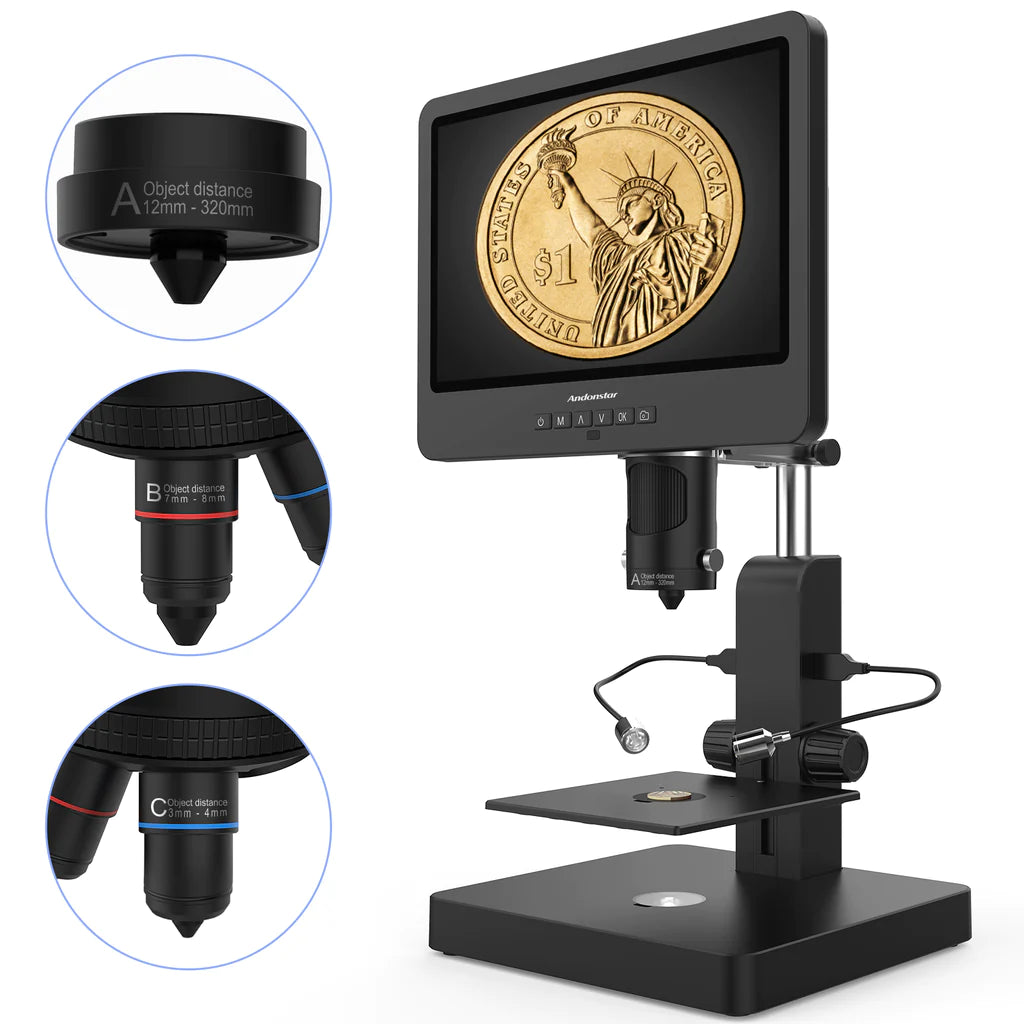

Lens A-Coin Microscope

Applications:Ā coin, stones, stamp collection, circuit board observation.

Highlights:Ā Whole or partial Coin can be observed with a 12-320mm working distance.


Lens B-Biological Microscope

Applications:Ā microscope slides observation.

Highlights:Ā 7-8mm working distance for big magnification.


Lens C-Biological Microscope

Applications:Ā microscope slides observation.

Highlights:Ā 3-4mm working distance for biggest magnification.


LED_light_246p
stand_246p
remote_246p

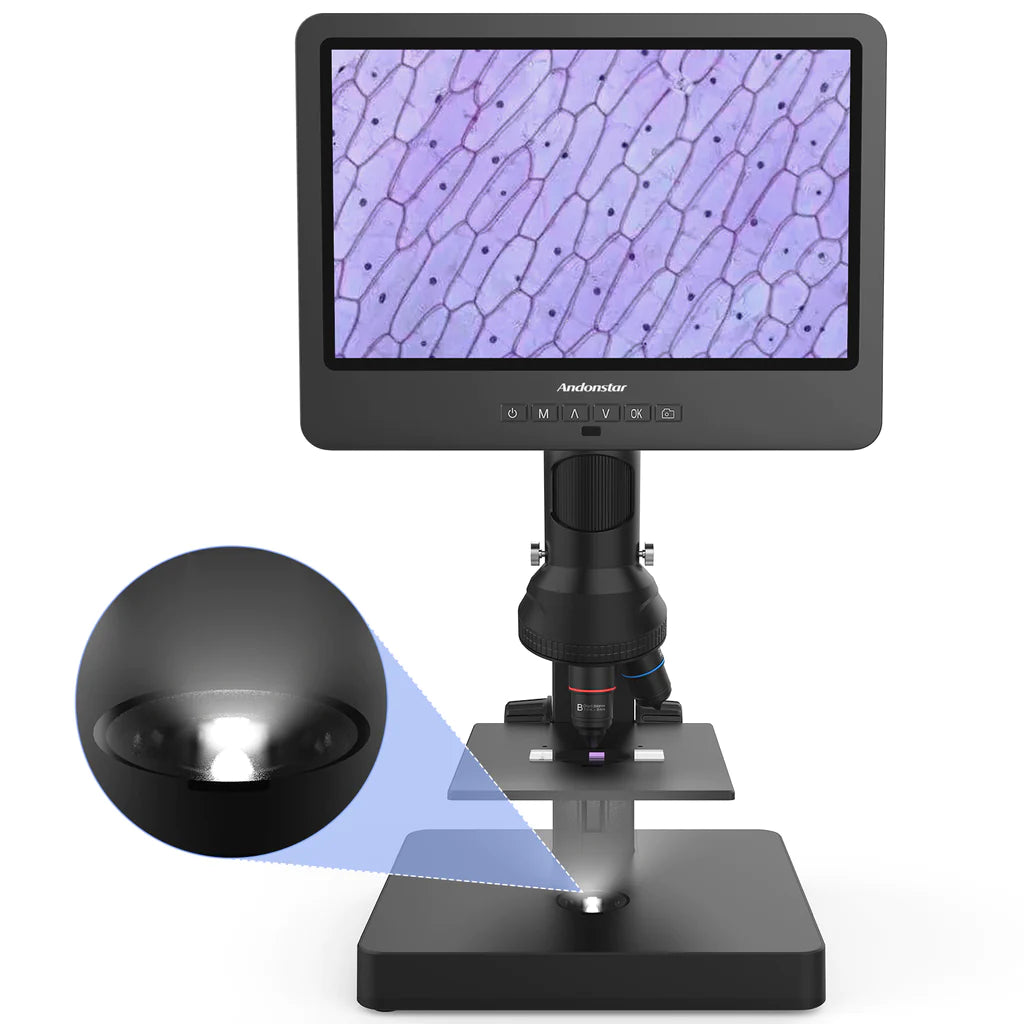

Adjustable LED Lights

A total of eight intensity levels of LED lights can meet your different requirements for image brightness.

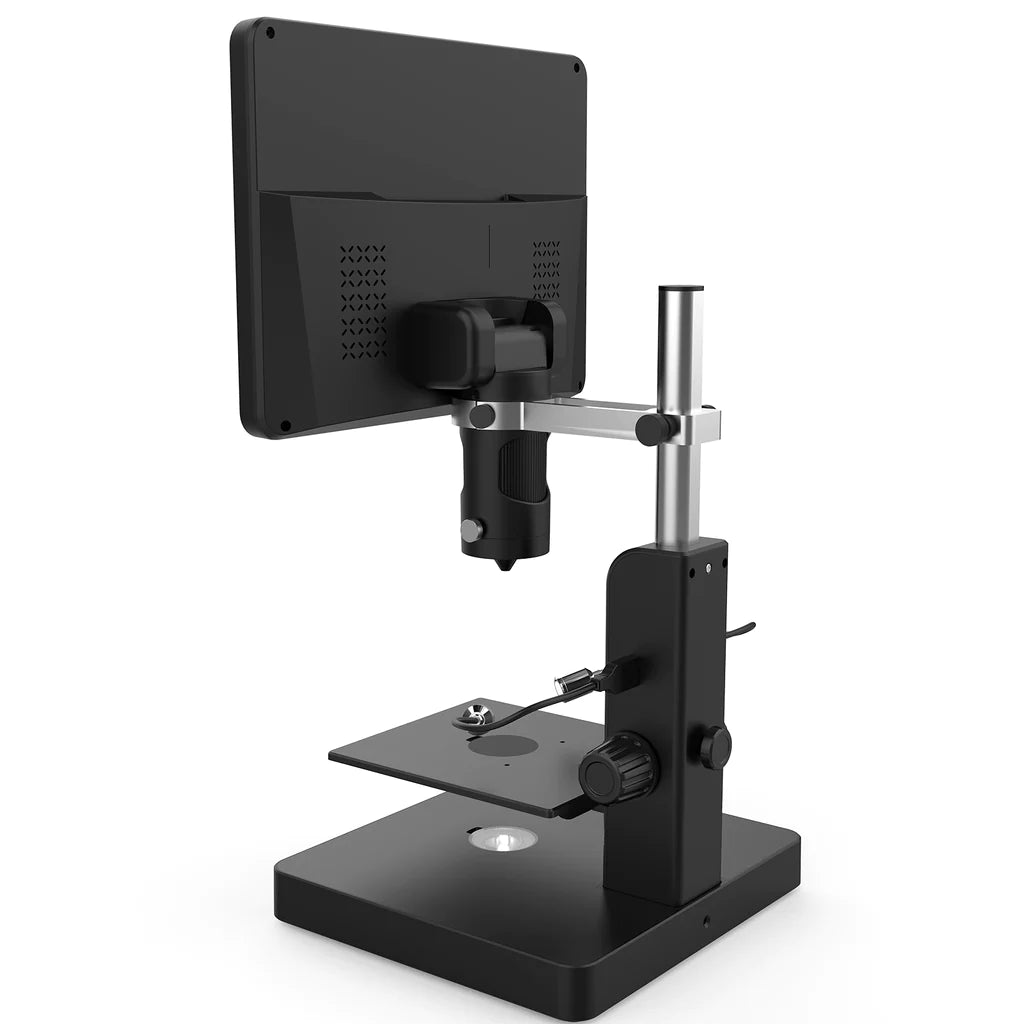

Pro Plastic Stand

Andonstar's newest upgraded bracket, size: 7.5*7.8*11.8 inch, can meet the needs of your larger work envelope.


Convenient Remote Control

It is convenient for you to operate from a long distance and supports functions such as image discoloration and digital zoom. It is especially suitable for educational demonstrations and other scenes.


adjustable_stand246p
slide_kit_246p
sd_card_246p

Easy to Use

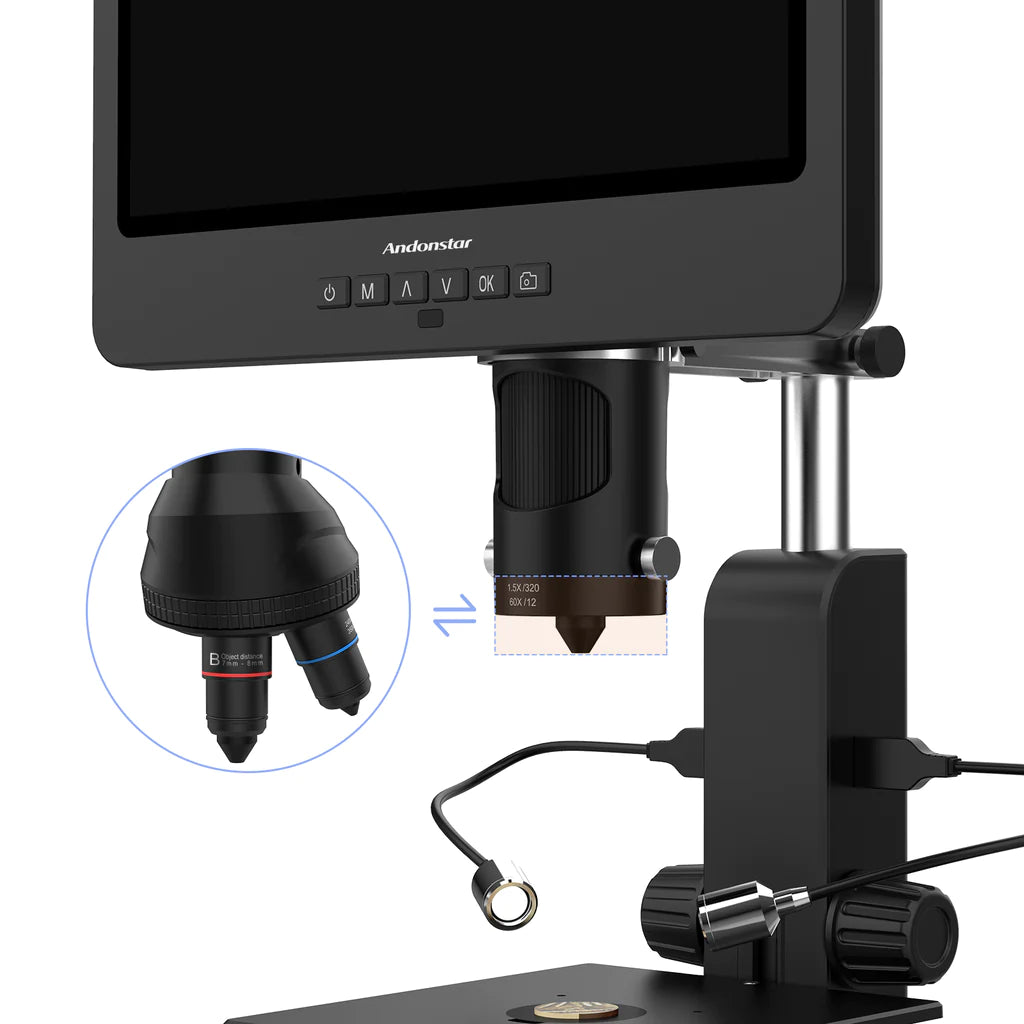

Different lenses can be exchanged by simply removing and installing the screws. Rotate the focusing wheel to focus, and rotate the bracket knob to adjust the object distance.


Great Microscope Kit for Adults, Kids and Students

It comes with a variety of accessories such as biological slides and meets the needs of adults and kids at the same time.


Take Photos and Videos

Not just a microscope. With the Micro SD card provided, you can easily take and store the images or videos of the micro-world you observe.


Ā

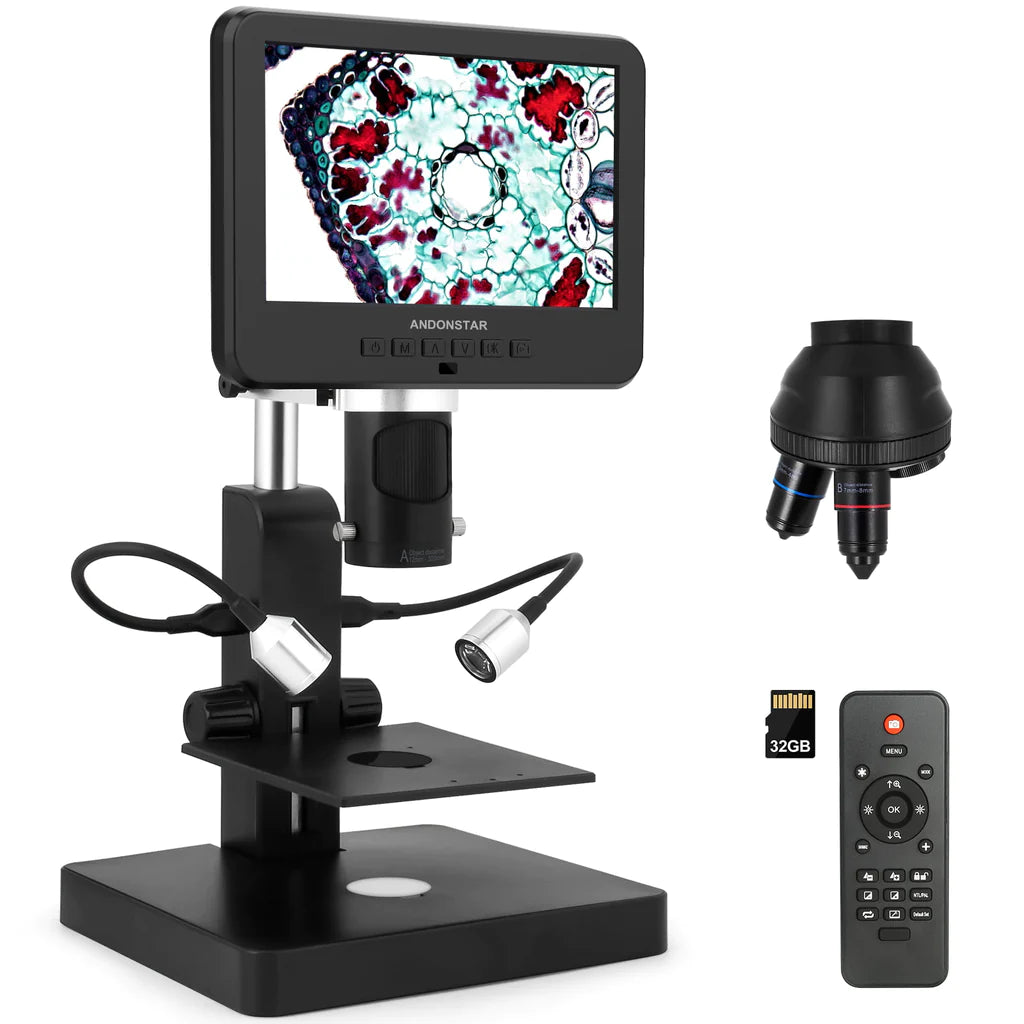

Inside the box you will receive:

AD249S-P (HDMI, Windows PC output)
  1. Microscope
  2. Plastic Stand
  3. Lens A(has been fixed), Lens B&C
  4. USB cable
  5. HDMI cable
  6. Remote
  7. Dimmer cable
  8. Backdrop Board
  9. Slides kit
  10. 32G SD card
  11. Tweezers
  12. Observation box
  13. Screwdriver
What lens options does this microscope offer and how are the lenses selected?
It includes three lenses with continuous zoom ranges of 18-720x, 1560-2040x, and 2760-4080x. Lenses can be exchanged by removing and installing screws, and there are two empty lens slots (RMS 20.2 mm) for using your own lenses.
How can I connect and save images or videos from the device?
The microscope supports HDMI to a monitor, USB to a computer, and a memory card for saving. A 32G SD card is included and the Windows software provides image development and measurement tools.
Is the built in monitor comfortable for eyeglass wearers?
Yes, the 10.1 inch built in monitor provides easy and comfortable observation for all users including eyeglass wearers.
What accessories are included in the box?
The box includes the AD249S-P with HDMI and Windows PC output, plastic stand, Lens A fixed, Lenses B and C, USB and HDMI cables, remote dimmer, backdrop boards, slides kit, 32G SD card, tweezers, observation box, and screwdriver.
How do I focus and adjust object distance, and what are the working distances for each lens?
To focus you rotate the focusing wheel, and to adjust distance rotate the bracket knob. Working distances are Lens A 12-320 mm for coins, Lens B 7-8 mm, and Lens C 3-4 mm.
Welcome to the discussion thread for Andonstar 3 Lenses HDMI 10.1 Inch LCD Coin Digital Microscope AD249S-P
Feel free to ask questions, share tips or report issues.

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product

Features

  • 3 lenses 18-720x, 1560-2040x, 2760-4080x continuous zoom in for hobby, Industrial and biologic purposes. Reversed quadruple nosepiece slots, Two empty lens slots (RMS 20.2mm) so users could use their own lens for certain use.
  • 10.1 inch built-in monitor ensures an easy and comfortable observation for all users including eyeglass wearers. The device can take videos up to 2880*2160 resolution, picture resolution reaches 24M 5600*4200 (with interpolation).
  • The lifting bracket is made of metal and plastic: the metal part helps to firmly fix the monitor still, plastic part effectively reduces static electricity. The lower part has a bigger diameter, which naturally gives a lower limit stop to prevent the monitor from accidental dropping to slides
  • Mechanical stage, size of 122*138mm with a movement range of 0-58mm vertically, on where you place slides and what to move to find the best image and magnifications. It comes with a hole in the middle, where the bottom light goes through and to set the three backdrop boards to observe different slides
  • Multiple outputs: HDMI to a monitor, USB to a computer or simply use a memory card to save all images you capture. The gift-giving Windows software offers image-development and measurement tools, as well as advanced compositing features such as "sharpness" and "edge detect".

Ā

A_lens_of_ad246p






C_lens_of_ad246p

Lens A-Coin Microscope

Applications:Ā coin, stones, stamp collection, circuit board observation.

Highlights:Ā Whole or partial Coin can be observed with a 12-320mm working distance.


Lens B-Biological Microscope

Applications:Ā microscope slides observation.

Highlights:Ā 7-8mm working distance for big magnification.


Lens C-Biological Microscope

Applications:Ā microscope slides observation.

Highlights:Ā 3-4mm working distance for biggest magnification.


LED_light_246p
stand_246p
remote_246p

Adjustable LED Lights

A total of eight intensity levels of LED lights can meet your different requirements for image brightness.


Pro Plastic Stand

Andonstar's newest upgraded bracket, size: 7.5*7.8*11.8 inch, can meet the needs of your larger work envelope.


Convenient Remote Control

It is convenient for you to operate from a long distance and supports functions such as image discoloration and digital zoom. It is especially suitable for educational demonstrations and other scenes.


adjustable_stand246p
slide_kit_246p
sd_card_246p

Easy to Use

Different lenses can be exchanged by simply removing and installing the screws. Rotate the focusing wheel to focus, and rotate the bracket knob to adjust the object distance.


Great Microscope Kit for Adults, Kids and Students

It comes with a variety of accessories such as biological slides and meets the needs of adults and kids at the same time.


Take Photos and Videos

Not just a microscope. With the Micro SD card provided, you can easily take and store the images or videos of the micro-world you observe.


Ā

Inside the box you will receive:

AD249S-P (HDMI, Windows PC output)
  1. Microscope
  2. Plastic Stand
  3. Lens A(has been fixed), Lens B&C
  4. USB cable
  5. HDMI cable
  6. Remote
  7. Dimmer cable
  8. Backdrop Board
  9. Slides kit
  10. 32G SD card
  11. Tweezers
  12. Observation box
  13. Screwdriver
FAQ
What lens options does this microscope offer and how are the lenses selected?
It includes three lenses with continuous zoom ranges of 18-720x, 1560-2040x, and 2760-4080x. Lenses can be exchanged by removing and installing screws, and there are two empty lens slots (RMS 20.2 mm) for using your own lenses.
How can I connect and save images or videos from the device?
The microscope supports HDMI to a monitor, USB to a computer, and a memory card for saving. A 32G SD card is included and the Windows software provides image development and measurement tools.
Is the built in monitor comfortable for eyeglass wearers?
Yes, the 10.1 inch built in monitor provides easy and comfortable observation for all users including eyeglass wearers.
What accessories are included in the box?
The box includes the AD249S-P with HDMI and Windows PC output, plastic stand, Lens A fixed, Lenses B and C, USB and HDMI cables, remote dimmer, backdrop boards, slides kit, 32G SD card, tweezers, observation box, and screwdriver.
How do I focus and adjust object distance, and what are the working distances for each lens?
To focus you rotate the focusing wheel, and to adjust distance rotate the bracket knob. Working distances are Lens A 12-320 mm for coins, Lens B 7-8 mm, and Lens C 3-4 mm.
