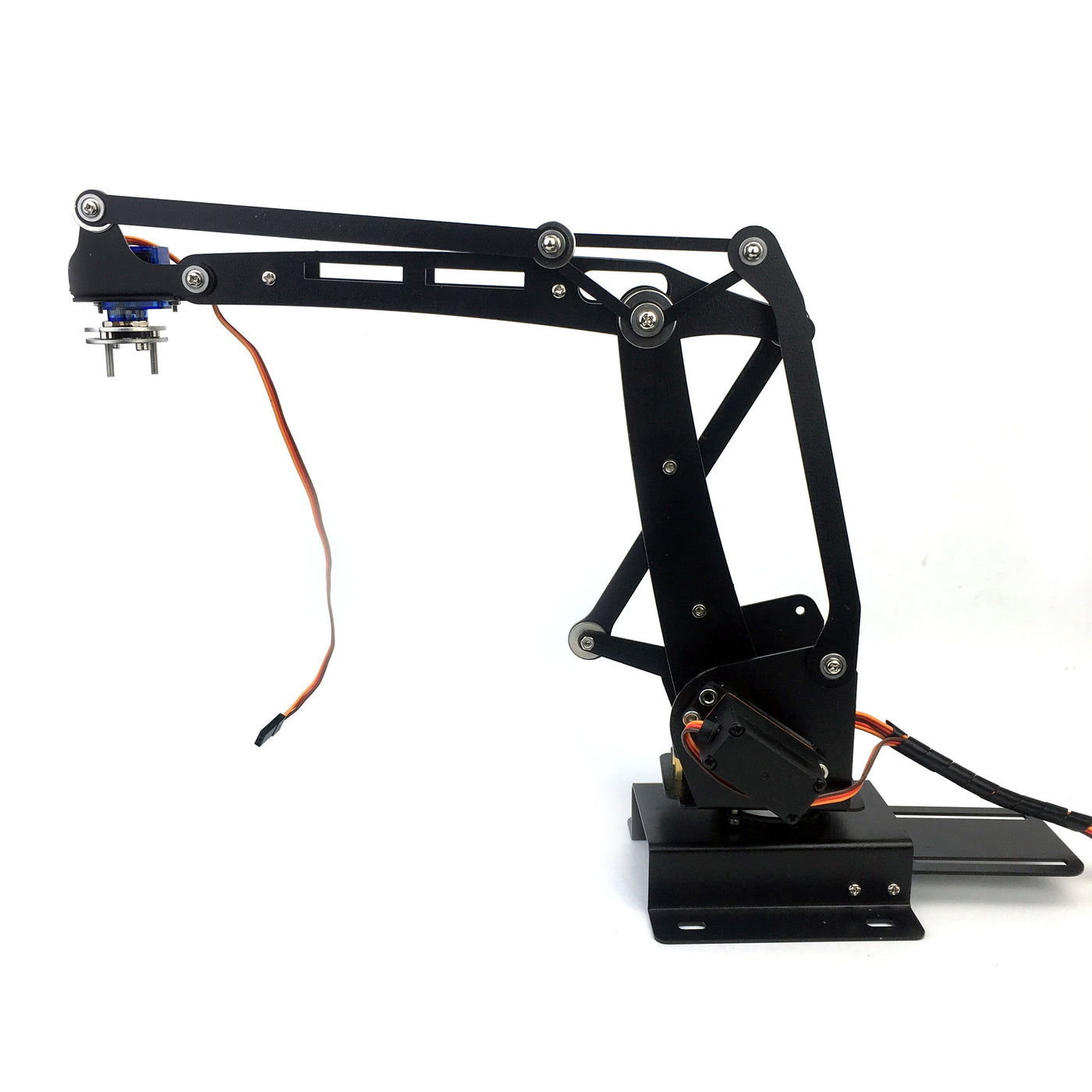

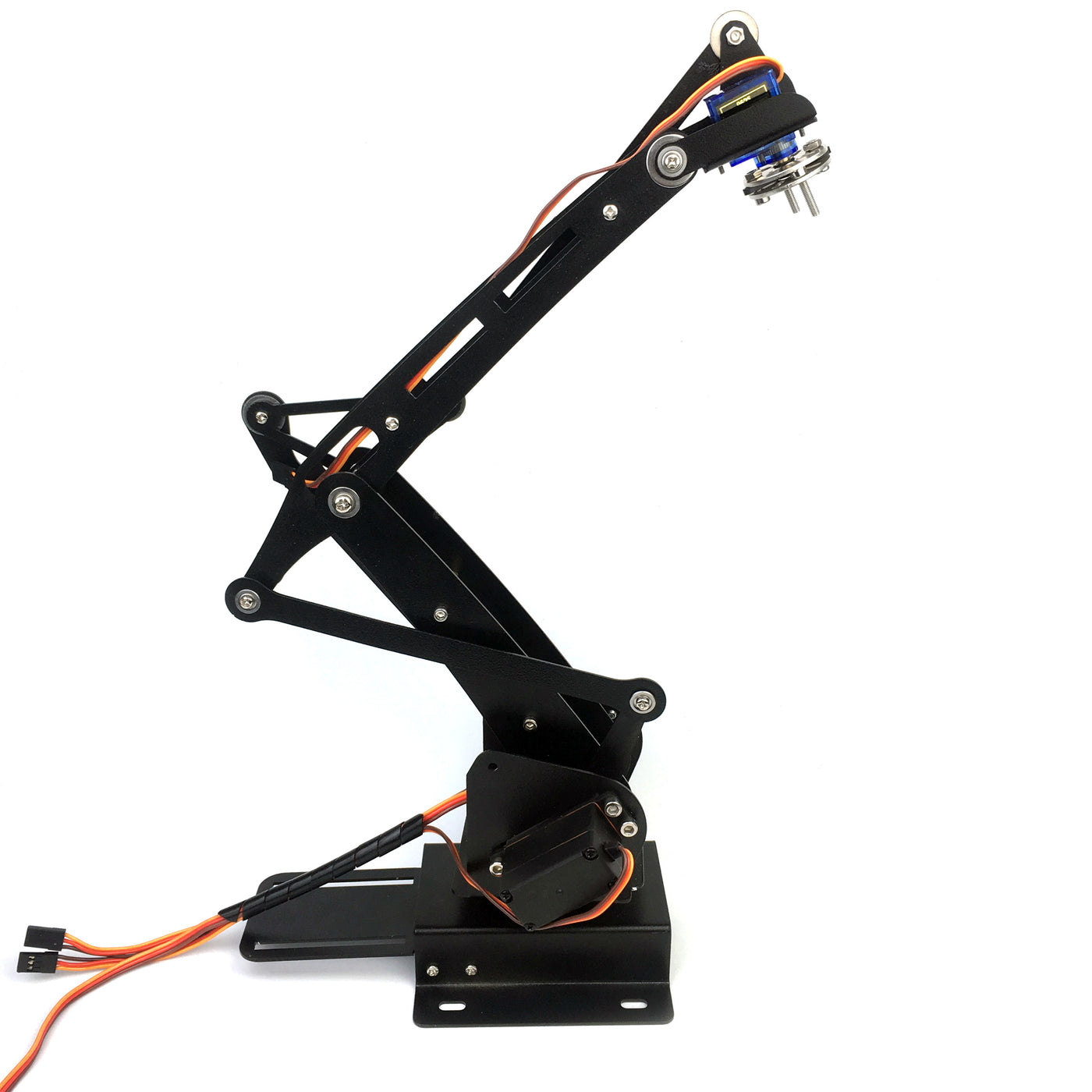

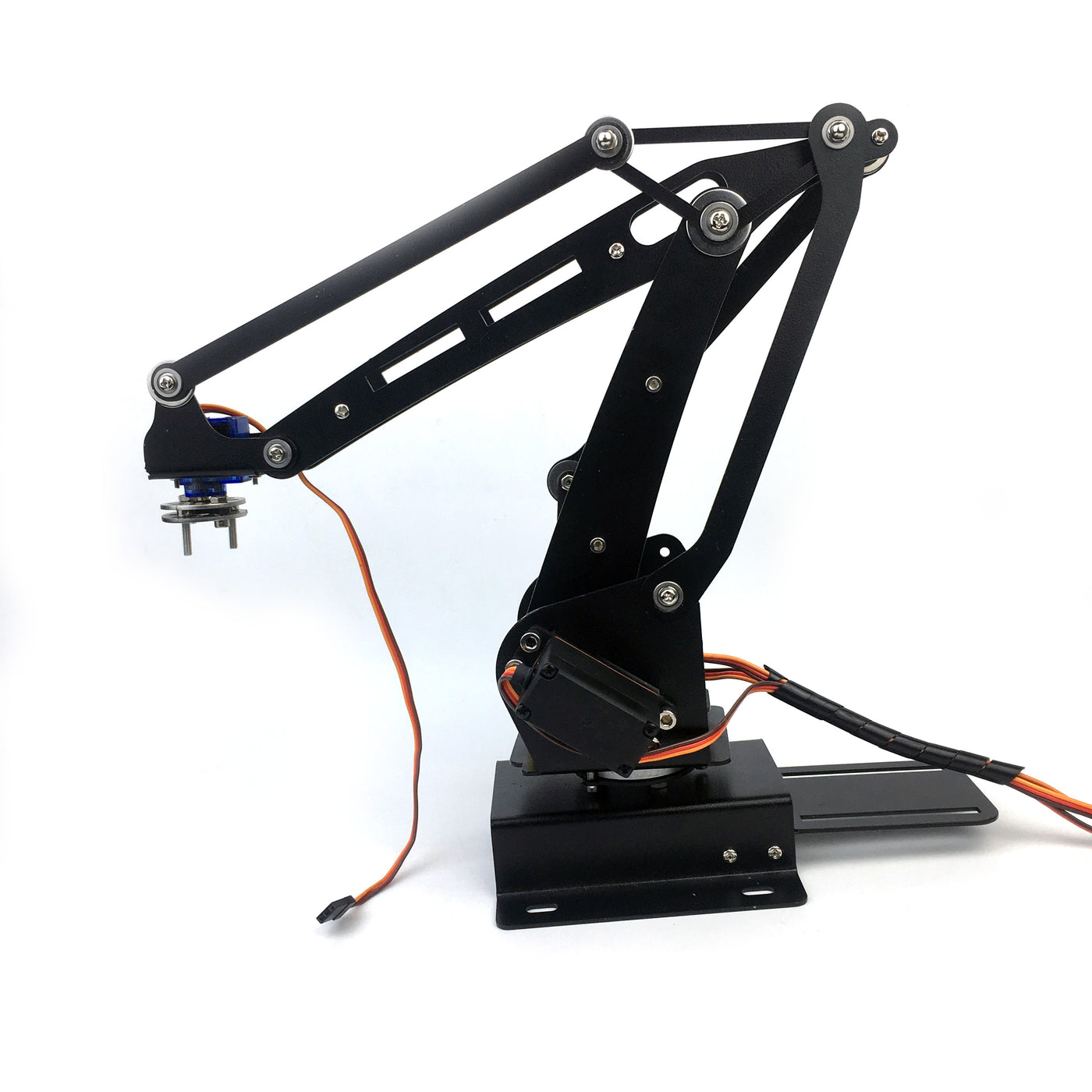

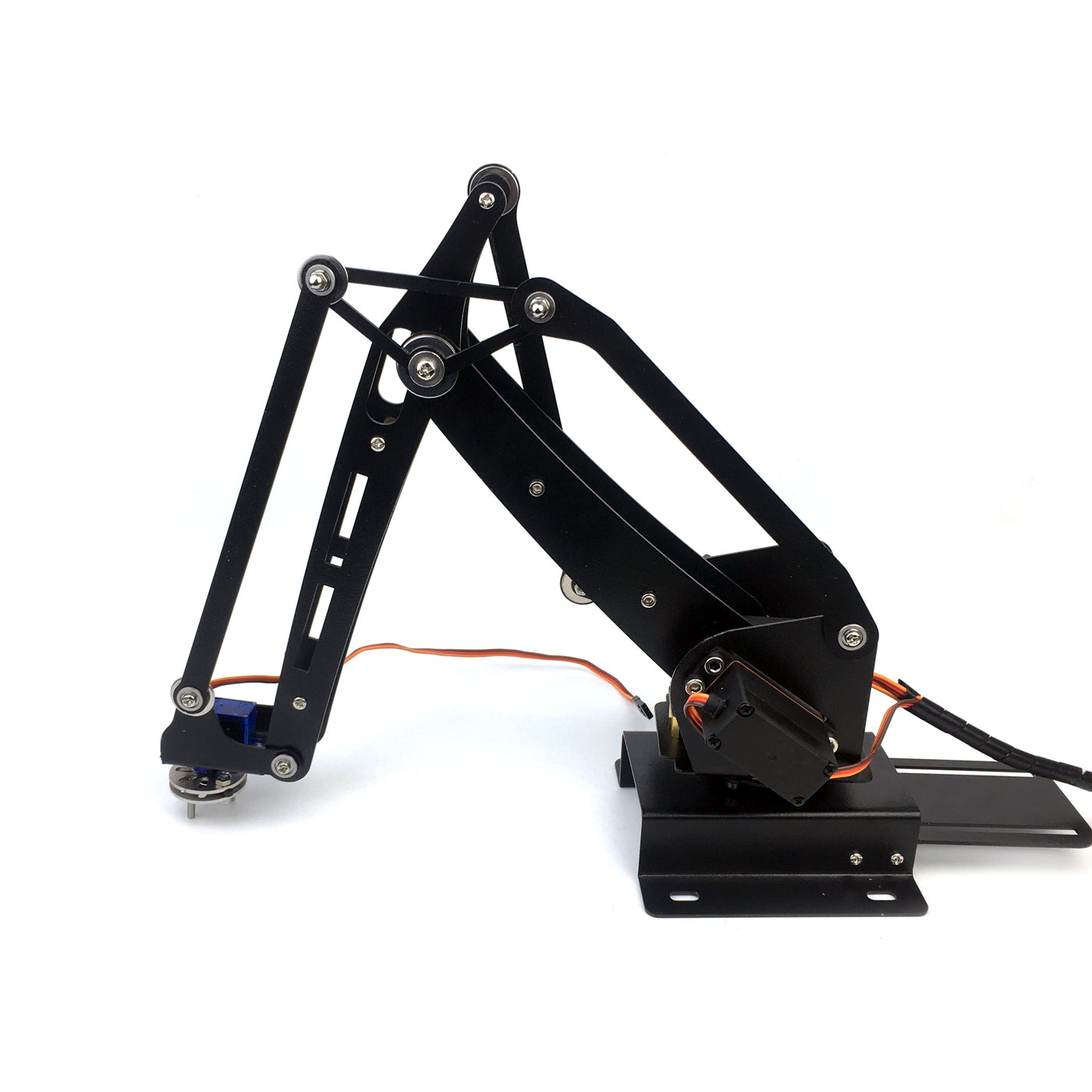

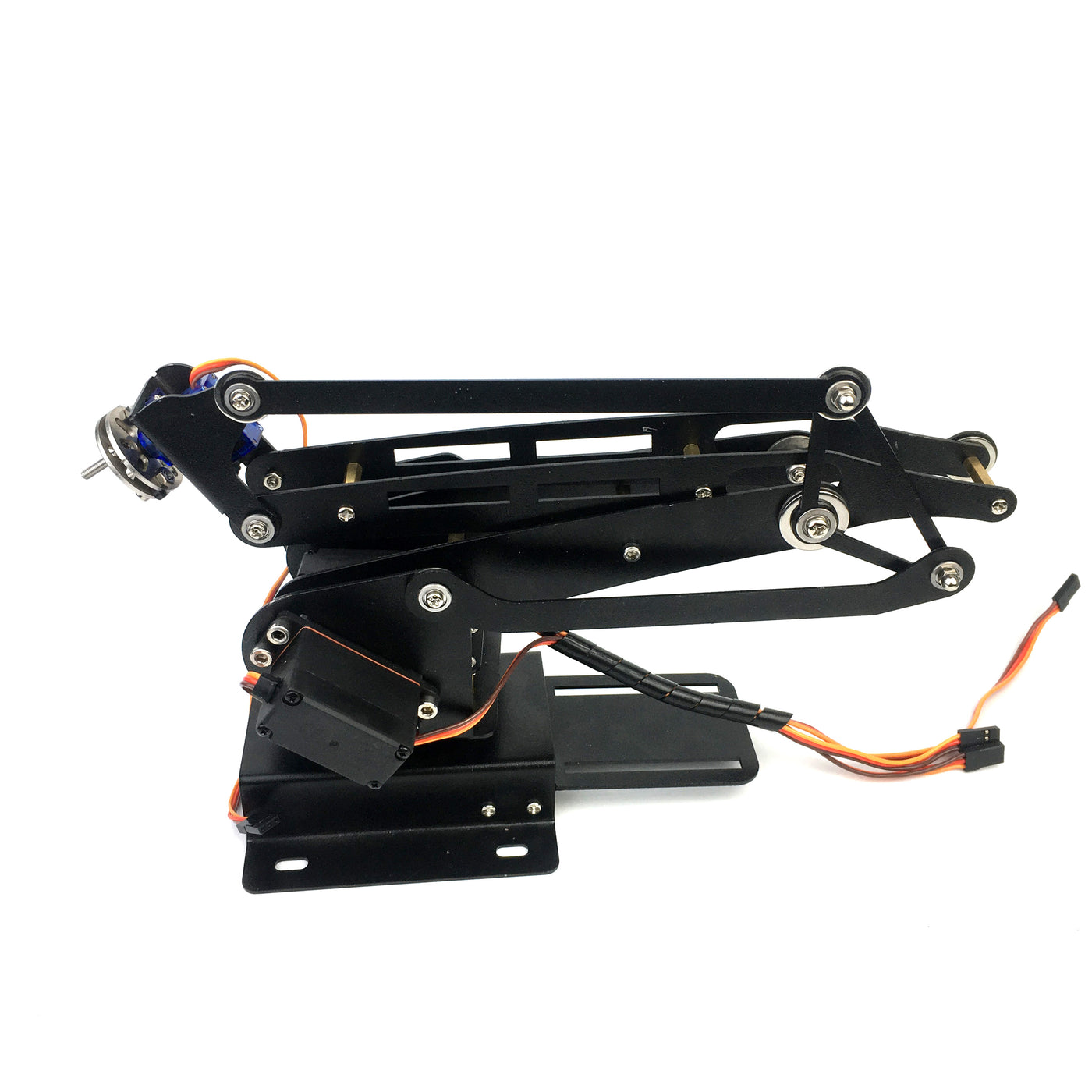

4 DOF Palletizing Robot Arm with PS2 controller

SKU: RBA1015

₹ 17,999.99 ₹ 21,999.99

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
4 DOF Palletizing Robot Arm with PS2 controller₹ 17,999.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

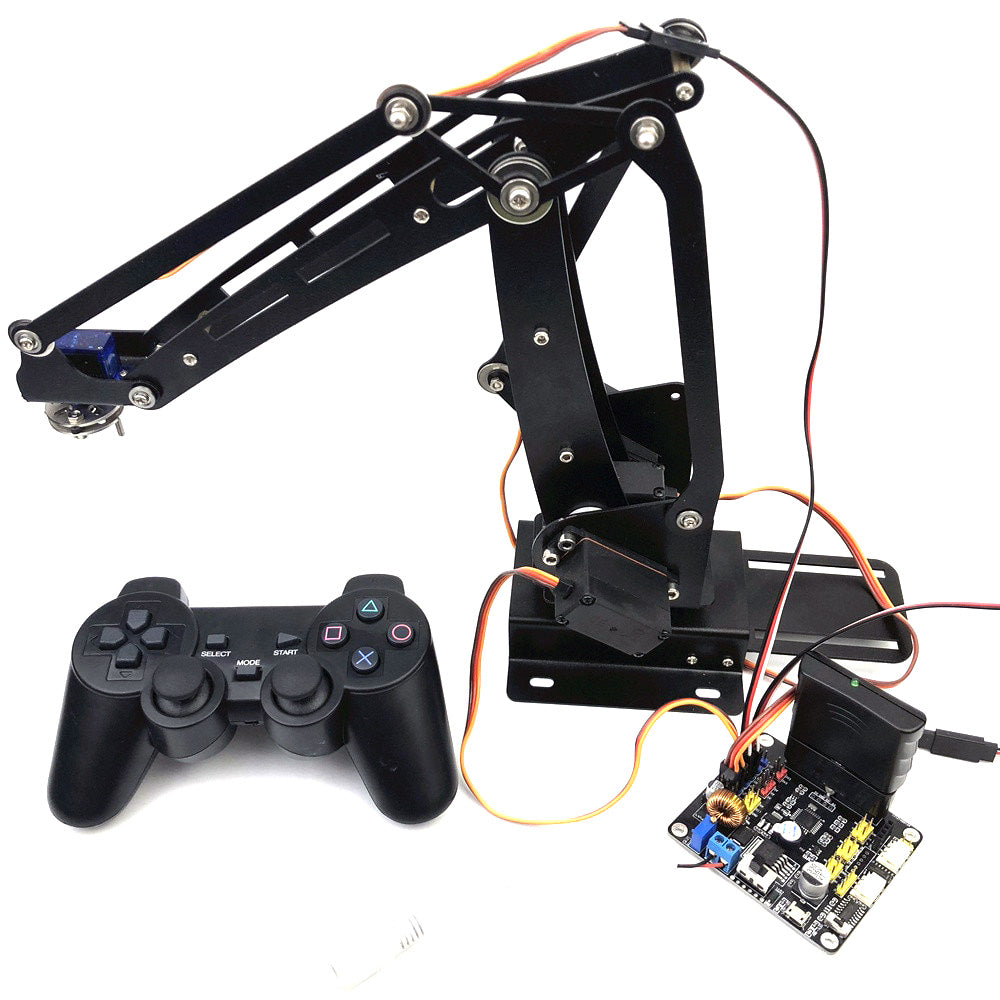

4-DOF (Degree of Freedom) Palletizing Robot Arm with Arduino UNO Controller and PS2 Remote Control

This is a desktop robotic arm, designed to provide precise movements and repeatability. The controller is based on Arduino Uno and is totally open source so you can extend more self-defined functions and operations.

With four (4) degrees of freedom, it can imitate movements of human's arm and hand, the robotic arm can be programmed to grab and move objects or use tools automatically. The wrist attachment is designed to work a variety of grabbing mechanisms and tools. This type of robotic arm is widely used in machinery manufacture, metallurgy, electronics, light industry, atomic energy, etc.

Features:

  • Developed for robot lovers, the 5-axis robotic arm kit is designed based on Arduino UNO R3.
  • Control Method: PS2 Wireless Remote
  • Multiple Programmable options - Self-learning, drawing, imitating, etc.
  • KS3518 and KS3527 20KG Metal Gear Servo Motors provide plenty of power to the arm
  • 5V 6A Power Supply included
  • Weight: 1600g
  • Size: 260mm X 260mm X 170mm

Features of KS-3518 & KS3527 Digital Servo

  • Angle: 180° or 270°
  • Voltage Range: 4.8V-6.6V
  • Operating Speed(4.8V): 0.09sec/60°
  • Operating Speed(6.0V): 0.07sec/60°
  • Stall Torque(4.8V): 18kg/cm
  • Stall Torque(6.6V): 20kg/cm
  • Gear: Metal
  • Weight: About 55g
How is the robot arm controlled?
The arm is controlled by a PS2 wireless remote and an Arduino UNO based controller, and the system is open source for extending self defined functions.
What power supply is included and what are the voltage requirements?
A 5V 6A power supply is included, and the servo motors operate at 4.8 to 6.6V.
What motors power the arm and what are their capabilities?
The system uses KS3518 and KS3527 metal gear servo motors with 4.8 to 6.6V operation, up to 20 kg cm stall torque, and digital angles of 180 or 270 degrees; speeds are 0.09 sec per 60 deg at 4.8V and 0.07 sec per 60 deg at 6.0V.
What are the physical dimensions and weight of the unit?
The arm weighs about 1600 g and measures 260 mm x 260 mm x 170 mm.
Are warranty, delivery or return policies specified?
Warranty details, delivery options, and return policies are not provided in the product description.
