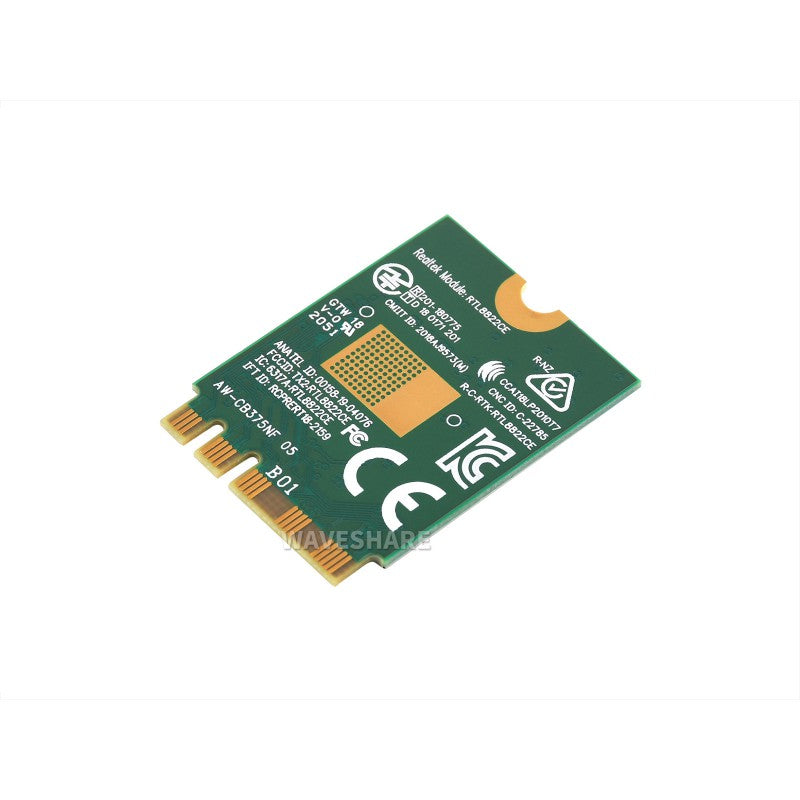

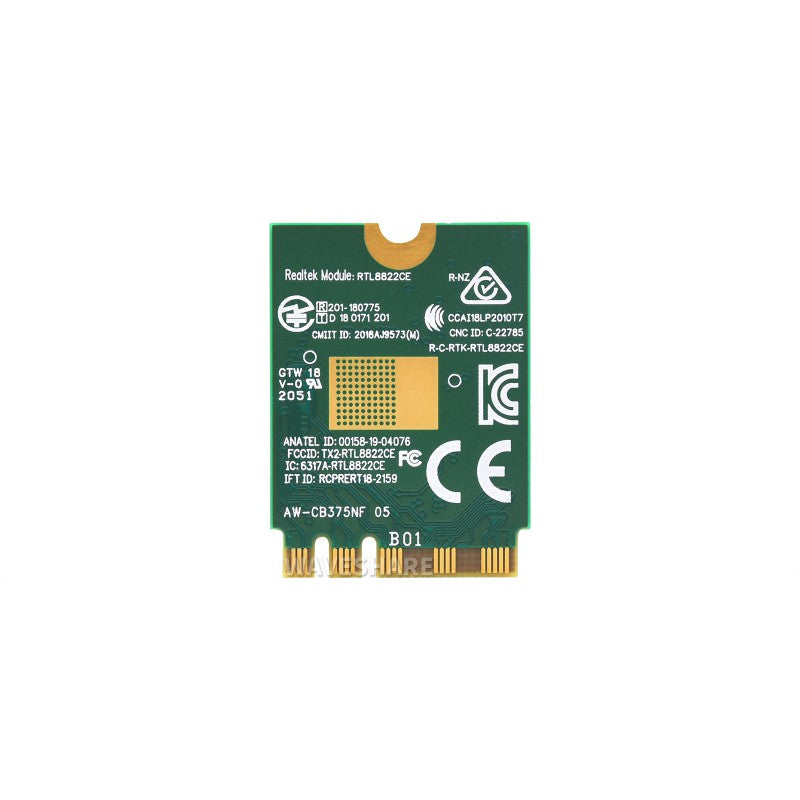

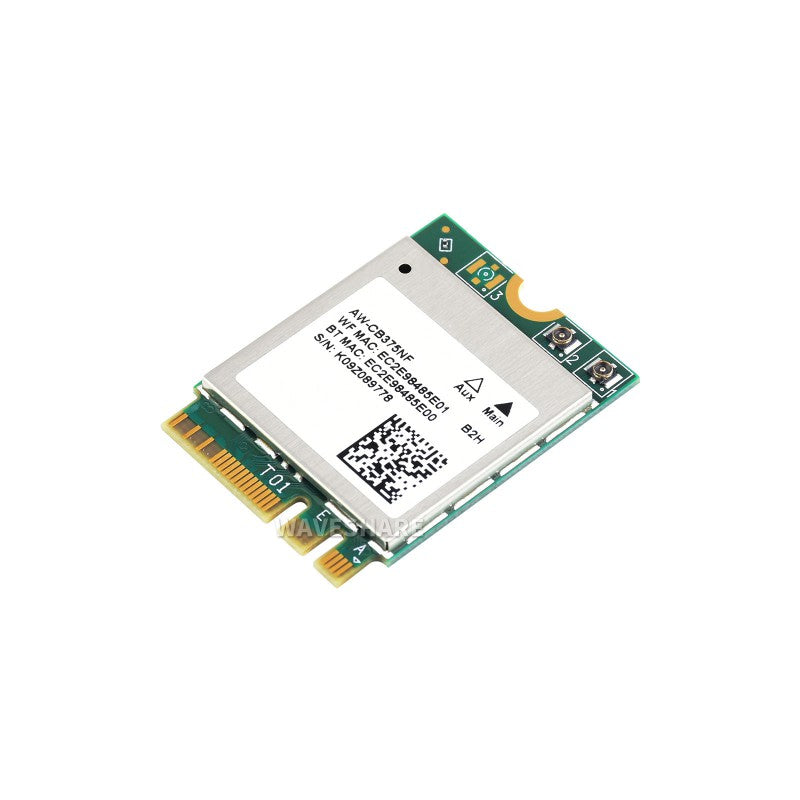

AW-CB375NF Wireless NIC
2.4G/5GHz Dual-Band WiFi 5 | RTL8822CE-CG Core | Bluetooth 5.0
Features
- Supports 2.4G/5GHz dual-band, the speed up to 300Mbps in the 2.4GHz band and 867Mbps in the 5GHz band
- Supports Bluetooth 5.0 standard, compatible with Bluetooth 2.1+EDR
- Adopts NGFF (M.2 A/E Key) interface
- Compatible with IEEE 802.11ac/m MIMO OFDM wireless technology, two transmit and two receive paths
- Supports Linux, Windows 10/11, etc.
Compatible With The Following Products
Jetson Xavier NX |
Jetson Orin NX |
Jetson Orin Nano |
Using RTL8822CE-CG Core
Supports IEEE 802.11 a/b/g/n/ac
Dual-Band Wi-Fi
Supports 2.4G/5GHz Dual-Band, The Speed Up To 300Mbps In The 2.4GHz Band And 867Mbps In The 5GHz Band
Bluetooth 5.0, Supports BLE
Can Be Connected To Bluetooth Devices Such As Mobile Phones, Computers, Gamepads, Etc. For Wireless Connection And Transmission
Interface

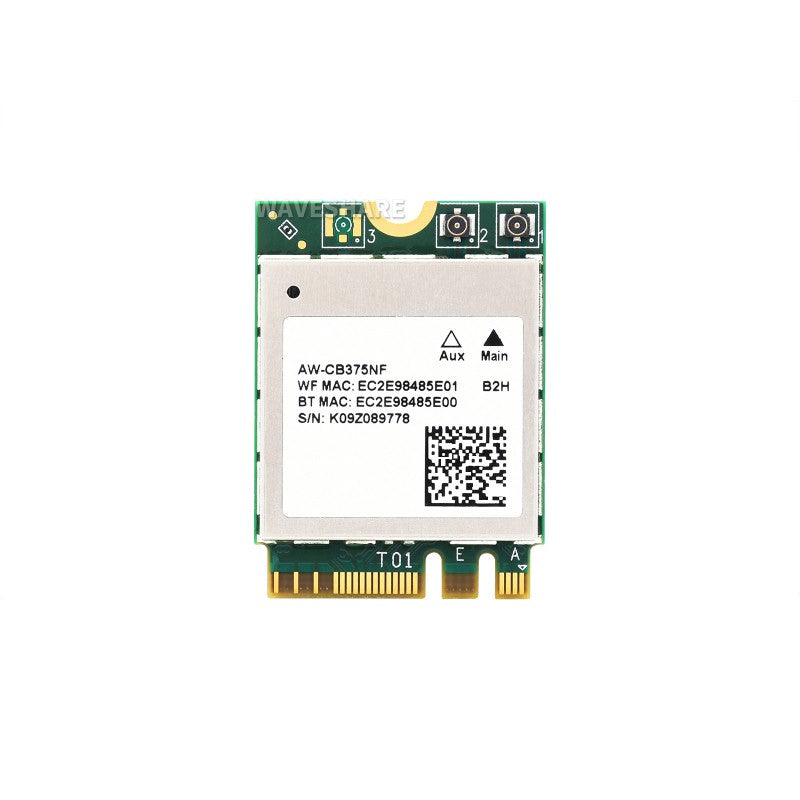

Access To Antenna Via IPEX Connector
Dimensions

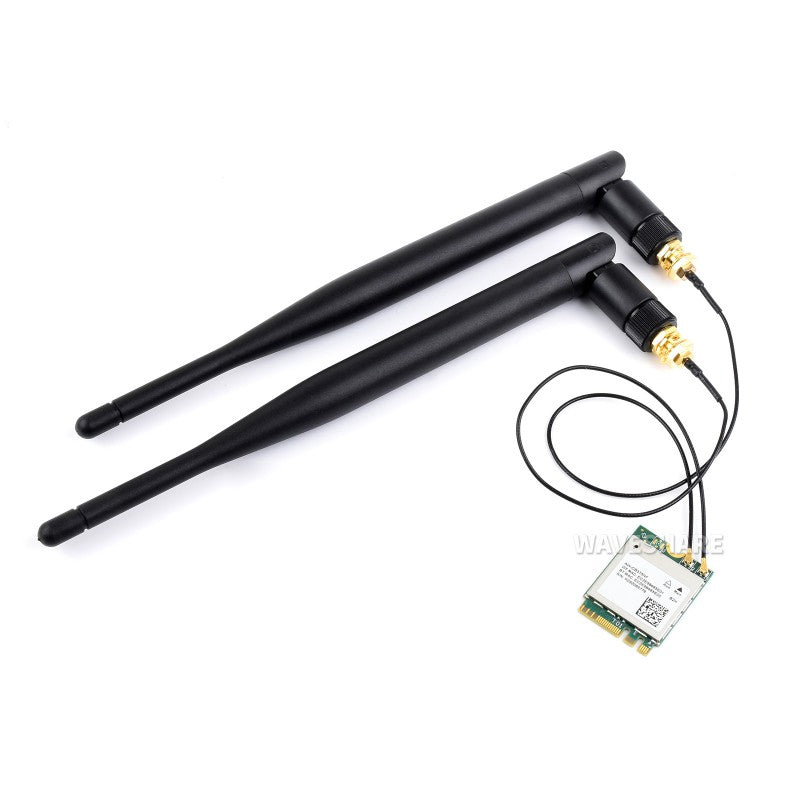

Package Contents:
Weight: 0.039 kg
- Wireless-AW-CB375N x1
- IPEX to SMA cable x2
- Antenna x2
1
2
3
2
3
Resources
What operating systems and platforms are supported by this wireless NIC
It supports Linux and Windows 10/11 and is compatible with Jetson Xavier NX, Jetson Orin NX, and Jetson Orin Nano using the RTL8822CE CG core.
What interface does the module use and how can I connect the antennas
It uses an NGFF (M.2 A/E Key) interface and provides antenna access via IPEX connectors. The package includes two IPEX to SMA cables and two antennas.
What wireless speed can I expect on 2.4 GHz and 5 GHz
The 2.4 GHz band can reach up to 300 Mbps and the 5 GHz band up to 867 Mbps.
Does it support Bluetooth and what capabilities are included
Yes, it supports Bluetooth 5.0 including BLE and can connect to devices such as mobile phones, computers and gamepads.
What is included in the package and where can I find more information
The package includes Wireless-AW-CB375N x1, IPEX to SMA cables x2, and Antennas x2. For more information see the Waveshare wiki at www.waveshare.com/wiki/Wireless-AW-CB375NF.
