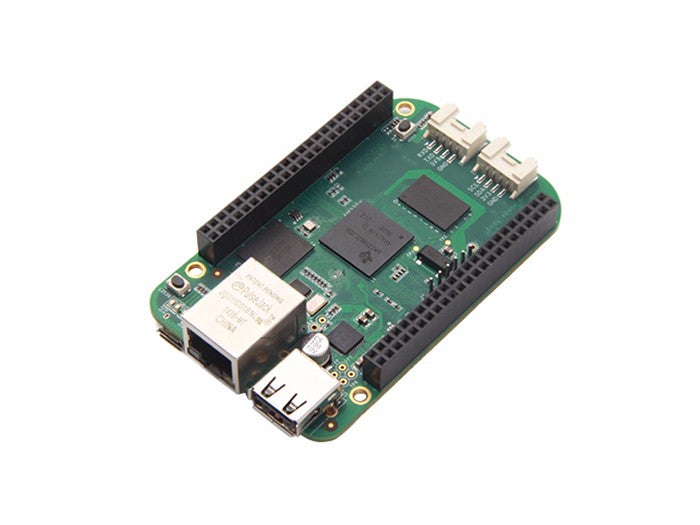

Seeed Studio BeagleBone® Green is a low-cost option that provides the compact footprint, numerous interfaces, and expandability of BeagleBone® Black while extending the development environment with on-board Grove connectors which work with the Seeed Grove ecosystem. Furthermore, Seeed Studio BeagleBone® Green is fully compatible with BeagleBone® Black capes.
Features
Based on AM3358 1GHz ARM Cortex-A8, 512MB DDR3 RAM
Provides 4GB 8-bit eMMC on-board flash storage
Cost-effective BeagleBone® compatible board with on-board Grove connectors to extend possibilities
Fully compatible with BeagleBone® Black capes
Board can be powered by Micro USB
Both CE and FCC certified.
Description
Seeed Studio BeagleBone® Green is a joint effort between BeagleBone.org® and Seeed Studio, and it is based on the open-source hardware design of BeagleBone® Black.
Seeed Studio BeagleBone® Green is a low-cost option that provides the compact footprint, numerous interfaces, and expandability of BeagleBone® Black while extending the development environment with on-board Grove connectors which work with the Seeed Grove ecosystem. Furthermore, Seeed Studio BeagleBone® Green is fully compatible with BeagleBone® Black capes.
Seeed Studio BeagleBone® Green comes with a Debian image installed on the on-board 4GB 8-bit eMMC flash storage. You can connect the board to a 5V power supply or the USB port of your PC to easily power it up.

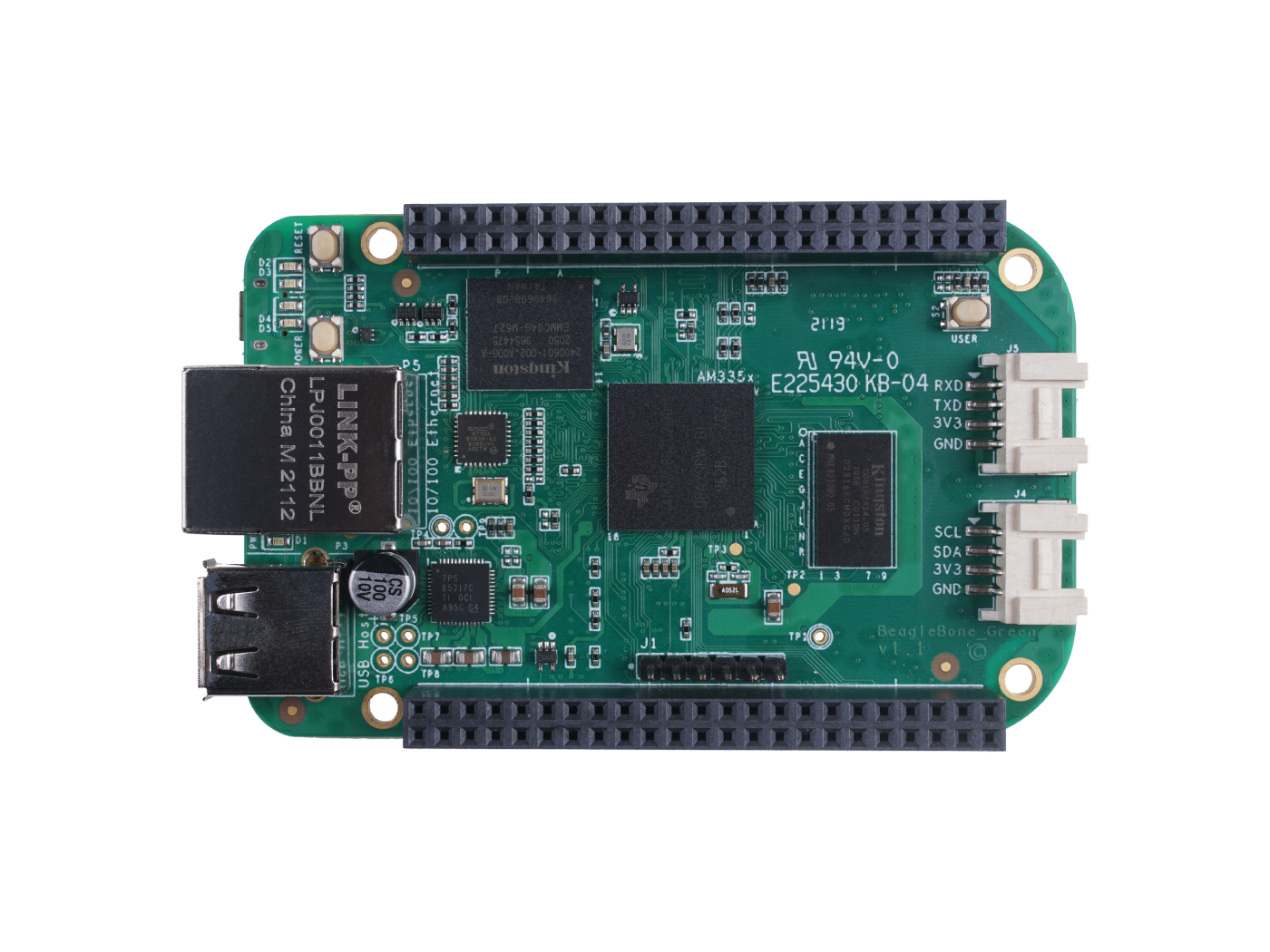

The main change is replacing the HDMI interface with 2 Grove connectors. Grove is a great invention by Seeed, it is a modular standardized connector prototyping system by which you are able to build applications without soldering and jump wires.
With the rapid development of the grove system, more and more sensors, actuators, displays are joining the grove family, all of them are integrated with the standard Grove connector so that you can connect the Seeed Studio BeagleBone® Green to them with a simple cable. So far we have produced more than 30 Groves that work well with Seeed Studio BeagleBone® Green, and the number is increasing. Apart from that, we also changed the 5V barrel to be a micro USB host, so that you can power the board more conveniently.
Application
• Smart home • Industrial Scenario • Automation control • Human-computer interaction design • Robot
BeagleBone Boards Comparison Table
BeagleBone® Black
Seeed Studio BeagleBone® Green
Seeed Studio BeagleBone® Green Wireless
Seeed Studio BeagleBone® Green Gateway
Processor
AM3358 1GHz ARM® Cortex-A8
AM3358 1GHz ARM® Cortex-A8
AM3358 1GHz ARM® Cortex-A8
AM3358 1GHz ARM Cortex-A8
Co-processor
2x PRU 32-bit microcontrollers
2x PRU 32-bit microcontrollers
2x PRU 32-bit microcontrollers
2x PRU 32-bit microcontrollers
RAM
512MB DDR3 RAM
512MB DDR3 RAM
512MB DDR3 RAM
512MB DDR3 RAM
EEPROM
4GB 8-bit eMMC onboard flash storage
4GB 8-bit eMMC onboard flash storage
4GB 8-bit eMMC onboard flash storage
4GB 8-bit eMMC onboard flash storage
Graphics Accelerator
3D graphics accelerator
3D graphics accelerator
3D graphics accelerator
3D graphics accelerator
CPU Supports
NEON floating-point accelerator
NEON floating-point accelerator
NEON floating-point accelerator
NEON floating-point
Power
USB client for power & communications
USB client for power & communications
USB client for power & communications
USB client for power & communications
USB
1x USB host
1x USB host
4x USB2.0 host
2 x USB2.0 Host
Network
Ethernet
Ethernet
Wi-Fi 802.11b/g/n 2.4GHz and Bluetooth 4.1 LE
Ethernet 10/100M Bit and Wi-Fi 802.11b/g/n 2.4GHz and Bluetooth 4.1 LE
GPIO
2x46 pin headers
2x 46 pin headers
2x 46 pin headers
2x 46 pin headers
HDMI Port
HDMI port
2x Grove connectors
2x Grove connectors
2 x Grove Connectors
Note: 102020083 Grove - High Precision RTC works in 3.3V and compatible with Seeed Studio BeagleBone® Green.
Fully compatible with BeagleBone® Black
Despite the changes we made, Seeed Studio BeagleBone® Green is still fully compatible with BeagleBone® Black and applied with all the BeagleBone® Black capes. Even though Seeed Studio BeagleBone® Green has all these advantages, we did not increase the price, actually, the price of Seeed Studio BeagleBone® Green is much cheaper, it may be the most low-cost BeagleBone® in history. What we want is to provide a BeagleBone® that is not only more powerful and easy-to-use but also reachable to most people. Please don’t hesitate to choose Seeed Studio BeagleBone® Green if you need a BeagleBone® for your project, I am sure you will like it.
