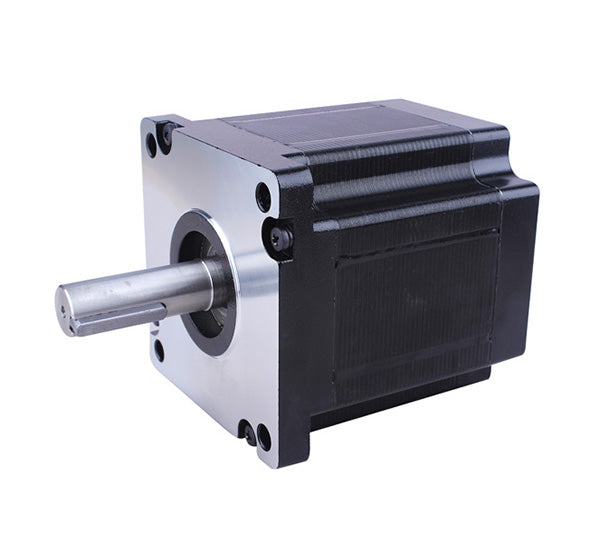

DEWO Motors NEMA42 Hybrid Stepper Motor
(110HS150-6504A19-B40-01)
Specifications:
- Model: 86HC97-5806A14-B35
- Step Angle: 1.8° ± 5%
- Rated Voltage: 4.68VDC
- Rate Current: 6.5A
- Phase Resistance: 0.72±10%Ω
- Phase Inductance: 12.8±20%mH
- Holding Torque: 21 N.m
- Surface Treatment: Black Electrophoresis
- Dielectric Strength: 500VAC / 5mA / 1min
- Insulation Resistance: ≥100M Ω / 500VDC
- Insulation: Class B
- Wires: AWG26 UL1007
- Motor Length: 150mm
- Motor Weight: 8.4 kg
- Shaft Profile: Round with 6mm Square Cut
- Shaft Diameter: 19mm
- Shaft Length: 55mm ± 1mm
- Shaft Radial Play 0.02Max.(450g-load)
- Shaft Axial Play 0.08Max.(450g-load)
