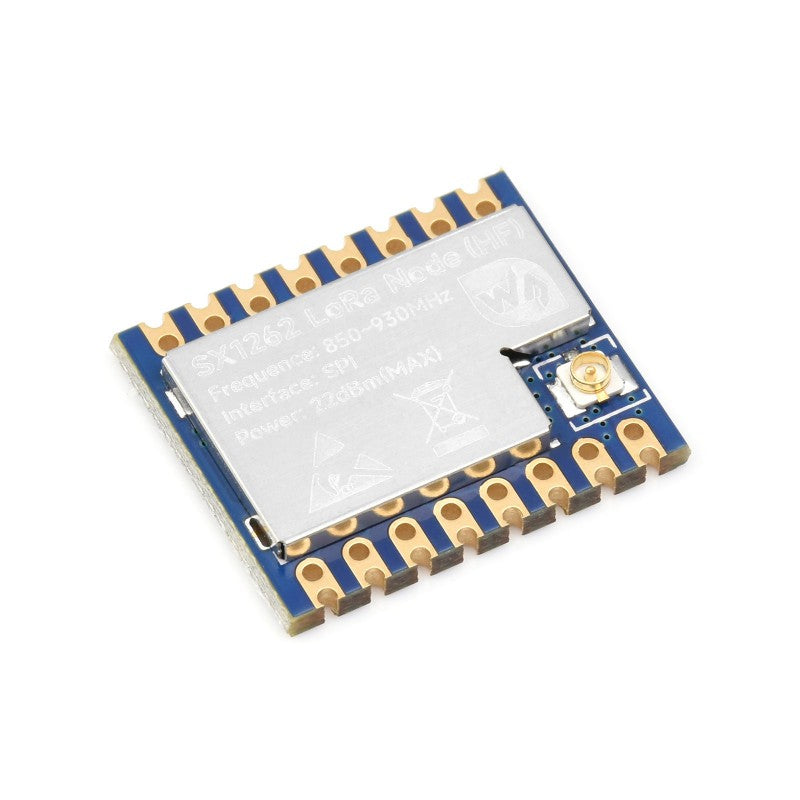

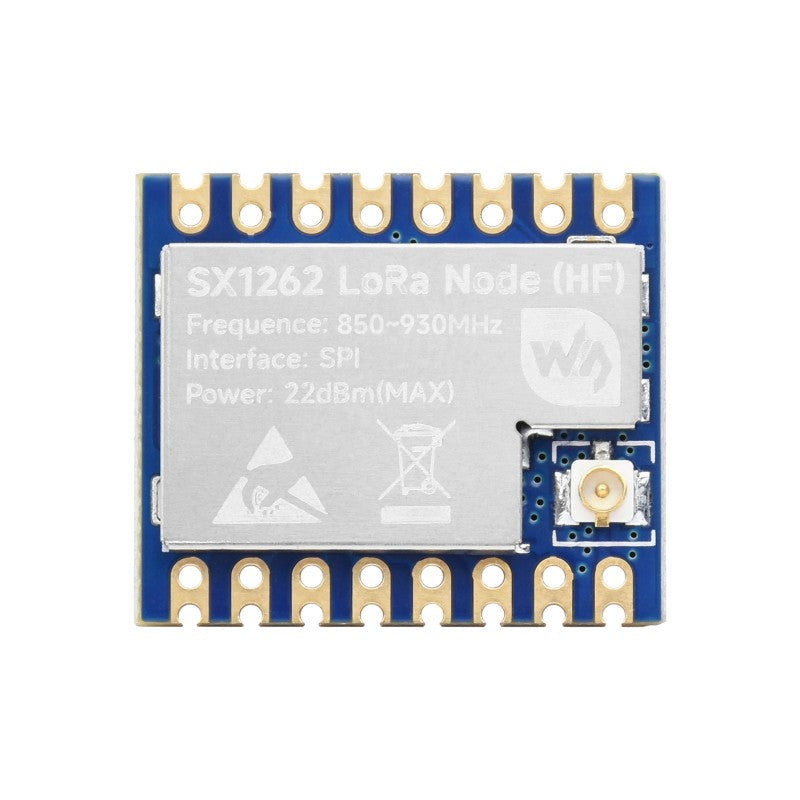

Core1262 LoRa Module SX1262 chip

SKU: WVSH0203

₹ 799.99 ~~₹ 1,199.99~~

Out of stock

Select variant

Option LF (410 ~ 510MHz)

HF (850 ~ 930MHz) LF (410 ~ 510MHz)

Chat with us on WhatsApp We reply quickly! Contact Us

Core1262 LoRa Module SX1262 chipLF (410 ~ 510MHz)₹ 799.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

Core1262 LoRa Module

Suitable for Sub-GHz band

Features:

The new generation SX1262 has higher power efficiency and longer transmission distance than the SX1278
Suitable for Sub-GHz band, combined with the gateway, quick connect to cloud servers to build LoRa/LoRaWAN network
Suitable for the application scenarios such as industry, smart home and data acquisition
Adopts high-quality components such as TCXO for working stably under harsh conditions
Comes with development resources and manual (examples for Raspberry Pi Pico/STM32)

WIKI: www.waveshare.com/wiki/Core1262-868M

Specifications

VERSION	CORE1262-HF	CORE1262-LF
RF CHIP	SX1262
FREQUENCY RANGE	HF: 850 ~ 930MHz	LF: 410 ~ 510MHz
MODULATION	LoRa/(G)FSK
DATA RATE	0.018~62.5Kbps (LoRa) 0.6~300Kbps ((G)FSK)
EMIT POWER	22dBm@3.3V
SPREADIND FACTOR	SF5 ~ SF12
OPERATING VOLTAGE	3.3V
MODULE POWER CONSUMPTION	emitting current: 45mA@14dBm receiving current: 5.3mA@125KHz	emitting current: 107mA@22dBm receiving current: 5.3mA@125KHz
COMMUNICATION BUS	SPI
OPERATING TEMPERATURE	0 ~ 85℃
CONNECTOR	castellated edge / solder holes, pitch 2.54mm
DIMENSIONS	21.00×52.00mm

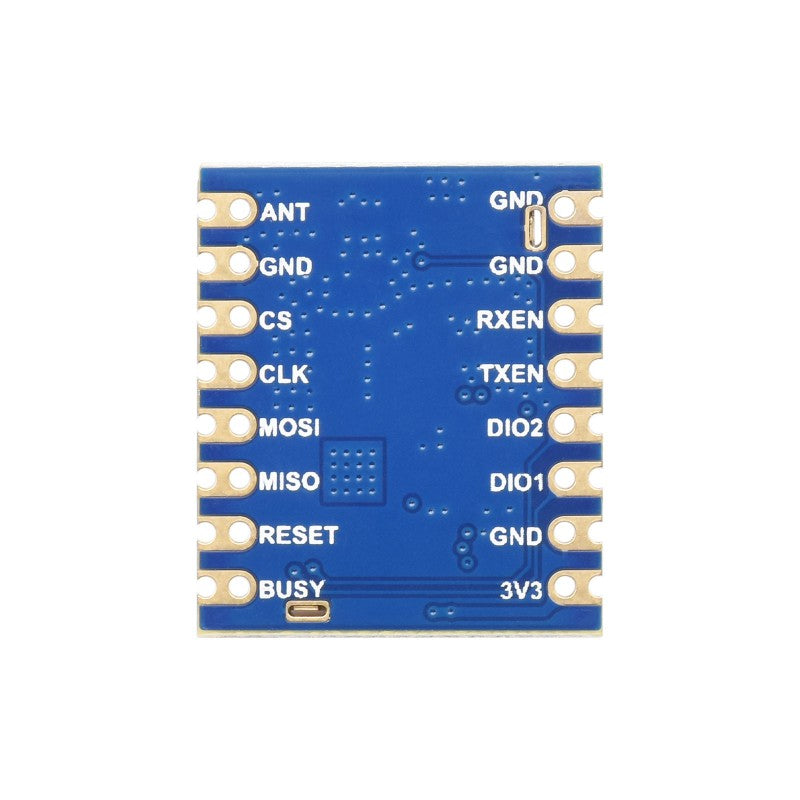

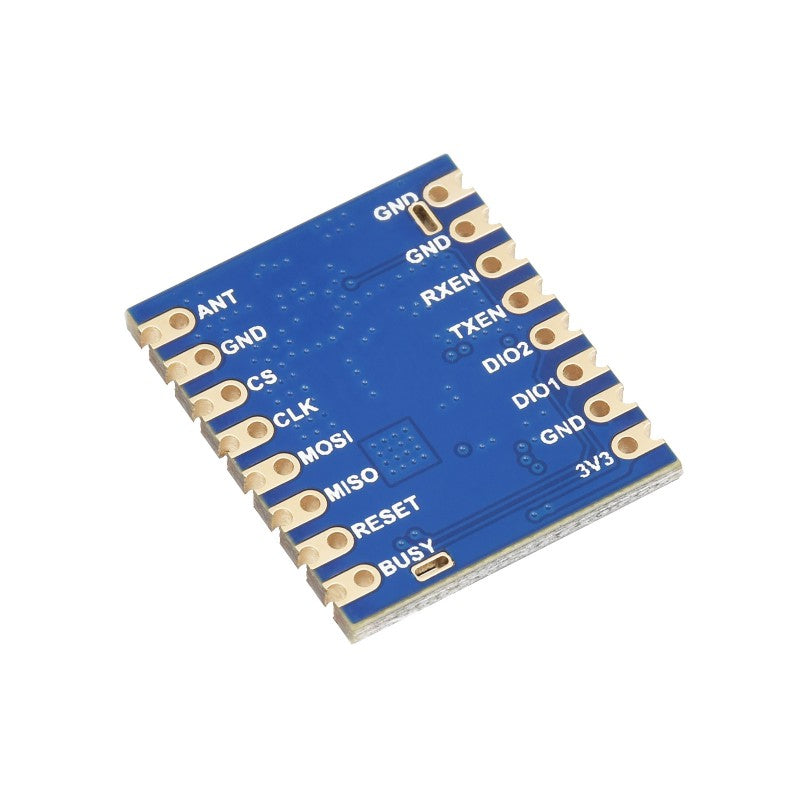

Pinout Definition

Application Example

Industrial Environment, Smart Home, And Data Acquisition...

SX126x Can Communicate With SX127x

Both SX1262 and SX1268 can communicate with SX1276 and SX1278, which are still compatible with previous LoRa products after upgrading, and provides higher power efficiency and longer transmission distance.

The New Generation LoRa Spread Spectrum Technology

Compared to traditional communication, LoRa Chirp Spread Spectrum (CSS) and Frequency Hopping Spread Spectrum (FHSS) technologies greatly improve the performance of long-range communication and anti-interference, widely used in military and industrial communication fields.

High-Quality Components

For Stable Performance Of Communication Module

Original chip SX1262	Industrial grade crystal oscillator -40 ~ 85℃
Two connection methods for Antenna IPEX / Castellated hole	Professional shield Anti-interference & ESD protection

Temperature Compensated Crystal Oscillator

Ensure The Long Time Working Of The Module Without Frequency Shift At The High And Low Temperature Environment Of Industry

Actual Test Environment

Sunny Weather With An Open Field, 22dBm Emit Power, Airspeed 0.3kbps,
6dBi Magnetic CB Antenna, 3m Antenna Height, 5km Distance

Outline & Dimensions

What applications is this module suitable for?

It is designed for Sub-GHz LoRa and LoRaWAN networks, suitable for industry, smart home and data acquisition with quick gateway to cloud servers.

What are the frequency ranges and modulation options available?

HF range 850 to 930 MHz and LF range 410 to 510 MHz. Modulation is LoRa and (G)FSK, with SF5 to SF12 for LoRa and data rates 0.018 to 62.5 kbps for LoRa and 0.6 to 300 kbps for (G)FSK.

Is it compatible with existing SX127x modules?

Yes, SX1262 and SX1268 can communicate with SX1276 and SX1278, enabling compatibility with previous LoRa products after upgrading.

What are the power, current and temperature specifications?

Emitting power up to 22 dBm at 3.3V with currents of 45 mA at 14 dBm and 107 mA at 22 dBm. Receiving current is 5.3 mA, and the operating temperature range is 0 to 85 C.

How is the antenna connected and where can I find development resources?

Antenna options include IPEX or castellated holes with 2.54 mm pitch. Development resources and a manual with examples for Raspberry Pi Pico and STM32 are provided, with a WIKI at www waveshare com wiki Core1262 868M.
