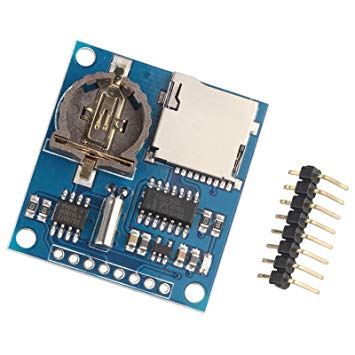

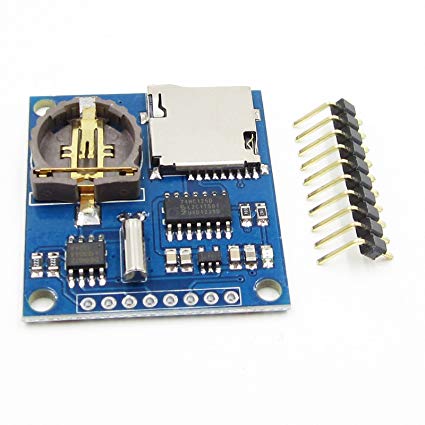

Data Logger Shield Arduino/Raspberry Pi

SKU: ARD2004

₹ 349.99 ~~₹ 490.00~~

In stock | Ready to ship

Select variant

Soldered Without Soldered Pin

With Soldered Pin Without Soldered Pin

Chat with us on WhatsApp We reply quickly! Contact Us

Data Logger Shield Arduino/Raspberry PiWithout Soldered Pin₹ 349.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

Here's a handy arduino shield: we've had a lot of people looking for a dedicated and well-designed data logging shield. We worked hard to design an inexpensive, yet sophisticated design. Not only is it easy to assemble and customize, also equipped with extensive documentation and libraries. You can get fast - to save the data to a file in any FAT16 or FAT32 formatted SD card, you can read any drawing, spreadsheet or analysis program. We even have an example of how to use two free software programs to plot your data tutorials Including real-time clock with the current time stamp for all the data so that you know exactly what happened when! Please note that this item does not come with an arduino (you need to use the shield), or SD card. It does have the RTC battery, however. Now, the geology of fire to all components of the welding and testing, but not installed head. You need some basic soldering skills to put it together, but even if you do not have much experience, you can get it within 15 minutes to complete SD card interface with FAT16 or FAT32 formatted card. 3.3V level shifter circuit to prevent damage to your SD card Real-time clock (RTC) to maintain the time, even when the arduino is unplugged. Backup battery lasted for many years Including SD card and RTC libraries and sample code means you can get fast Welded joints, circuits or sensors prototyping area. Built-in 3.3V regulator is a reliable reference voltage, and a reliable operation, requires a lot of power to run the SD card Compatible with arduino UNO, Duemilanove, Diecimila, Leonardo or ADK / Mega R3 or higher. ADK / MEGA R2 or lower is not supported

Specifications

The interface of the SD card works with cards formatted FAT16 or FAT32. 3.3 V level change circuits prevents damage to your SD card
Real Time Clock (RTC) keeps the time going even when the Arduino is not connected. The battery backup lasts for years
The included libraries and sample code for SD and RTC mean you can go quickly
Prototype area for welding connectors, circuits or sensors.
On board 3.3V regulator is both a reliable reference voltage and also reliably works SD cards that require a lot of power to run

Resources

Datasheet

Library

Sample Code

Tutorial

What is included with the shield and what is not included?

The shield does not include an Arduino board or an SD card. It includes a real time clock with backup battery, a 3.3V regulator, a 3.3V level shifter, libraries and sample code, and a prototype area for wiring or sensors.

Which Arduino boards are supported?

It is compatible with Arduino UNO, Duemilanove, Diecimila, Leonardo or ADK / Mega R3 or higher. ADK / MEGA R2 or lower is not supported.

How does the SD card interface and file format work?

The SD card interface supports cards formatted FAT16 or FAT32. The shield includes a 3.3V level shifter circuit to help prevent damage to the SD card.

Do I need soldering skills to assemble it, and how long does it take?

Yes, basic soldering skills are required. Assembly can be completed in about 15 minutes.

Does the shield provide time stamping and how does the RTC work?

The on board real time clock keeps the time even when the Arduino is unplugged. The RTC battery backup lasts for years and is used to time stamp all data.
