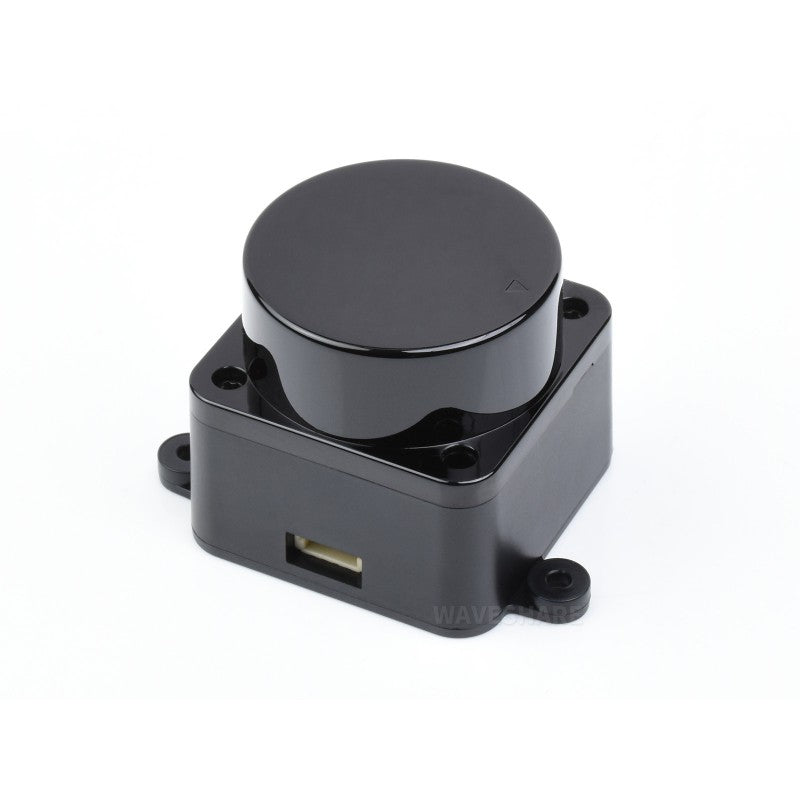

DTOF Laser Lidar Sensor STL27L

SKU: ELC1149

Regular price ₹ 14,499.99
Sale price ₹ 14,499.99 Regular price ₹ 16,499.99
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

DTOF LIDAR STL27L

DTOF 360° Omni-directional Lidar, Compact Size & Large Ranging Radius





Specifications

RANGING DISTANCE 0.03~2M 2~8M >8M
MEAN ERROR ±15mm ±20mm ±30mm
OVERALL STANDARD DEVIATION 5mm 15mm 25mm
RANGING DISTANCE 0.03~25.00m (target surface reflectivity is 80.6%)
SCANNING FREQUENCY 10Hz
SCANNING ANGLE 360°
RANGING FREQUENCY 21600Hz
ANGULAR RESOLUTION 0.167°
WAVELENGTH 895 ~ 915 nm (Typ 905)
COMMUNICATION INTERFACE UART @ 921600
AMBIENT LIGHT TOLERANCE 60 KLux
POWER SUPPLY 4.5~5V (Typ 5V)
POWER CONSUMPTION 1.45W
OPERATING CURRENT 290 mA
WEIGHT 46.1g
OPERATING TEMPERATURE -10°C ~ 50°C
LIFETIME 10000+ hours



TOF (Time-Of-Flight) Ranging Technology

Adopting TOF (Time of Fight) ranging technology, measuring distance according to the time-of-flight of the laser pulse. The maximum ranging distance can reach up to 25m to meet the demand of most commercial applications, and can reach the measurement accuracy of ±20 mm within the effective detection distance of 8m. With efficient algorithm logic to achieve 360° detection of the robots, autonomous mapping, and obstacle detection...



Supports Start-Stop Control Via Software

Open source for demo, schematic diagram and other resources of the adapter board, enabling personalized development and Lidar operation control, effectively prolonging its lifetime.



More Stable Performance, Long Lasting Lifetime

Adopts Coaxial brushless motor, quiet without friction, supports high-speed wireless data transmission with stable performance. Features a longer lasting lifetime up to 10000+ hours, meets the requirement of low failure rates in the projects.



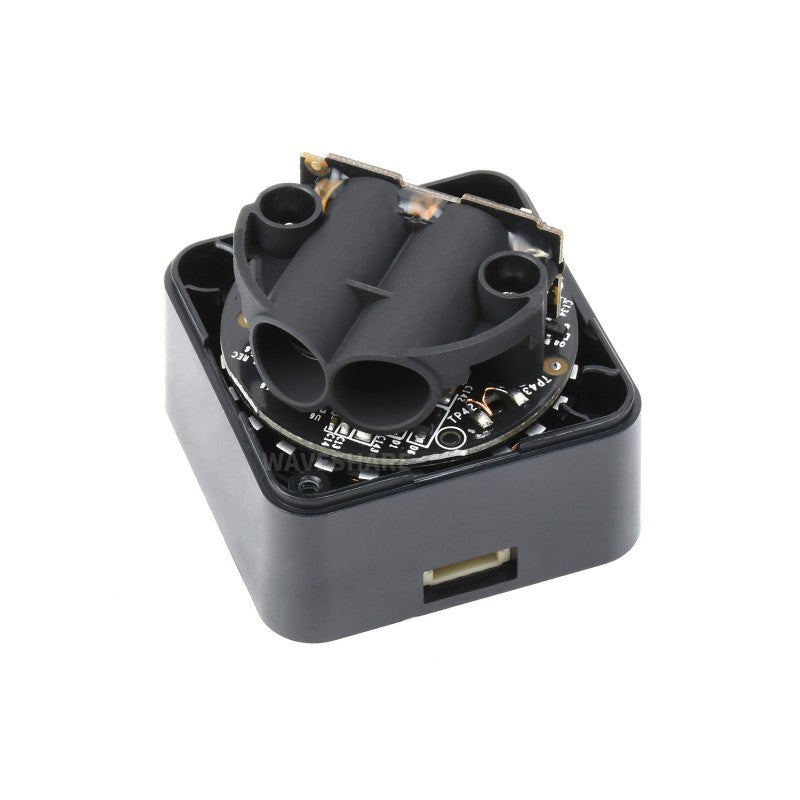

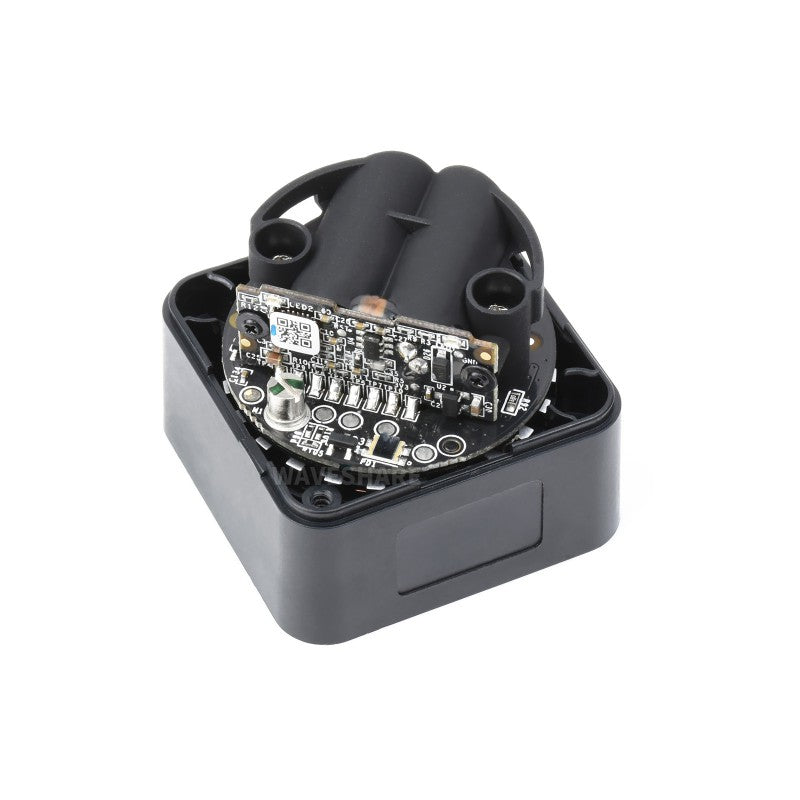

360° Omni-Directional Laser Scanning

Rotates clockwise in the ranging core to achieve 360-degree scanning and ranging of the surrounding environment, thus obtaining the contour map of the surrounding environment and the point cloud information of the location of obstacles



Ranging Radius Up To 25m

 Longer Ranging Distance, Can Obtain the Environmental Information in A Farther Range, Ensuring The Large-Area Cruising And Mapping Capabilities Of the Robots

 * The ranging distance data is obtained by repeated measurements of STL27L and a target surface with 80.6% reflectivity under laboratory conditions.



High Real-Time & Accurate Map Building

Supports scanning at 10Hz and measuring distance at a rate of 21600Hz, effectively reducing navigation blind spots and improving scanning coverage



Multi-Echo Detection Technology, Supports Glass Wall Detection

Supports glass wall detection at specific angles through multi-echo detection technology, reducing collisions during robot operation and increasing safety



Strong Ambient Light Tolerance

Adopts excellent filtering technology to meet the use in 60Klux strong light, suitable for a variety of indoor and outdoor scenarios



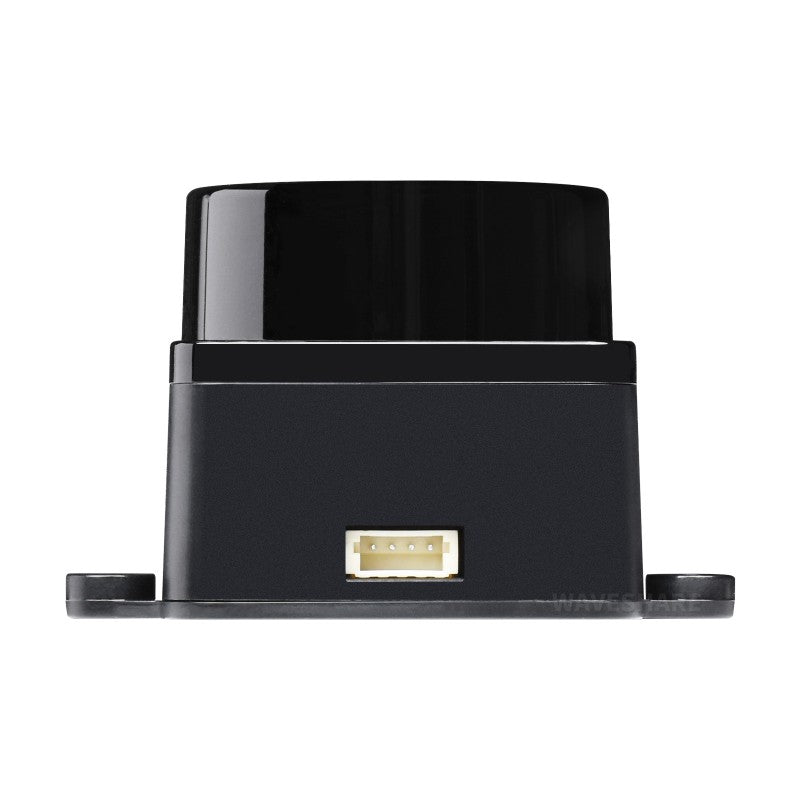

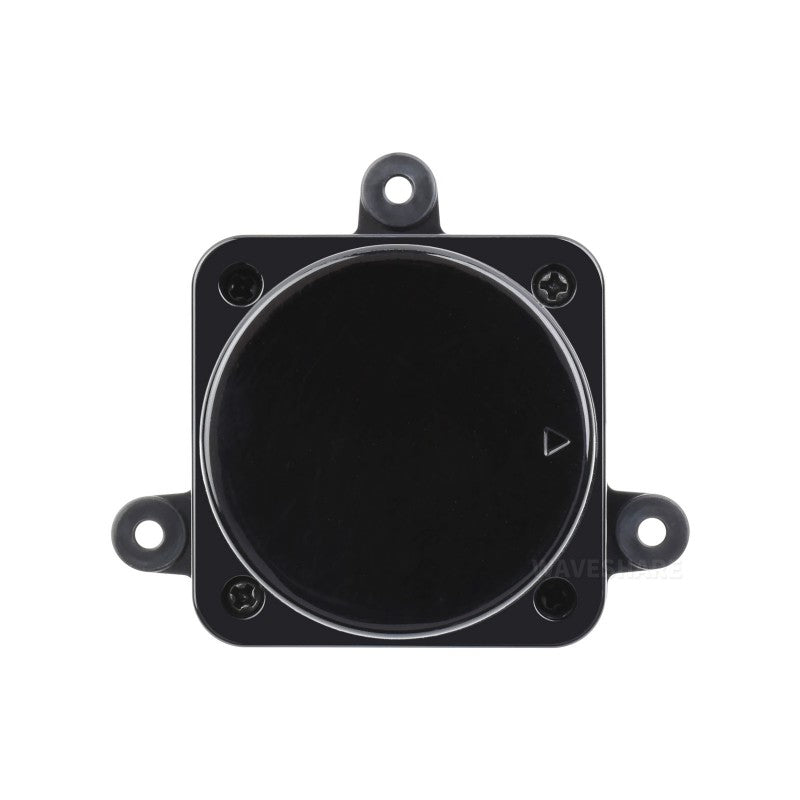

Exquisite, Compact, Easier To Integrate

It adopts a compact structure design, smaller size, lower power consumption, and can be embedded inside the robot to reduce the overall size and improve its passability.



Laser Safety FDA Class 1

To ensure the safety for humans and pets, a low power infrared laser emitter is used as the light source and is driven by modulated pulses, the laser completes the emitting action in a very short period of time, complying with the FDA Class 1 human eye safety rating



Application Examples



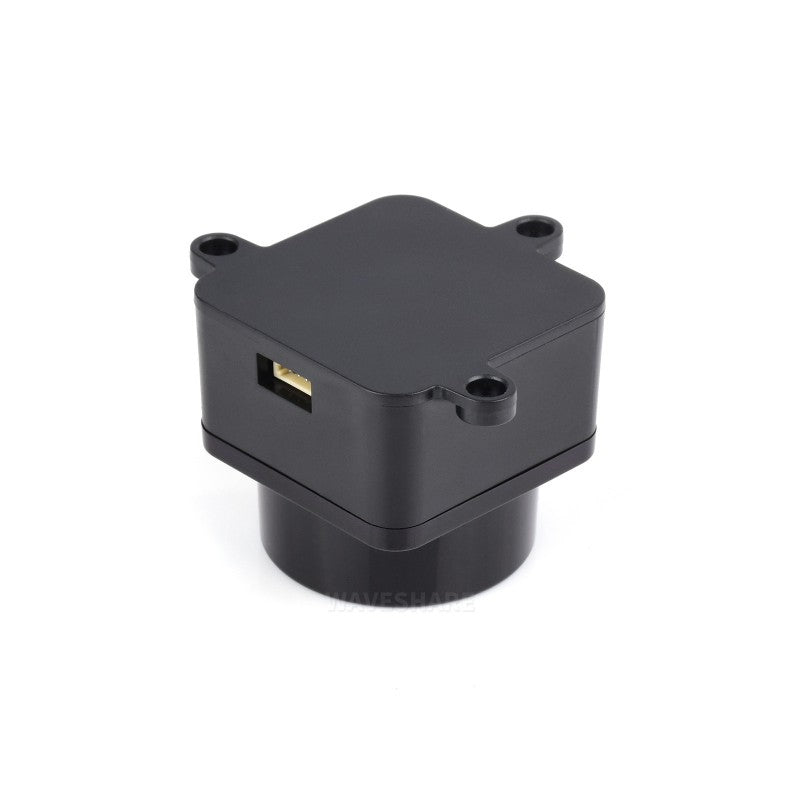

Product Show

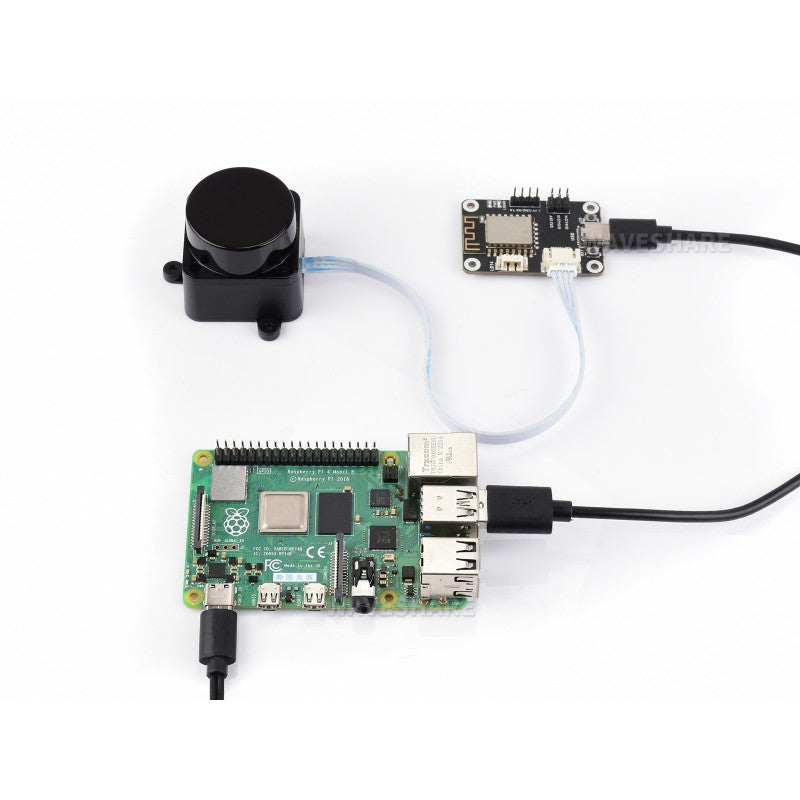

for reference only, the Raspberry Pi board is NOT included.




Outline Dimensions





Package Contains:

Weight: 0.086 kg

  1. DTOF LIDAR STL27L x1
  2. LiDAR Driver with ESP8266 adapter x1
  3. USB Type A to Type C cable ~1m x1
  4. PH2.0 to 1.27H cable ~11cm x1
1234



Product Selection

PRODUCT RPLIDAR A1 D500 LIDAR KIT D200 LIDAR KIT DTOF LIDAR STL27L
RANGING DISTANCE 0.15 ~ 12.00 m 0.03~12.00m 0.15 ~ 8.00 m 0.03~25.00 m
RANGING ACCURACY 1% of actual distance (≤3 m)
2% of actual distance (3~5 m)
2.5% of actual distance (5~12 m)
±10 mm (0.3 ~ 0.5m)
±20mm (0.5 ~ 2m)
±30mm (2 ~ 12m)
White target:
±5mm (0.1~0.5m)
±10mm (0.5~1m)
±1.0% of actual distance (1~6 m)
±1.5% of actual distance (6~8 m)
±15mm (0.03~2m)
±20mm (2~8m)
±30mm (>8m)
Black target:
±7mm (0.1~0.5m)
±12mm (0.5~1m)
±1.2% of actual distance (1~4 m)
±1.5% of actual distance (4~6 m)
NA (6~8m)
SCANNING FREQUENCY 5.5 Hz 6~13Hz (Typ 10) 6Hz by default, 2 ~ 8 Hz externally controllable 10 Hz
SCANNING ANGLE 360° 360° 360° 360°
RANGING FREQUENCY 8000 Hz 5000 Hz 4000Hz 21600Hz
RESOLUTION ≤ 1% of actual distance (≤12 m)
≤ 2% of actual distance (within 12~16 m)
15 mm ≈ 17 mm 15~30 mm
WAVELENGTH 785 nm 895 ~ 915 nm (Typ 905) 775 ~ 800 nm (Typ 793) 895 ~ 915 nm (Typ 905)
COMMUNICATION INTERFACE UART UART UART UART
POWER SUPPLY 5 V 5 V DC 5V±10% 4.5~5V
POWER CONSUMPTION 0.5 W 1.45W ≈ 1.5 W 1.45W
OPERATING CURRENT 100 mA 290mA ≤300mA 290mA
WEIGHT 248g 45g 101g 46.1g
OPERATING TEMPERATURE 0°C ~ 40°C -10 ~ 45°C -10°C ~ 50°C -10°C ~ 50°C
DIMENSIONS(L × W × H) 96.8 × 70.3 × 55.0mm 54.00×46.29×35.00 96.3 × 59.8 × 38.80mm 54.00 × 46.29 × 34.80mm
