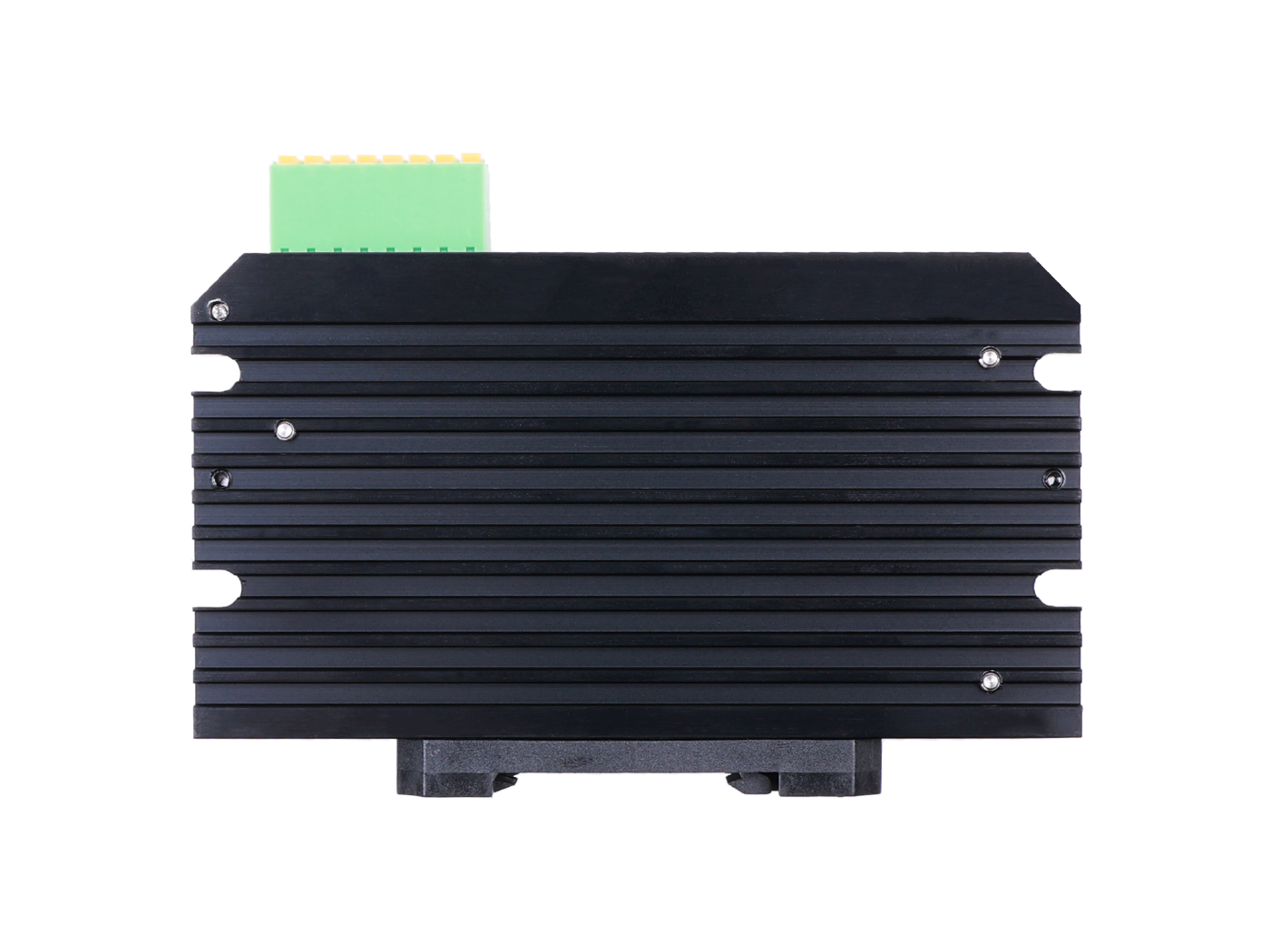

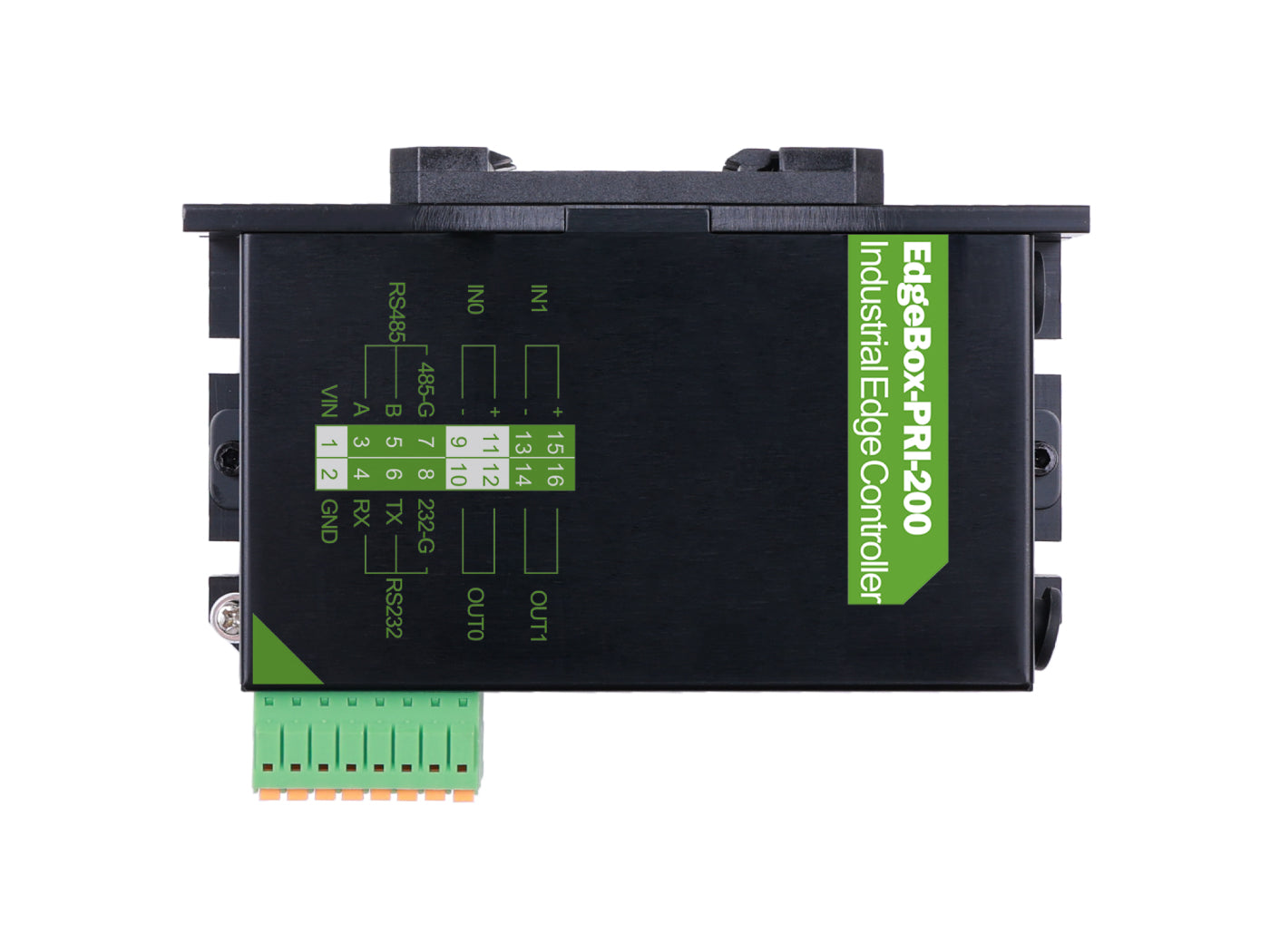

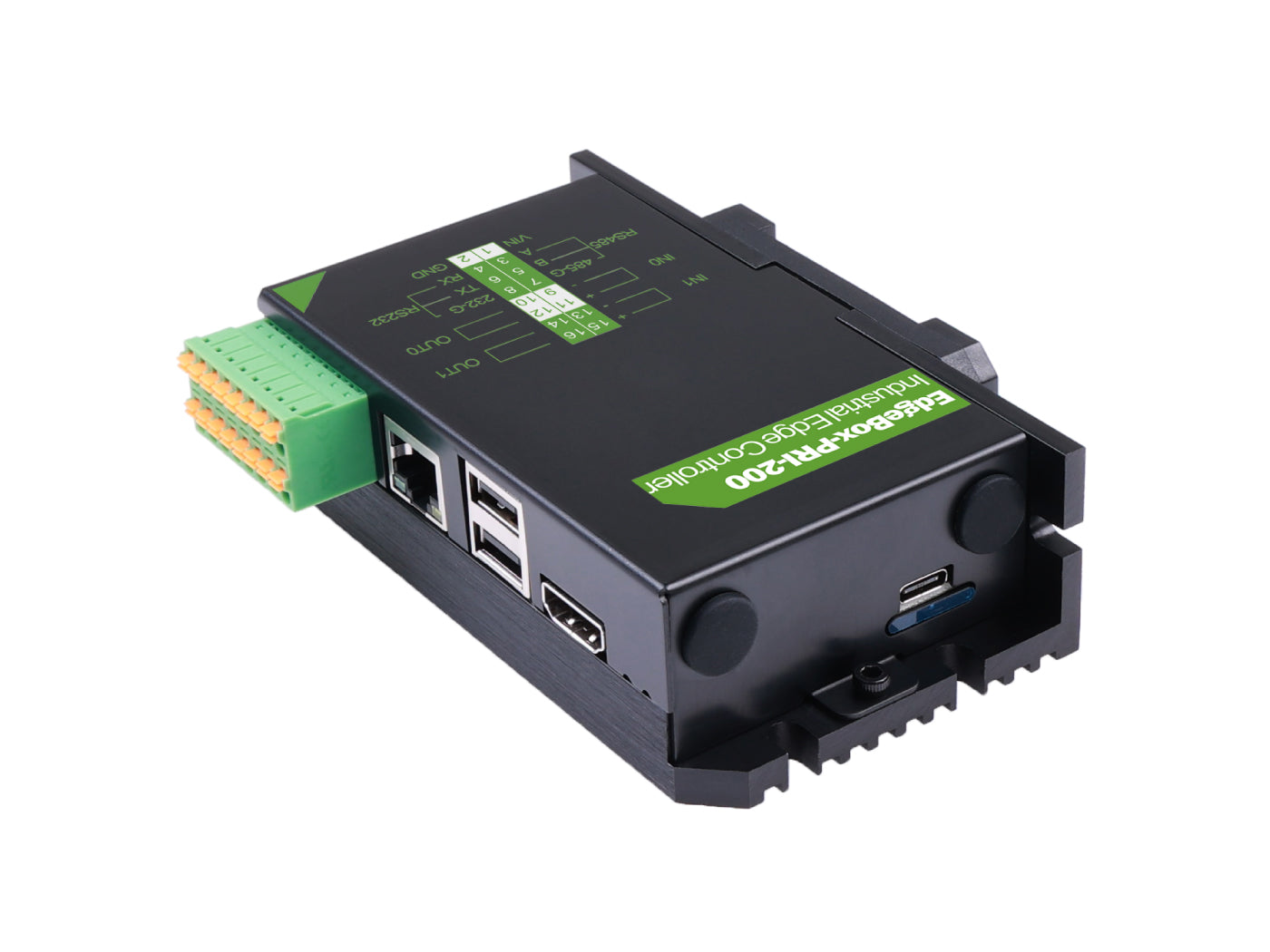

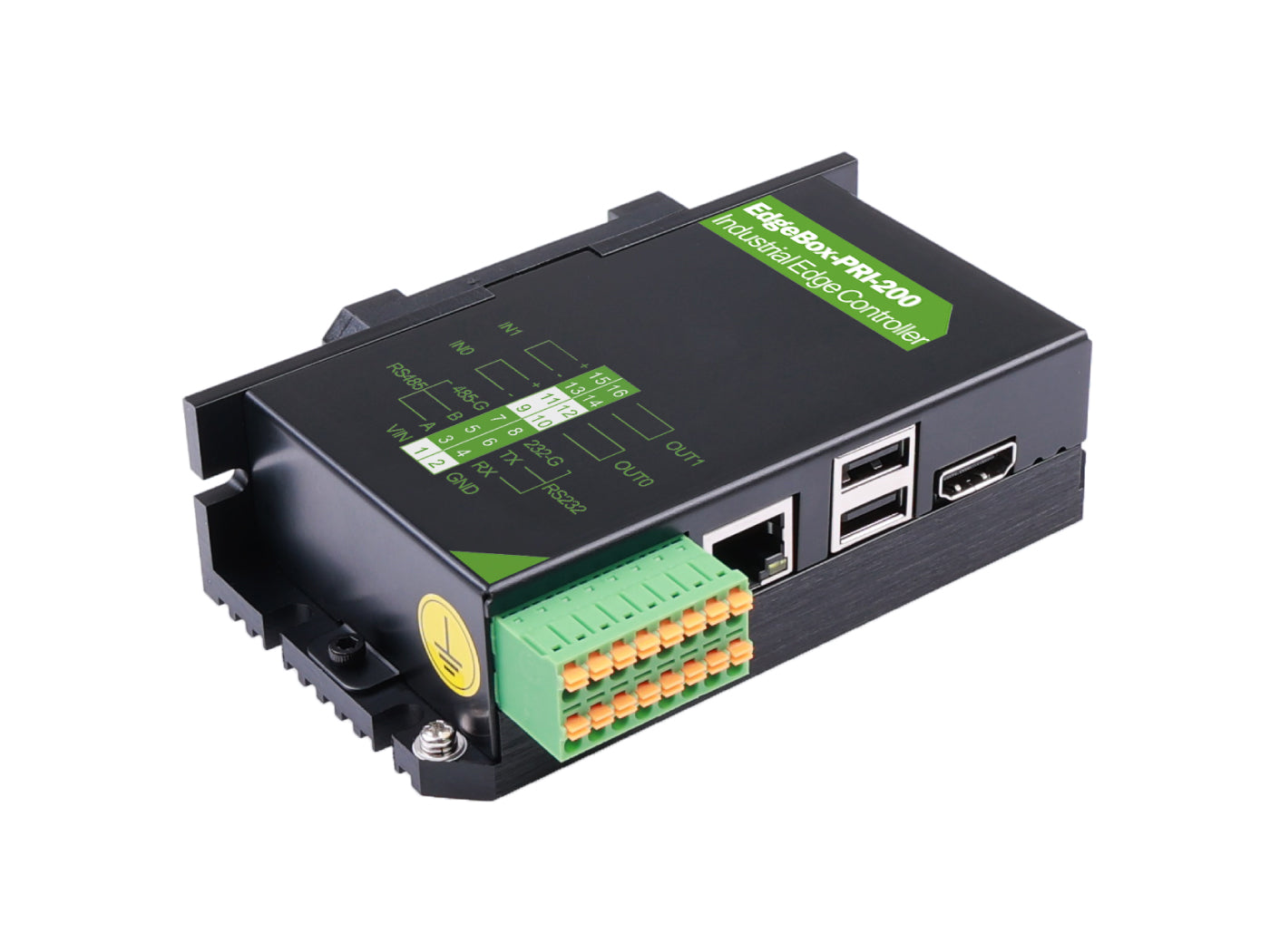

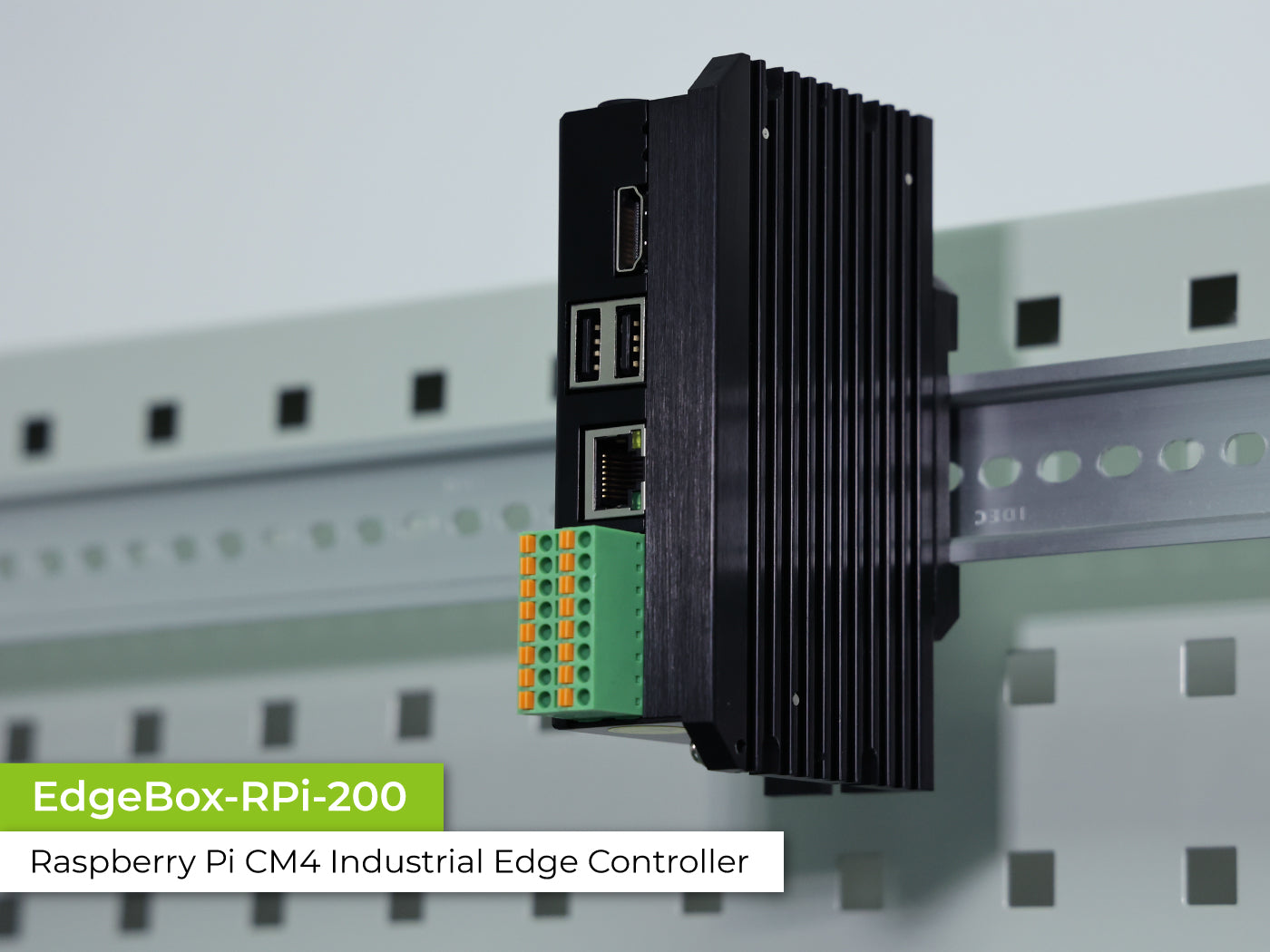

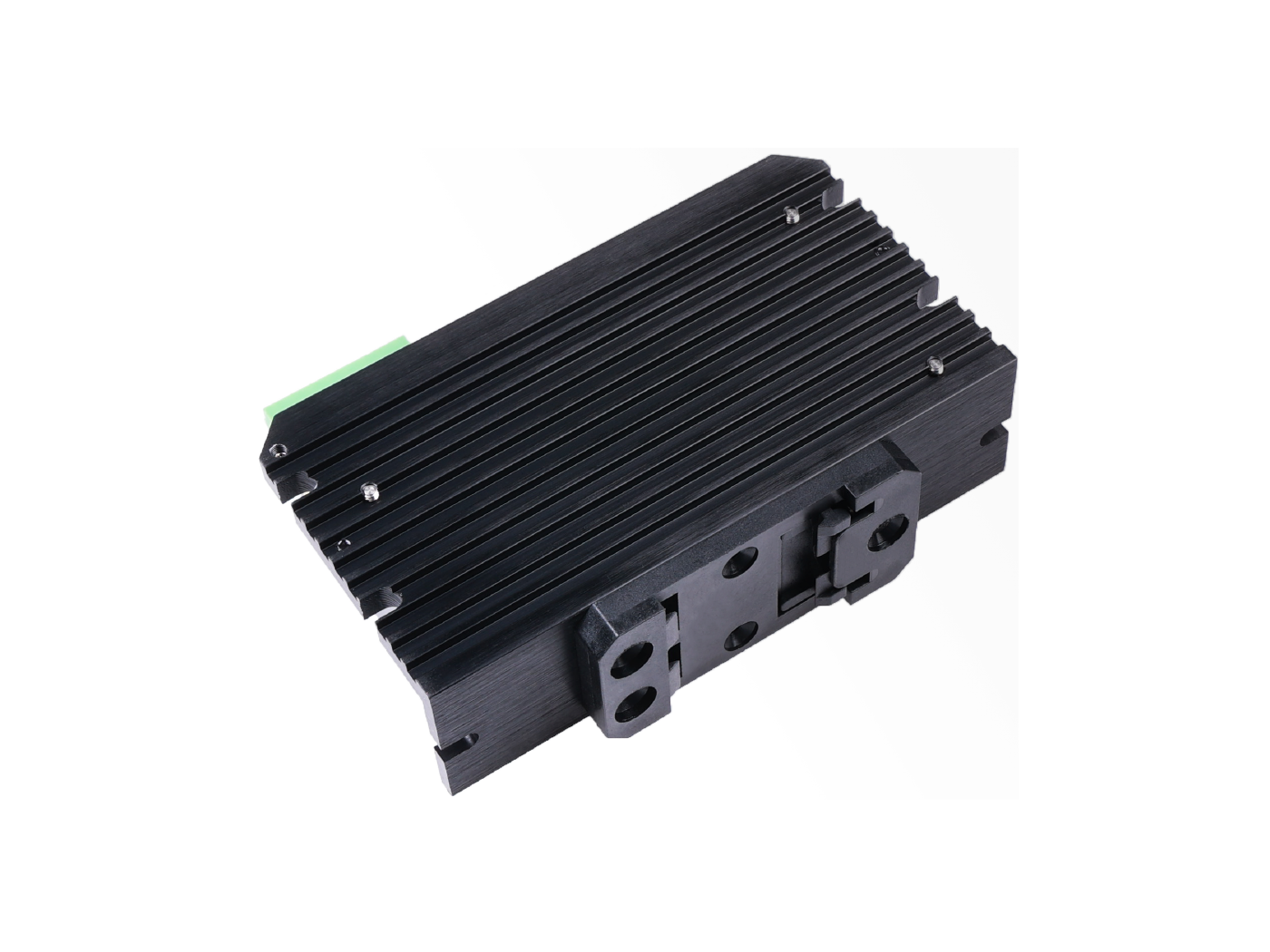

Name: EdgeBox RPi 200 - Industrial Edge Controller with WiFi
Brand: ThinkRobotics.in
SKU: SBC1031-8GB
Price: 23899.99 INR
Availability: InStock

{"id":8062696161597,"title":"EdgeBox RPi 200 - Industrial Edge Controller with WiFi","handle":"edgebox-rpi-200","description":"\u003cp\u003e \u003c\/p\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003eEdgeBox-RPi-200 series are all-in-one Raspberry Pi-based industrial edge computing controllers, combining multiple industrial purposes. Designed as high-scalability and rugged industrial hardware, mounted with rich IO resources and supported by the great Raspberry Pi industrial software ecosystem, it is an ideal choice for smart automation and Industrial Internet of Things(IIoT) solutions.\u003c\/p\u003e\n\u003ch2\u003eFeature\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cstrong\u003eAll-in-one Industry Controller:\u003c\/strong\u003e\n\u003cul\u003e\n\u003cli\u003eMore than just a PLC, PAC, more can it implement functions of the IIoT Gateway, OPC UA Server and Industry PC.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003ePowerful and Flexible Processors:\u003c\/strong\u003e\n\u003cul\u003e\n\u003cli\u003ePowered by Raspberry Pi Compute Module 4 (CM4), equipped up to 4GB RAM and 16GB eMMC, performing real-time operation and multi-process.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eRich IO resources\u003c\/strong\u003e and Industrial Interfaces Mounted:\n\u003cul\u003e\n\u003cli\u003eSupport a wide range of industrial bus protocols and standards\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eMultiple Communication Capabilities:\u003c\/strong\u003e\n\u003cul\u003e\n\u003cli\u003eCarry full-featured wireless interconnectivity and a RJ45 Gigabit Ethernet, supported by multiple cloud services\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eRugged Industrial-grade Hardware Design:\u003c\/strong\u003e\u003cbr\u003e\n\u003cul\u003e\n\u003cli\u003eIntegrated thermal management with full Aluminum heatsink enclosure, supporting 35mm DIN and wall mount\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eGreat Raspberry Pi Industrial Software Ecosystem:\u003c\/strong\u003e\n\u003cul\u003e\n\u003cli\u003eSupport a variety of industrial software and platforms, including Codesys, Node Red, MQTT, OPC UA, Ignition and etc.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eDescription\u003c\/h2\u003e\n\u003cp\u003eEdgeBox-RPi-200 series controllers represent the conceivable alternatives for increasing edge automation and industrial interconnecting control. Being small and compact, they can perform real-time operation and multi-process controlling for multiple industrial purposes, not only the \u003cstrong\u003ePLC \u0026amp; PAC\u003c\/strong\u003e but also the \u003cstrong\u003eIIoT Gateway, OPC UA Server and Industry PC.\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003eBesides EdgeBox-RPi-200, We also have the other 2 Edge products for different solutions in the Edge family, powered by Raspberry Pi and ESP. To help you understand the differences deeply and choose the most suitable part for your projects, please refer to the Seeed Studio \u003ca data-mce-fragment=\"1\" href=\"https:\/\/www.seeedstudio.com\/raspberrypi\/device\/industry.html\" target=\"_blank\" data-mce-href=\"https:\/\/www.seeedstudio.com\/raspberrypi\/device\/industry.html\"\u003eEdge Series Page\u003c\/a\u003e.\u003c\/p\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003e\u003cimg data-mce-fragment=\"1\" src=\"https:\/\/media-cdn.seeedstudio.com\/media\/wysiwyg\/EdgeBox_Feature.jpg\" data-src=\"https:\/\/media-cdn.seeedstudio.com\/media\/wysiwyg\/EdgeBox_Feature.jpg\" data-original=\"https:\/\/media-cdn.seeedstudio.com\/media\/wysiwyg\/EdgeBox_Feature.jpg\" height=\"undefined\" width=\"undefined\" class=\"lazy\" data-mce-src=\"https:\/\/media-cdn.seeedstudio.com\/media\/wysiwyg\/EdgeBox_Feature.jpg\"\u003e\u003c\/strong\u003e\u003c\/p\u003e\n\u003ch3 data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003ePowerful and Flexible Processors\u003c\/h3\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003eEdgeBox-RPi-200-CM4104016 leverages the processing power of the AI-enabled \u003cstrong data-mce-fragment=\"1\"\u003eRaspberry Pi Compute Module 4(CM4)\u003c\/strong\u003e, running up to 1.5GHz, equipped with 4 GB RAM and 16 GB eMMC, compiling in Linux, with Debian Operate System.\u003c\/p\u003e\n\u003ch3 data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eRich IO Industrial Interfaces while Supporting Extensive Bus Protocols and Standards\u003c\/h3\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003eThis high-scalability equipment has been engineered with multiple isolated industrial interfaces, which adhere to various industrial bus protocols and standards to achieve data transmission in a variety of situations. It even offers\u003cstrong data-mce-fragment=\"1\"\u003eextended SSD storage\u003c\/strong\u003e and\u003cstrong data-mce-fragment=\"1\"\u003e enhanced display output\u003c\/strong\u003e, for more data acquisition and improved visual presentation.\u003c\/p\u003e\n\u003ctable width=\"80%\"\u003e\n\u003ctbody data-mce-fragment=\"1\"\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eIO resources\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"301\" valign=\"\" align=\"\" rowspan=\"1\" colspan=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eProtocols and standards\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"301\" valign=\"\" align=\"\" rowspan=\"1\" colspan=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003cul data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003e2x isolated DI; 2x isolated DO\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003e1x isolated RS485; 1x RS232\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003e2x USB2.0 A1x M.2 slot support 2242 NVME SSD\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003e1x HDMI 2.0 up to 4k@60fps\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"301\" valign=\"\" align=\"\" rowspan=\"1\" colspan=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003cul data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003eRS485\/RS232\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003eTCP IP\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003eModbus\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003eOPC UA\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003eIEC 61131-3 compliant\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg data-mce-fragment=\"1\" src=\"https:\/\/media-cdn.seeedstudio.com\/media\/wysiwyg\/EdgeBox_Installation.jpg\" data-src=\"https:\/\/media-cdn.seeedstudio.com\/media\/wysiwyg\/EdgeBox_Installation.jpg\" data-original=\"https:\/\/media-cdn.seeedstudio.com\/media\/wysiwyg\/EdgeBox_Installation.jpg\" height=\"undefined\" width=\"undefined\" class=\"lazy\" data-mce-src=\"https:\/\/media-cdn.seeedstudio.com\/media\/wysiwyg\/EdgeBox_Installation.jpg\"\u003e\u003c\/p\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"document\"\u003e\n\u003ch3 data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eMultiple Communication Capabilities, Multiple Cloud Services Support\u003c\/h3\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003eThe EdgeBox employs the high integration of communication, where it intergates with wireless capabilities, supported by multiple cloud services. It is greatly qualified for IIoT(Industrial Internet of Things), in where you can utilize it to build IoT Gateways.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003ctable data-mce-fragment=\"1\"\u003e\n\u003ccolgroup data-mce-fragment=\"1\"\u003e \u003ccol data-mce-fragment=\"1\" width=\"301px\"\u003e \u003ccol data-mce-fragment=\"1\" width=\"301px\"\u003e \u003c\/colgroup\u003e\n\u003ctbody data-mce-fragment=\"1\"\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"301\" valign=\"\" align=\"\" rowspan=\"1\" colspan=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eCommunication Capabilites\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"301\" valign=\"\" align=\"\" rowspan=\"1\" colspan=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eCloud Services Support\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"301\" valign=\"\" align=\"\" rowspan=\"1\" colspan=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003cul data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003eBuild-in WiFi 2.4 GHz, 5.0 GHz IEEE 802.11 b\/g\/n\/ac\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003eGigabit Ethernet RJ45 Port\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003eMini PCIe Slot support 4G LTE Module\/LoRaWAN Gateway Module\/Zigbee Module\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"301\" valign=\"\" align=\"\" rowspan=\"1\" colspan=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003cul data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003eAWS\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003eAzure\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-justify pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"document\"\u003e\n\u003ch3 data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eGreat Raspberry Pi Industrial Software Ecosystem\u003c\/h3\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eWith the great Raspberry Pi industrial software ecosystem, you will find that EdgeBox has plentiful software and autonomous platforms supported. With massive documentation and open communities, \u003cstrong data-mce-fragment=\"1\"\u003etroubleshooting can be precise and expeditious\u003c\/strong\u003e.\u003c\/p\u003e\n\u003cul data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eCodesys\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eNode Red\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eMQTT\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eOPC UA\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eIgnition\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch3 data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eRobust Hardware Design\u003c\/h3\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eThe overall structure of Edge Box is\u003cstrong data-mce-fragment=\"1\"\u003e rugged and maintenance-reducing\u003c\/strong\u003e, as it integrates thermal management with full Aluminum heatsink enclosure. It is ultra-lightweight and supports 35mm DIN and wall mount, all of which make it suitable for limited space and extreme conditions including in-vehicle applications.\u003c\/p\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eApplication\u003c\/h2\u003e\n\u003cp data-mce-fragment=\"1\"\u003e\u003cimg data-mce-fragment=\"1\" src=\"https:\/\/media-cdn.seeedstudio.com\/media\/wysiwyg\/EdgeBox_Application.jpg\" data-src=\"https:\/\/media-cdn.seeedstudio.com\/media\/wysiwyg\/EdgeBox_Application.jpg\" data-original=\"https:\/\/media-cdn.seeedstudio.com\/media\/wysiwyg\/EdgeBox_Application.jpg\" height=\"undefined\" width=\"undefined\" class=\"lazy\" data-mce-src=\"https:\/\/media-cdn.seeedstudio.com\/media\/wysiwyg\/EdgeBox_Application.jpg\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003e\u003cbr\u003e\u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eSpecification\u003c\/h2\u003e\n\u003ctable width=\"600px\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003e\u003cstrong\u003eParameters\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp\u003e\u003cstrong\u003eDetail\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eBasic\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eCPU Core\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e4-core Raspberry Pi CM4\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eMemory\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e4GB\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eStorage\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e16GB\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"623\" colspan=\"2\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eWireless\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eWiFi\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e2.4 GHz, 5.0 GHz IEEE 802.11 b\/g\/n\/ac equipped\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eBluetooth\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eBluetooth 5.0, BLE equipped\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eCellular\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"document\"\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003eMini-PCIe support 4G LTE(Quectel EC20\/EC25 tested)*\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eLoRa\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"document\"\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003eMini-PCIe support LoRaWAN(Seeed \u003ca data-mce-fragment=\"1\" href=\"https:\/\/www.seeedstudio.com\/WM1302-LoRaWAN-Gateway-Module-SPI-EU868-p-4889.html\" data-mce-href=\"https:\/\/www.seeedstudio.com\/WM1302-LoRaWAN-Gateway-Module-SPI-EU868-p-4889.html\" target=\"_blank\"\u003eWM1302\u003c\/a\u003e tested)*\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eInterface\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eEthernet\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e1000M RJ45 *1\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eHDMI\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eHDMI 2.0 up to 4k@60fps\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eUSB\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eUSB2.0 A*2\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\" rowspan=\"2\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eRS Serial\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eRS485 *1 (Isolated)\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eRS232 *1\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eM.2 socket \u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e2242 NVME SSD card\u003c\/p\u003e\n\u003cp data-mce-fragment=\"1\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\" rowspan=\"2\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eDI\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e2 (Isolated)\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eDC input Voltage - 24V, Current - 1000mA\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\" rowspan=\"2\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eDO\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e2 (Isolated)\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eOutput voltage - under 60 V, current capacity - 500 mA\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"623\" colspan=\"2\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eExtra features\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003ePower Supply\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eDC 12V - 36V\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eRTC\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eRTC\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eWatch Dog Timer\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eStand alone\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eEncryption Chip\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eAtecc608a(optional)\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd style=\"text-align: right;\" data-mce-fragment=\"1\" width=\"312\"\u003eUninterrupted Power Supply\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eUPS (optional)\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eOperation temperature\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e-20 to +60 °C\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eCertification\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eRoHS, CE, FCC, TELEC, UKCA\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp data-mce-fragment=\"1\" data-style=\"text-align: justify;\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003cdiv data-mce-fragment=\"1\" data-style=\"display: table; table-layout: fixed; background-color: #e3efff; height: auto; width: 100%;\" class=\"tips\"\u003e\n\u003cdiv data-mce-fragment=\"1\" data-style=\"display: table-cell; vertical-align: middle; background-color: #a3c7ff; padding-top: 10px; box-sizing: border-box; height: auto; width: 38px; text-align: center;\" class=\"left-icon\"\u003e\u003cimg data-mce-fragment=\"1\" src=\"https:\/\/s3-us-west-2.amazonaws.com\/static.seeed.cc\/seeed\/icon\/Note.svg\" data-src=\"https:\/\/s3-us-west-2.amazonaws.com\/static.seeed.cc\/seeed\/icon\/Note.svg\" data-original=\"https:\/\/s3-us-west-2.amazonaws.com\/static.seeed.cc\/seeed\/icon\/Note.svg\" height=\"undefined\" width=\"undefined\" class=\"lazy\" data-mce-src=\"https:\/\/s3-us-west-2.amazonaws.com\/static.seeed.cc\/seeed\/icon\/Note.svg\"\u003e\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" data-style=\"display: table-cell; vertical-align: middle; padding-left: 15px; box-sizing: border-box; width: calc(95% - 38px);\" class=\"right-desc\"\u003e\n\u003cp data-mce-fragment=\"1\" data-style=\"font-weight: bold; margin-top: 10px;\"\u003eNote\u003c\/p\u003e\n\u003cp data-mce-fragment=\"1\" data-style=\"font-size: 14px;\"\u003eIf you want to customize features marked as 'Optional', feel free to email us at produce@seeed.cc.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003cdiv data-mce-fragment=\"1\" data-style=\"display: table; table-layout: fixed; background-color: #d9f5f3; height: auto; width: 100%;\" class=\"tips\"\u003e\n\u003cdiv data-mce-fragment=\"1\" data-style=\"display: table-cell; vertical-align: middle; background-color: #83dfd3; padding-top: 10px; box-sizing: border-box; height: auto; width: 38px; text-align: center;\" class=\"left-icon\"\u003e\u003cimg data-mce-fragment=\"1\" src=\"https:\/\/s3-us-west-2.amazonaws.com\/static.seeed.cc\/seeed\/icon\/Tip.svg\" data-src=\"https:\/\/s3-us-west-2.amazonaws.com\/static.seeed.cc\/seeed\/icon\/Tip.svg\" data-original=\"https:\/\/s3-us-west-2.amazonaws.com\/static.seeed.cc\/seeed\/icon\/Tip.svg\" height=\"undefined\" width=\"undefined\" class=\"lazy\" data-mce-src=\"https:\/\/s3-us-west-2.amazonaws.com\/static.seeed.cc\/seeed\/icon\/Tip.svg\"\u003e\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" data-style=\"display: table-cell; vertical-align: middle; padding-left: 15px; box-sizing: border-box; width: calc(95% - 38px);\" class=\"right-desc\"\u003e\n\u003cp data-mce-fragment=\"1\" data-style=\"font-weight: bold; margin-top: 10px;\"\u003eNote\u003c\/p\u003e\n\u003cul data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"document\"\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e4G and LoRa cannot be used at the same time\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cp data-mce-fragment=\"1\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"document\"\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003e\u003cbr\u003e\u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eFAQ\u003c\/h2\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"document\"\u003e\n\u003ch3 data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eHow can I get started with EdgeBox?\u003c\/h3\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-10.5pt\"\u003eYou can install the original Debian OS and directly program firmware to support underlying hardware interfaces and drivers. Thanks to the great Raspberry Pi Ecosystem, you can also utilize third-party software like Codesys and Ignition Edge as well as cloud servers like AWS and Azure.\u003c\/p\u003e\n\u003ch3 data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eWhat kinds of 4G and LoRa modules can I use?\u003c\/h3\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-10.5pt\"\u003eYou can input Quectel EC20\/EC25 module for 4G LTE usage.\u003c\/p\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-10.5pt\"\u003eYou can use Seeed WM1302 module for LoRaWAN applications.\u003c\/p\u003e\n\u003ch3 data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eCan I use 4G and LoRa at the same time?\u003c\/h3\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003eSorry, this box does not support 4G and LoRa use at the same time.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" data-clear-style=\"true\" class=\"product more-info-tab\"\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"description-certification-info\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"description-certification-info-tech\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"description-certification-info-part\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"description-certification-info-eccn\"\u003e\n\u003ch2 data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eLEARN AND DOCUMENTS\u003c\/span\u003e\u003c\/h2\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" id=\"detail-target-1\" class=\"detail-label-item\"\u003e\n\u003cdiv data-mce-fragment=\"1\" id=\"learn-document-tab\" class=\"detail-item-content data item content\"\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"document-content\"\u003e\n\u003ch3\u003eDocumentations\u003c\/h3\u003e\n\u003cul\u003e\n\u003cli\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003ca href=\"https:\/\/files.seeedstudio.com\/wiki\/Edge_Box\/Seeed_Studio_Edgebox-RPi-200.pdf\" style=\"color: #ff2a00; text-decoration: underline;\" target=\"_blank\"\u003eEdgebox Broadsheet\u003c\/a\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/files.seeedstudio.com\/wiki\/Edge_Box\/EdgeBox-RPi-200_Edge_Computing_Controller_User_Manual.pdf\" target=\"_blank\"\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003eUser Manual\u003c\/span\u003e\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/files.seeedstudio.com\/wiki\/Edge_Box\/EdgeBox_RPi_200_3D_file.stp\" target=\"_blank\"\u003e\u003cspan style=\"color: #ff2a00; text-decoration: underline;\"\u003eEdgeBox 3D File\u003c\/span\u003e\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/files.seeedstudio.com\/wiki\/Edge_Box\/WTD21D08078434R1E_VoC(EdgeBox-RPI-200)CE-EMC_exp_900.pdf\" style=\"color: #ff2a00; text-decoration: underline;\" target=\"_blank\"\u003eEdgeBox CE Certificates\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"color: #ff2a00;\"\u003e\u003ca href=\"https:\/\/files.seeedstudio.com\/wiki\/Edge_Box\/WTD21D08078438R1E_VOC_(Model_EdgeBox-RPI-200)_FCC_sDOC-Part15_ex_p_944.pdf\" style=\"color: #ff2a00; text-decoration: underline;\" target=\"_blank\" data-mce-href=\"https:\/\/files.seeedstudio.com\/wiki\/Edge_Box\/WTD21D08078438R1E_VOC_(Model_EdgeBox-RPI-200)_FCC_sDOC-Part15_ex_p_944.pdf\"\u003eEdgeBox FCC Certificates\u003c\/a\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/files.seeedstudio.com\/wiki\/Edge_Box\/Seeed_Studio_Edge_Series_Warranty_Regulations.pdf\" style=\"text-decoration: underline; color: #ff2a00;\" target=\"_blank\"\u003eEdge Series Warranty Regulations\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"learn-content\"\u003e\n\u003ch2 data-mce-fragment=\"1\"\u003eLearn\u003c\/h2\u003e\n\u003ctable width=\"800px\" align=\"left\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd width=\"20%\" align=\"right\"\u003e \n\u003cdiv data-mce-fragment=\"1\" style=\"text-align: right;\" data-mce-style=\"text-align: right;\"\u003e\u003cimg src=\"https:\/\/media-cdn.seeedstudio.com\/media\/learn\/images\/2\/-\/2-102991559-102991558-edgebox-rpi-200-45font.jpg\"\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003cspan class=\"learn-info-name\"\u003e\u003ca href=\"https:\/\/docs.google.com\/spreadsheets\/d\/1o6YkAnStHoKzE6k4FcxYcEUkqP5g2DpLuIT4NExtKS4\/edit?usp=sharing\" title=\"Edge Series Comparison\" style=\"color: #ff2a00; text-decoration: underline;\" target=\"_blank\"\u003eEdge Series Comparison\u003c\/a\u003e\u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003eHere is a performance comparison of Edge controller seres.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"33%\" align=\"right\"\u003e\n\u003cdiv style=\"text-align: right;\"\u003e\u003cimg alt=\"\" src=\"https:\/\/media-cdn.seeedstudio.com\/media\/learn\/images\/_\/_\/__3e028467-9bee-4962-8f67-376a8ad96d85_3.png\"\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003ca href=\"https:\/\/www.seeedstudio.com\/blog\/2022\/12\/16\/the-industry-edge-controllers\/\" target=\"_blank\"\u003e\u003cspan style=\"text-decoration: underline;\"\u003e\u003cspan style=\"color: #ff2a00;\"\u003eThe Edge Series, The OT-IT Solution from Seeed Studio\u003c\/span\u003e\u003c\/span\u003e\u003c\/a\u003e\n\u003cp\u003eWith the development of smart manufacturing and the Industrial Internet of Things, edge computing and cloud storage of on-site data have become necessary requirements for many modern factories.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"33%\" align=\"right\"\u003e\n\u003cdiv style=\"text-align: right;\"\u003e\u003cimg alt=\"\" src=\"https:\/\/media-cdn.seeedstudio.com\/media\/learn\/images\/e\/d\/edgebox-rpi-200.png\"\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp\u003e\u003cspan style=\"color: #ff2a00;\" class=\"learn-info-name\"\u003e\u003ca style=\"color: #ff2a00;\" class=\"learn-url\" href=\"https:\/\/www.seeedstudio.com\/blog\/2022\/11\/04\/new-product-raspberry-pi-cm4-powered-industrial-edge-controller-edgebox-rpi-200\/\" target=\"_blank\"\u003eNEW Product: Raspberry Pi CM4 Powered Industrial Edge Controller EdgeBox-RPi-200\u003c\/a\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003eYou may wonder about whether Seeed Studio has any actual practical applications of the Raspberry Pi regarding larger businesses, organizations and even factories. Here is the answer, an industrial Raspberry Pi-based solution: EdgeBox-RPi-200.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"33%\" align=\"right\"\u003e\n\u003cdiv style=\"text-align: right;\"\u003e\u003cimg style=\"float: none;\" alt=\"\" src=\"https:\/\/media-cdn.seeedstudio.com\/media\/learn\/images\/r\/a\/raspberry_pi_for_industry_1.png\"\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp\u003e\u003cspan style=\"text-decoration: underline;\"\u003e\u003cspan style=\"color: #ff2a00;\" class=\"learn-info-name\"\u003e\u003ca style=\"color: #ff2a00; text-decoration: underline;\" href=\"https:\/\/www.seeedstudio.com\/blog\/2023\/01\/04\/find-the-right-solution-for-your-project-from-seeeds-edge-series\/\" title=\"Find the Right Solution for your Project from Seeed Studio’s Edge Series\" class=\"learn-url\" target=\"_blank\"\u003eFind the Right Solution for your Project from Seeed Studio’s Edge Series\u003c\/a\u003e\u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003eIn this blog, I would like to talk in detail the specific differences between the three products from Edge Series, and how you can match the right solution for your project.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e","published_at":"2023-01-04T23:59:29+05:30","created_at":"2023-01-04T23:59:28+05:30","vendor":"ThinkRobotics.in","type":"","tags":["16GB","200","2GB RAM","4GB","8GB","Controller","Edge","EdgeBox","eMMC","INDSTRL","Industrial","r pi","R Pi4","Raspberry Pi","raspberry pi 4","Raspberry pi 4 1GB","Raspberry pi 4 2GB","Raspberry pi 4 4GB","Raspberry pi 4 8GB","raspberry pi drivers","RPi","SEEED","SEEEDSTD","WiFi"],"price":2389999,"price_min":2389999,"price_max":3599999,"available":true,"price_varies":true,"compare_at_price":3999999,"compare_at_price_min":3999999,"compare_at_price_max":3999999,"compare_at_price_varies":false,"variants":[{"id":44309038530877,"title":"2GB RAM \/ 8GB eMMC","option1":"2GB RAM \/ 8GB eMMC","option2":null,"option3":null,"sku":"SBC1031-8GB","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"EdgeBox RPi 200 - Industrial Edge Controller with WiFi - 2GB RAM \/ 8GB eMMC","public_title":"2GB RAM \/ 8GB eMMC","options":["2GB RAM \/ 8GB eMMC"],"price":2389999,"weight":400,"compare_at_price":3999999,"inventory_management":"shopify","barcode":"44309038530877","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44309038563645,"title":"4GB RAM \/ 16GB eMMC","option1":"4GB RAM \/ 16GB eMMC","option2":null,"option3":null,"sku":"SBC1031-16GB","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"EdgeBox RPi 200 - Industrial Edge Controller with WiFi - 4GB RAM \/ 16GB eMMC","public_title":"4GB RAM \/ 16GB eMMC","options":["4GB RAM \/ 16GB eMMC"],"price":3599999,"weight":400,"compare_at_price":3999999,"inventory_management":"shopify","barcode":"44309038563645","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/thinkrobotics.com\/cdn\/shop\/products\/1-102991599_EdgeBox-RPi-200-first.jpg?v=1672857620","\/\/thinkrobotics.com\/cdn\/shop\/products\/2-102991599_EdgeBox-RPi-20045font.jpg?v=1672857618","\/\/thinkrobotics.com\/cdn\/shop\/products\/3-102991599_EdgeBox-RPi-200font.jpg?v=1672857621","\/\/thinkrobotics.com\/cdn\/shop\/products\/4-102991599_EdgeBox-RPi-200back.png?v=1672857617","\/\/thinkrobotics.com\/cdn\/shop\/products\/5-102991599_EdgeBox-RPi-200feature.jpg?v=1672857617","\/\/thinkrobotics.com\/cdn\/shop\/products\/6-102991599_EdgeBox-RPi-200feature2.png?v=1672857619","\/\/thinkrobotics.com\/cdn\/shop\/products\/102991559_Feature-02.png?v=1672857623","\/\/thinkrobotics.com\/cdn\/shop\/products\/102991559_Feature-20.png?v=1672857623","\/\/thinkrobotics.com\/cdn\/shop\/products\/102991559_Preview-16.png?v=1672857623","\/\/thinkrobotics.com\/cdn\/shop\/products\/7-102991599_EdgeBox-RPi-200size.png?v=1672857623"],"featured_image":"\/\/thinkrobotics.com\/cdn\/shop\/products\/1-102991599_EdgeBox-RPi-200-first.jpg?v=1672857620","options":["Option"],"media":[{"alt":null,"id":32458130587965,"position":1,"preview_image":{"aspect_ratio":1.333,"height":1050,"width":1400,"src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/1-102991599_EdgeBox-RPi-200-first.jpg?v=1672857620"},"aspect_ratio":1.333,"height":1050,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/1-102991599_EdgeBox-RPi-200-first.jpg?v=1672857620","width":1400},{"alt":null,"id":32458130620733,"position":2,"preview_image":{"aspect_ratio":1.333,"height":1050,"width":1400,"src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/2-102991599_EdgeBox-RPi-20045font.jpg?v=1672857618"},"aspect_ratio":1.333,"height":1050,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/2-102991599_EdgeBox-RPi-20045font.jpg?v=1672857618","width":1400},{"alt":null,"id":32458130653501,"position":3,"preview_image":{"aspect_ratio":1.333,"height":1050,"width":1400,"src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/3-102991599_EdgeBox-RPi-200font.jpg?v=1672857621"},"aspect_ratio":1.333,"height":1050,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/3-102991599_EdgeBox-RPi-200font.jpg?v=1672857621","width":1400},{"alt":null,"id":32458130686269,"position":4,"preview_image":{"aspect_ratio":1.333,"height":1050,"width":1400,"src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/4-102991599_EdgeBox-RPi-200back.png?v=1672857617"},"aspect_ratio":1.333,"height":1050,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/4-102991599_EdgeBox-RPi-200back.png?v=1672857617","width":1400},{"alt":null,"id":32458130719037,"position":5,"preview_image":{"aspect_ratio":1.333,"height":1050,"width":1400,"src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/5-102991599_EdgeBox-RPi-200feature.jpg?v=1672857617"},"aspect_ratio":1.333,"height":1050,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/5-102991599_EdgeBox-RPi-200feature.jpg?v=1672857617","width":1400},{"alt":null,"id":32458130751805,"position":6,"preview_image":{"aspect_ratio":1.333,"height":1050,"width":1400,"src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/6-102991599_EdgeBox-RPi-200feature2.png?v=1672857619"},"aspect_ratio":1.333,"height":1050,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/6-102991599_EdgeBox-RPi-200feature2.png?v=1672857619","width":1400},{"alt":null,"id":32458130817341,"position":7,"preview_image":{"aspect_ratio":1.333,"height":1050,"width":1400,"src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/102991559_Feature-02.png?v=1672857623"},"aspect_ratio":1.333,"height":1050,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/102991559_Feature-02.png?v=1672857623","width":1400},{"alt":null,"id":32458130850109,"position":8,"preview_image":{"aspect_ratio":1.333,"height":1050,"width":1400,"src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/102991559_Feature-20.png?v=1672857623"},"aspect_ratio":1.333,"height":1050,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/102991559_Feature-20.png?v=1672857623","width":1400},{"alt":null,"id":32458130882877,"position":9,"preview_image":{"aspect_ratio":1.333,"height":1050,"width":1400,"src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/102991559_Preview-16.png?v=1672857623"},"aspect_ratio":1.333,"height":1050,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/102991559_Preview-16.png?v=1672857623","width":1400},{"alt":null,"id":32458130784573,"position":10,"preview_image":{"aspect_ratio":1.333,"height":1050,"width":1400,"src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/7-102991599_EdgeBox-RPi-200size.png?v=1672857623"},"aspect_ratio":1.333,"height":1050,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/7-102991599_EdgeBox-RPi-200size.png?v=1672857623","width":1400}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003e \u003c\/p\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003eEdgeBox-RPi-200 series are all-in-one Raspberry Pi-based industrial edge computing controllers, combining multiple industrial purposes. Designed as high-scalability and rugged industrial hardware, mounted with rich IO resources and supported by the great Raspberry Pi industrial software ecosystem, it is an ideal choice for smart automation and Industrial Internet of Things(IIoT) solutions.\u003c\/p\u003e\n\u003ch2\u003eFeature\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cstrong\u003eAll-in-one Industry Controller:\u003c\/strong\u003e\n\u003cul\u003e\n\u003cli\u003eMore than just a PLC, PAC, more can it implement functions of the IIoT Gateway, OPC UA Server and Industry PC.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003ePowerful and Flexible Processors:\u003c\/strong\u003e\n\u003cul\u003e\n\u003cli\u003ePowered by Raspberry Pi Compute Module 4 (CM4), equipped up to 4GB RAM and 16GB eMMC, performing real-time operation and multi-process.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eRich IO resources\u003c\/strong\u003e and Industrial Interfaces Mounted:\n\u003cul\u003e\n\u003cli\u003eSupport a wide range of industrial bus protocols and standards\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eMultiple Communication Capabilities:\u003c\/strong\u003e\n\u003cul\u003e\n\u003cli\u003eCarry full-featured wireless interconnectivity and a RJ45 Gigabit Ethernet, supported by multiple cloud services\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eRugged Industrial-grade Hardware Design:\u003c\/strong\u003e\u003cbr\u003e\n\u003cul\u003e\n\u003cli\u003eIntegrated thermal management with full Aluminum heatsink enclosure, supporting 35mm DIN and wall mount\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eGreat Raspberry Pi Industrial Software Ecosystem:\u003c\/strong\u003e\n\u003cul\u003e\n\u003cli\u003eSupport a variety of industrial software and platforms, including Codesys, Node Red, MQTT, OPC UA, Ignition and etc.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eDescription\u003c\/h2\u003e\n\u003cp\u003eEdgeBox-RPi-200 series controllers represent the conceivable alternatives for increasing edge automation and industrial interconnecting control. Being small and compact, they can perform real-time operation and multi-process controlling for multiple industrial purposes, not only the \u003cstrong\u003ePLC \u0026amp; PAC\u003c\/strong\u003e but also the \u003cstrong\u003eIIoT Gateway, OPC UA Server and Industry PC.\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003eBesides EdgeBox-RPi-200, We also have the other 2 Edge products for different solutions in the Edge family, powered by Raspberry Pi and ESP. To help you understand the differences deeply and choose the most suitable part for your projects, please refer to the Seeed Studio \u003ca data-mce-fragment=\"1\" href=\"https:\/\/www.seeedstudio.com\/raspberrypi\/device\/industry.html\" target=\"_blank\" data-mce-href=\"https:\/\/www.seeedstudio.com\/raspberrypi\/device\/industry.html\"\u003eEdge Series Page\u003c\/a\u003e.\u003c\/p\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003e\u003cimg data-mce-fragment=\"1\" src=\"https:\/\/media-cdn.seeedstudio.com\/media\/wysiwyg\/EdgeBox_Feature.jpg\" data-src=\"https:\/\/media-cdn.seeedstudio.com\/media\/wysiwyg\/EdgeBox_Feature.jpg\" data-original=\"https:\/\/media-cdn.seeedstudio.com\/media\/wysiwyg\/EdgeBox_Feature.jpg\" height=\"undefined\" width=\"undefined\" class=\"lazy\" data-mce-src=\"https:\/\/media-cdn.seeedstudio.com\/media\/wysiwyg\/EdgeBox_Feature.jpg\"\u003e\u003c\/strong\u003e\u003c\/p\u003e\n\u003ch3 data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003ePowerful and Flexible Processors\u003c\/h3\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003eEdgeBox-RPi-200-CM4104016 leverages the processing power of the AI-enabled \u003cstrong data-mce-fragment=\"1\"\u003eRaspberry Pi Compute Module 4(CM4)\u003c\/strong\u003e, running up to 1.5GHz, equipped with 4 GB RAM and 16 GB eMMC, compiling in Linux, with Debian Operate System.\u003c\/p\u003e\n\u003ch3 data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eRich IO Industrial Interfaces while Supporting Extensive Bus Protocols and Standards\u003c\/h3\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003eThis high-scalability equipment has been engineered with multiple isolated industrial interfaces, which adhere to various industrial bus protocols and standards to achieve data transmission in a variety of situations. It even offers\u003cstrong data-mce-fragment=\"1\"\u003eextended SSD storage\u003c\/strong\u003e and\u003cstrong data-mce-fragment=\"1\"\u003e enhanced display output\u003c\/strong\u003e, for more data acquisition and improved visual presentation.\u003c\/p\u003e\n\u003ctable width=\"80%\"\u003e\n\u003ctbody data-mce-fragment=\"1\"\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eIO resources\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"301\" valign=\"\" align=\"\" rowspan=\"1\" colspan=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eProtocols and standards\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"301\" valign=\"\" align=\"\" rowspan=\"1\" colspan=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003cul data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003e2x isolated DI; 2x isolated DO\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003e1x isolated RS485; 1x RS232\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003e2x USB2.0 A1x M.2 slot support 2242 NVME SSD\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003e1x HDMI 2.0 up to 4k@60fps\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"301\" valign=\"\" align=\"\" rowspan=\"1\" colspan=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003cul data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003eRS485\/RS232\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003eTCP IP\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003eModbus\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003eOPC UA\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003eIEC 61131-3 compliant\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg data-mce-fragment=\"1\" src=\"https:\/\/media-cdn.seeedstudio.com\/media\/wysiwyg\/EdgeBox_Installation.jpg\" data-src=\"https:\/\/media-cdn.seeedstudio.com\/media\/wysiwyg\/EdgeBox_Installation.jpg\" data-original=\"https:\/\/media-cdn.seeedstudio.com\/media\/wysiwyg\/EdgeBox_Installation.jpg\" height=\"undefined\" width=\"undefined\" class=\"lazy\" data-mce-src=\"https:\/\/media-cdn.seeedstudio.com\/media\/wysiwyg\/EdgeBox_Installation.jpg\"\u003e\u003c\/p\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"document\"\u003e\n\u003ch3 data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eMultiple Communication Capabilities, Multiple Cloud Services Support\u003c\/h3\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003eThe EdgeBox employs the high integration of communication, where it intergates with wireless capabilities, supported by multiple cloud services. It is greatly qualified for IIoT(Industrial Internet of Things), in where you can utilize it to build IoT Gateways.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003ctable data-mce-fragment=\"1\"\u003e\n\u003ccolgroup data-mce-fragment=\"1\"\u003e \u003ccol data-mce-fragment=\"1\" width=\"301px\"\u003e \u003ccol data-mce-fragment=\"1\" width=\"301px\"\u003e \u003c\/colgroup\u003e\n\u003ctbody data-mce-fragment=\"1\"\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"301\" valign=\"\" align=\"\" rowspan=\"1\" colspan=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eCommunication Capabilites\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"301\" valign=\"\" align=\"\" rowspan=\"1\" colspan=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eCloud Services Support\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"301\" valign=\"\" align=\"\" rowspan=\"1\" colspan=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003cul data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003eBuild-in WiFi 2.4 GHz, 5.0 GHz IEEE 802.11 b\/g\/n\/ac\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003eGigabit Ethernet RJ45 Port\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003eMini PCIe Slot support 4G LTE Module\/LoRaWAN Gateway Module\/Zigbee Module\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"301\" valign=\"\" align=\"\" rowspan=\"1\" colspan=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003cul data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003eAWS\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003eAzure\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-justify pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"document\"\u003e\n\u003ch3 data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eGreat Raspberry Pi Industrial Software Ecosystem\u003c\/h3\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eWith the great Raspberry Pi industrial software ecosystem, you will find that EdgeBox has plentiful software and autonomous platforms supported. With massive documentation and open communities, \u003cstrong data-mce-fragment=\"1\"\u003etroubleshooting can be precise and expeditious\u003c\/strong\u003e.\u003c\/p\u003e\n\u003cul data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eCodesys\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eNode Red\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eMQTT\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eOPC UA\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eIgnition\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch3 data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eRobust Hardware Design\u003c\/h3\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eThe overall structure of Edge Box is\u003cstrong data-mce-fragment=\"1\"\u003e rugged and maintenance-reducing\u003c\/strong\u003e, as it integrates thermal management with full Aluminum heatsink enclosure. It is ultra-lightweight and supports 35mm DIN and wall mount, all of which make it suitable for limited space and extreme conditions including in-vehicle applications.\u003c\/p\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eApplication\u003c\/h2\u003e\n\u003cp data-mce-fragment=\"1\"\u003e\u003cimg data-mce-fragment=\"1\" src=\"https:\/\/media-cdn.seeedstudio.com\/media\/wysiwyg\/EdgeBox_Application.jpg\" data-src=\"https:\/\/media-cdn.seeedstudio.com\/media\/wysiwyg\/EdgeBox_Application.jpg\" data-original=\"https:\/\/media-cdn.seeedstudio.com\/media\/wysiwyg\/EdgeBox_Application.jpg\" height=\"undefined\" width=\"undefined\" class=\"lazy\" data-mce-src=\"https:\/\/media-cdn.seeedstudio.com\/media\/wysiwyg\/EdgeBox_Application.jpg\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003e\u003cbr\u003e\u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eSpecification\u003c\/h2\u003e\n\u003ctable width=\"600px\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003e\u003cstrong\u003eParameters\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp\u003e\u003cstrong\u003eDetail\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eBasic\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eCPU Core\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e4-core Raspberry Pi CM4\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eMemory\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e4GB\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eStorage\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e16GB\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"623\" colspan=\"2\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eWireless\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eWiFi\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e2.4 GHz, 5.0 GHz IEEE 802.11 b\/g\/n\/ac equipped\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eBluetooth\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eBluetooth 5.0, BLE equipped\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eCellular\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"document\"\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003eMini-PCIe support 4G LTE(Quectel EC20\/EC25 tested)*\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eLoRa\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"document\"\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003eMini-PCIe support LoRaWAN(Seeed \u003ca data-mce-fragment=\"1\" href=\"https:\/\/www.seeedstudio.com\/WM1302-LoRaWAN-Gateway-Module-SPI-EU868-p-4889.html\" data-mce-href=\"https:\/\/www.seeedstudio.com\/WM1302-LoRaWAN-Gateway-Module-SPI-EU868-p-4889.html\" target=\"_blank\"\u003eWM1302\u003c\/a\u003e tested)*\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eInterface\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eEthernet\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e1000M RJ45 *1\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eHDMI\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eHDMI 2.0 up to 4k@60fps\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eUSB\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eUSB2.0 A*2\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\" rowspan=\"2\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eRS Serial\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eRS485 *1 (Isolated)\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eRS232 *1\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eM.2 socket \u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e2242 NVME SSD card\u003c\/p\u003e\n\u003cp data-mce-fragment=\"1\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\" rowspan=\"2\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eDI\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e2 (Isolated)\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eDC input Voltage - 24V, Current - 1000mA\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\" rowspan=\"2\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eDO\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e2 (Isolated)\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eOutput voltage - under 60 V, current capacity - 500 mA\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"623\" colspan=\"2\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eExtra features\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003ePower Supply\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eDC 12V - 36V\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eRTC\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eRTC\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eWatch Dog Timer\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eStand alone\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eEncryption Chip\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eAtecc608a(optional)\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd style=\"text-align: right;\" data-mce-fragment=\"1\" width=\"312\"\u003eUninterrupted Power Supply\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eUPS (optional)\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eOperation temperature\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003e-20 to +60 °C\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp style=\"text-align: right;\" data-mce-fragment=\"1\"\u003eCertification\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\" width=\"312\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eRoHS, CE, FCC, TELEC, UKCA\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp data-mce-fragment=\"1\" data-style=\"text-align: justify;\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003cdiv data-mce-fragment=\"1\" data-style=\"display: table; table-layout: fixed; background-color: #e3efff; height: auto; width: 100%;\" class=\"tips\"\u003e\n\u003cdiv data-mce-fragment=\"1\" data-style=\"display: table-cell; vertical-align: middle; background-color: #a3c7ff; padding-top: 10px; box-sizing: border-box; height: auto; width: 38px; text-align: center;\" class=\"left-icon\"\u003e\u003cimg data-mce-fragment=\"1\" src=\"https:\/\/s3-us-west-2.amazonaws.com\/static.seeed.cc\/seeed\/icon\/Note.svg\" data-src=\"https:\/\/s3-us-west-2.amazonaws.com\/static.seeed.cc\/seeed\/icon\/Note.svg\" data-original=\"https:\/\/s3-us-west-2.amazonaws.com\/static.seeed.cc\/seeed\/icon\/Note.svg\" height=\"undefined\" width=\"undefined\" class=\"lazy\" data-mce-src=\"https:\/\/s3-us-west-2.amazonaws.com\/static.seeed.cc\/seeed\/icon\/Note.svg\"\u003e\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" data-style=\"display: table-cell; vertical-align: middle; padding-left: 15px; box-sizing: border-box; width: calc(95% - 38px);\" class=\"right-desc\"\u003e\n\u003cp data-mce-fragment=\"1\" data-style=\"font-weight: bold; margin-top: 10px;\"\u003eNote\u003c\/p\u003e\n\u003cp data-mce-fragment=\"1\" data-style=\"font-size: 14px;\"\u003eIf you want to customize features marked as 'Optional', feel free to email us at produce@seeed.cc.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003cdiv data-mce-fragment=\"1\" data-style=\"display: table; table-layout: fixed; background-color: #d9f5f3; height: auto; width: 100%;\" class=\"tips\"\u003e\n\u003cdiv data-mce-fragment=\"1\" data-style=\"display: table-cell; vertical-align: middle; background-color: #83dfd3; padding-top: 10px; box-sizing: border-box; height: auto; width: 38px; text-align: center;\" class=\"left-icon\"\u003e\u003cimg data-mce-fragment=\"1\" src=\"https:\/\/s3-us-west-2.amazonaws.com\/static.seeed.cc\/seeed\/icon\/Tip.svg\" data-src=\"https:\/\/s3-us-west-2.amazonaws.com\/static.seeed.cc\/seeed\/icon\/Tip.svg\" data-original=\"https:\/\/s3-us-west-2.amazonaws.com\/static.seeed.cc\/seeed\/icon\/Tip.svg\" height=\"undefined\" width=\"undefined\" class=\"lazy\" data-mce-src=\"https:\/\/s3-us-west-2.amazonaws.com\/static.seeed.cc\/seeed\/icon\/Tip.svg\"\u003e\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" data-style=\"display: table-cell; vertical-align: middle; padding-left: 15px; box-sizing: border-box; width: calc(95% - 38px);\" class=\"right-desc\"\u003e\n\u003cp data-mce-fragment=\"1\" data-style=\"font-weight: bold; margin-top: 10px;\"\u003eNote\u003c\/p\u003e\n\u003cul data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"document\"\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003e4G and LoRa cannot be used at the same time\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cp data-mce-fragment=\"1\"\u003e \u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"document\"\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003e\u003cbr\u003e\u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eFAQ\u003c\/h2\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"document\"\u003e\n\u003ch3 data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eHow can I get started with EdgeBox?\u003c\/h3\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-10.5pt\"\u003eYou can install the original Debian OS and directly program firmware to support underlying hardware interfaces and drivers. Thanks to the great Raspberry Pi Ecosystem, you can also utilize third-party software like Codesys and Ignition Edge as well as cloud servers like AWS and Azure.\u003c\/p\u003e\n\u003ch3 data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eWhat kinds of 4G and LoRa modules can I use?\u003c\/h3\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-10.5pt\"\u003eYou can input Quectel EC20\/EC25 module for 4G LTE usage.\u003c\/p\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-10.5pt\"\u003eYou can use Seeed WM1302 module for LoRaWAN applications.\u003c\/p\u003e\n\u003ch3 data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.7 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt\"\u003eCan I use 4G and LoRa at the same time?\u003c\/h3\u003e\n\u003cp data-mce-fragment=\"1\" class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003eSorry, this box does not support 4G and LoRa use at the same time.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" data-clear-style=\"true\" class=\"product more-info-tab\"\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"description-certification-info\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"description-certification-info-tech\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"description-certification-info-part\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"description-certification-info-eccn\"\u003e\n\u003ch2 data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eLEARN AND DOCUMENTS\u003c\/span\u003e\u003c\/h2\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" id=\"detail-target-1\" class=\"detail-label-item\"\u003e\n\u003cdiv data-mce-fragment=\"1\" id=\"learn-document-tab\" class=\"detail-item-content data item content\"\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"document-content\"\u003e\n\u003ch3\u003eDocumentations\u003c\/h3\u003e\n\u003cul\u003e\n\u003cli\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003ca href=\"https:\/\/files.seeedstudio.com\/wiki\/Edge_Box\/Seeed_Studio_Edgebox-RPi-200.pdf\" style=\"color: #ff2a00; text-decoration: underline;\" target=\"_blank\"\u003eEdgebox Broadsheet\u003c\/a\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/files.seeedstudio.com\/wiki\/Edge_Box\/EdgeBox-RPi-200_Edge_Computing_Controller_User_Manual.pdf\" target=\"_blank\"\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003eUser Manual\u003c\/span\u003e\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/files.seeedstudio.com\/wiki\/Edge_Box\/EdgeBox_RPi_200_3D_file.stp\" target=\"_blank\"\u003e\u003cspan style=\"color: #ff2a00; text-decoration: underline;\"\u003eEdgeBox 3D File\u003c\/span\u003e\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/files.seeedstudio.com\/wiki\/Edge_Box\/WTD21D08078434R1E_VoC(EdgeBox-RPI-200)CE-EMC_exp_900.pdf\" style=\"color: #ff2a00; text-decoration: underline;\" target=\"_blank\"\u003eEdgeBox CE Certificates\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"color: #ff2a00;\"\u003e\u003ca href=\"https:\/\/files.seeedstudio.com\/wiki\/Edge_Box\/WTD21D08078438R1E_VOC_(Model_EdgeBox-RPI-200)_FCC_sDOC-Part15_ex_p_944.pdf\" style=\"color: #ff2a00; text-decoration: underline;\" target=\"_blank\" data-mce-href=\"https:\/\/files.seeedstudio.com\/wiki\/Edge_Box\/WTD21D08078438R1E_VOC_(Model_EdgeBox-RPI-200)_FCC_sDOC-Part15_ex_p_944.pdf\"\u003eEdgeBox FCC Certificates\u003c\/a\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/files.seeedstudio.com\/wiki\/Edge_Box\/Seeed_Studio_Edge_Series_Warranty_Regulations.pdf\" style=\"text-decoration: underline; color: #ff2a00;\" target=\"_blank\"\u003eEdge Series Warranty Regulations\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"learn-content\"\u003e\n\u003ch2 data-mce-fragment=\"1\"\u003eLearn\u003c\/h2\u003e\n\u003ctable width=\"800px\" align=\"left\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd width=\"20%\" align=\"right\"\u003e \n\u003cdiv data-mce-fragment=\"1\" style=\"text-align: right;\" data-mce-style=\"text-align: right;\"\u003e\u003cimg src=\"https:\/\/media-cdn.seeedstudio.com\/media\/learn\/images\/2\/-\/2-102991559-102991558-edgebox-rpi-200-45font.jpg\"\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003cspan class=\"learn-info-name\"\u003e\u003ca href=\"https:\/\/docs.google.com\/spreadsheets\/d\/1o6YkAnStHoKzE6k4FcxYcEUkqP5g2DpLuIT4NExtKS4\/edit?usp=sharing\" title=\"Edge Series Comparison\" style=\"color: #ff2a00; text-decoration: underline;\" target=\"_blank\"\u003eEdge Series Comparison\u003c\/a\u003e\u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003eHere is a performance comparison of Edge controller seres.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"33%\" align=\"right\"\u003e\n\u003cdiv style=\"text-align: right;\"\u003e\u003cimg alt=\"\" src=\"https:\/\/media-cdn.seeedstudio.com\/media\/learn\/images\/_\/_\/__3e028467-9bee-4962-8f67-376a8ad96d85_3.png\"\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003ca href=\"https:\/\/www.seeedstudio.com\/blog\/2022\/12\/16\/the-industry-edge-controllers\/\" target=\"_blank\"\u003e\u003cspan style=\"text-decoration: underline;\"\u003e\u003cspan style=\"color: #ff2a00;\"\u003eThe Edge Series, The OT-IT Solution from Seeed Studio\u003c\/span\u003e\u003c\/span\u003e\u003c\/a\u003e\n\u003cp\u003eWith the development of smart manufacturing and the Industrial Internet of Things, edge computing and cloud storage of on-site data have become necessary requirements for many modern factories.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"33%\" align=\"right\"\u003e\n\u003cdiv style=\"text-align: right;\"\u003e\u003cimg alt=\"\" src=\"https:\/\/media-cdn.seeedstudio.com\/media\/learn\/images\/e\/d\/edgebox-rpi-200.png\"\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp\u003e\u003cspan style=\"color: #ff2a00;\" class=\"learn-info-name\"\u003e\u003ca style=\"color: #ff2a00;\" class=\"learn-url\" href=\"https:\/\/www.seeedstudio.com\/blog\/2022\/11\/04\/new-product-raspberry-pi-cm4-powered-industrial-edge-controller-edgebox-rpi-200\/\" target=\"_blank\"\u003eNEW Product: Raspberry Pi CM4 Powered Industrial Edge Controller EdgeBox-RPi-200\u003c\/a\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003eYou may wonder about whether Seeed Studio has any actual practical applications of the Raspberry Pi regarding larger businesses, organizations and even factories. Here is the answer, an industrial Raspberry Pi-based solution: EdgeBox-RPi-200.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"33%\" align=\"right\"\u003e\n\u003cdiv style=\"text-align: right;\"\u003e\u003cimg style=\"float: none;\" alt=\"\" src=\"https:\/\/media-cdn.seeedstudio.com\/media\/learn\/images\/r\/a\/raspberry_pi_for_industry_1.png\"\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp\u003e\u003cspan style=\"text-decoration: underline;\"\u003e\u003cspan style=\"color: #ff2a00;\" class=\"learn-info-name\"\u003e\u003ca style=\"color: #ff2a00; text-decoration: underline;\" href=\"https:\/\/www.seeedstudio.com\/blog\/2023\/01\/04\/find-the-right-solution-for-your-project-from-seeeds-edge-series\/\" title=\"Find the Right Solution for your Project from Seeed Studio’s Edge Series\" class=\"learn-url\" target=\"_blank\"\u003eFind the Right Solution for your Project from Seeed Studio’s Edge Series\u003c\/a\u003e\u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003eIn this blog, I would like to talk in detail the specific differences between the three products from Edge Series, and how you can match the right solution for your project.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e"}

	Edge Series Comparison Here is a performance comparison of Edge controller seres.
	The Edge Series, The OT-IT Solution from Seeed Studio With the development of smart manufacturing and the Industrial Internet of Things, edge computing and cloud storage of on-site data have become necessary requirements for many modern factories.
	NEW Product: Raspberry Pi CM4 Powered Industrial Edge Controller EdgeBox-RPi-200 You may wonder about whether Seeed Studio has any actual practical applications of the Raspberry Pi regarding larger businesses, organizations and even factories. Here is the answer, an industrial Raspberry Pi-based solution: EdgeBox-RPi-200.
	Find the Right Solution for your Project from Seeed Studio’s Edge Series In this blog, I would like to talk in detail the specific differences between the three products from Edge Series, and how you can match the right solution for your project.

EdgeBox RPi 200 - Industrial Edge Controller with WiFi

Feature

Description

Powerful and Flexible Processors

Rich IO Industrial Interfaces while Supporting Extensive Bus Protocols and Standards

Multiple Communication Capabilities, Multiple Cloud Services Support

Great Raspberry Pi Industrial Software Ecosystem

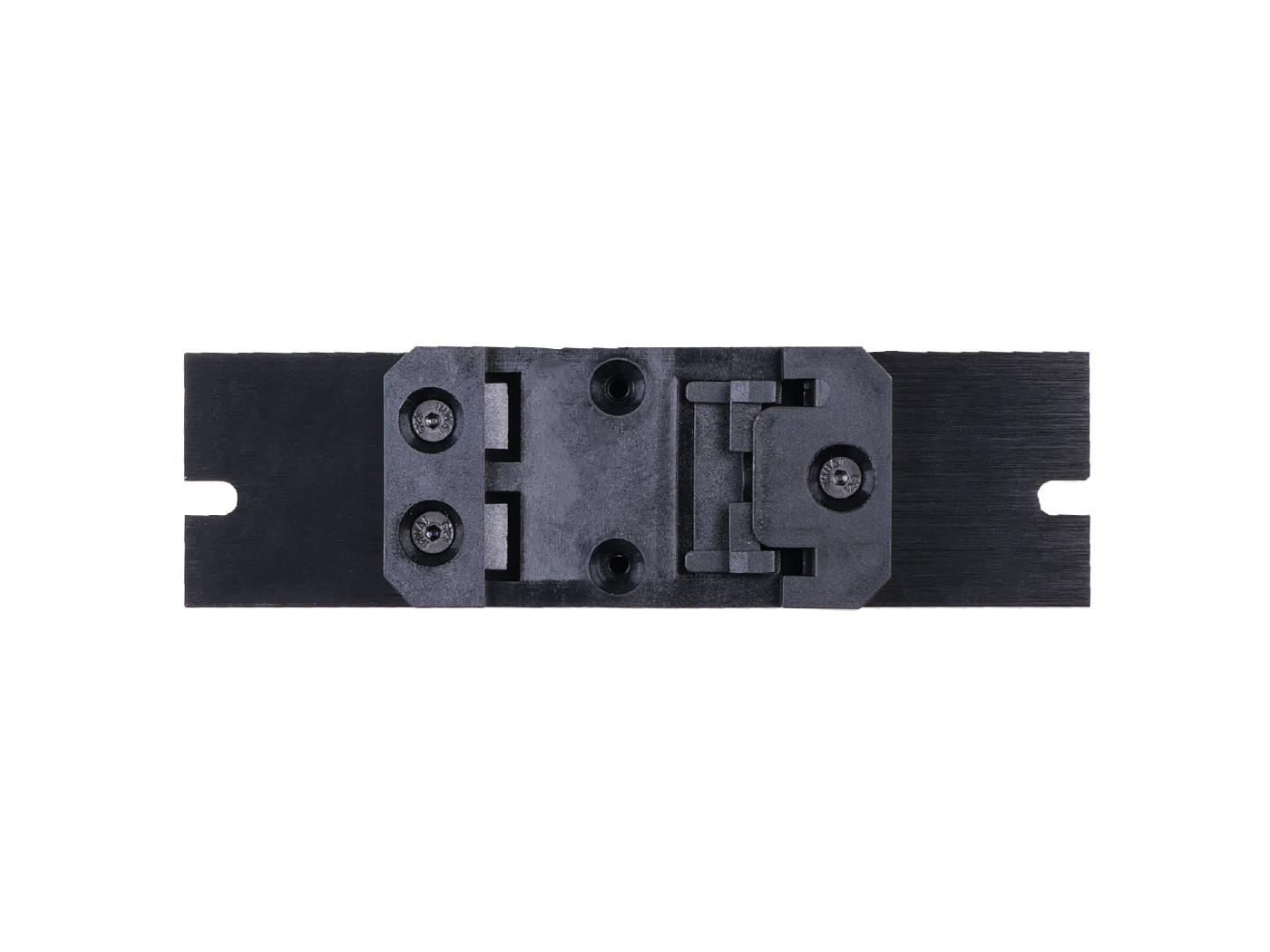

Robust Hardware Design

Application

Specification

FAQ

How can I get started with EdgeBox?

What kinds of 4G and LoRa modules can I use?

Can I use 4G and LoRa at the same time?

LEARN AND DOCUMENTS

Documentations

Learn

Want to buy in bulk?

Customer Reviews

Custom Requirements?

Download the ThinkRobotics Mobile App

We are here to serve you! Reach us at:

Popular Links

Shopping Cart

Let customers speak for us

Parameters	Detail
Basic
CPU Core	4-core Raspberry Pi CM4
Memory	4GB
Storage	16GB
Wireless
WiFi	2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac equipped
Bluetooth	Bluetooth 5.0, BLE equipped
Cellular	Mini-PCIe support 4G LTE(Quectel EC20/EC25 tested)*
LoRa	Mini-PCIe support LoRaWAN(Seeed WM1302 tested)*

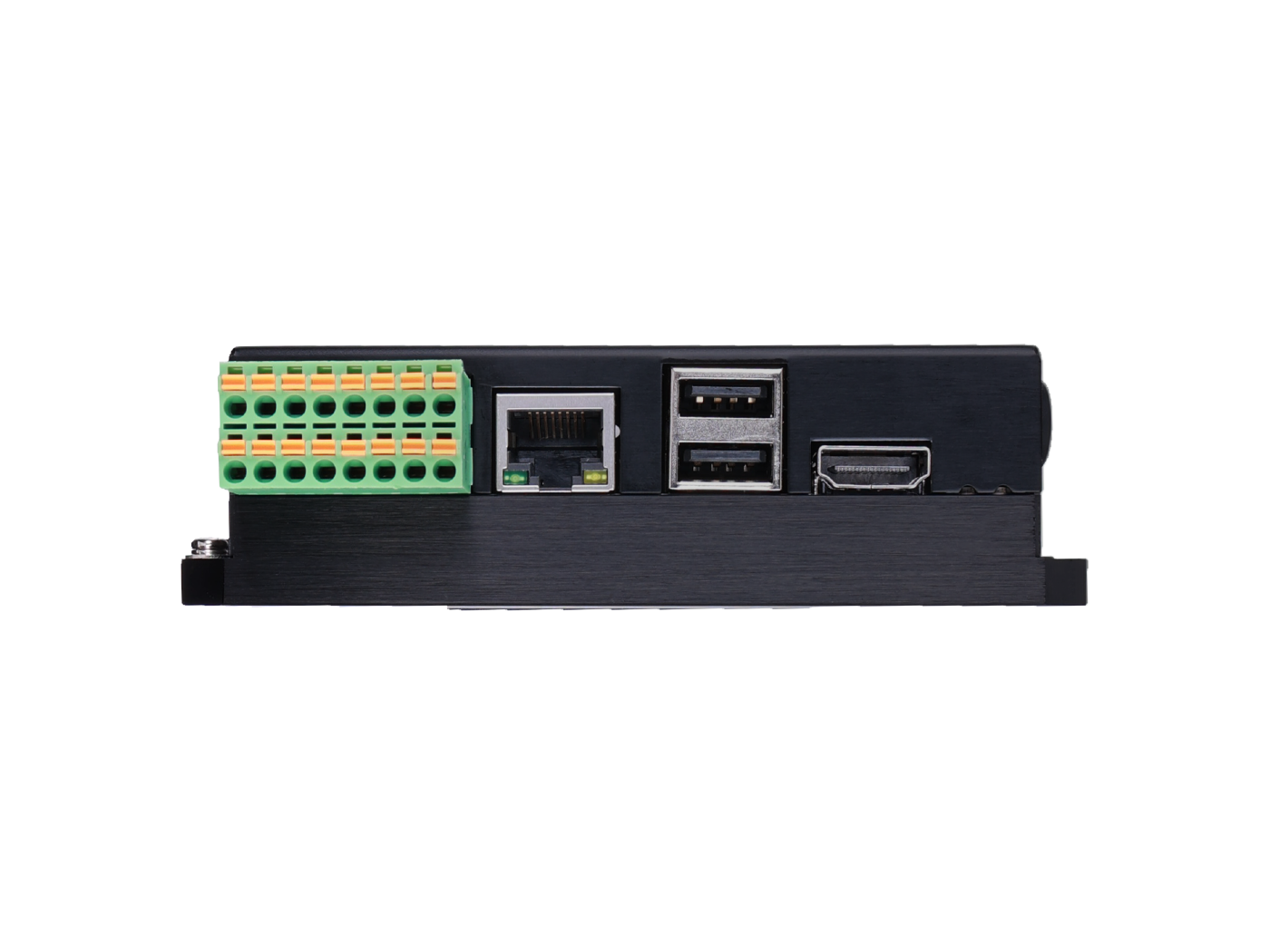

Interface
Ethernet	1000M RJ45 *1
HDMI	HDMI 2.0 up to 4k@60fps
USB	USB2.0 A*2
RS Serial	RS485 *1 (Isolated)
RS Serial	RS232 *1
M.2 socket	2242 NVME SSD card
DI	2 (Isolated)
DI	DC input Voltage - 24V, Current - 1000mA
DO	2 (Isolated)
DO	Output voltage - under 60 V, current capacity - 500 mA
Extra features
Power Supply	DC 12V - 36V
RTC	RTC
Watch Dog Timer	Stand alone
Encryption Chip	Atecc608a(optional)
Uninterrupted Power Supply	UPS (optional)
Operation temperature	-20 to +60 °C
Certification	RoHS, CE, FCC, TELEC, UKCA
