Environment Sensors Module for Jetson Nano

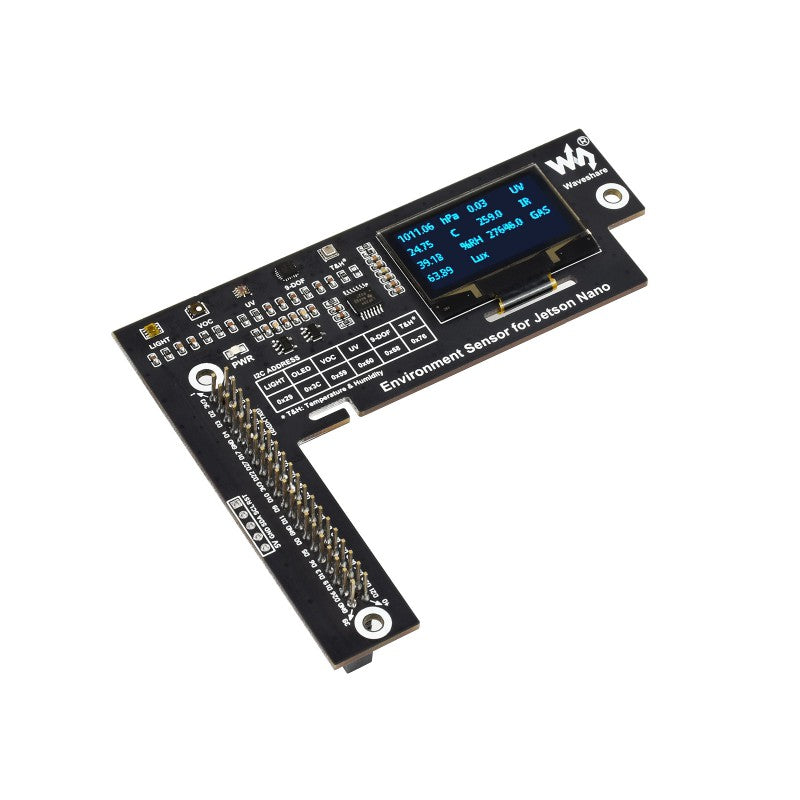

Environment Sensors Module Designed For Jetson Nano, I2C Bus, With 1.3inch OLED Display
This environment sensors module gives Jetson Nano Developer Kit the ability to collect environment data like temperature & humidity, air pressure, ambient light intensity, VOC, IR ray, UV ray, etc. It can also be used to build a robot that can detect motion and orientation
Features
Onboard TSL25911FN digital ambient light sensor, for measuring IR and visible light.
Onboard BME280 sensor, for measuring temperature, humidity, and air pressure.
Onboard ICM20948 motion sensor, accelerometer, gyroscope, and magnetometer.
Onboard Si1145 sensor, for measuring IR/UV rays.
Onboard SGP40 sensor, for detecting ambient VOC.
Onboard 1.3inch OLED display, for displaying environment data in real time.
I2C bus, allows reading and displaying data by just using two wires.
Comes with development resources and user manual (python examples).
Parameter
TSL25911FN DIGITAL AMBIENT LIGHT SENSOR
I2C address
0x29
Effective range
0~88000Lux
BME280 TEMPERATURE, HUMIDITY, AND AIR PRESSURE SENSOR
I2C address
0x76
Temperature detection
-40 ~ 85℃ (0.01℃ resolution, ±1℃ accuracy)
Humidity detection
0~100%RH (0.008%RH resolution, ±3%RH accuracy, 1s response time, ≤2%RH delay)
Air pressure detection
300~1100hPa (0.18Pa resolution, ±1hPa accuracy)
ICM20948 MOTION SENSOR (9-DOF: 3-AXIS ACCELEROMETER, 3-AXIS GYROSCROPE, 3-AXIS MAGNETOMETER)
I2C address
0x68
Accelerometer resolution
16-bit
Accelerometer range (configurable)
±2, ±4, ±8, ±16g
WCDMA
B1, B3, B5, B8
Gyroscope resolution
16-bit
Gyroscope range (configurable)
±250, ±500, ±1000, ±2000°/sec
Magnetometer resolution
16-bit
Magnetometer range
±4900µT
SI1145 IR/UV SENSOR
I2C address
0x60
Response wavelength
280nm - 950nm
SGP40 VOC SENSOR
I2C address
0x59
Measuring range
0 ~ 1,000 ppm ethanol equivalent
Limit condition
< 0.05 ppm ethanol equivalent OR < 10 % preset concentration point (the larger one should prevail)
Response time
< 10 s (tau 63 %)
Start time
< 60 s
On-chip humidity compensation support
OLED DISPLAY
I2C address
0x3C
Driver IC
SH1106
Resolution
128x64
Display color
blue

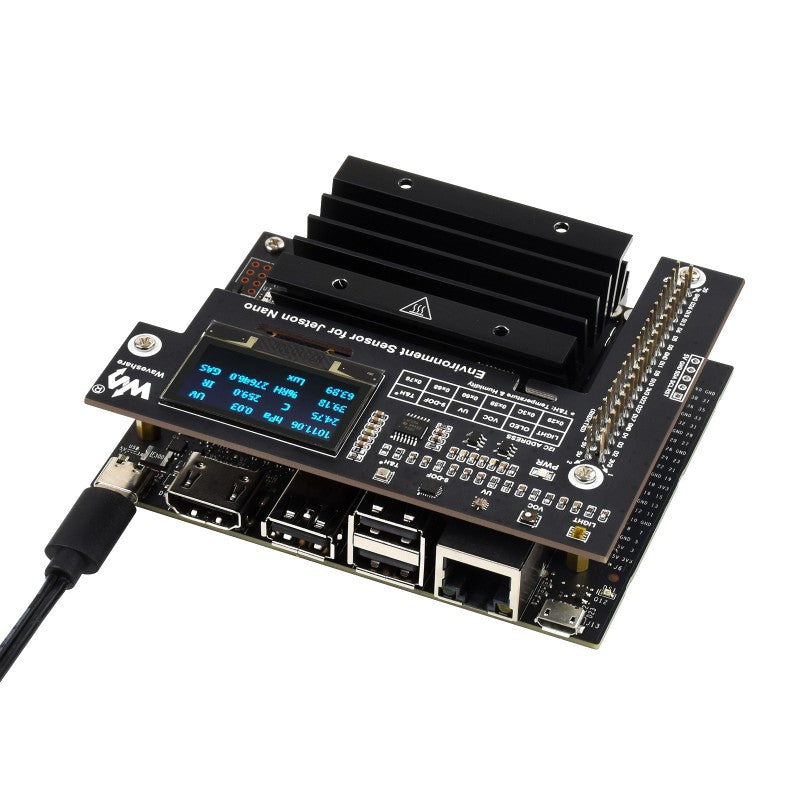

Tailored For Jetson Nano

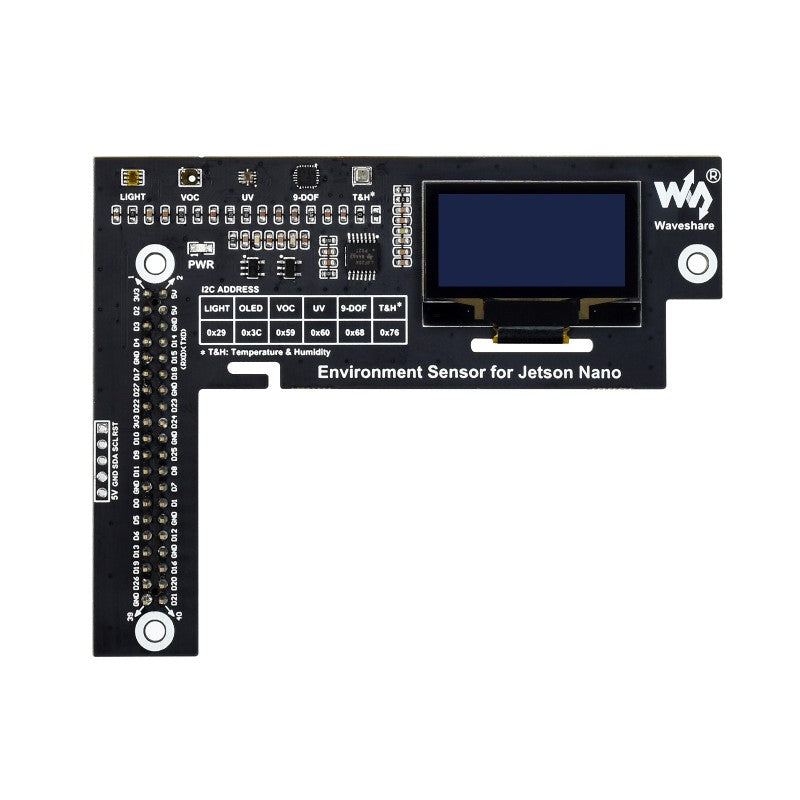

What's On Board
TSL25911FN
SGP40
Si1145
ICM20948
BME280 temperature, humidity, and air pressure sensor
1.3inch OLED 128x64 resolution
Voltage level translator 5V to 3.3V/1.8V
Wiki: Environment_Sensor_for_Jetson_Nano
