ESP32-S3 RGB Matrix Driver Board with Dual Microphones and AI Voice

SKU: WVSH0617

ā‚¹ 2,799.99

In stock | Ready to ship

āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
ESP32-S3 RGB Matrix Driver Board with Dual Microphones and AI Voiceā‚¹ 2,799.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Details

ESP32-S3 RGB Matrix Driver Board, Onboard Dual Microphones Array, Supports 2.4 GHz Wi-Fi And Bluetooth 5 (BLE), Supports AI Voice Interaction
ESP32-S3 RGB Matrix Driver Board

240 MHz Xtensa 32-bit LX7 Dual-core Processor

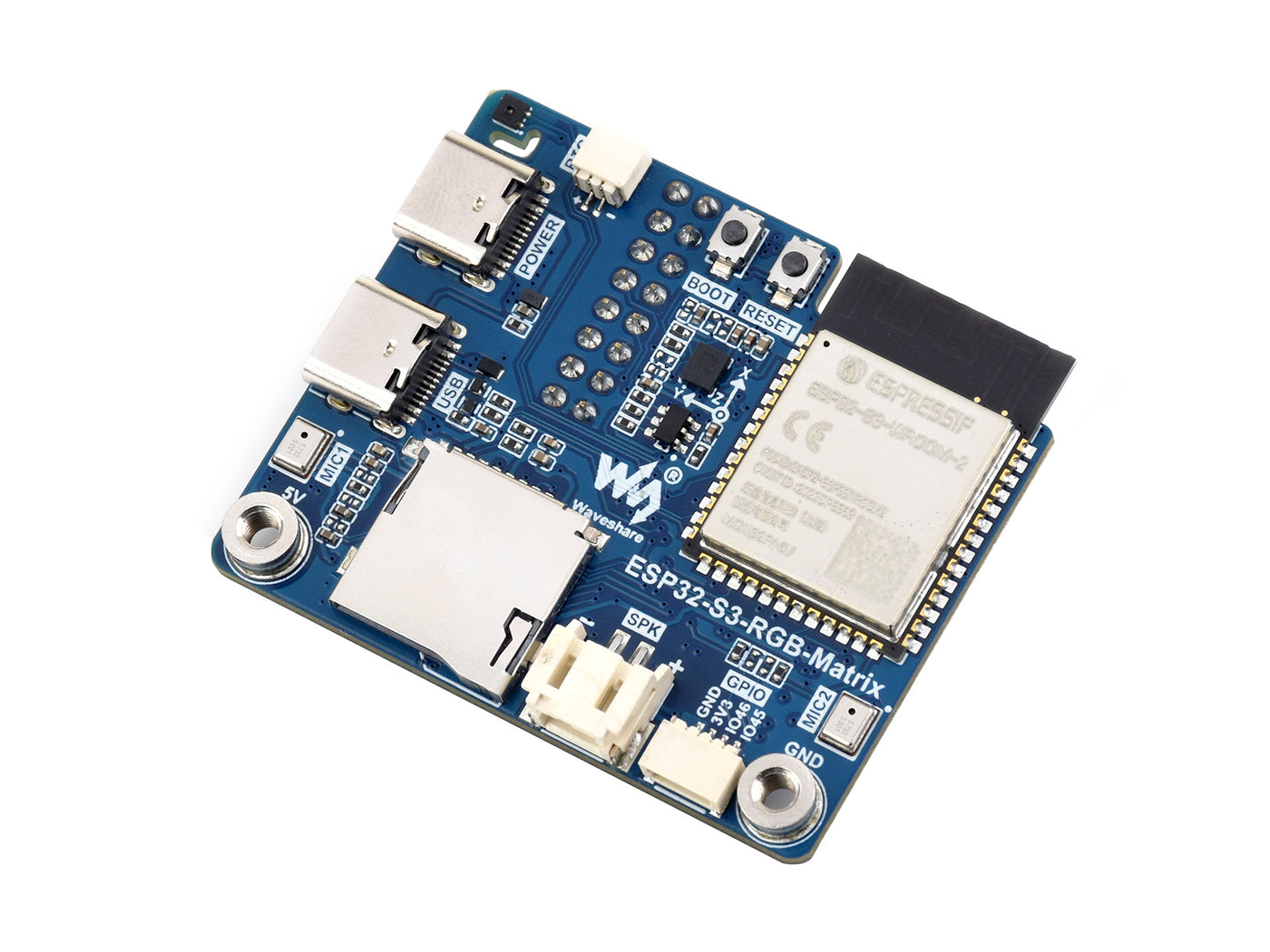

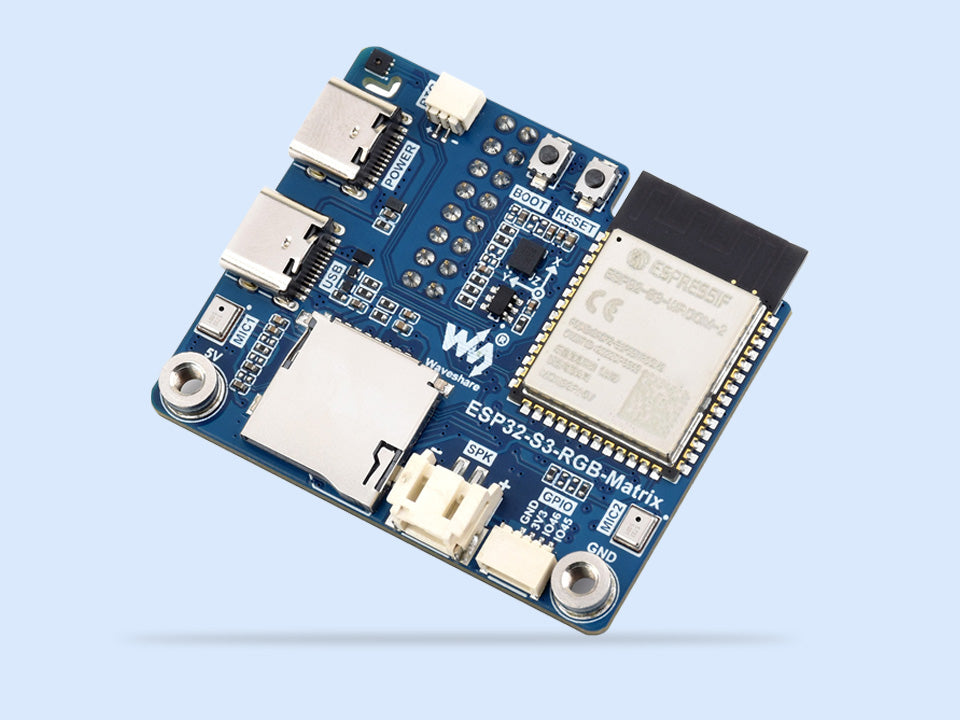

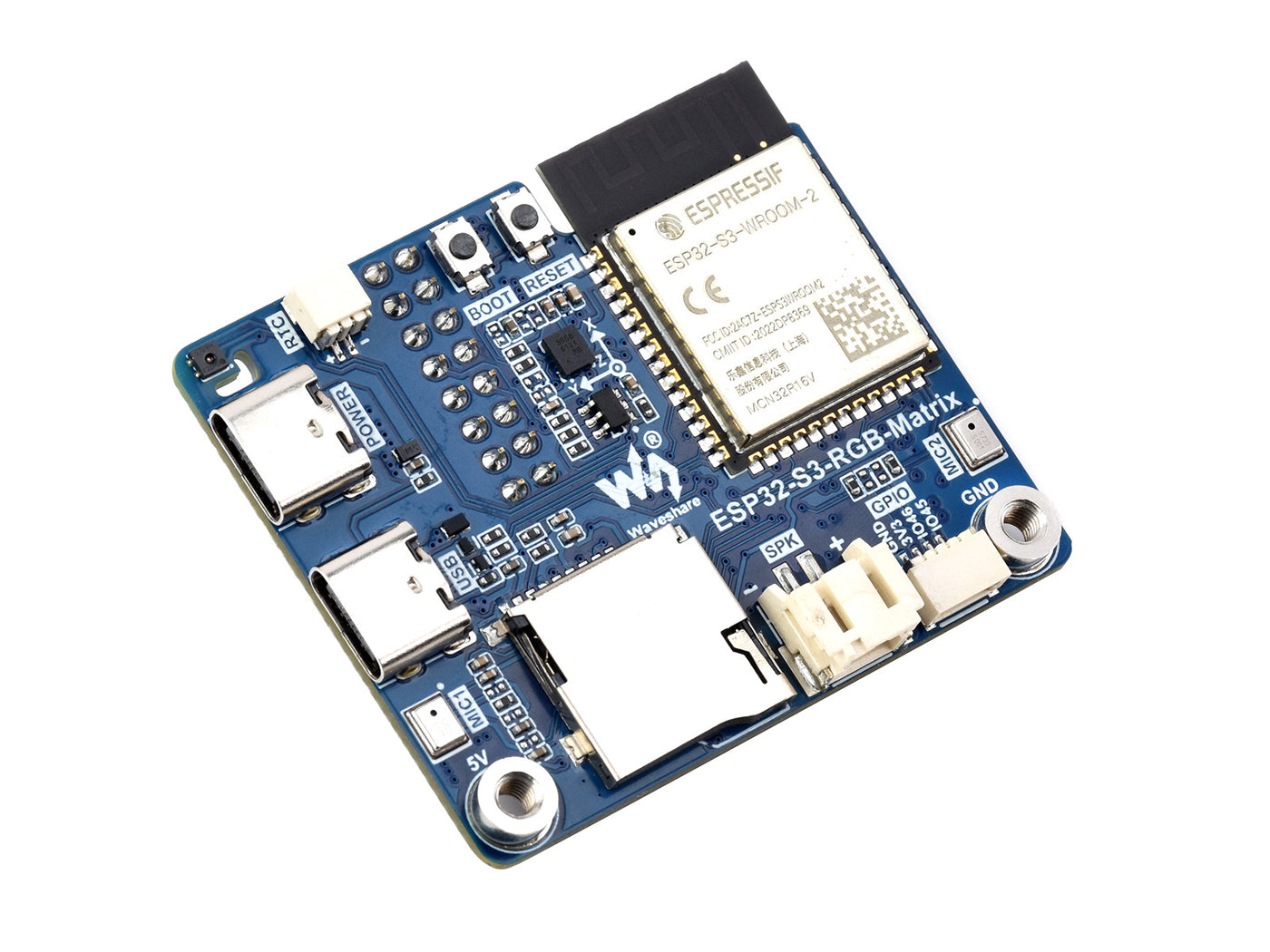

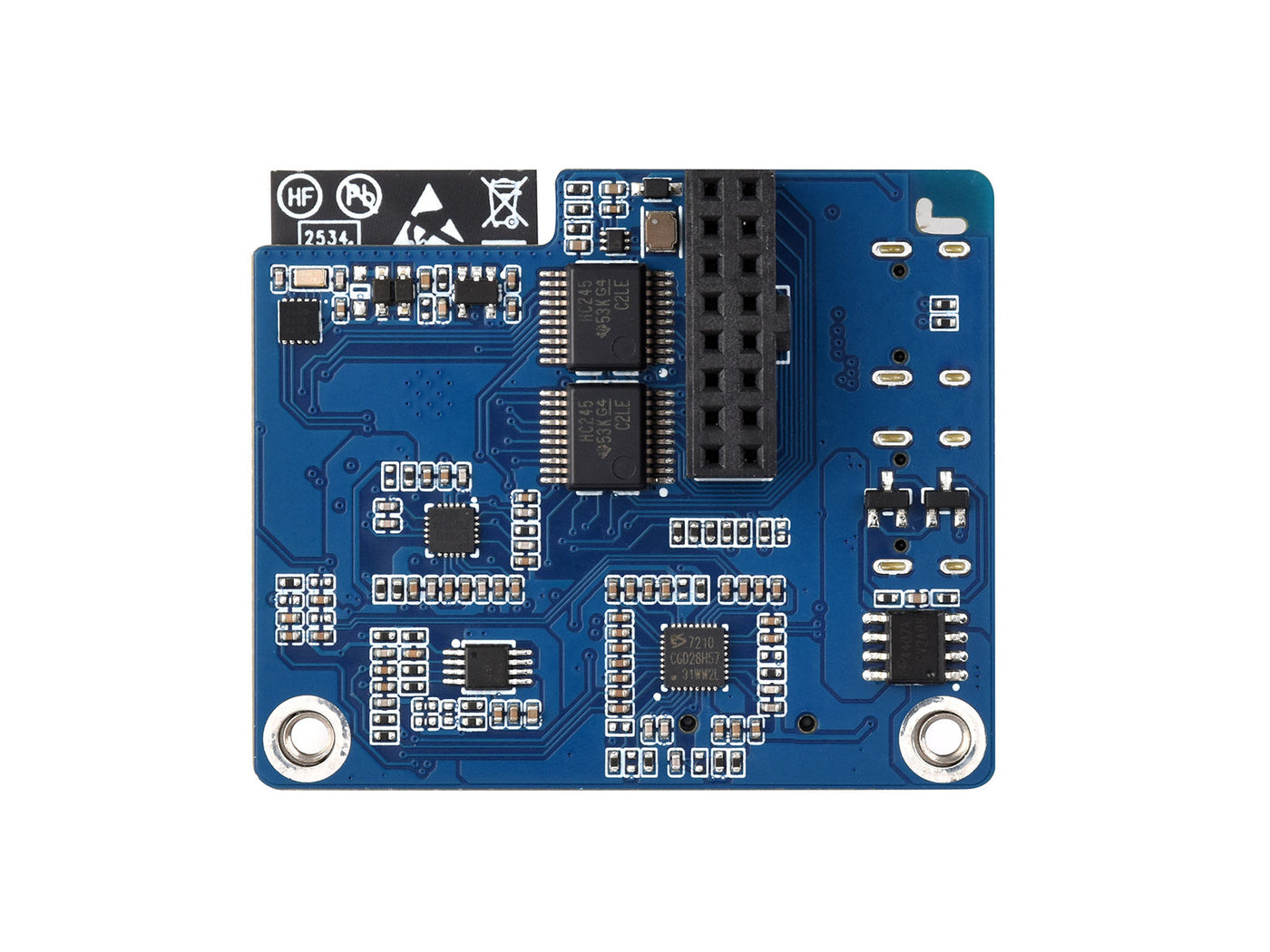

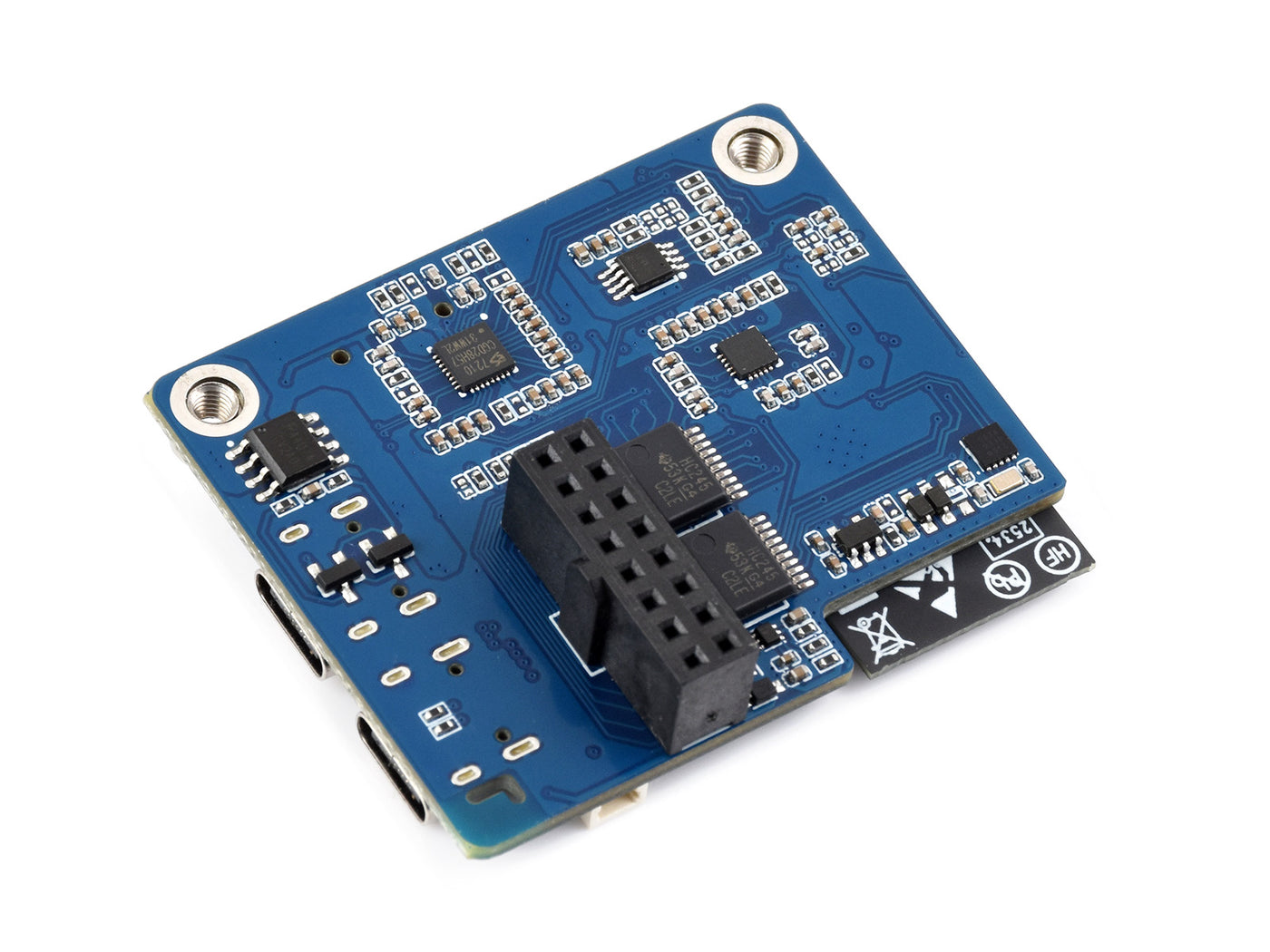

ESP32-S3-RGB-Matrix Development Board, front view ESP32-S3-RGB-Matrix Development Board, features

Board specifications

The ESP32-S3-RGB-Matrix is a high-performance, highly integrated LED matrix panel driver board designed by Waveshare. It is suitable for HUB75 interface RGB matrix panels and related embedded applications. Based on the ESP32-S3 microcontroller, it integrates large-capacity Flash storage, RTC chip, IMU, TF card slot, low-power audio codec chip, dual microphones, and so on. It also provides reserved interfaces such as USB, UART, I2C, and GPIO, offering strong scalability and enabling users to quickly develop and integrate it into practical applications.

  • Equipped with ESP32-S3-N32R16 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
  • Built in 512KB Static RAM and 384KB ROM, with onboard 32MB Flash memory and 16MB PSRAM
  • Compatible with the full product line of Waveshare LED RGB matrix panels, and can smoothly run graphical interface programs such as LVGL
  • Onboard ES7210 echo cancellation chip for improved voice processing performance
  • Onboard ES8311 low-power audio codec chip, supporting high-quality audio input and output
  • Equipped with dual microphones array for audio algorithms such as noise reduction and echo cancellation, suitable for accurate speech recognition and voice wake-up applications
  • Onboard speaker header, supports audio playback output, and can be connected directly to a speaker
  • Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, etc.
  • Integrated SHTC3 temperature and humidity sensor for accurate environmental monitoring
  • Onboard TF card slot for extended storage of images, audio, and various file types, making it convenient for reading and writing data
  • Onboard PCF85063 RTC chip with a reserved SH1.0 batt connector, enabling continuous timekeeping during power loss
  • Reserved GPIO expansion header for peripheral expansion and custom function development, supporting diverse application requirements
  • Dual power supply ports design, supporting stable operation of up to six 64 Ɨ 64 RGB Matrix panels, with cascading support for large-scale display applications
  • Onboard USB Type-C port for power supply, firmware programming, and debugging
  • Onboard RST and BOOT programmable buttons for easy custom function development

Product Specifications
Power Voltage 5V
Maximum Current Rating 10A
Supported Resolution 64 Ɨ 64, 64 Ɨ 32, 80 Ɨ 40, 96 Ɨ 48
Interface Type HUB75
Maximum Resolution (Cascaded) 6 Ɨ 64 Ɨ 64
Operating Temperature -40ā„ƒ ~ +85ā„ƒ
Dimensions 50 Ɨ 42 (mm)

Designed for AIoT applications

Powered by Xtensa 32-bit LX7 dual-core processor with frequency up to 240 MHz
Powerful AI Computing Capability & Reliable security features

ESP32-S3-RGB-Matrix Development Board, built-in Xtensa 32-bit LX7 dual-core processor
Supports driving multiple LED matrix panels
ESP32-S3-RGB-Matrix Development Board, supports driving multiple LED matrix panels

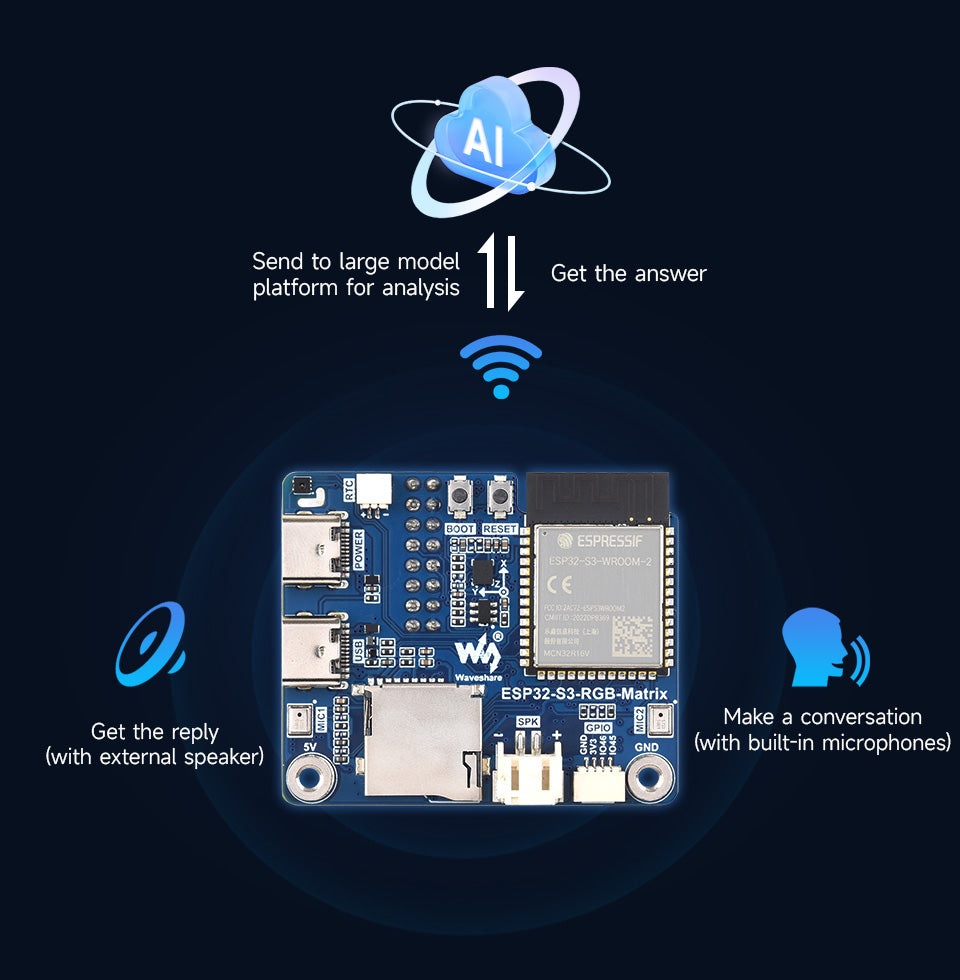

Supports AI voice interaction

No complicated assembly or wiring requiredā€”quickly integrate with AI models

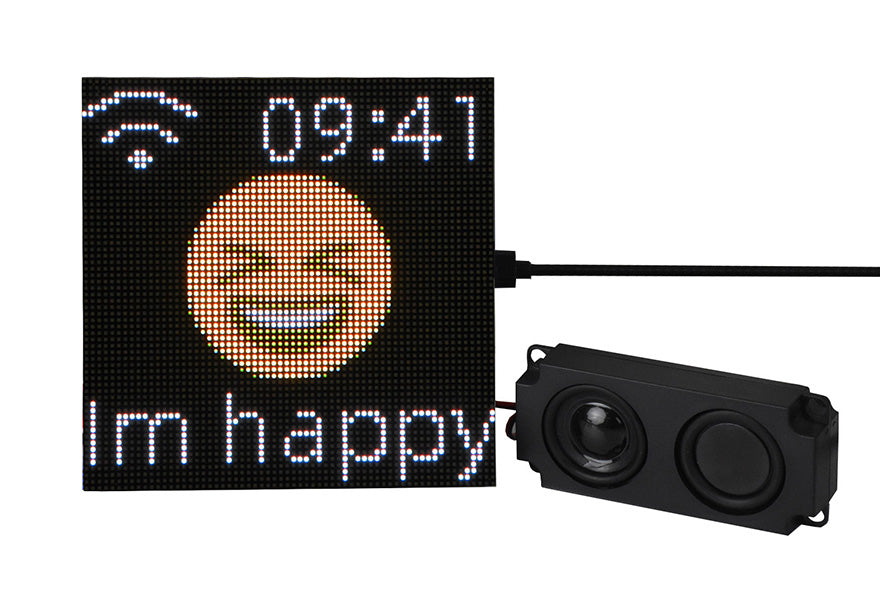

ESP32-S3-RGB-Matrix Development Board, supports AI voice interaction

supports ESP-IDF, Arduino, LVGL GUI development

Comprehensive SDK, dev resources, tutorials to help you easily get started

ESP32-S3-RGB-Matrix Development Board supports ESP-IDF ESP32-S3-RGB-Matrix Development Board supports Arduino ESP32-S3-RGB-Matrix Development Board supports LVGL GUI development

Application Examples

ESP32-S3-RGB-Matrix Development Board application examples 1

ESP32-S3-RGB-Matrix Development Board application examples 2

* for reference only, please refer to the package content for the detailed part list.

Wiring Examples

ESP32-S3-RGB-Matrix Development Board wiring examples

What's On Board

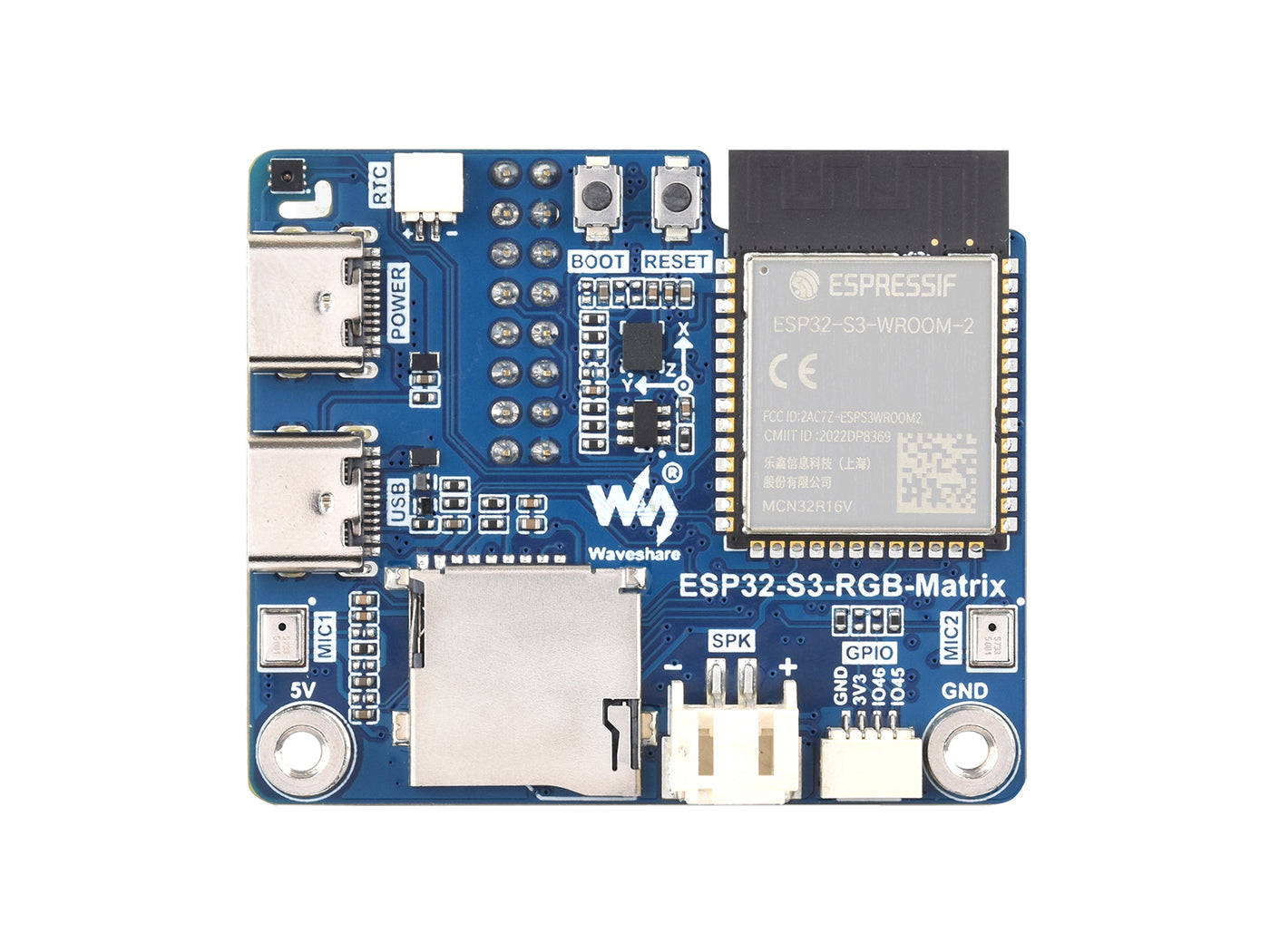

ESP32-S3-RGB-Matrix Development Board onboard components
  1. ESP32-S3-N32R16
    The SoC with WiFi and Bluetooth, up to 240MHz operating frequency
  2. QMI8658
    QST 6-axis sensor (3-axis accelerometer, 3-axis gyroscope)
  3. RTC batt connector
    SH1.0 female header
  4. SHTC3
    High-precision temperature and humidity sensor
  5. Type-C power supply port
  6. USB Type-C port
    Supports power supply, program download, and debugging
  7. TF card slot
    Supports external TF card
  1. Speaker header
  2. Dual microphones
  3. 5V power output
    power supply output for LED matrix panels
  4. BOOT button
  5. RESET button
  6. GPIO expansion header
    for peripheral expansion and customization
  7. SN74HC245
    Octal bus transceiver with 3-State outputs
  8. ES8311
    Low-power mono audio codec chip
  9. ES7210
    Audio decoder IC

outline dimensions
ESP32-S3-RGB-Matrix Development Board outline dimensions
Resources & Services
Wiki: docs.waveshare.com/ESP32-S3-RGB-Matrix

Weight: 0.084 kg

Quick Overview

  1. ESP32-S3-RGB-Matrix x1
  2. 8Ī© 5W speaker x1
  3. SH1.0 4pin cable ~100mm x1
  4. Screws pack x1
1ESP32-S3-RGB-Matrix
2
3
4
What is this board designed to do?
It is a high performance development board for HUB75 RGB matrix panels and AI voice applications. It runs on the ESP32-S3 LX7 dual core processor at up to 240 MHz and includes a dual microphone array.
What wireless connections does it support?
It supports 2.4 GHz WiFi (802.11 b/g/n) and Bluetooth 5 LE for wireless connectivity.
How much memory and storage are onboard?
The board includes 512 KB SRAM, 384 KB ROM, and onboard 32 MB Flash with 16 MB PSRAM.
What audio and voice features are included?
There is a dual microphone array, an ES7210 echo cancellation chip, and an ES8311 low power audio codec for input and output.
Is it compatible with Waveshare RGB matrix panels and LVGL?
Yes, it is compatible with Waveshare RGB matrix panels and can smoothly run LVGL graphical interfaces.
A
Admin
Welcome to the discussion thread for ESP32-S3 RGB Matrix Driver Board with Dual Microphones and AI Voice
Feel free to ask questions, share tips or report issues.
Add Post

For more discussion Click Here
