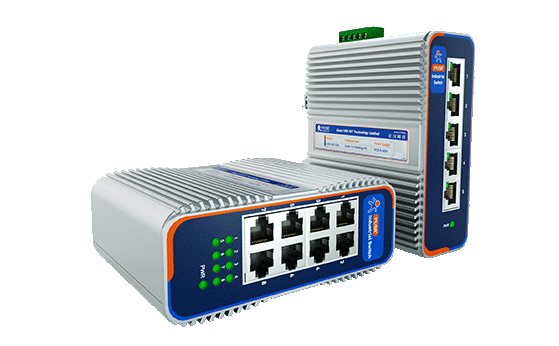

USR-ISF series switches have 5/8/16 ports and optical ports (SFP slots), and PoE combinations. Compatible with 10/100/1000Mbps speed, the product adopts fan-less heat dissipation design, with -40°C~85°C operating temperature, small size, metal shell, with IP40 protection grade.
Plug & play, IP40 Protection, Extreme Temperature, Compact Size

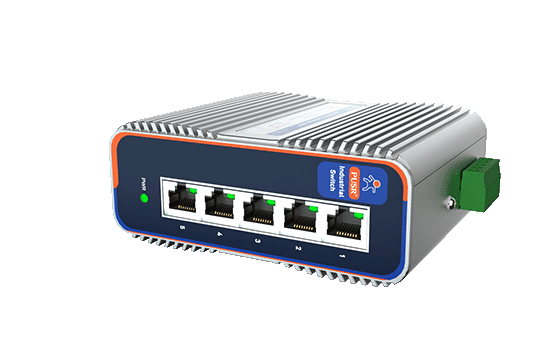

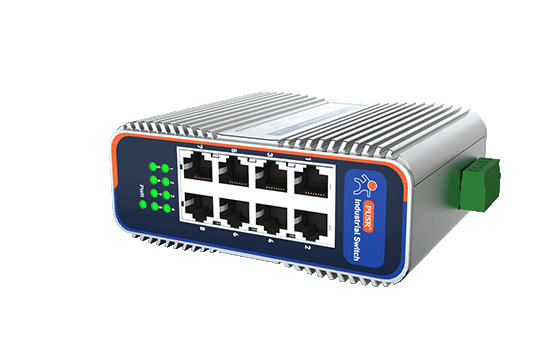

USR-ISF series are 5/8 ports 100/1000M unmanaged industrial Ethernet switches. For hardware, the switches adopt dual power, finless, wide temperature and voltage design, and has passed rigorous industrial standard tests, which can suit for the industrial scene environment. It can be widely used in smart city, rail transit, security surveillance, new energy, and other industrial fields.
Extreme Temperature, -40℃~+85℃
Redundant Power Supply, DC 9.6-60V Range
Industrial Grade Quality, Lighting Protection 6KV
Aluminum Housing, Effective Cooling
Dustproof Design, IP40 Protection
Din-Rail Mounting, Easy to Installation
Compact Size, Save Your Space
PUSR offers a range of industrial-grade Ethernet switches to choose from.
PUSR industrial switches adopts aluminum housing which can realize effective cooling without fan and operate more quietly. With DIN rail mounting design, it can be installed on the DIN-rail, which is simple and convenient.
A wide operating temperature range of -40 ~ +85° C (-40° ~167° F) allows for installations in harsh environments with extreme hot or cold conditions.
With industrial lightning protection component for both power supply and network interface, the switches can effectively prevent the device from being damaged by lightning.
This series switches features with its dual power which can ensure the uninterrupted running of the device.
Reverse connect protection: Support positive and negative reverse connection protection.
Surge protection: Through 6KV common mode surge impact test, improving the port protection performance
Short circuit protection: When a short circuit occurs, the power supply can be quickly cut off to avoid other accidents
Support IEEE 802.3af/at standard, the maximum PoE power for single port is up to 30W. It can be compatible with various devices like IP camera, AP and etc.
Based on ERPS protocol, the ring network can realize carrier-class ultra-fast self-healing when the link fails and meet the needs of service element residual protection.
Note: Different models have different network management functions. For details, see ordering guide.
Energy Storage
Automated Industry
Traffic Monitoring
Renewable Energy
Smart Port
Intelligent Water Conservancy
| Model | USR-ISF1005 | USR-ISF1008 | USR-ISG1005 | USR-ISG1008 |
|---|---|---|---|---|
| Switch Property | ||||
| Backplane bandwidth | 1G | 1.6G | 10G | 16G |
| Transmission mode | Store and forward | Store and forward | Store and forward | Store and forward |
| MAC address | 2K | 2K | 2K | 4K |
| Packet Buffer Size | 768 Kbits | 768 Kbits | 1 Mbits | 1 Mbits |
| Ethernet Ports | ||||
| No. | 5 x 10/100Mbps | 8 x 10/100Mbps | 5 x 10/100/1000Mbps | 8 x 10/100/1000Mbps |
| Interface | RJ45 ports, auto MDI/MDIX, auto negotiation | |||
| Network Media (Cable) | UTP Category 5 cable | |||
| Standards |
|
|||
| Power Supply | ||||
| Connector | 1 removable 5-pin terminal blocks | |||
| Input voltage | DC 9.6-60V | |||
| Power consumption | <5W | |||
| Overload Current Protection | Supported | |||
| Anti-reverse connection protection | Supported | |||
| Physical Characteristics | ||||
| Installation | DIN-rail mounting, desktop | |||
| Housing | IP40 protection, aluminum | |||
| Dimension | 118*96*47.5 mm | |||
| Weight | 430g | |||
| Environmental Limit | ||||
| Operating temperature | -40~+85℃ | |||
| Storage temperature | -40~+85℃ | |||
| Relative humidity | 5% to 95% (non-condensing) | |||
| EMC | ||||
| ESD | IEC 61000-4-2 (ESD), Level 3 | |||
| Air discharge | ±8kV | |||
| Contact discharge | ±6kV | |||
| EFT | IEC 61000-4-4 (EFT), Level 3 | |||
| Surge | IEC 61000-4-5 (Surge), Level 3 | |||
| Certification | CE: Supported | |||
Documents
| [User Manual] Industrial Switch USR-ISG1005 SG1008 ISF1005 ISF1008 User Guide | Download >> |
| [Specification] USR-DRISGX424-SFP-spec-V1.0.0 | Download >> |
| [Specifications] Series Switch Specifications USR-ISG005-ISG008-008P-ISG016 | Download >> |
| [Certificates]USR-ISG008P_FCC_AT78231EC200204 | Download >> |
| [Certificates]USR-ISG008P_CE_AT78231EC200205 | Download >> |
| [Certificates]USR-ISG008P-RoHS-CS_AT78301RC200272 | Download >> |
