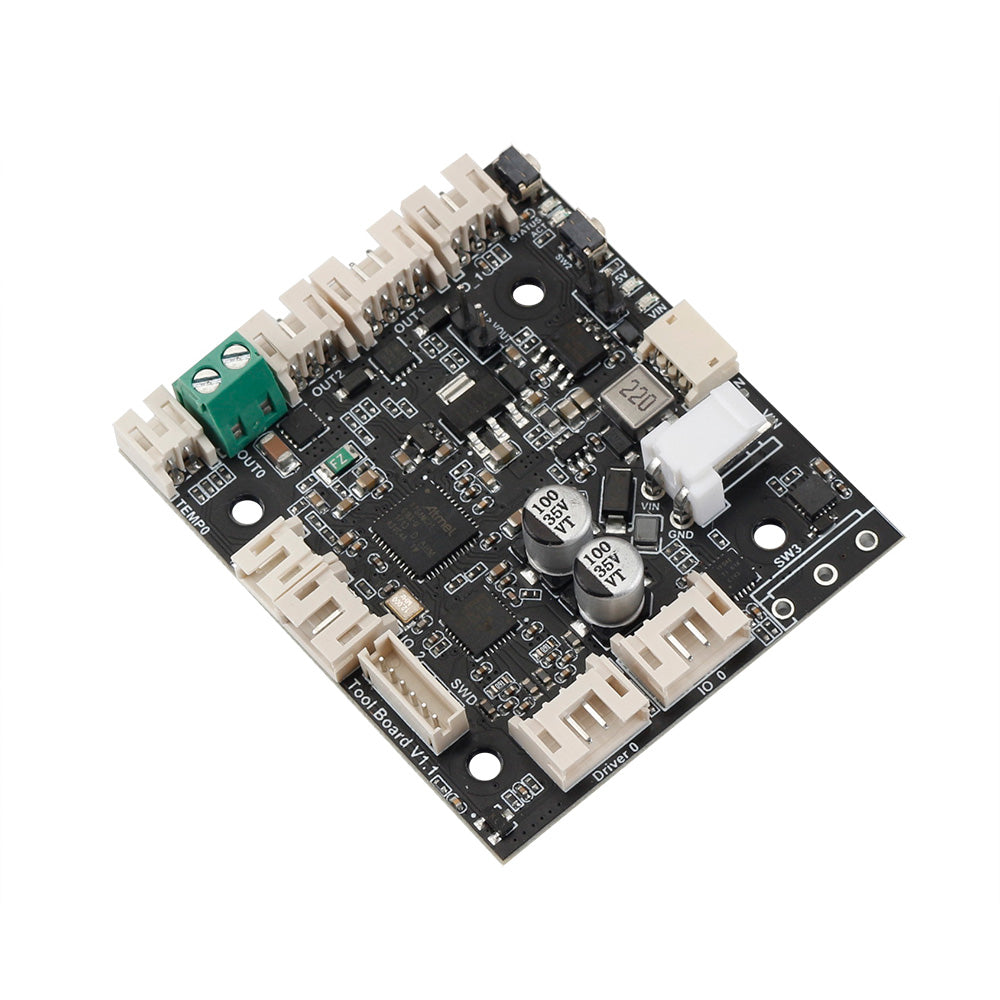

The Clone Duet 3 Tool board is a CAN-FD connected expansion board for the Duet 3 Mainboard that is designed to provide complete control for a direct drive extruder, associated fans, filament sensor and probe. The mounting holes and connector locations match an e3d Hermera, however it can be used with other direct drive extruders with suitable brackets. The stepper motor, heater, temperature sensor, fans and optionally Z probe and filament monitor all connect to the Duet 3 Tool board, leaving only CAN-FD and power wires to run back to the Duet 3 Mainboard or Tool Distribution Board.
Choose the 4 tool boards with a Duet 3 Tool Distribution board bundle for a reduced price, perfect for tool changers. The bundle option comes with connector packs for the tool boards and Duet 3 Tool Distribution board included as standard

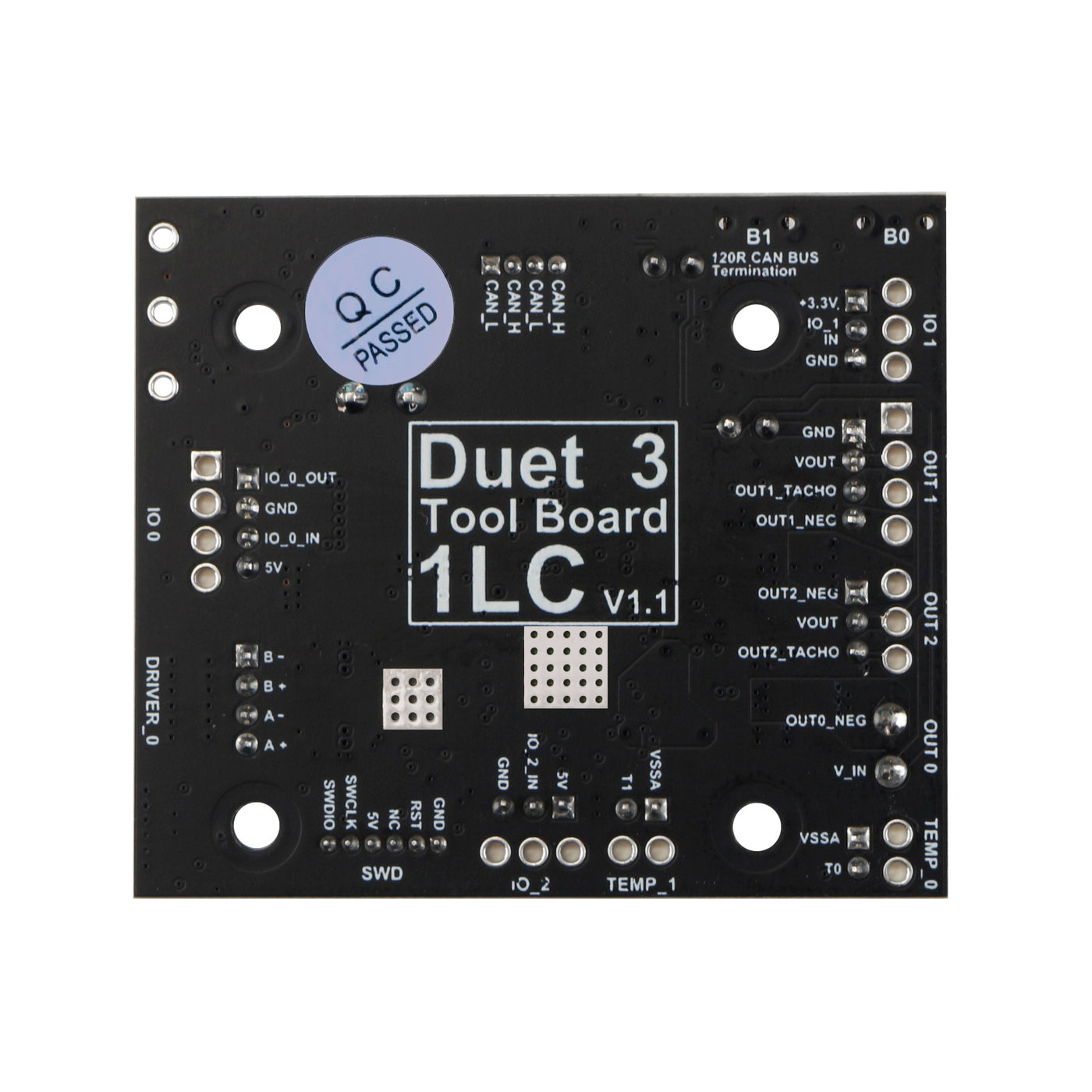

Features:

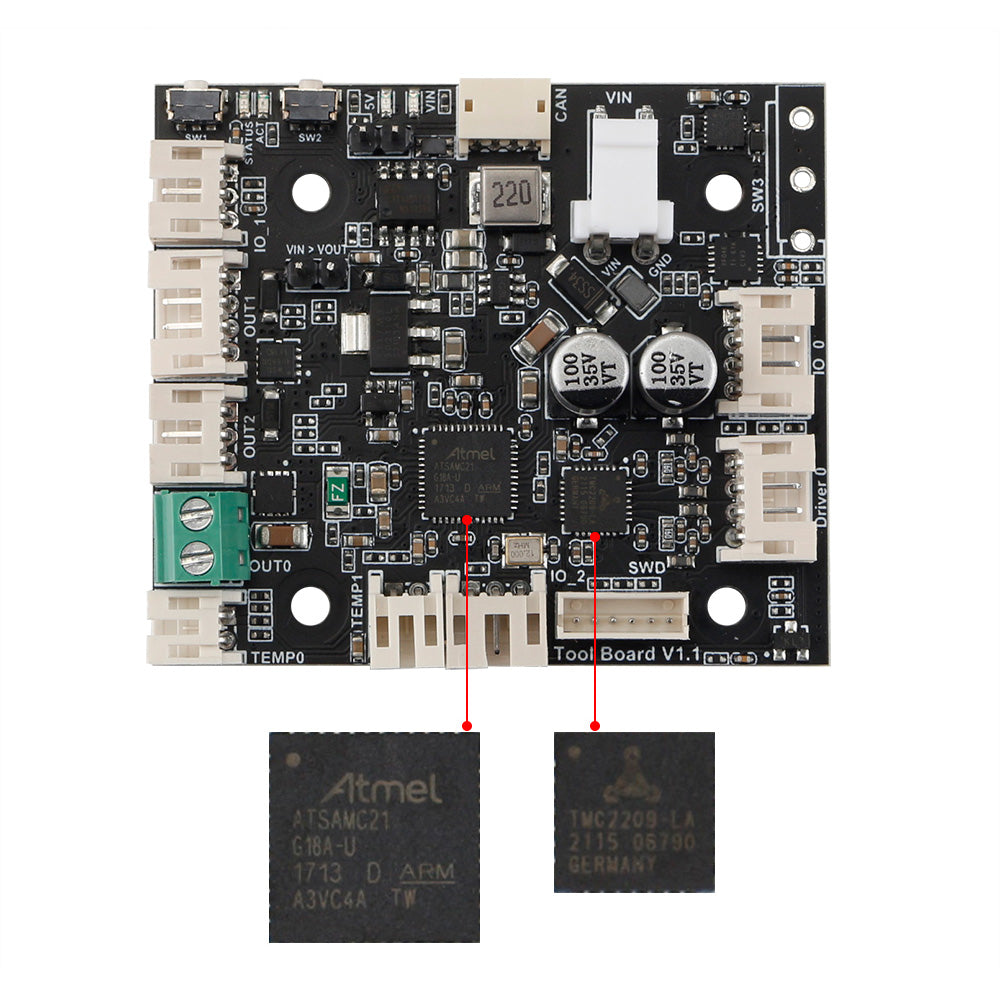

ARM Cortex M0+ processor running at 48MHz
One TMC2209 stepper driver with stall detection and stealthChop. Maximum output current 1.6A peak, 1.1A RMS
One medium current output intended for extruder heater, maximum current 5A
One 3-wire 12V fan output (also accept 2-wire fan)
One 4-wire 12V fan output (also accepts 2-wire fan)
Two thermistor or PT1000 inputs. One uses a 16-bit ADC for high resolution reading of PT1000 sensors.
One 3-pin filament monitor connector
One Z-probe connector
Two push buttons and indication LEDs
12 to 32V power input
On-board 12V, 5V and 3.3V regulators
CAN-FD interconnect to main controller board and other Toolboards or expansion boards

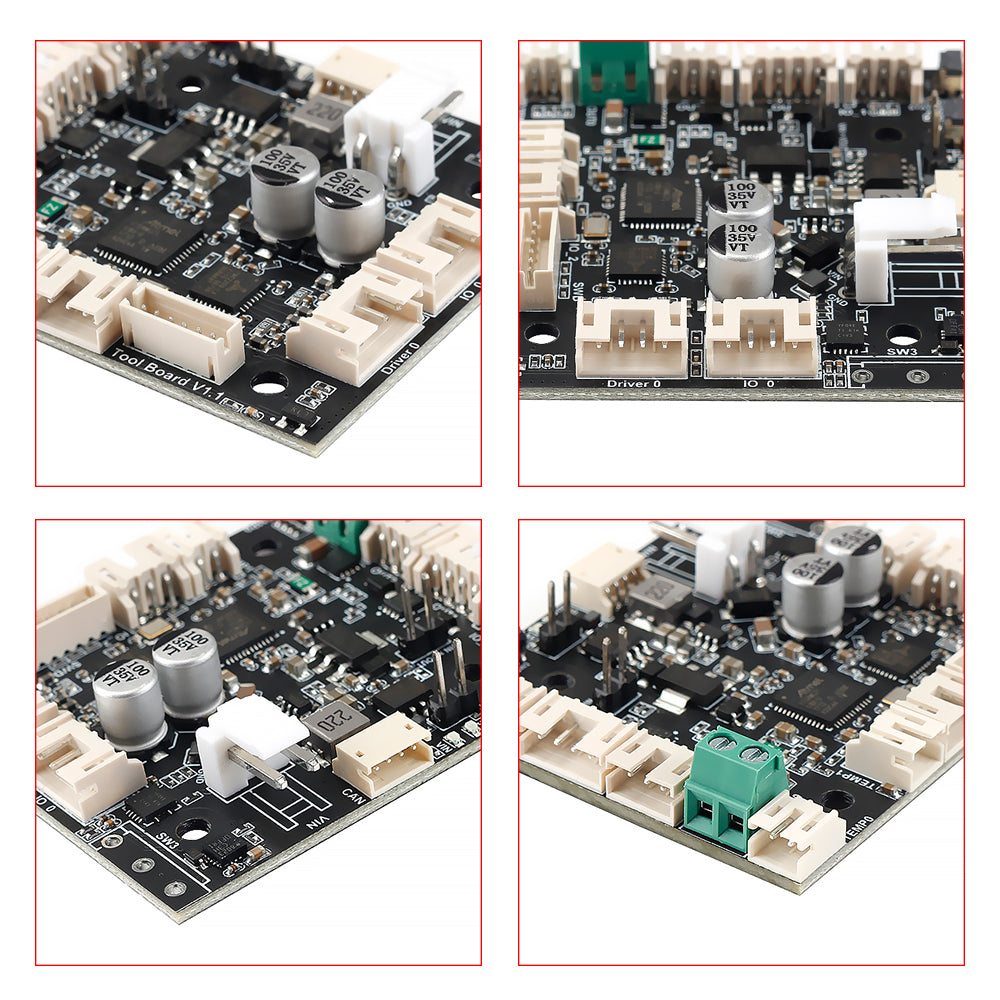

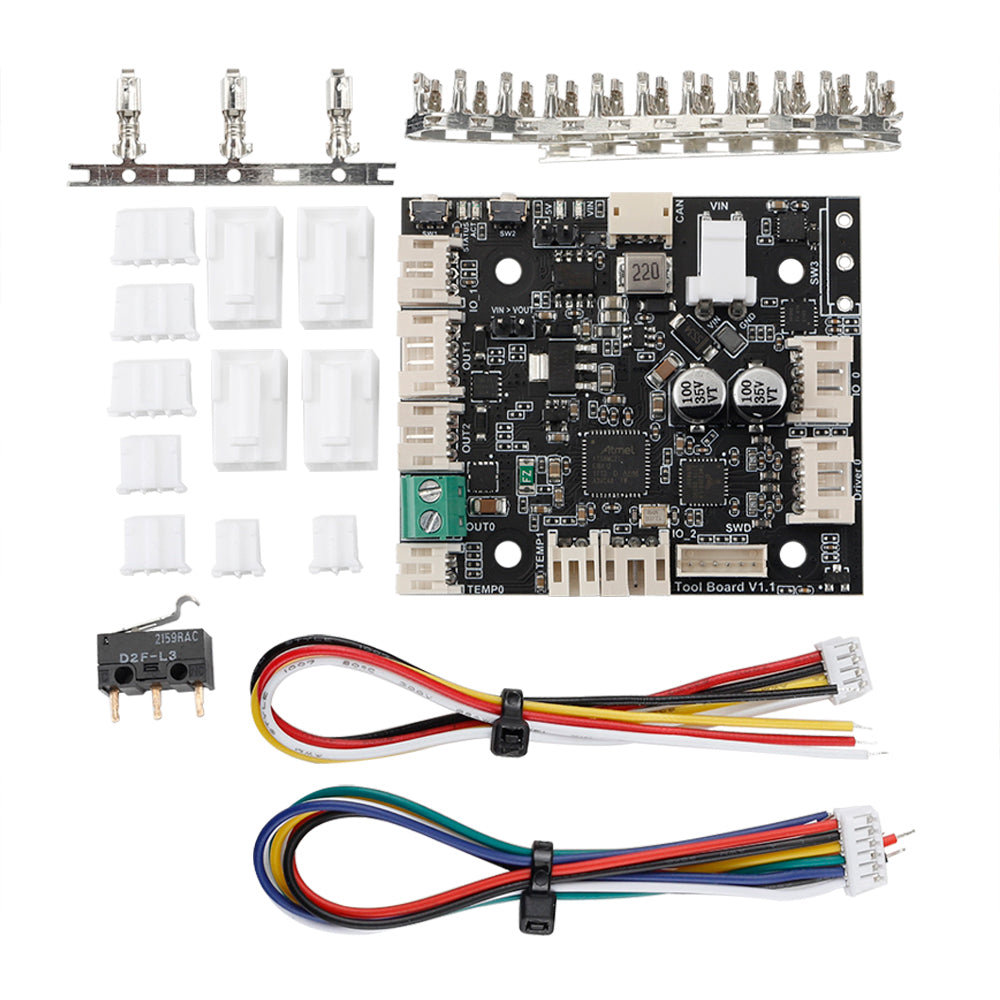

The Toolboard has an optional connector pack which includes the following:
