Makerbase MKS TFT32 3.2inch Controller Display

SKU: 3D8014

ā‚¹ 3,999.99 ā‚¹ 5,499.99

Out of stock

šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Makerbase MKS TFT32 3.2inch Controller Displayā‚¹ 3,999.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

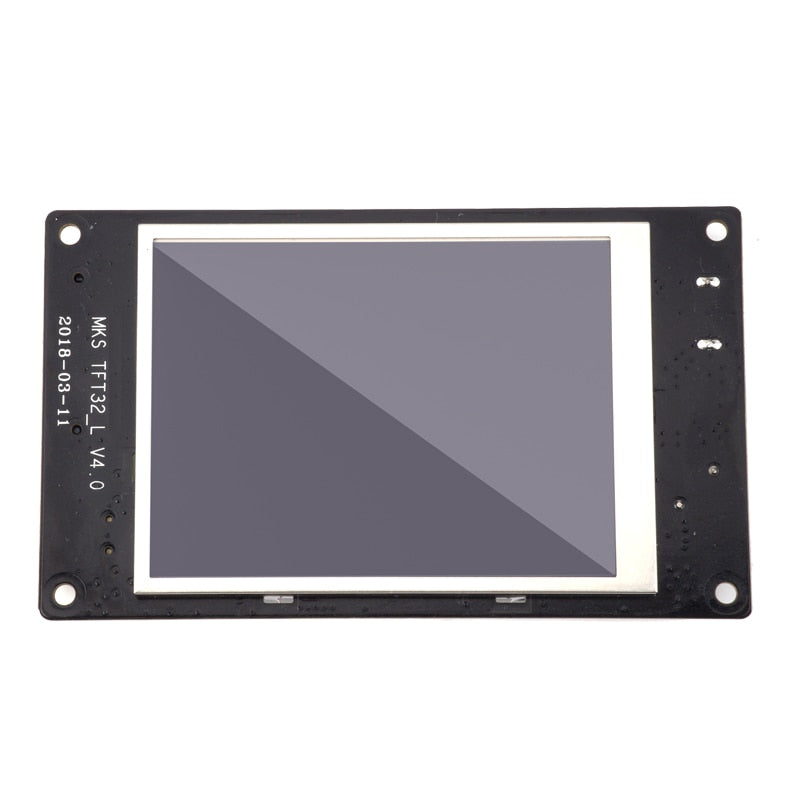

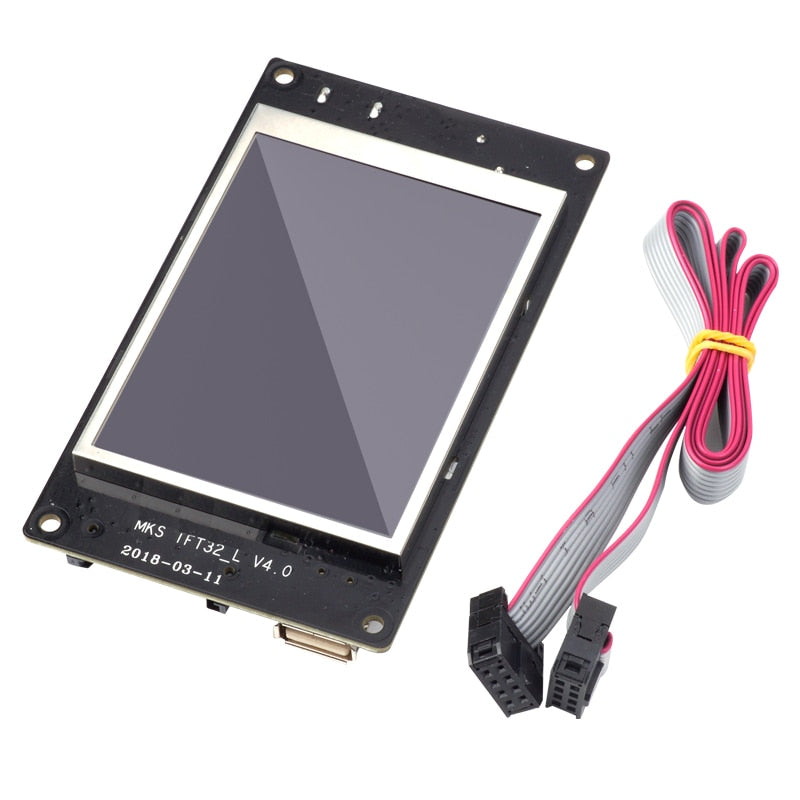

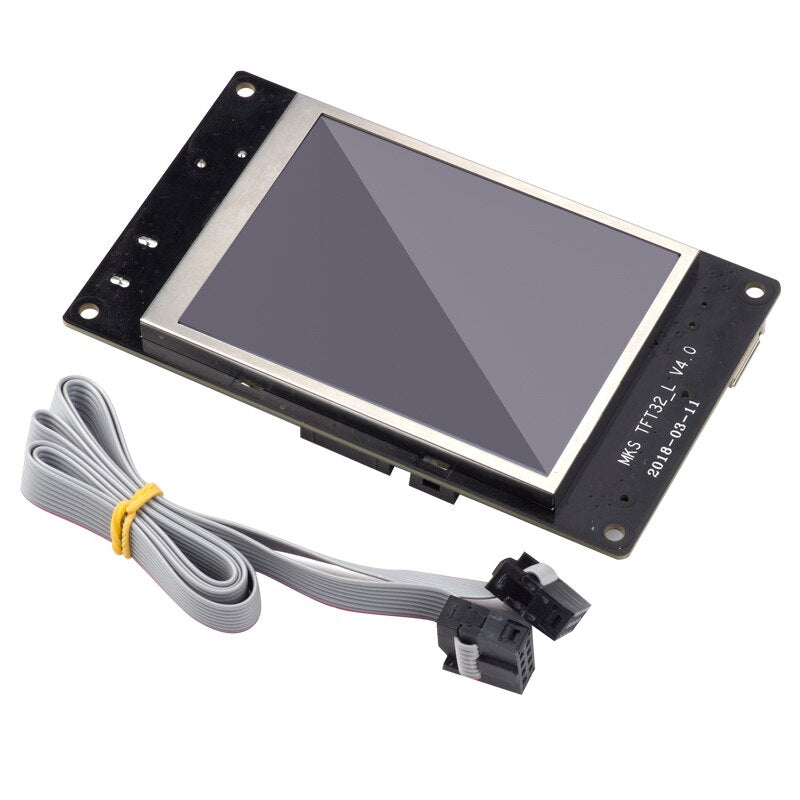

MKS TFT32 is an independent color touch product developed for maker base , which is suitable for open source 3D printers. It can be used in a series of motherboards such as MKS Base, MKS Gen, MKS Sbase and so on.

But canā€™t work with Ramps1.4.

FeaturesĀ­ļ¼š

  1. Support 5 Languages Online switching.

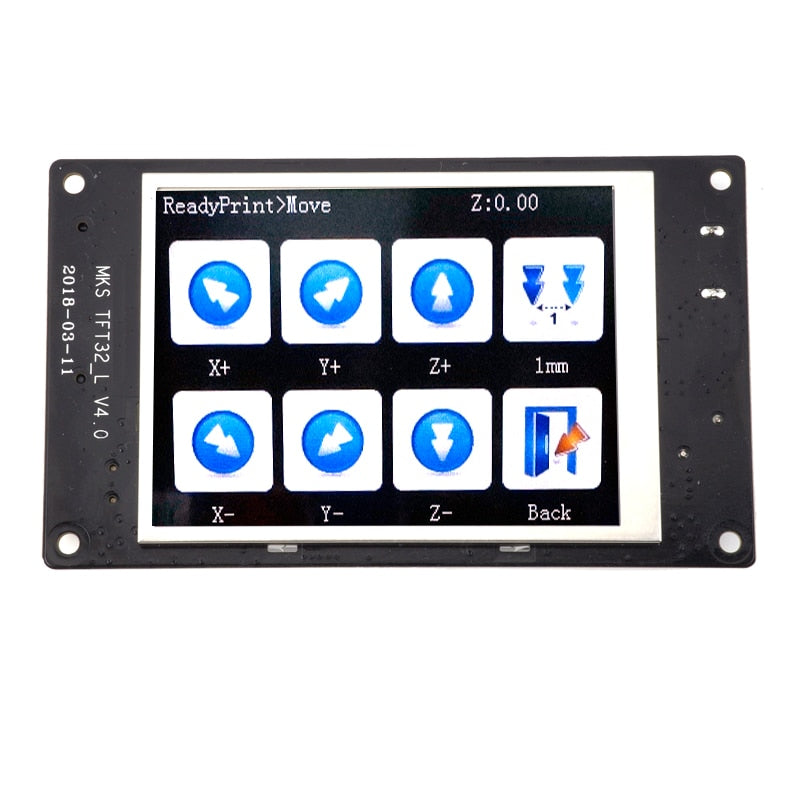

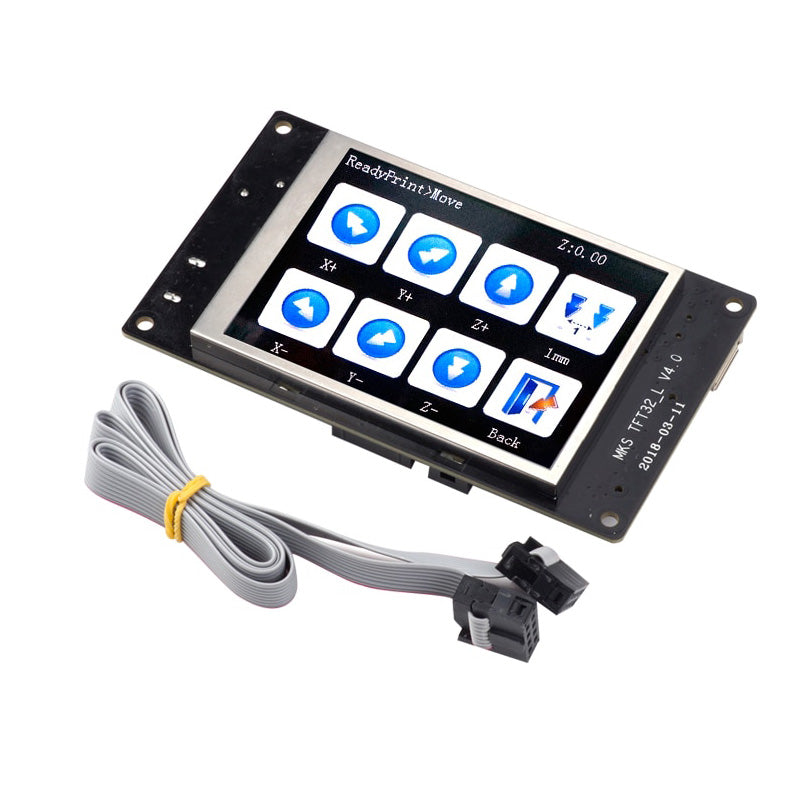

  2. 3.2-inch color touch screen, supports SD card
  3. Reserve Wifi port, increase Wifi module can support Wifi function;
  4. Provide three themes, two styles, so that users can choose more.
  5. Boot logo and all buttons can be self designed.
  6. A maximum of 13 directive functions can be customized.
  7. Upgrade configuration firmware by sd card, simple and convenient operation.
  8. The main control program does not need to be modified, the baud rate is consistent, plug and play,
    support Marlin, Repetier, Smoothieware firmware;
  9. Can be used on the MKS series motherboards introduced by Maker base.
  10. Support multiple functions,such as Breakpoints recovery function, filament detecting function,save theĀ gcode data with power off function.
  11. Can support all Chinese Gcode printing (MKS-TFT28 touch screen version 1.3 or MKS-TFT28 touch screenĀ version 1.1 and firmware version 1.2 and above)

Which MKS boards is this display compatible with and can it work with Ramps1.4?
It is compatible with MKS Base, MKS Gen, MKS Sbase and other Makerbase motherboards; it cannot work with Ramps1.4.
Does the display support wifi and how can I upgrade the firmware?
The unit has a reserved wifi port and can use an optional wifi module to enable wifi; firmware can be upgraded via an SD card without modifying the main program.
Can I customize the boot logo and interface appearance?
Yes, the boot logo and all buttons can be self designed, and you can choose from three themes and two styles.
Which firmware types are supported and is any modification to the main program required?
It supports Marlin, Repetier, and Smoothieware firmware; the main control program does not need to be modified and baud rate remains consistent.
What additional features does the display offer for reliability and convenience?
It offers breakpoint recovery, filament detection, and the ability to save gcode data when power is off.
