Clone PanelDue 5i and PanelDue 7i

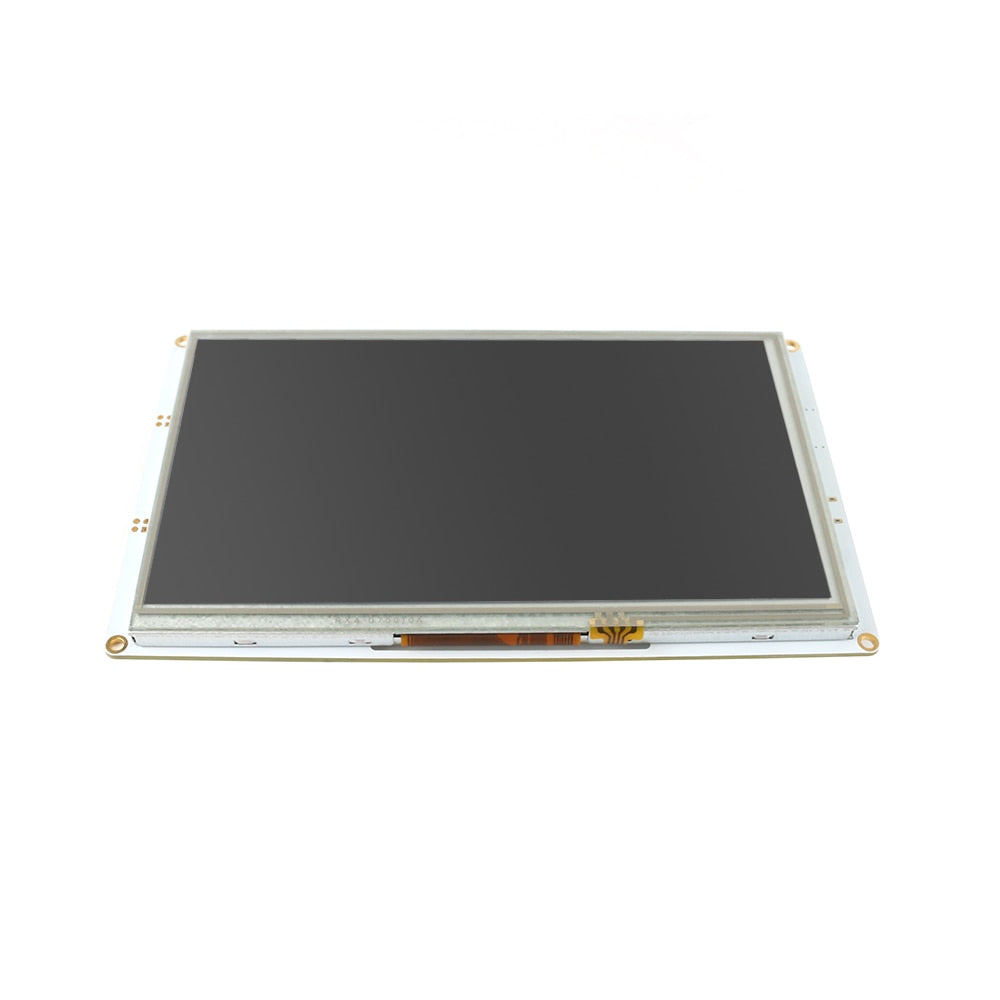

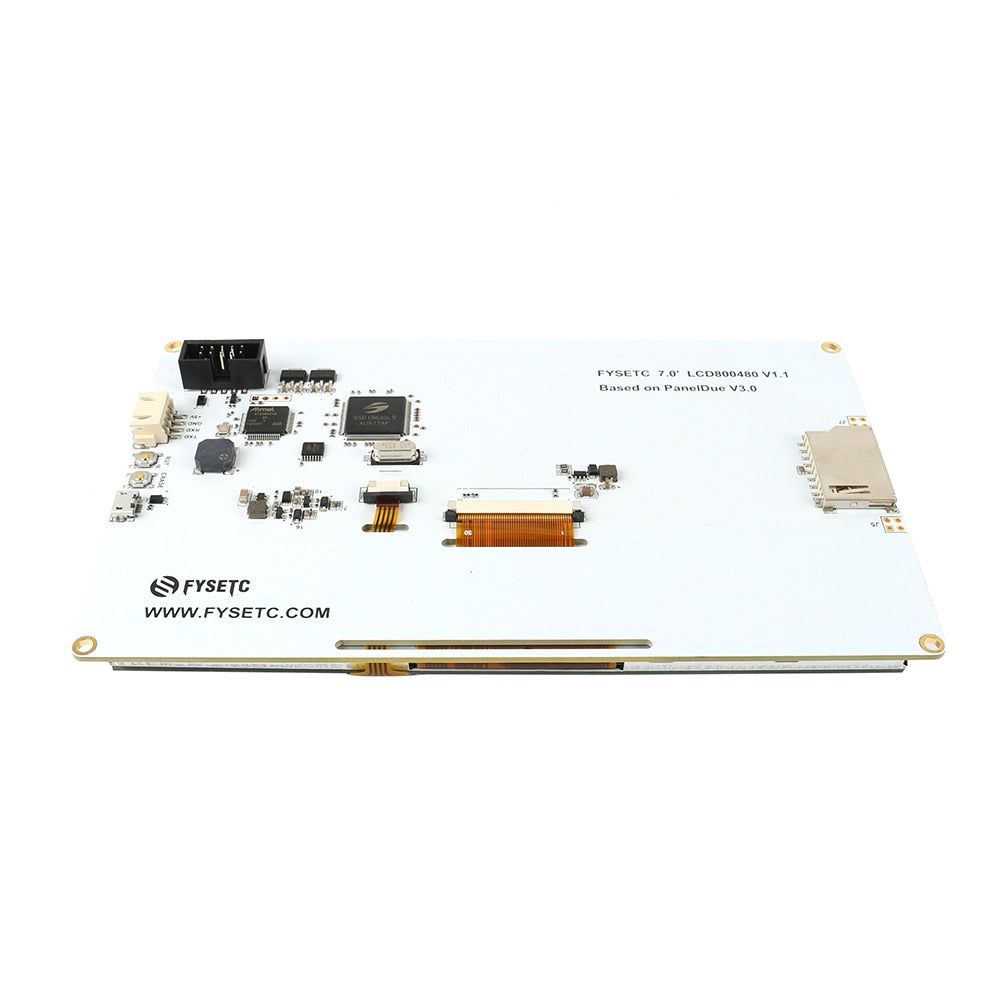

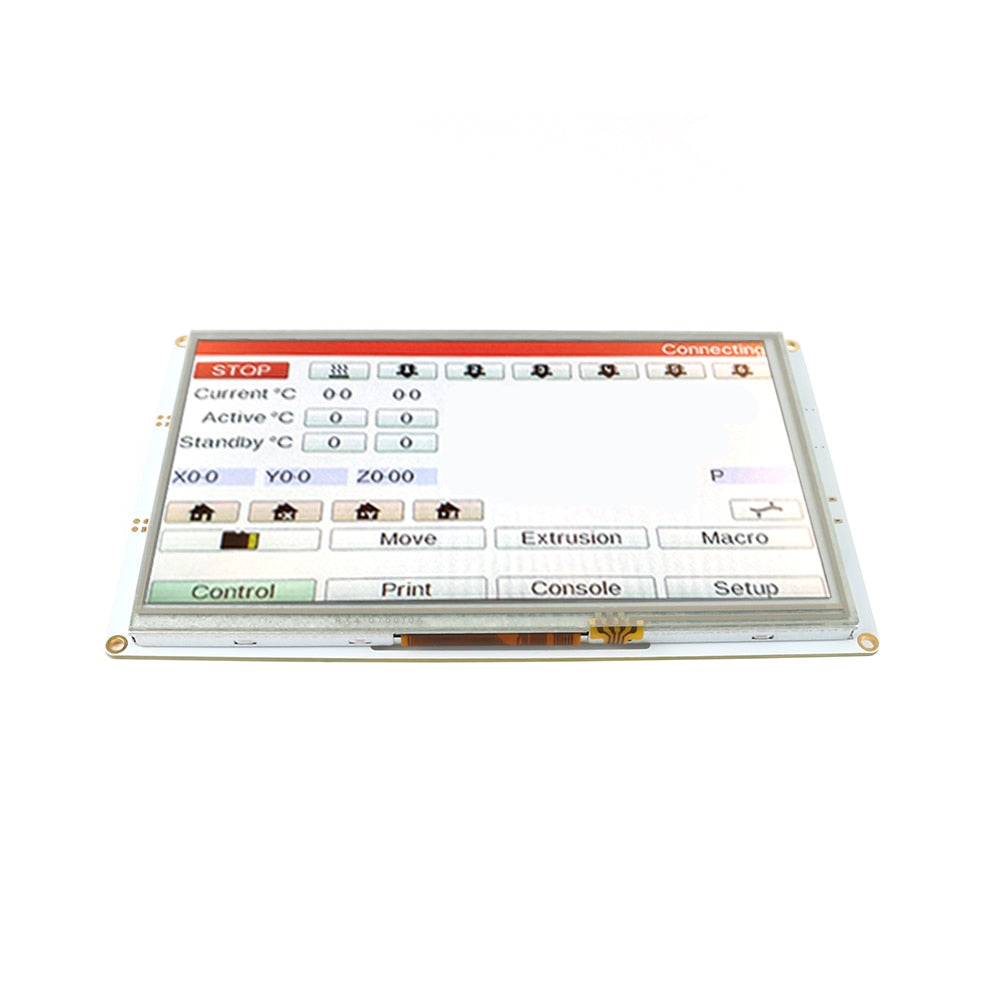

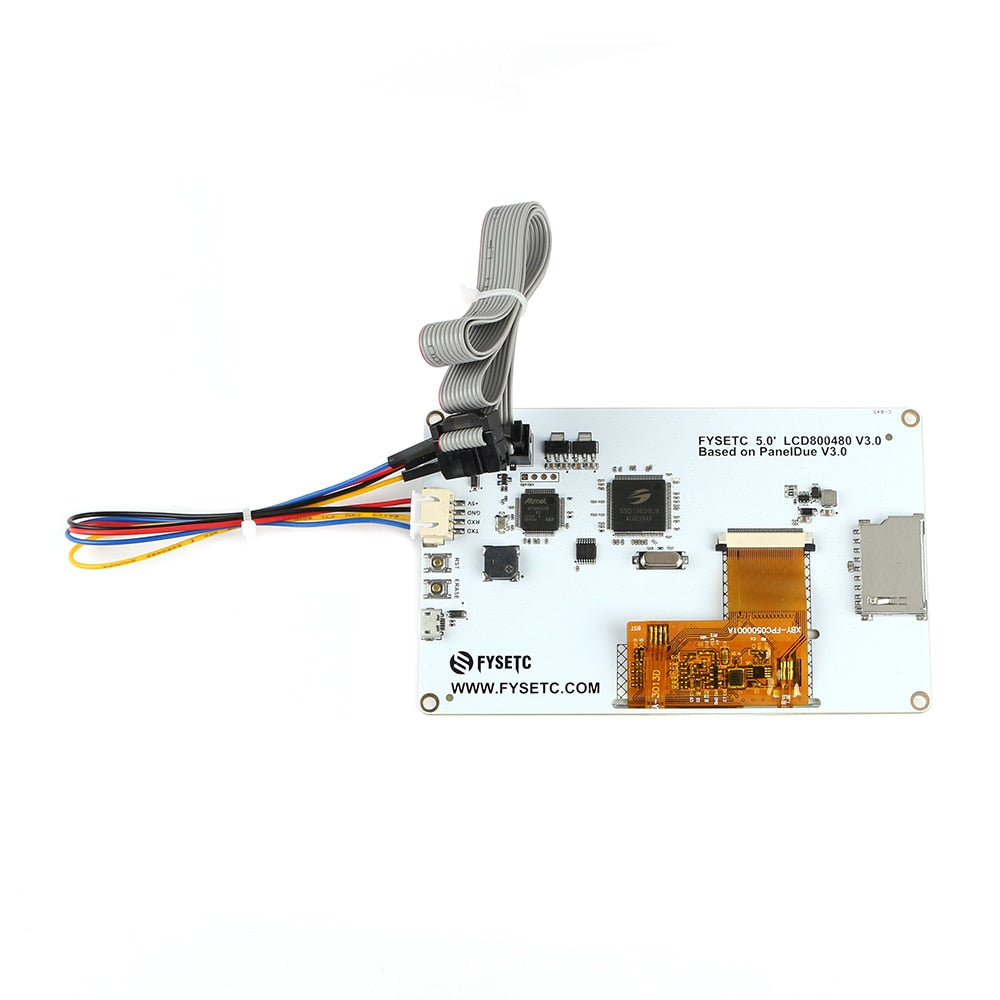

The Clone PanelDue 5i and 7i are colour touch screen controllers for the Duet and other 3D-printing electronics that support it. This integrated version is a custom-made high-quality 5 inch or 7 inch TFT LCD panel from a leading manufacturer, with the PanelDue controller by David Crocker integrated on the LCD's PCB. Features:-

Resolution of 800×480 pixels on a 5 inch or 7 inch LCD.
5V power from host 3D printer controller.
2-wire async serial interface with 3.3V signal level (5V tolerant input).

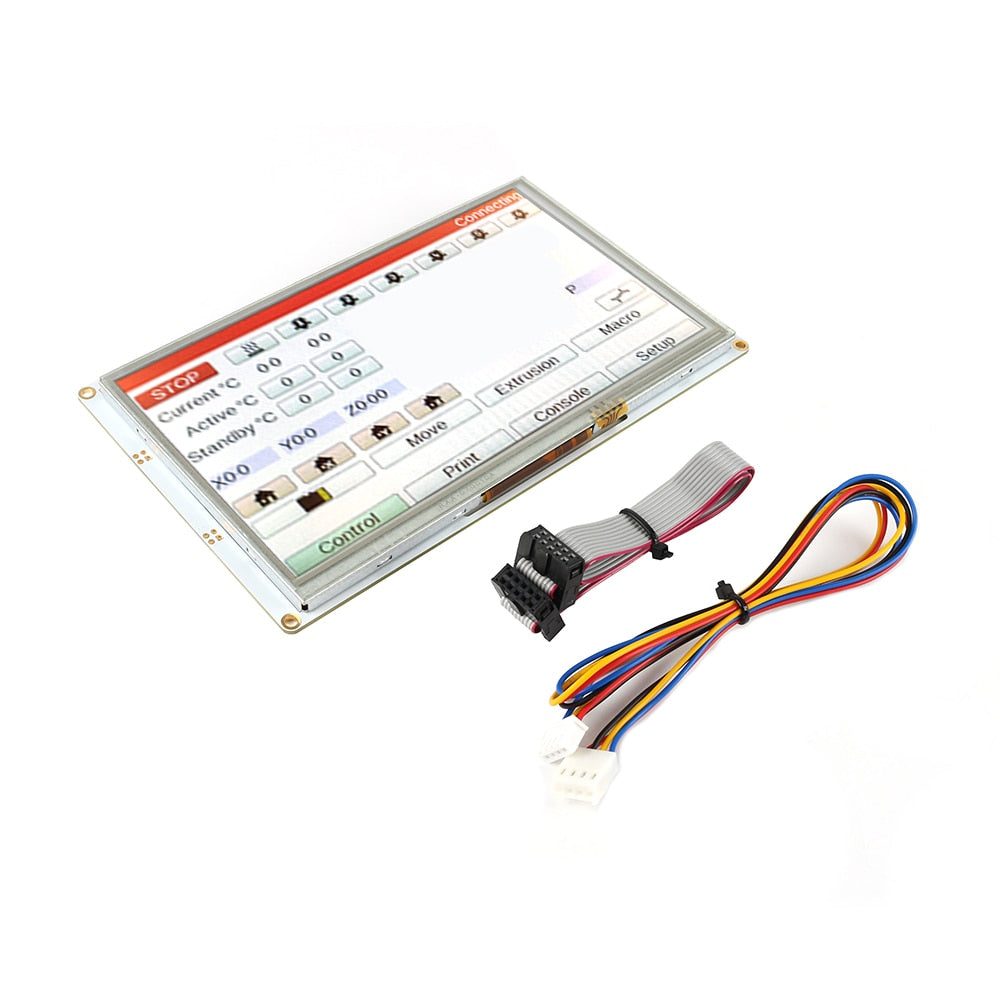

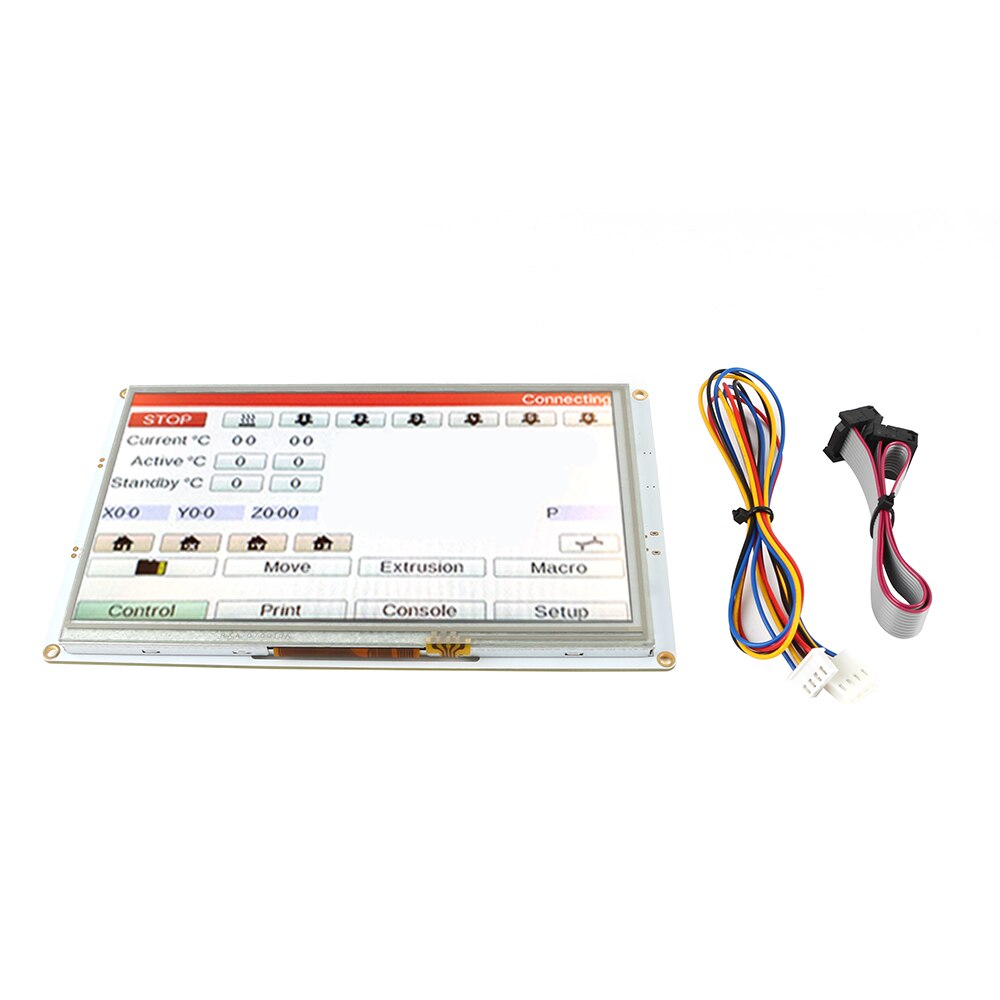

Connections to the onboard micro SD card socket as well as the PanelDue serial and power connections are all available via a 10-way ribbon cable. A 300mm long ribbon cable (maximum recommended length) is supplied.

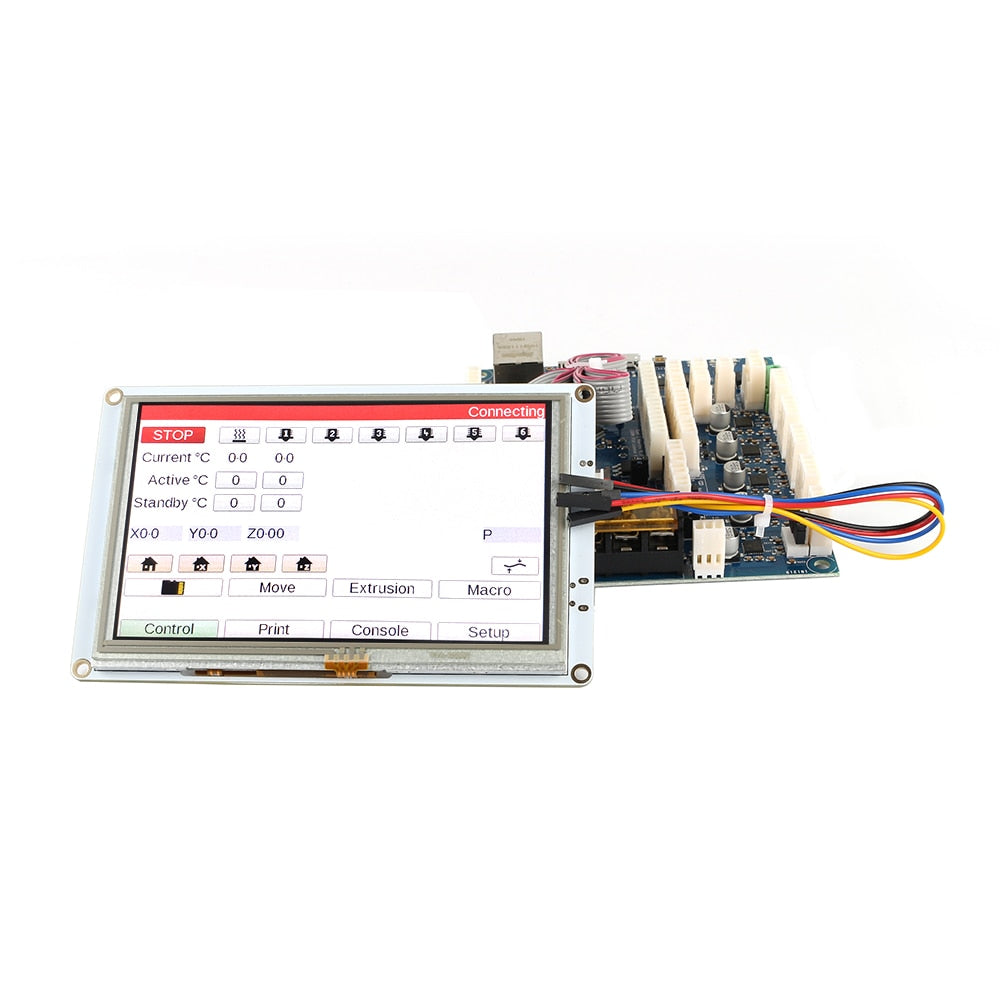

4-wire cable to connect the PanelDue to your controller board for the serial and power connections. This cable is also supplied (1m long)

There is an overview of connecting a PanelDue in the documentation.

What screen sizes and resolution are available?

The unit is available as a 5 inch or 7 inch TFT LCD with a resolution of 800 x 480 pixels.

How is the panel powered and connected to the printer controller?

It is powered by 5V from the host 3D printer controller and uses a 2 wire async serial interface with 3.3V signal levels (5V tolerant input). Connections to the onboard micro SD and PanelDue serial and power are via a 10 way ribbon cable.

What cables are included and how long are they?

A 300 mm ribbon cable is supplied for the PanelDue connections and a 1 m long 4 wire cable is supplied for serial and power connections.

Is this compatible with Duet and other supported electronics?

Yes, it is designed for the Duet and other 3D printing electronics that support PanelDue, with the PanelDue controller integrated on the LCD PCB.

Where can I find installation guidance and documentation?

Documentation includes an overview of connecting a PanelDue and provides guidance on installation and setup.
