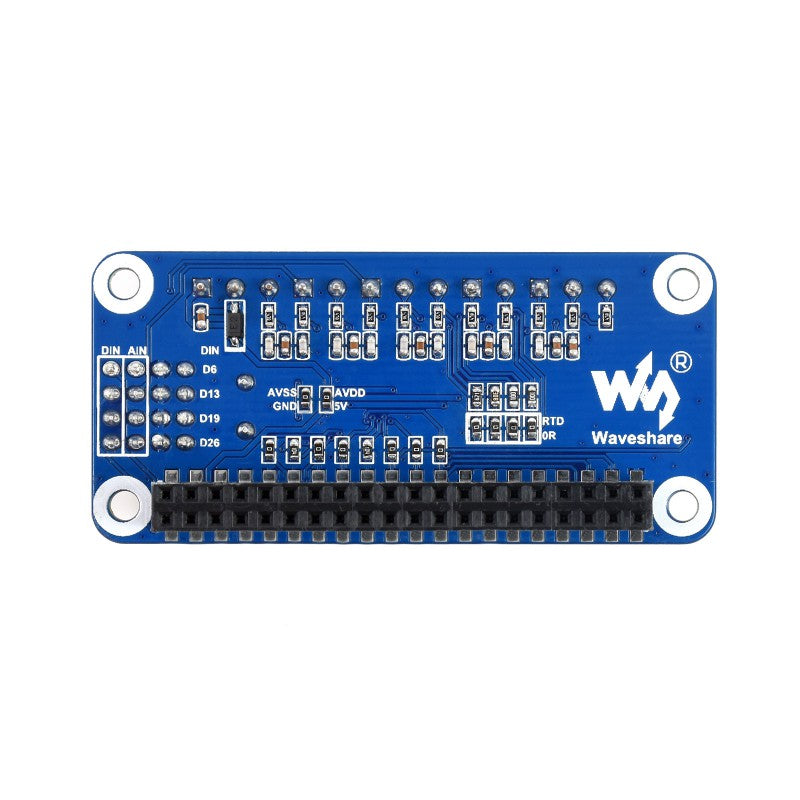

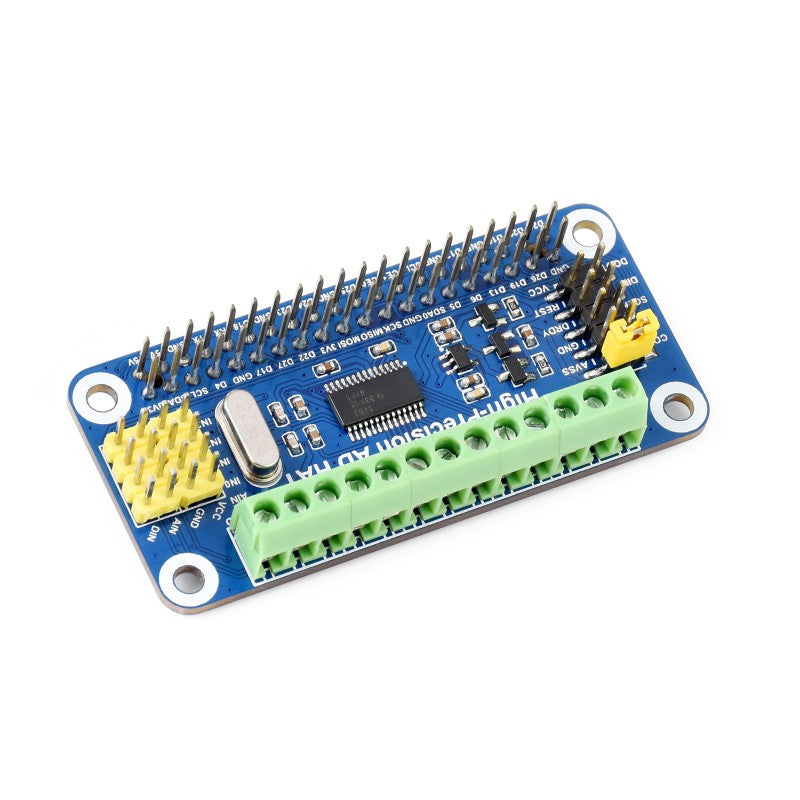

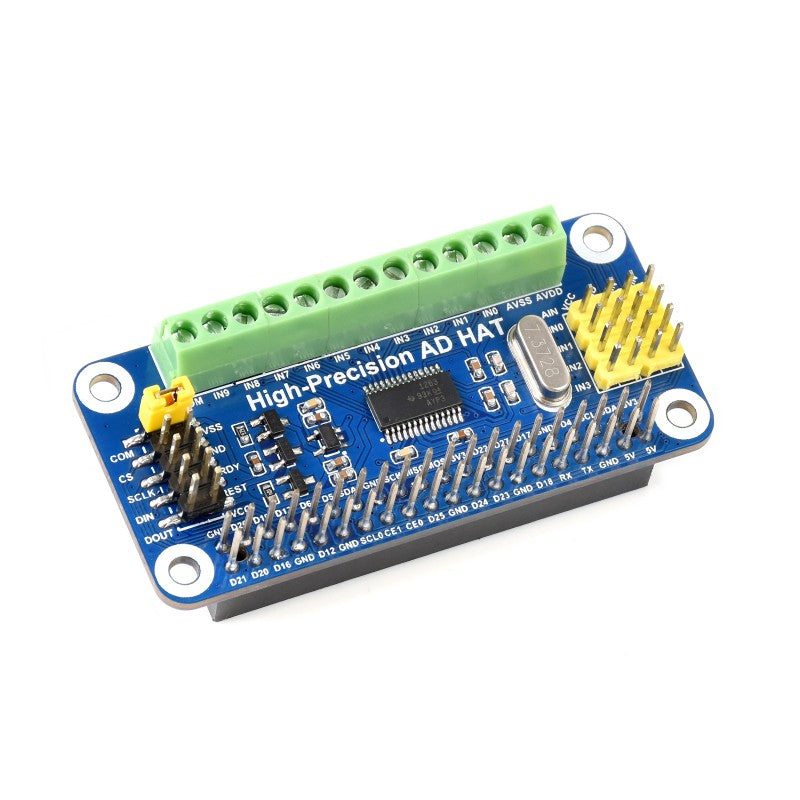

High-Precision AD HAT For Raspberry Pi
High-Precision AD HAT For Raspberry Pi, ADS1263 10-Ch 32-Bit ADC
Compatible With Raspberry Pi Series And Jetson Nano
Features:
Adopts ADS1263 chip, low noise, low temperature drift, 10-ch 32-bit high precision ADC (5-ch differential input), 38.4kSPS Max sampling rate with embedded 24-bit auxiliary ADC, internal ADC test signal, IDAC, 2.5V internal reference voltage, 8x multiplexing GPIO, PGA (32 times Max)
Onboard AD header input, compatible with Waveshare sensor pinout, for connecting sorts of sensor modules
Onboard AD screw terminal input, allows connecting analog signal and analog power supply, general purpose interface
Onboard control header, make it easy to control the module by other hosts in additional to Raspberry Pi
Three-wire RTD (resistor temperature detector) circuit, enabled by soldering 0R resistor
Specification
Resolution(Bits): 32
Input channels: 10
Sample rate(MAX): 38 kSPS
PGA Magnification (MAX): 32
BUS: SPI
Structure: Delta-Sigma
Input type: differential, single-end
Reference voltage: internal, external
Input voltage range (MAX): 2.5V, 5V
Input voltage range(MIN): -2.5V, 0V
Resources:
WIKI: High-Precision_AD_HAT
Package Contains:
High-Precision AD HAT x1
RPi screws pack (2PCS) x1
Weight : 23 grams
What Can It Do?
Enable High Precision AD Conversion Capability For Your Raspberry Pi or Jetson Nano
ADS1263 Onboard
10-Ch 32-Bit High Precision ADC
AD Input Headers
For Connecting Sorts Of Analog Sensor Modules, Compatible With Waveshare Sensor Pinout
AD Input Screw Terminal
For Connecting Analog Signal And Analog Power Supply, General Purpose

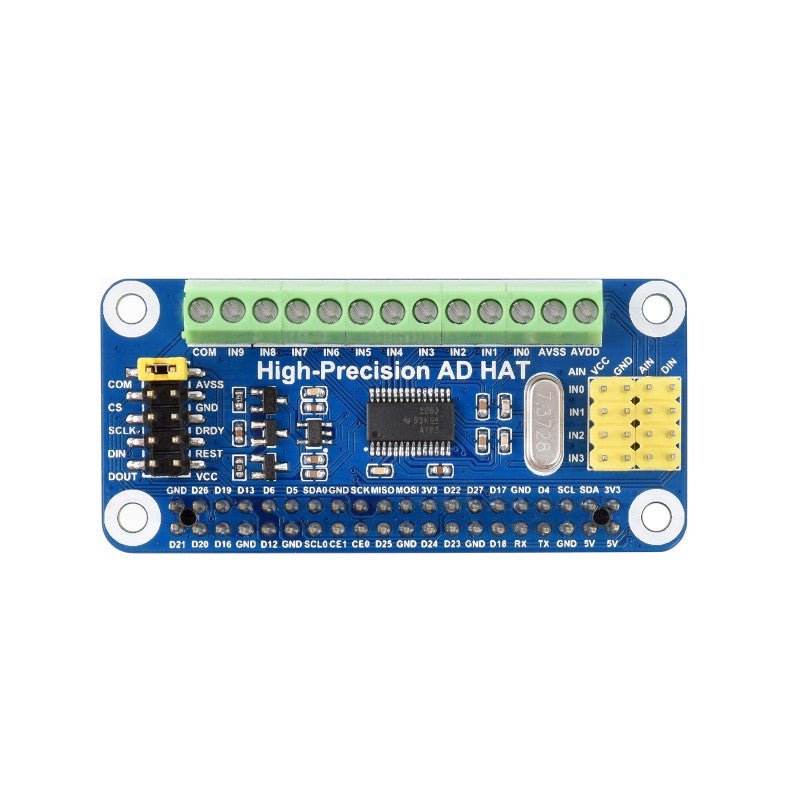

What's On Board
Raspberry Pi GPIO header for connecting Raspberry Pi
AD input (screw terminal) general purpose
AD input (header) for connecting sensor modules, Waveshare standard compliant
Control input (header) allows to be controlled by other hosts
Power configuration resistor
RTD configuration resistor
ADC ground reference configuration COM is used as negative input terminal on AD single-end input mode, connect it to GND or external reference voltage
7.3728M crystal
Power supply section
RTD section
Input filtering section
ADS1263 32-bit high precision ADC, 10-ch (5-ch differential input)
Pinout Definition
Dimensions
