Customizations are possible for this product. Prices change significantly for bulk orders.

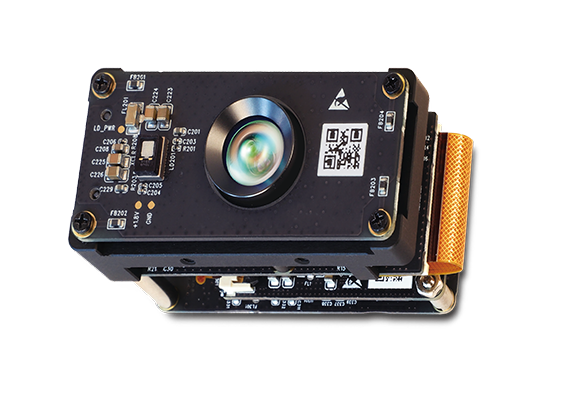

The CUBE EYE brand of time-of-flight (ToF) cameras was created by meerecompany, a South Korean company that specializes in the development and production of high-tech equipment for the display, semiconductor, and medical industries.
It is a high-performance camera capable of correctly measuring distances to objects up to 7 meters away. The camera is resistant to sunlight and can be used outside.
Cube Eye TOF 3d Camera uses a laser to emit a light pulse and then measures the time it takes for the pulse to return. Distance to the object is calculated by dividing the speed of light by the time taken for the pulse to return.
Features:
Software development kit (SDK): The software development kit (SDK) provides a variety of tools and functions for developing 3D applications.
Pre-trained models: The pre-trained models can be used to quickly and easily create 3D applications.
It has a VGA resolution of 640 x 480 pixels.
Specifications:
Operating Range 0.25 ~ 7.0m
Illuminator VCSEL 940nm, 4W x 1ea
Depth Pixel Count VGA (640 X 480)
Field of View (H,V) 90°(H) X 68°(V)
Output Data(bit) Depth / Amplitude / Point Cloud, Raw10
Accuracy <±1% by distance
Type: Heatsink Type
I200DM interface: MIPI
I200DU interface: USB
Interface:
Data Interface: MIPI CSI-2 (Option: USB Converter board)
