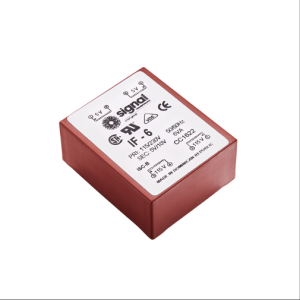

The BEL/SIGNAL TRANSFORMER PWR XFMR SEMI-TORO 6VA TH is a high-quality power transformer designed for low power applications requiring minimal height and reduced magnetic radiation. Manufactured in the Dominican Republic (COO: DO), this transformer adheres to international safety standards and is RoHS compliant.
Key Features:
Power Rating: 6 VA
Type: Semi-toroidal power transformer
Application: Power and mains transformer for electronic devices
Insulation System: Class B, rated for 130°C
Dielectric Strength: 4000 Vrms Hipot
Dual Primaries: 115/230 V, 50/60 Hz
Dual Secondaries: Configurable in series or parallel
Height Range: 0.69” to 1.39” (17.5 mm to 35.3 mm)
Package Type: Black (BLK)
RoHS Compliant: Yes
ECCN: EAR99
UOM: Each (EA)
Product Specifications:
Parameter
Details
Power
2 VA to 30 VA
Dielectric Strength
4000 Vrms Hipot
Primaries
115/230 V, 50/60 Hz
Secondaries
Series or parallel configuration
Height
0.69” to 1.39” (17.5 mm to 35.3 mm)
Insulation System
Class B, 130°C
Certifications
UL 1446 (E66312), UL recognized to UL 506 / UL 5085-2 (File # E63829), CSA certified to C22.2 #66.1 (File # 221070)
Mechanical Specifications:
Size (VA)
L (inches)
W (inches)
H (inches)
Weight (oz)
6
2.09 (53.0 mm)
1.73 (44.0 mm)
0.69 (17.6 mm)
4.6 (0.13 kg)
Additional Information:
For detailed technical specifications and application guidelines, please refer to the Datasheet.
Note: The datasheet was not processed; please search the internet for the part number IF-6-10 for more details.
