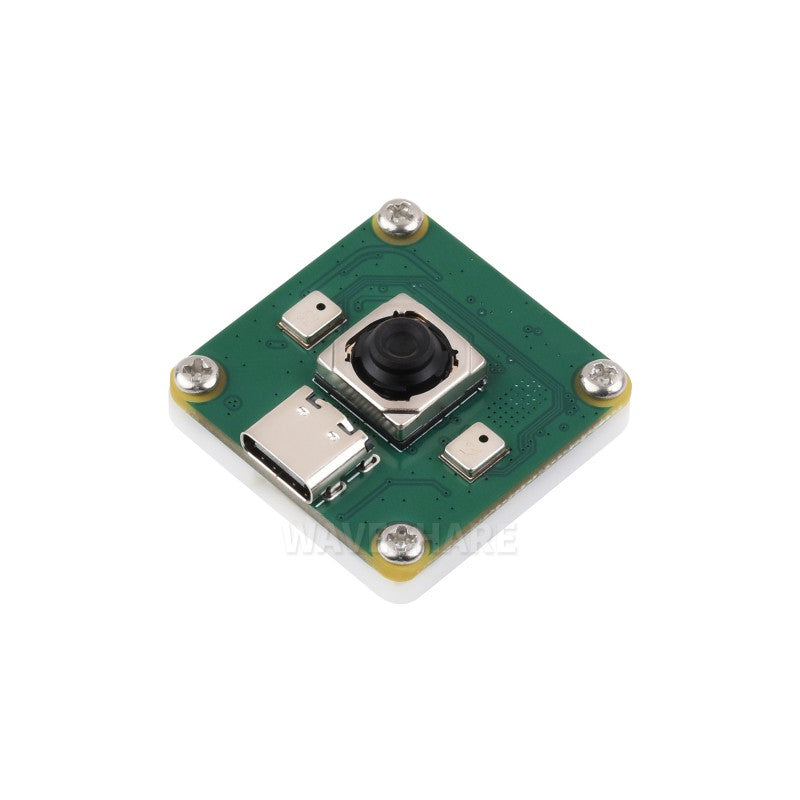

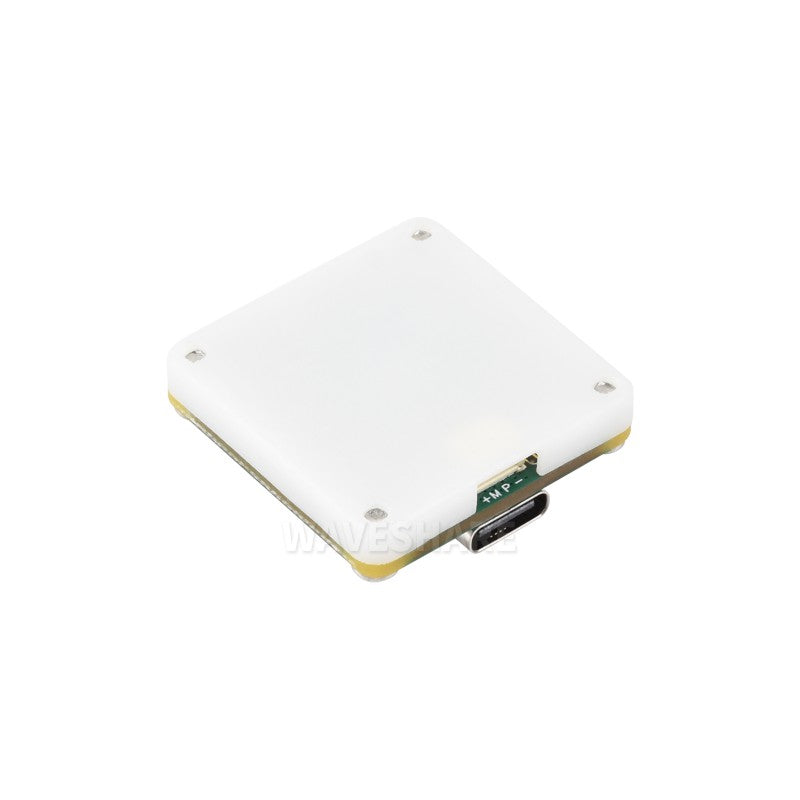

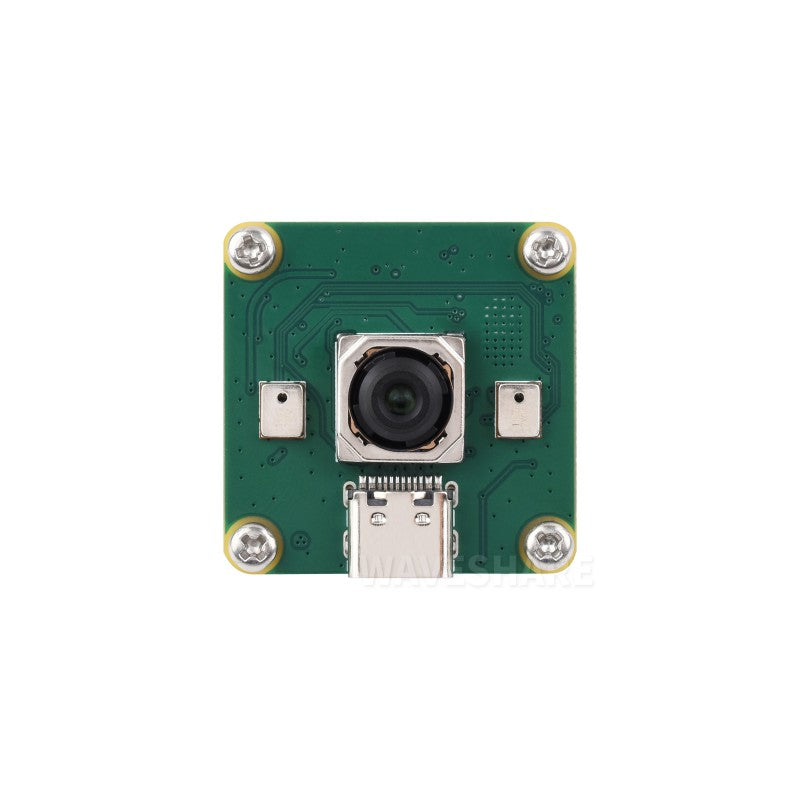

IMX378 12MP USB camera module
12MPā|āUSB Type-C portā|ā79.8Ā° FOVā|āDual Microphones
Ā
Specifications
| Pixels | 12MP |
| Sensor | IMX378 |
| Interface | USB2.0 Type-C |
| Sensor Size | 1/2.3 inch |
| Aperture (F) | 1.79 |
| Focal Length (EFL) | 4.7mm |
| Field of View (FOV) | 79.8Ā° |
| Distortion | <0.39% |
| Focusing | Auto-focus |
| Image Format Support | MJPG, YVY2 |
| Static Image Resolution | 3840 Ć 3032 |
| Video Recording | 30 FPS 3840 Ć 3032 30 FPS 3840 Ć 2160 30 FPS 2592 Ć 1944 |
| Audio | Onboard dual microphones |
| Operating Voltage | 5V Ā± 5% |
| Operating Temperature | 0Ā°C ~ 50Ā°C |
| Module Size | 30.00 Ć 30.00 (mm) |
Ā
Connecting with USB cable

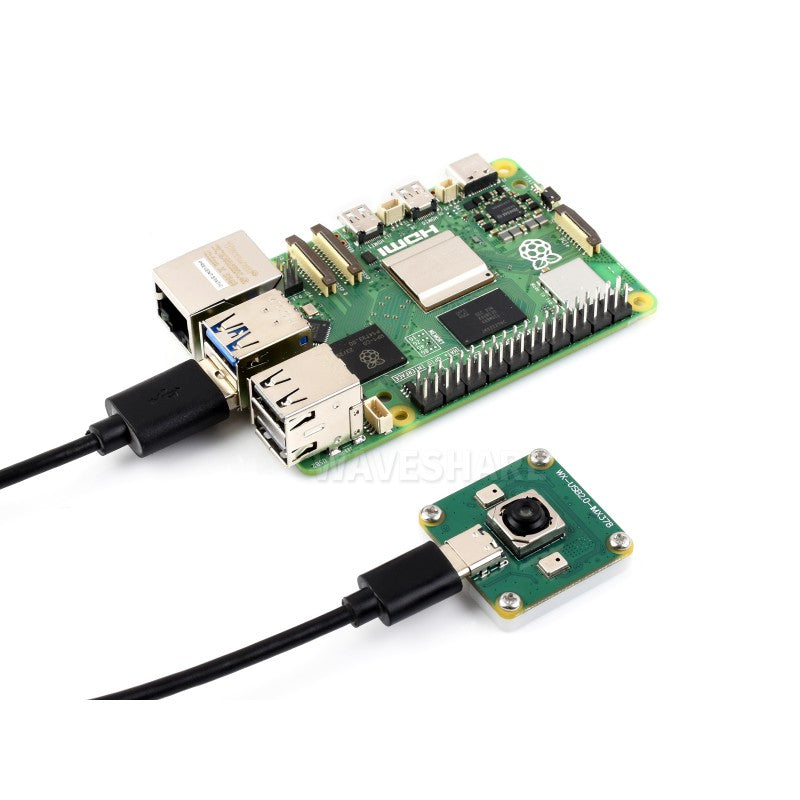

 Connecting to Raspberry Pi 5 |
 Connecting to Jetson Orin kit |
 Connecting to RDK X5 Development Board |
* for reference only, the Raspberry Pi 5, Jetson Orin kit and RDK X5 Development Board are not included
Ā
12MP High Resolution
Supports 30 FPS output, suitable for capturing details
Ā
Distortion-Free
Equipped with a distortion-free lens with a distortion rate of less than 0.39%, delivering undistorted imaging and more accurate reproduction of real-world scenes
* Note: In the industry, lenses with distortion rate less than 2% are generally considered distortion-free.
Ā
Pinout Definition
Ā
Onboard Two Types of Connectors
 Connecting via USB Type-C port |
 Connecting via 1.0mm pitch 4PIN connector |
Ā
Outline Dimensions
Ā
Resources
Wiki: www.waveshare.com/wiki/IMX378_12MP_USB_Camera_(A)
Ā
Package Content
Weight: 0.02 kg
IMX378 12MP USB Camera (A) x1
SH1.0 4PIN dual plug cable x1
Which devices can I connect this camera to?
It connects via USB Type-C and is compatible with USB host boards such as Raspberry Pi 5 and Jetson Orin kits; the boards are not included.
What is the distortion performance and field of view?
Distortion is less than 0.39 percent and the field of view is 79.8 degrees.
What resolutions and frame rates are supported?
The 12 MP IMX378 sensor supports 30 FPS at multiple resolutions, including 3840 x 3032, 3840 x 2160, and 2592 x 1944.
Does it include audio capture?
Yes, it has onboard dual microphones for audio capture.
What are the power and operating conditions?
Operating voltage is 5V +/- 5 percent and the operating temperature range is 0 C to 50 C.
